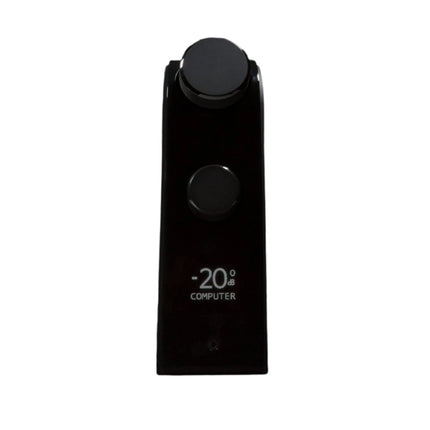

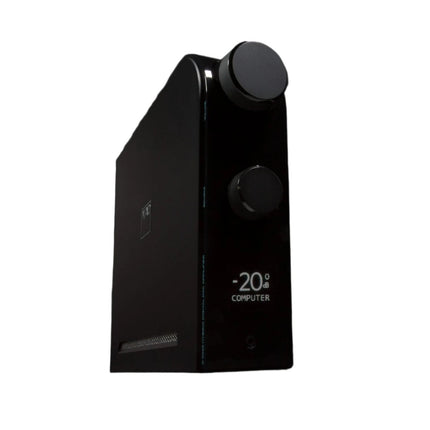

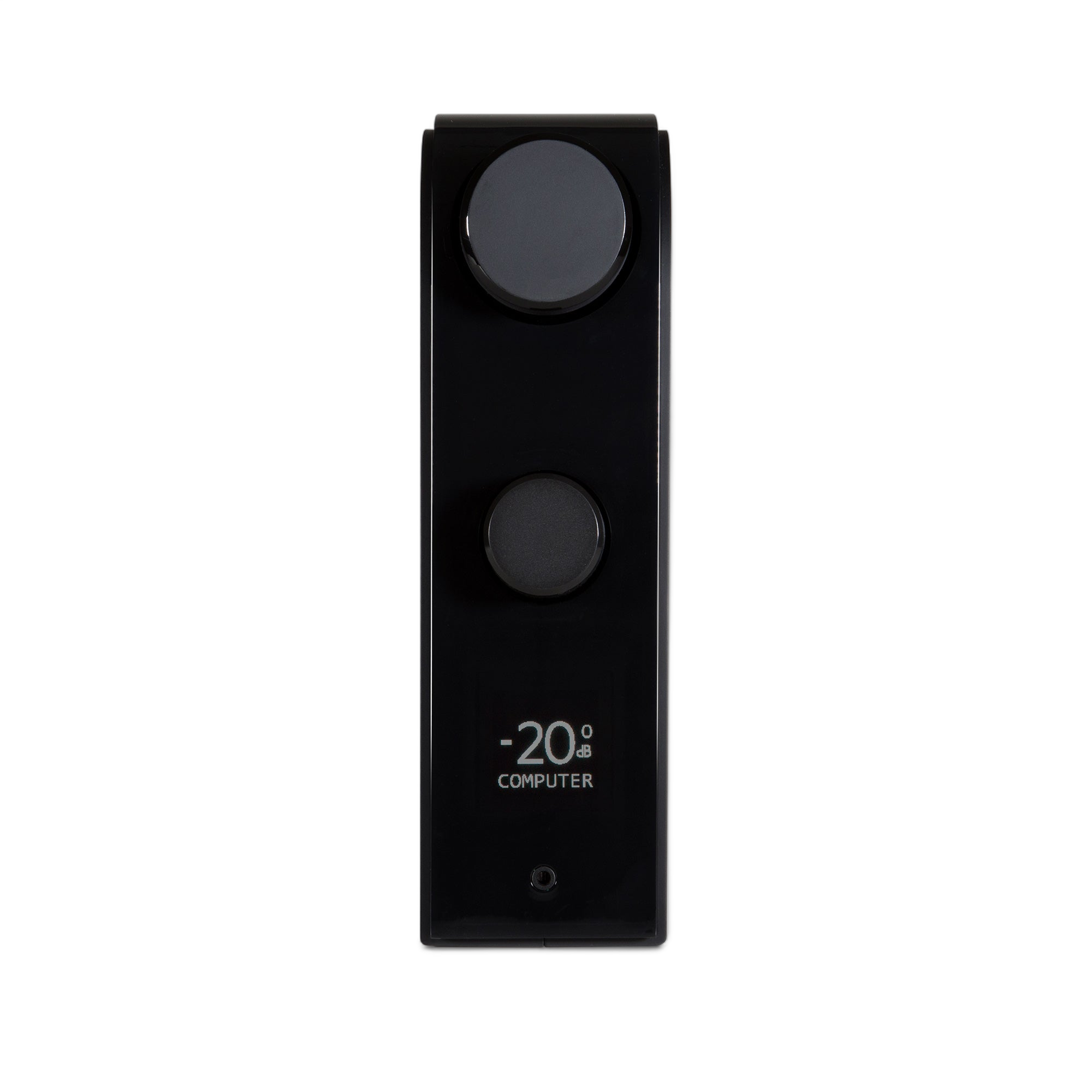

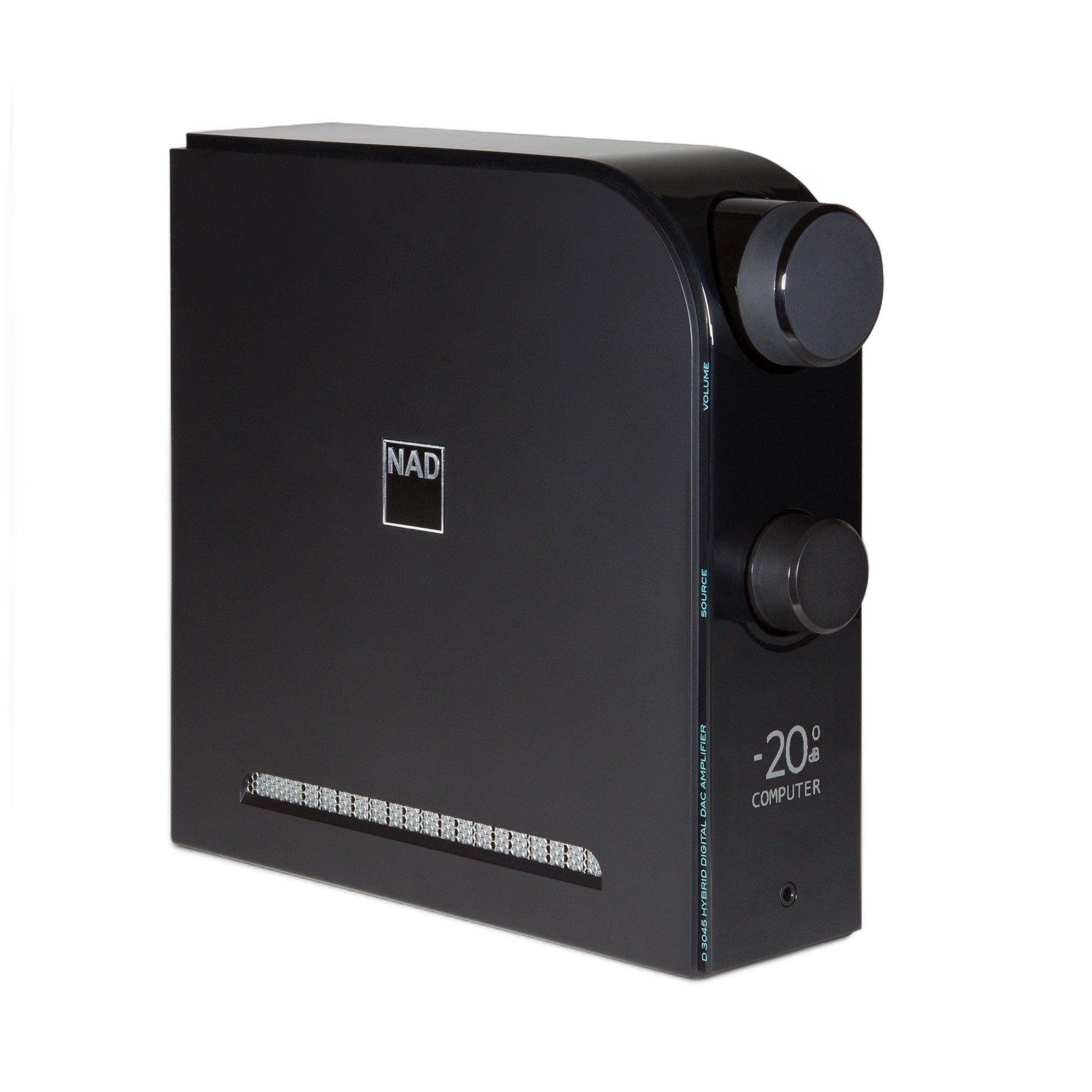

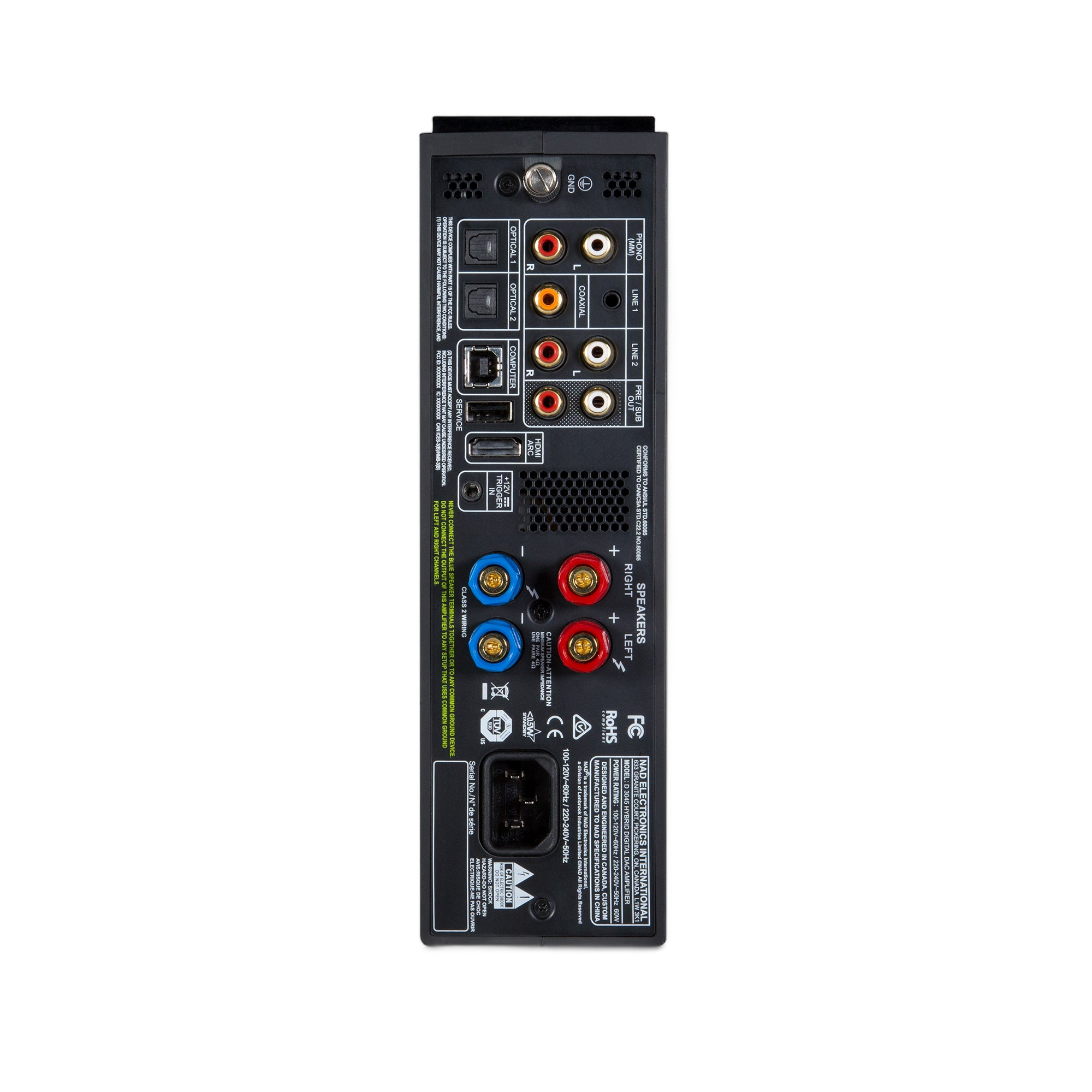

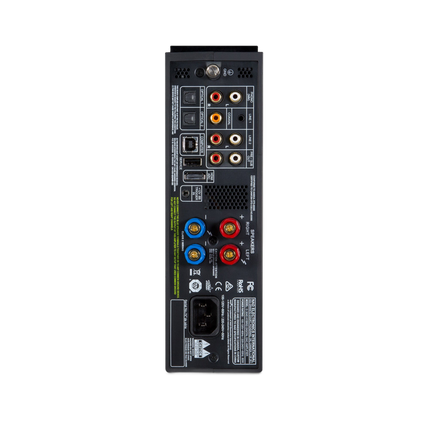

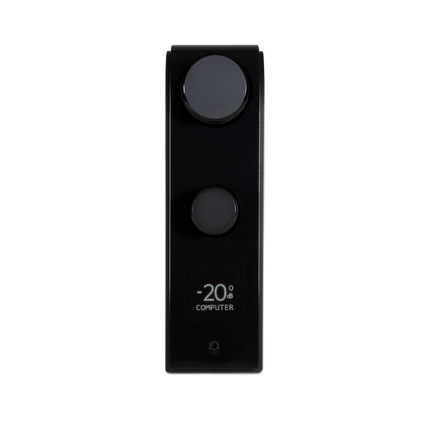

Amplificator NAD D 3045

Name: Amplificator NAD D 3045
Brand: NAD
SKU: ref.38247
Price: 2899.0 RON
Availability: OutOfStock

Form

Ridicare gratuita din showroom

Cod produs: ref.38247

In stoc

2.899 lei / Bucata 3.999 lei Vezi oferta REsigilate de la 2.799 lei

30 de zile perioada de retur

Garantie 24 luni

Transport gratuit pentru comenzi peste 100 RON in Romania

Livrare prin curier sau ridicare din showroom Bucuresti

Pentru plata în rate alegeți NETOPIA ca procesator de plăți.

6 Rate

Card Avantaj

6 Rate

Alpha Bank

6 Rate

BRD

6 Rate

Banca Transilvania

6 Rate

Garanti Bank

12 Rate

Raiffeisen Bank (in showroom)

Descriere

Preamplifier section line input/ pre out
THD (20Hz – 20kHz) 0.003% at 2V out
Channel separation 85dB (1kHz), 80dB (10kHz)
Input impedance (R and C) 47kohms + 220pF
Output impedance 400 Ohms
Frequency response ±0.2dB (20Hz – 20kHz)
Phono input/ pre out
THD (20Hz – 20kHz) 0.015% at 2V out
Input sensitivity 1.35mV (ref. 500mV out, Volume maximum)
Frequency response ±0.3dB (20Hz – 20kHz)

Alte informatii

Link producator: click aici

Continut pachet: vezi detalii ascunde detalii

Detachable mains power cord
AMP 3 remote control with 3V CR2025 battery
Eight pieces of dome-shaped feet
Quick Setup Guide

Manual: descarca fisierul

Fisa de produs: descarca fisierul

Cauti un pachet PROMO personalizat?

Spune-ne de ce ai nevoie si revenim cu o oferta " de nerefuzat "

Disponibil ca RE-Sigilat

Produs VERIFICAT de un expert Audio Monkey - functioneaza perfect si nu are niciun defect sau semn de utilizare. Beneficiaza de garantie si drept de retur la fel ca un produs nou.

Amplificator NAD D 3045 resigilat

Stoc: intreaba despre disponibilitate

Resigilat

2.799 lei

Specificatii tehnice Amplificator NAD D 3045

PREAMPLIFIER SECTION LINE INPUT/PRE OUT
THD (20Hz – 20kHz): <0.003% at 2V out
Signal-to-Noise Ratio: >100dB (IHF, A-weighted, ref. 500mV out, unity gain)
Channel separation:
>85dB (1kHz)
>80dB (10kHz)
Input impedance (R and C): 47kohms + 220pF
Maximum input signal: >5.5Vrms (ref. 0.1% THD)
Output impedance: 400 Ohms
Input sensitivity: 82mV (ref. 500mV out, Volume maximum)
Frequency response: ±0.2dB (20Hz – 20kHz)
Maximum voltage output – IHF load: >4V (ref. 0.1% THD)

PHONO INPUT / PRE OUT
THD (20Hz – 20kHz): <0.015% at 2V out
Signal-to-Noise Ratio:
>82dB (200 Ohm source, A-weighted, ref. 500mV out)
>76dB (MM cartridge source, IHF; A-weighted, ref. 500mV out)
Input sensitivity: 1.35mV (ref. 500mV out, Volume maximum)
Maximum input signal at 1kHz: >90mVrms (ref. 0.1% THD)
Frequency response: ±0.3dB (20Hz – 20kHz)

LINE INPUT / HEADPHONE OUT
THD (20Hz – 20kHz): <0.003% at 120mW
Signal-to-Noise Ratio: >90dB (32 Ohm load; A-weighted, ref. 500mV out, unity gain)
Frequency response: ±0.3dB (20Hz – 20kHz)
Output impedance 2 Ohms: Maximum headphone output – 32 Ohm load <8V (ref. 0.1% THD)

GENERAL SPECIFICATIONS LINE INPUT/SPEAKER OUT
Continuous output power into 4 and 8 Ohms: 60W (ref. 20Hz-20kHz at 0.03% THD, both channels driven)
THD (20Hz – 20kHz): <0.005% (at 1W, 4 and 8 ohms)
Signal-to-Noise Ratio: >98dB (A-weighted, 500mV input, ref. 2.828V out in 4 Ohms)
Clipping power: >80W (at 1kHz 4 Ohms 0.1% THD)
IHF dynamic power:
8 Ohms : 80W
4 Ohms : 150W
2 Ohms : 200W
Peak output current: >18A (in 1 Ohm, 1ms)
Damping factor: >300 (ref. 8 Ohms, 20Hz to 6.5kHz)
Frequency response: ±0.3dB (20Hz – 20kHz)
Channel separation:
>75dB (1kHz)
>70dB (10kHz)
Input sensitivity: 260mV (for 30W in 4 Ohms)
Supports bit rate/sample rate:
up to 24 bit/192kHz (digital source)
up to 24 bit/384kHz (computer source)
Standby power: <0.5W

DIMENSION AND WEIGHT
Gross dimensions (W x H x D): 70 x 235 x 265 mm
2 13/16 x 9 5/16 x 10 7/16 inches
Net weight: 3.6kg (7.9lb)
Shipping weight: 2.6kg (5.7lb)

D 3045
Hybrid Digital Amplifier

HIGHER FIDELITY

High Res is to audio, what High Definition is to video. It is more lifelike and natural, and an altogether more enjoyable listening experience. With features like Master Quality Authenticated (MQA) the D 3045 can faithfully and accurately reproduce the full spectrum of sound encapsulated on the Studio Master. Until now, music lovers have only been allowed to hear an edited version of the full fidelity because our delivery systems, be it tape, vinyl, or CD, did not have the capacity to hold all the information contained in the Studio Master recording. With High Res downloads and streaming we can now enjoy exactly the same experience the artist heard in the studio when the recording was first made.

AMAZING CAPABILITY

We recognize that just because there is a new better format available doesn’t mean your present music collection will be discarded – far from it. So we have included all the inputs and circuits required to listen to all your current music, while also possessing the capability to fully exploit today’s best High Res sources. Especially notable is the Asynchronous USB input for attaching a computer which allows High Res streaming using one of the several High Res programs like Roon, JRiver, and Amarra. Asynchronous operation uses the D 3045’s precision clock (instead of the computers clock) to reduce jitter to a minimum and make the USB format work ideally for audio. For everyday convenience we have included Bluetooth wireless streaming featuring aptX HD, the latest 24-bit High Res version of Bluetooth that is being supported by more and more phones and tablets. Additionally, if you have Bluetooth headphones, you can also stream your non-Bluetooth sources wirelessly to your headphones, or you can plug in your wired headphones to enjoy the exceptional performance of our low impedance, high current, Headphone Amplifier.

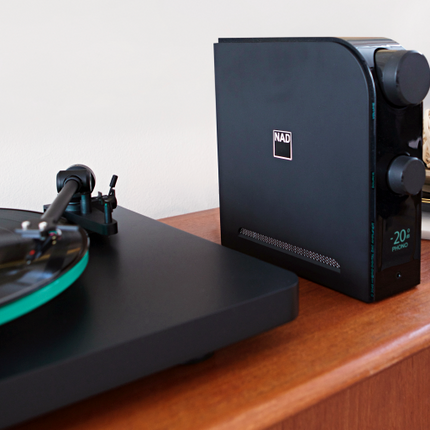

Love vinyl? The D 3045 features NAD’s super accurate, wide dynamic range, Moving Magnet Phono preamp to extract every last morsel of sound from your LPs. If you still play CDs, we have both analog and digital inputs. The digital inputs allow use of the advanced High Res DAC built into the D 3045. You can even send the sound from your TV to the NAD and seamlessly control the system using your TV’s remote by taking advantage of the HDMI ARC input. Complete your system by adding a subwoofer with the convenient Sub Out jack.

The NAD D 3045 includes advanced capabilities usually only found in far more expensive components. High Res USB DACs? They start at about 3X the price of the D 3045. High Current headphone amplifiers start at the price of the D 3045 and go up from there. Power Amps featuring 60wpc and with the low distortion and high current capability of the D 3045 are rare at this price
