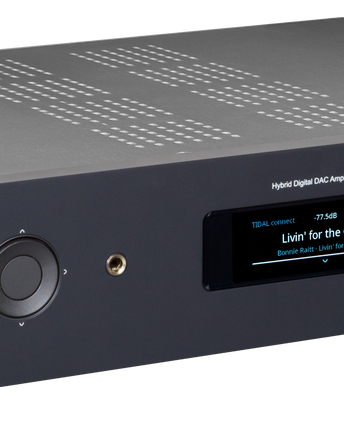

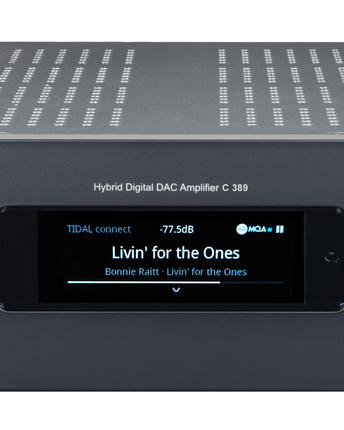

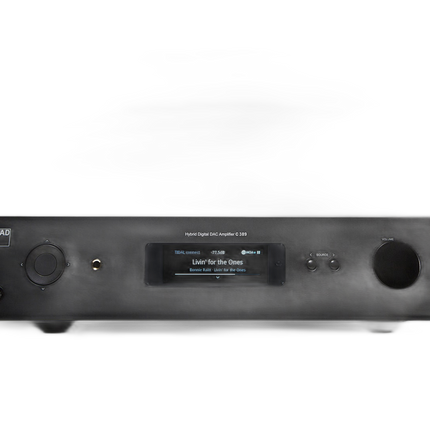

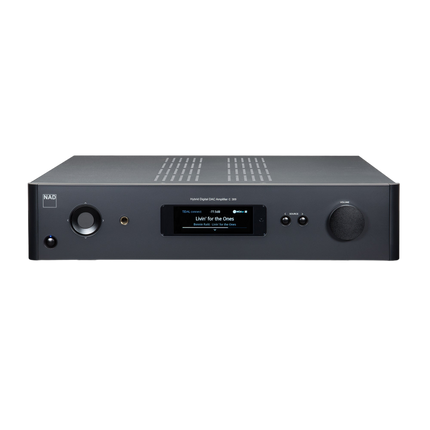

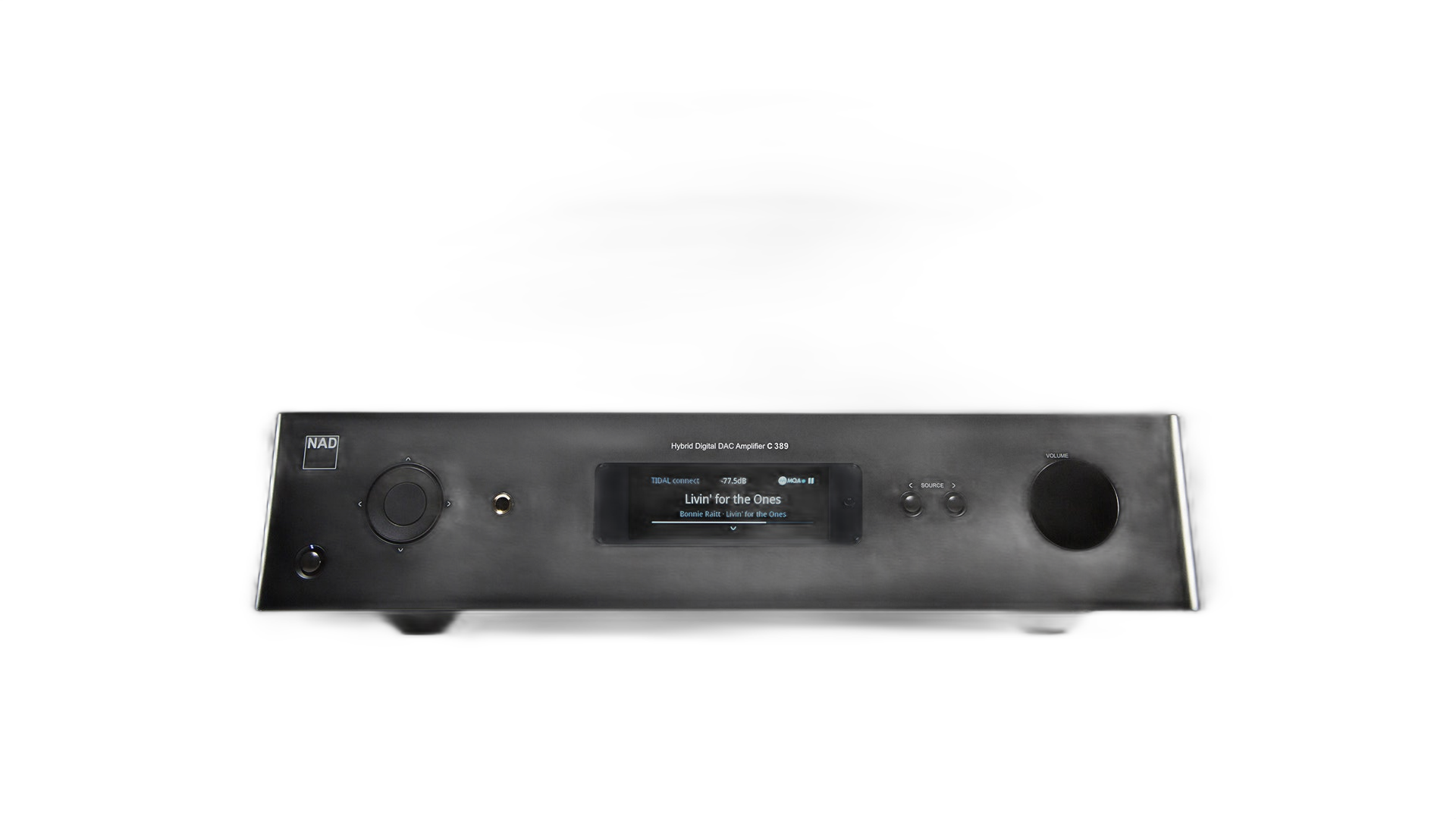

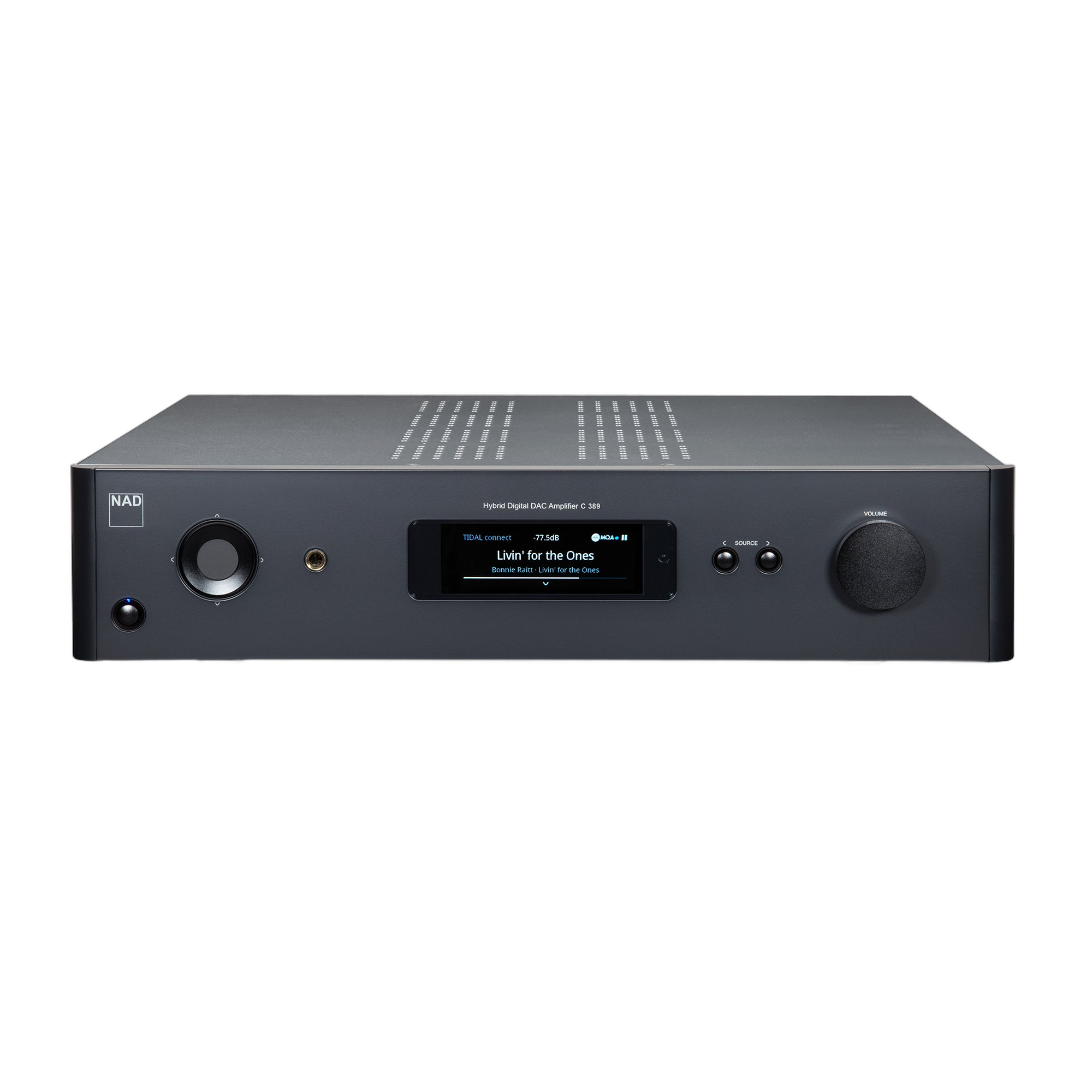

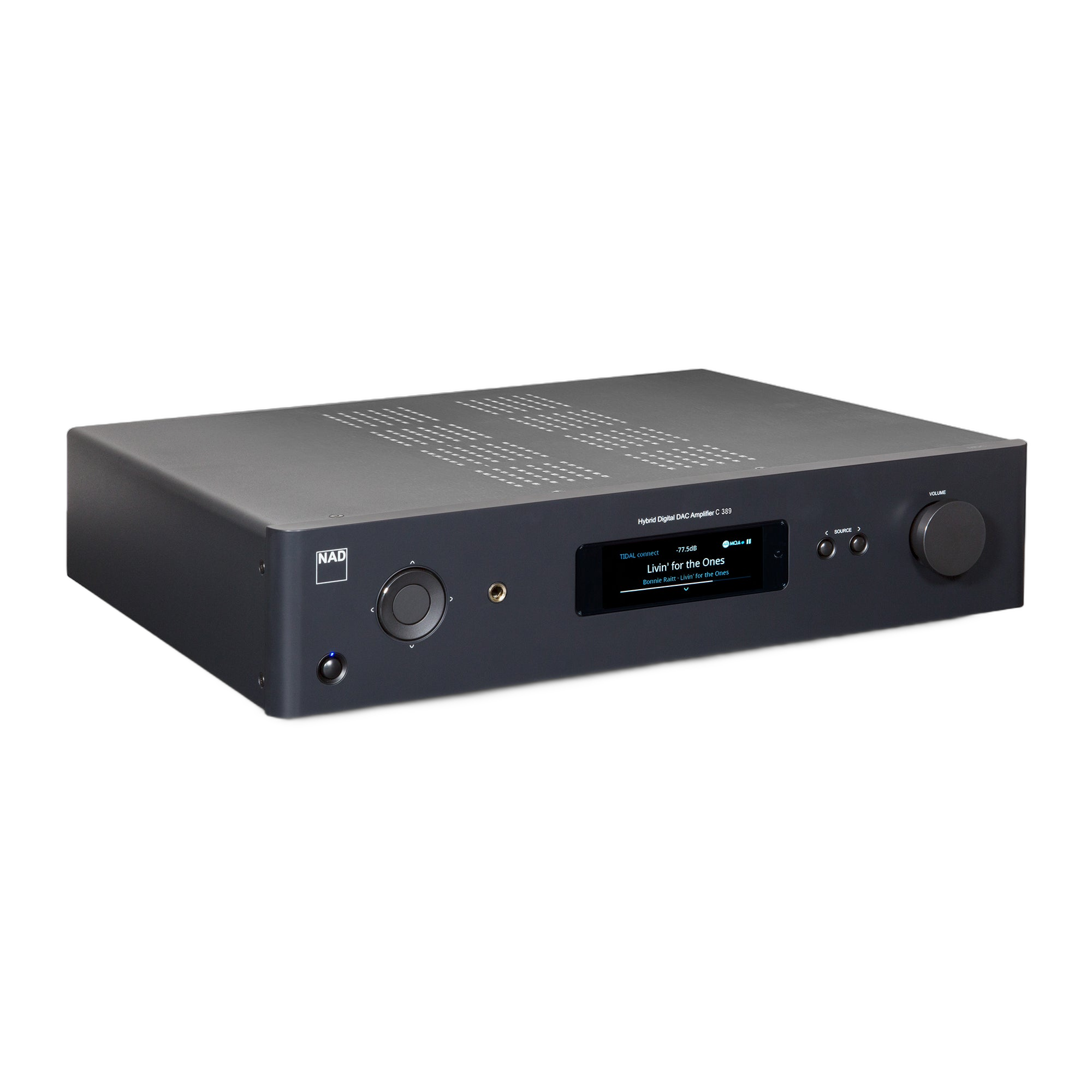

Amplificator integrat NAD C 389

NAD
Share

Ridicare gratuita din showroom

Cod produs: NADC389

In stoc

5.699 lei / Bucata 7.999 lei Vezi oferta REsigilate de la 4.999 lei Vezi si pachete PROMO

30 de zile perioada de retur

Garantie 24 luni

Transport gratuit pentru comenzi peste 100 RON in Romania

Livrare prin curier sau ridicare din showroom Bucuresti

Pentru plata în rate alegeți NETOPIA ca procesator de plăți.

6 Rate

Card Avantaj

6 Rate

Alpha Bank

6 Rate

6 Rate

Banca Transilvania

6 Rate

Garanti Bank

12 Rate

Raiffeisen Bank (in showroom)

Descriere

Amplificator C 389 HybridDigital UcD in configurație integral balansata bridge
2 x 130 Watts RMS în 8 / 4 ohmi
HDMI-eARC
Două porturi MDC2 pentru modul BluOS opțional și alte funcționalități extinse
32-bit/384kHz ESS Technology Sabre DAC chip
Distorsiuni insesizabile pe intreaga gama de frecvente
MM phono stage with infrasonic filtering circuitry Vanishingly low harmonic and intermodulation distortion
Two optical, two coaxial digital inputs
Two pairs of line-level analogue inputs with ultra-low-noise buffer amplifiers
Speaker A, speaker B output
Optional MDC2 BluOS-D module adds BluOS Hi-Res multi-room music streaming and Dirac Live room correction
Jitter-free 32-bit/384kHz ESS Sabre 9028 DAC
Bluetooth aptX-HD playback
Dual subwoofer outputs
Dedicated headphone amplifier
CI-Friendly – IR remote, 12V Trigger in/out, IR in/out, RS-232 Serial port
Seamless integrations with smarthome control systems such as Control4, Crestron, RTI, URC, Lutron, and Elan

Alte informatii

Link producator: click aici

Manual: descarca fisierul

Fisa de produs: descarca fisierul

Cauti un pachet PROMO personalizat?

Spune-ne de ce ai nevoie si revenim cu o oferta " de nerefuzat "

Disponibil ca RE-Sigilat

Produs VERIFICAT de un expert Audio Monkey - functioneaza perfect si nu are niciun defect sau semn de utilizare. Beneficiaza de garantie si drept de retur la fel ca un produs nou.

Amplificator integrat NAD C 389 resigilat

In stoc

Resigilat

4.999 lei

Specificatii tehnice Amplificator integrat NAD C 389

LINE INPUT, PRE-OUT (ANALOG BYPASS ON)
THD (20Hz – 20kHz): <0.002 % at 2 V out
Signal-to-Noise Ratio: >106dB (IHF; A-weighted, ref. 500 mV out, unity gain)
Channel separation: >100dB (1 kHz); >90 dB (10 kHz)
Input Impedance (R and C): 56 kohms + 100 pF
Maximum input signal: >4.6 Vrms (ref. 0.1 % THD)
Output impedance: Source Z + 320 ohms
Input sensitivity: 65mV (ref. 500 mV out, Volume maximum)
Frequency response: ±0.3 dB (20 Hz – 20 kHz)
Maximum voltage output -IHF load: >>5 V (ref. 0.1 % THD)

PHONO INPUT, PRE-OUT (ANALOG BYPASS ON)
THD (20Hz – 20kHz): <0.01% at 2 V out
Signal-to-Noise Ratio: >84dB (200 ohms source; A-weighted, ref. 500 mV out)
Input sensitivity: 46 kohms/100 pF
Frequency response: ±0.3 dB (20 Hz – 20 kHz)
Maximum input signal at 1kHz: >80 mVrms (ref. 0.1 % THD)

LINE INPUT, HEADPHONE OUT (ANALOG BYPASS ON)
THD (20Hz – 20kHz): <0.005% at 1V out
Signal-to-Noise Ratio: >107 dB (32 ohms loads; A-WTD, ref. 1V out, unity gain
Frequency response: ±0.3 dB (20 Hz – 20 kHz)
Channel separation: >62 dB at 1kHz
Output impedance: 2.2 Ohms

LINE IN, SPEAKER OUT (ANALOG BYPASS ON)
Continuous output power into 8 ohms and 4 ohms: 2 x 130W
THD (20 Hz – 20 kHz): <0.02% (250 mW to 130 W, 8 ohms and 4 ohms)
Signal-to-Noise Ratio: >95 dB (A-weighted, 500 mV input, ref. 1 W out in 8 ohms)
Clipping power: 150W
IHF dynamic power:
210W into 8 ohms
300W into 4 ohms
350W into 2 ohms
Peak output current: >26A (in 1 ohm, 1ms)
Damping factor: >150 (ref. 8 ohms, 20Hz to 6.5kHz)
Frequency response: >±0.3 dB (20 Hz – 20 kHz)
Channel separation: >90dB (1 kHz)>75dB (10 kHz)
Input sensitivity (for 130 W in 8 ohms): Line In: 201 mV, Digital In: 10.25% FS

GENERAL SPECIFICATIONS
Supports bit rate/sample rate: up to 32 bit/384 kHz
Frequency band: 2.402GHz- 2.480GHz
Maximum transmit power (dBm): 7 dBm ± 2 dBm

DIMENSIONS AND WEIGHT
Gross dimensions (W x H x D): 435 x 100 x 390mm (17.1 x 3.9 x 15.4“)
Net Weight: 8.7kg (19.1lb)
Shipping weight: ~11kg (24.2lb)

C 389
HybridDigital DAC Amplifier

The NAD C 389 HybridDigital DAC amplifier can serve as the cornerstone of a high-performance audio system now – and for decades to come. Employing NAD’s proven HybridDigital UcD amplifier design and the same ESS Sabre DAC used in NAD’s acclaimed M33 BluOS streaming amplifier, the C 389 will deliver thrilling dynamics and exquisite detail from all your sources.
With its full suite of digital and analogue inputs, including an ultra-low-noise phono stage and HDMI eARC interface, the C 389 can accommodate all your source components. And it incorporates the latest generation of NAD’s Modular Designs Construction future-proofing technology, making it easy to add exciting capabilities such as BluOS high-res music streaming and Dirac Live room correction.

A black audio receiver on a table beside a lamp.

Power and Performance

For over 50 years, the NAD brand has been synonymous with performance and value, and the C 389 HybridDigital DAC Amplifier continues that tradition. Its output stage is based on a customized version of NAD’s efficient HybridDigital UcD design, with multiple UcD amplifier modules in balanced bridged configuration and an innovative switch-mode power supply that provides ample reserves of current on demand. The C 389 can deliver a staggering 130W per channel continuously, with virtually unmeasurable distortion and noise through the audioband, and up to 350W per channel of instantaneous power, for effortless reproduction of musical transients.

SEE MORE

The digital section features the same 32-bit/384kHz ESS Technology Sabre DAC chip used in NAD’s award-winning Masters M33 amplifier. Renowned for its exceptionally wide dynamic range, ultra-low noise and distortion, and near-zero levels of clock jitter, the ESS Sabre 9028 DAC enables the C 389 to deliver astonishing clarity and near-holographic imaging on all sources.

Future Friendly

In 2006, NAD introduced Modular Design Construction technology, which lets users add new features by inserting an expansion module into an MDC-capable component. In 2021, NAD introduced MDC2, a next-generation future-proofing platform that enables two-way communications between the expansion module and host component.

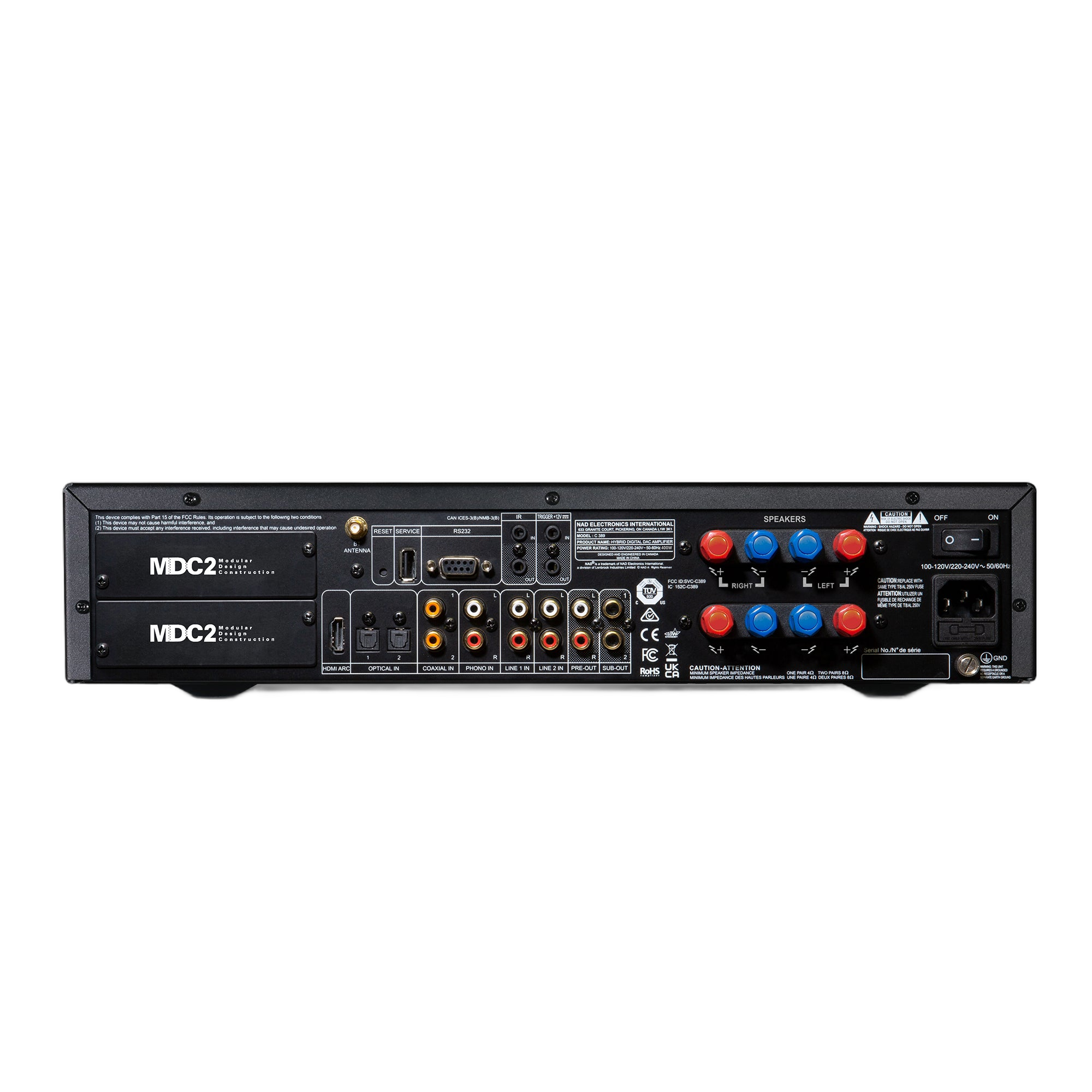

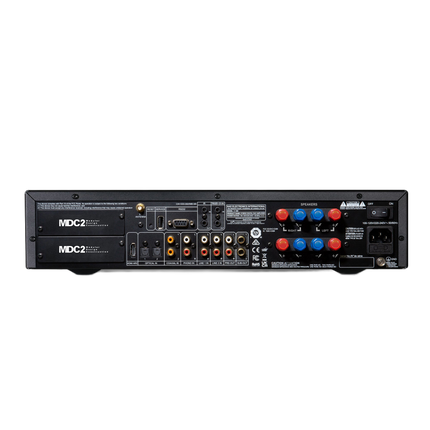

The C 389 has two MDC2 expansion slots, so that it can stay current with new developments in A/V technology. NAD’s first MDC2 module is the MDC2 BluOS-D, which features BluOS high-res multi-room streaming and Dirac Live room correction.

SEE MORE

The MDC2 BluOS-D connects to your home network via Wi-Fi or wired Ethernet. Using the BluOS Controller app on a smart device or personal computer, you can play music from your favourite streaming services and personal music library through the C 389. BluOS has integrated support for more than 20 services, including several that offer lossless and high-res audio, such as Amazon Music HD, Deezer, Idagio, Qobuz and Tidal. Like all BluOS-enabled components, the MDC2 BluOS-D has MQA decoding and rendering capability, for high-res streaming from Tidal. It also supports Apple AirPlay 2, Spotify Connect and Tidal Connect, as well as Amazon Alexa voice control. With the MDC2 BluOS-D installed, the C 389 can be part of a whole-home music system with as many as 64 zones.
By counteracting common acoustic problems like standing waves and room reflections, Dirac Live room correction transforms your listening experience. Connect the supplied microphone to the MDC BluOS-D’s USB port, and then run the free Dirac Live app on a smart device or personal computer. Dirac Live will play test tones through your speakers, analyze the results, then transfer compensation filters to the MDC BluOS-D. You’ll enjoy deeper, more textured bass; more precise imaging; greater midrange clarity; and more accurate tonal balance. Thanks to MDC2’s two-way architecture, the MDC2 BluOS-D delivers these benefits on all sources connected to the C 389.

Everything’s Connected

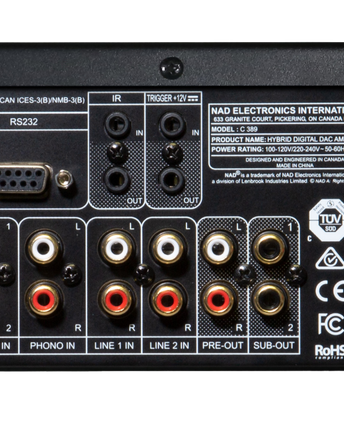

The C 389 can accommodate all your analogue and digital source components. Connectivity options include two optical and two coaxial digital inputs and two sets of RCA line-level analogue inputs. The analogue inputs have ultra-low-noise buffer amplifiers for greater sonic purity.
For vinyl enthusiasts, the C 389 features a precise MM phono section with accurate RIAA equalization, high overload margins, and extremely low noise. The phono section incorporates an innovative circuit that suppresses the infrasonic noise that is always present during vinyl playback, without affecting bass performance.

SEE MORE

For movies and television, the C 389 has an HDMI eARC input so that you can play TV audio from through your high-fidelity speakers while controlling volume with the TV’s remote. Dual subwoofer outputs enable the C 389 to serve as the hub of a 2.1- or 2.2-channel system for music and movies. With the MDC2 BluOS-D installed, you can set crossover frequency with the BluOS app, for a seamless blend between the subwoofers and main speakers.
For private listening, the C 389 has a dedicated headphone amplifier with low output impedance and very high voltage output capability, making it a good match even for demanding studio headphones. The C 389 also features Bluetooth aptX-HD playback.
