Supported Audio File Formats: MP3, AAC, WMA, WMA-L, OGG, ALAC, OPUS
Supported Network File Sharing: Server Messsage Block (SMB) up to 200,000 files
Amplification: HybridDigital™
Supported Hi-Res Audio File Formats: FLAC, MQA, WAV, AIFF, MPEG-4 SLS
Bit Depth: 16-24
Rated Power Output: 80W x 2 (8 Ohms)
Supported Multi-Channel Audio Formats: Dolby® Digital
Performance:
SNR -100dBA
THD+N, 0.008%
IHF Dynamic Power: 220W (4 Ohms) / 130W (8 Ohms)
Native Sampling Rates: up to 192 kHz
DAC:
32-Bit, 384kHz
Differential Output design
Processor: ARM® Cortex™ -A53, Quad-Core, 1.8GHz per core
Operating System: BluOS
3rd-Party Integrations: AirPlay 2, Spotify Connect, Tidal Connect, Roon Ready
App Controller Operating System: iOS, Android, Windows Vista, 7, 8, 10, macOS 10-11
Album Art Supported: JPG, PNG
Control System: Control4, Crestron, URC, RTI, ELAN, Lutron
Network File Sharing: SMB up to 200,000 track index
Voice Control: Amazon Alexa Skills
Product Weight: 1.78kg/3.9lbs
Power Consumption: 12 Watts
Product Dimensions:
220 x 70 x 190 mm
8.7 x 2.75 x 7.5 in
Shipping Dimensions:
300 x 300 x 95 mm
11.8 x 11.8 x 3.74 in
Storage Environment: -10°C to 50°C, 20% to 80% relative humidity
Shipping Weight: 3.15kg/6.94lbs
Operating Environment: '0°C to 40°C
Status Indicator: RGB LED x 2

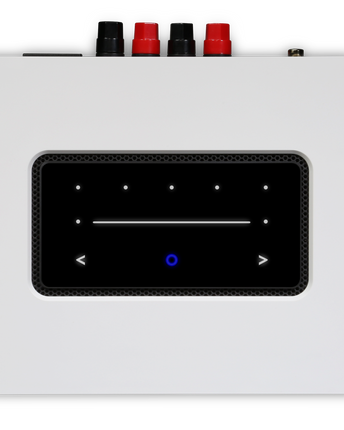

Volume Control Buttons: Touch Slider LED
Preset Buttons: Touch LED x 5
Play/Pause Button: Touch LED
Previous/Next Track Buttons: Touch LED
Proximity Sensor: Yes
Network:
Wi-Fi 5 (802.11ac, 2.4/5GHz)
Ethernet RJ45, GigE 1000 Mbps
Bluetooth:
Bluetooth with support for aptX HD
Two-Way (transmit & receive)
Bluetooth Quality: Bluetooth 5.0 aptX HD

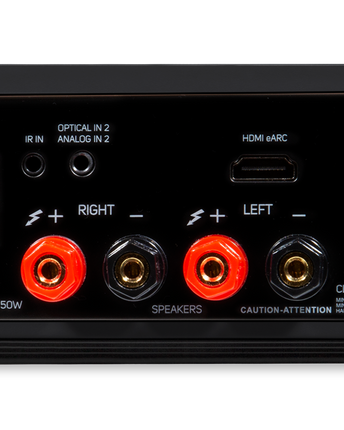

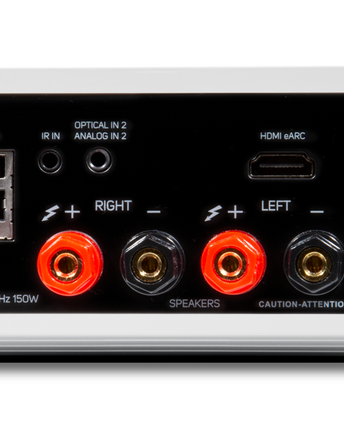

Audio Input:
Mini TOSLINK/3.5mm Stereo combo x 2
HDMI eARC
Headphones:
3.5mm Stereo Out
Wireless Bluetooth Out
USB IN: Type-A Port for external drive connection (Fat32 or NTFS formatted)
Audio Output: 5-Way Binding Post Speaker Terminals
Subwoofer:
RCA
Network Pairing to PULSE SUB+
IR Remote:
IR Sensor Built In - front panel with IR Remote Learning
Universal 3-pin AC cord input (100-240AC)
