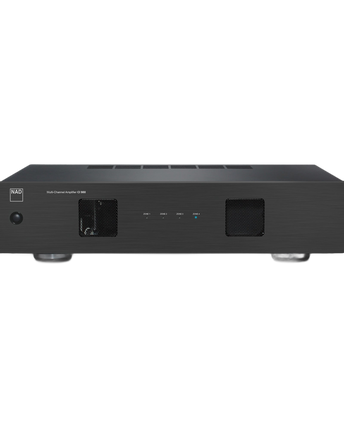

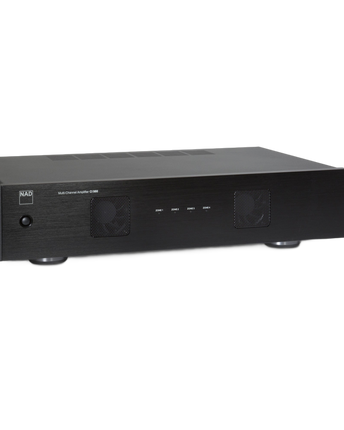

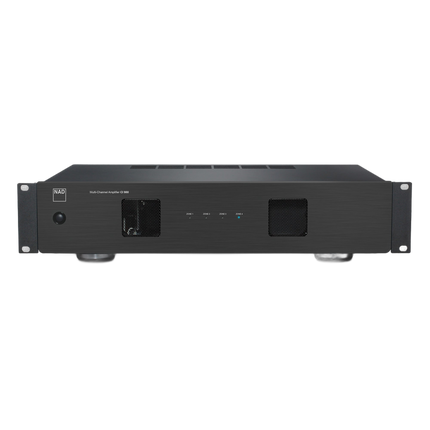

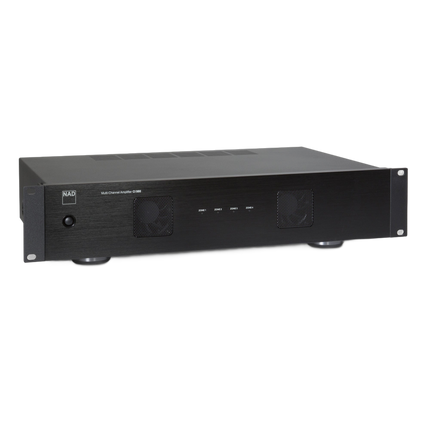

Amplificator de putere NAD CI 980 multicanal

NAD
Share

Ridicare gratuita din showroom

Cod produs: ref.37143

In stoc

7.499 lei / Bucata

30 de zile perioada de retur

Garantie 24 luni

Transport gratuit pentru comenzi peste 100 RON in Romania

Livrare prin curier sau ridicare din showroom Bucuresti

Pentru plata în rate alegeți NETOPIA ca procesator de plăți.

6 Rate

Card Avantaj

6 Rate

Alpha Bank

6 Rate

6 Rate

Banca Transilvania

6 Rate

Garanti Bank

12 Rate

Raiffeisen Bank (in showroom)

Descriere

Eight channels of clean, low distortion power set up in four stereo zone configuration
Universal voltage to accommodate marine or avionics installations

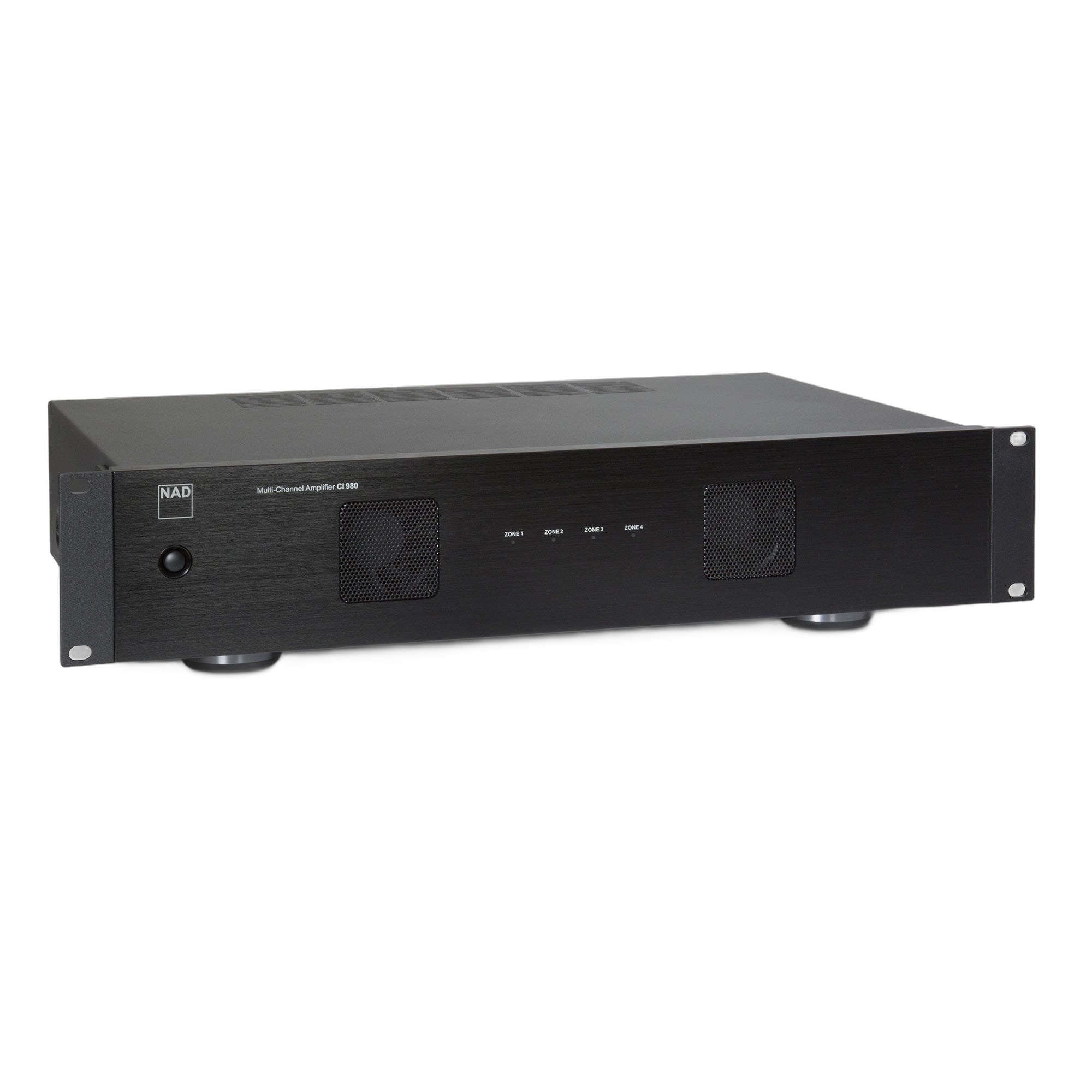

Compact 2U rack height with rack ears

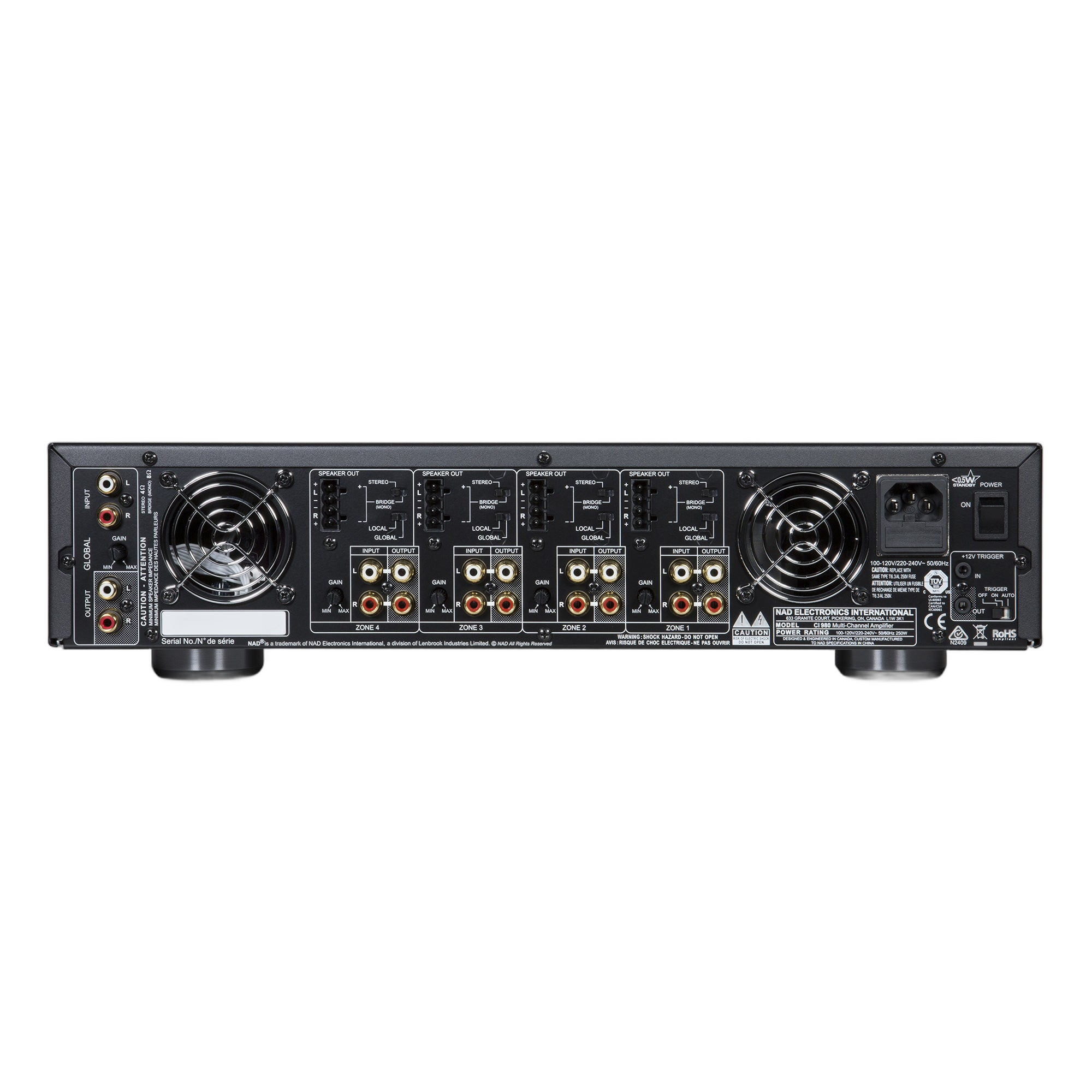

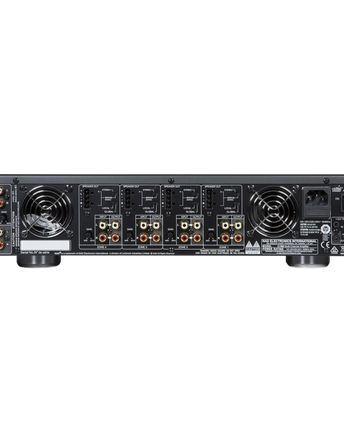

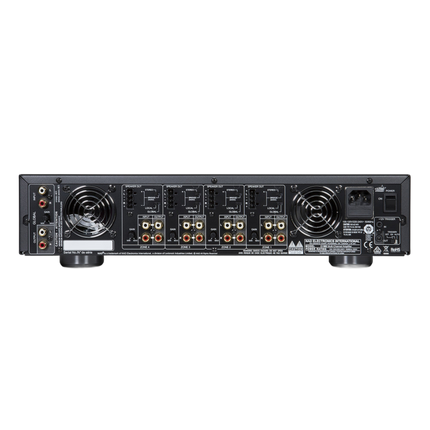

Phoenix speaker connection blocks
Detachable power cable for easy service and upgrades

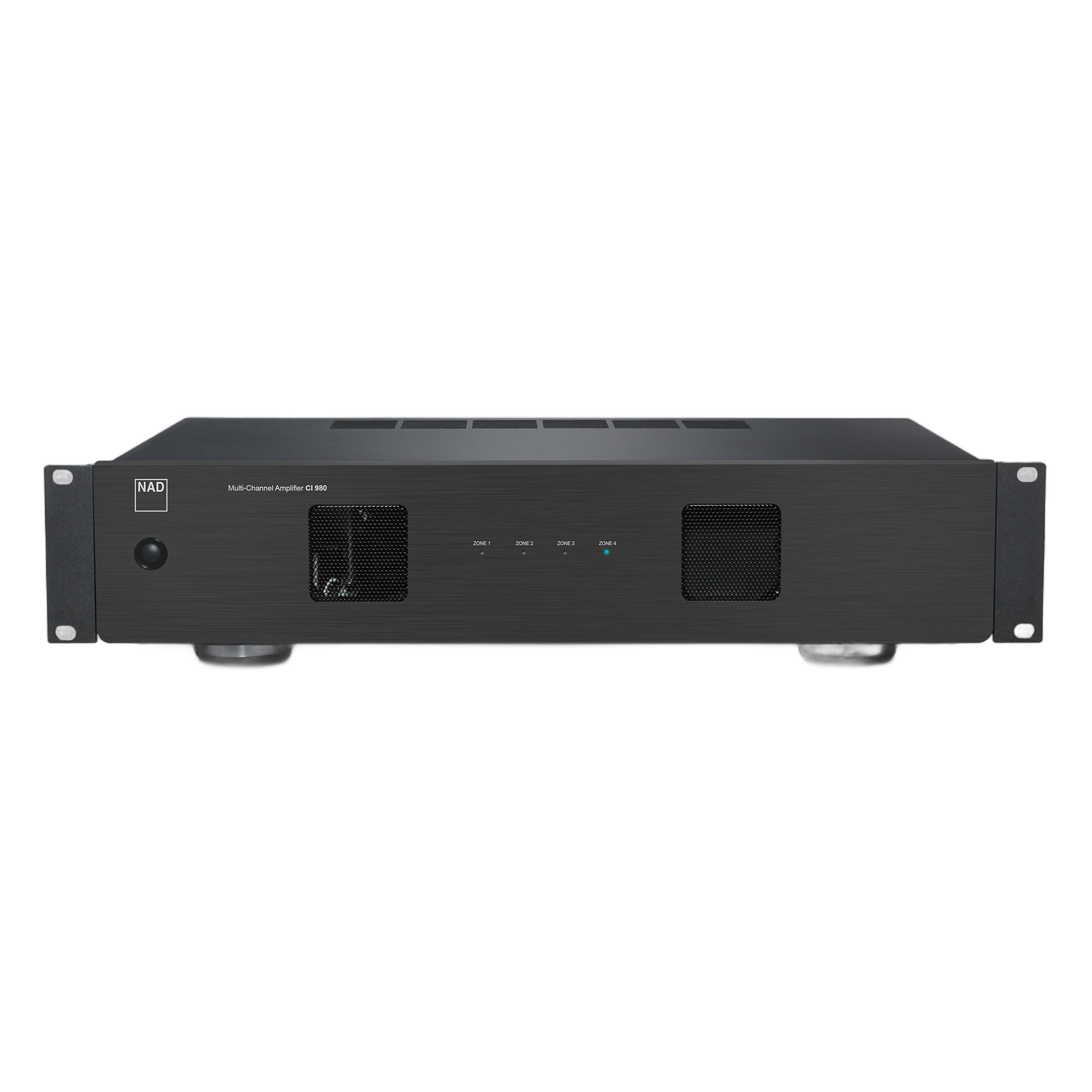

Indicator lamps for each zone that show protection status and amplifier clipping 0.5Wstandby consumption
Frequency Response 20Hz-20kHz ±1dB

Alte informatii

Link producator: click aici

Manual: descarca fisierul

Fisa de produs: descarca fisierul

Cauti un pachet PROMO personalizat?

Spune-ne de ce ai nevoie si revenim cu o oferta " de nerefuzat "

Specificatii tehnice Amplificator de putere NAD CI 980 multicanal

Overall Specifications
Continuous Output Power:
8 Ohms: 8 x 50W (ref. rated THD, 20Hz-20Hz, all channels driven)
4 Ohms: 8 x 60W
8 Ohms Bridge Mode: 120W
Rated THD (250mW to rated power, CCIF IMD, DIM 100: <0.03% (ref. 20Hz-20kHz)
Clipping Power: >155W (ref. 1kHz, 8 Ohms, 0.1% THD)
Damping Factor: >150 (ref. 8 Ohms, 50Hz and 1kHz)
Input Sensitivity: 1.1V (ref. rated power)
Voltage Gain: 33dB
Frequency Response: 20Hz-20kHz ±1dB
Signal/Noise Ratio, A-Weighted:
>80dB (ref. 1W/8 Ohms)
>100dB (ref. 50W)
Miniumu Input Signal to Trigger (auto sense mode): >20mV
Time to Automatic Standby (without signal at input sense mode): 10 minutes
Rated Power: 600W (120V 60Hz, 230V 50Hz)
Idle Power: <26W
Standby Power: <0.5W

Weight & Dimensions
Gross Dimensions (W x H x D): 483 x 105 x 323mm (19 1/16 x 4 3/16 x 12 3/4”)
Net Weight: 5.72kg (12.6lb)
Shipping Weight: 7.1kg (15.65lb)

CI 980

The NAD CI 980 is a compact powerhouse offering superb sound and robust reliability.

8 channels of clean NAD Power

With the CI 980, NAD introduces a new generation of high performance amplification for custom installation and distributed audio systems. The CI 980 has 8 channels of clean, low distortion power set up in a 4 stereo zone configuration. Boasting 50 watts per channel, the CI 980 is designed to drive low impedance speakers and long wire runs. By utilizing the latest high efficiency switching amplifier technology, the CI 980 is an all-new design built to be small, light, and very energy efficient, with superb musical sound quality for which NAD is known.

Simplicity in Integration

Our signal sensing circuit employs a sophisticated music sensing circuit to prevent the false triggers common with noisy source components, or other types of interference noise like RF leakage or ground loops. Rack install is made neat and efficient, thanks to inputs and triggers that offer daisy chain outputs.
