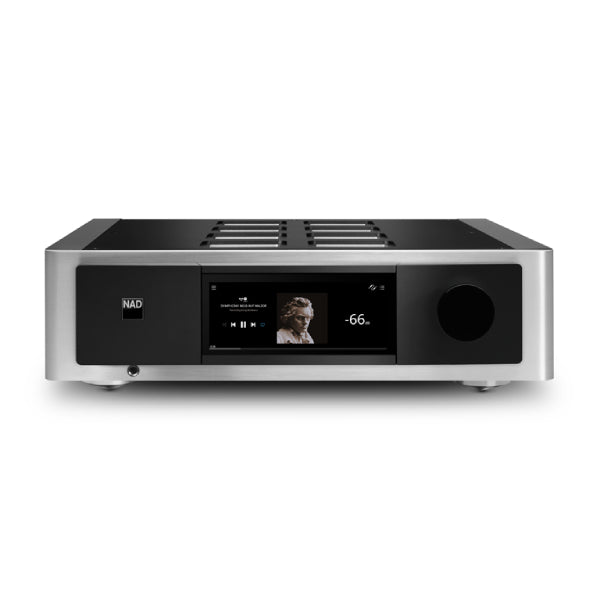

Amplificator NAD M33

Name: Amplificator NAD M33
Brand: NAD
SKU: nad_m33
Price: 19999.0 RON
Availability: OutOfStock

Form

Ridicare gratuita din showroom

Cod produs: nad_m33

In stoc

19.999 lei / Bucata 28.999 lei Vezi si pachete PROMO

30 de zile perioada de retur

Garantie 24 luni

Transport gratuit pentru comenzi peste 100 RON in Romania

Livrare prin curier sau ridicare din showroom Bucuresti

Pentru plata în rate alegeți NETOPIA ca procesator de plăți.

6 Rate

Card Avantaj

6 Rate

Alpha Bank

6 Rate

BRD

6 Rate

Banca Transilvania

6 Rate

Garanti Bank

12 Rate

Raiffeisen Bank (in showroom)

Descriere

BluOS Streaming DAC Amplifier
Hybrid Digital Purifi Eigentakt Amplifier Technology
Continuous Power: 200W into 8/4 Ohms
32-BIT/384kHz ESS Sabre DAC
Dirac Live Room LE Correction
Colour LCD touch display
BluOS multi-room Integration
2 x MDC Slots for Future Expansion
Wireless control with AirPlay 2 and aptX HD Bluetooth Integration
Comprehensive digital and analog connectivity including HDMI eARC
Integrates seamlessly with leading smarthome control systems

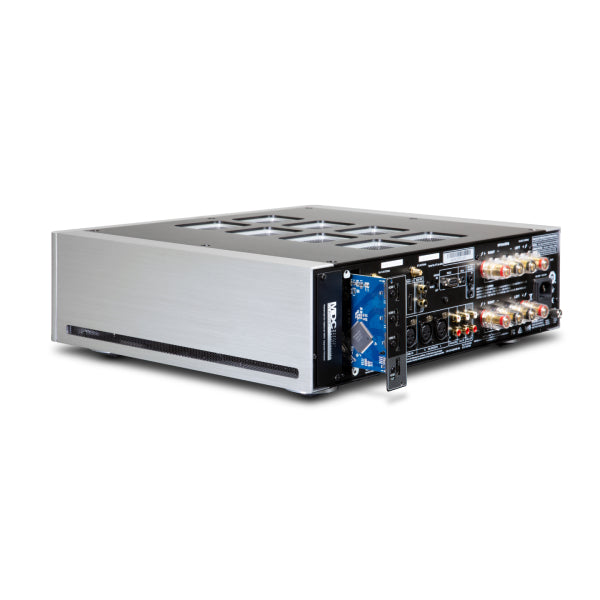

MDC (Modular Design Construction) offers ability to upgrade to future digital formats as they become available. Two MDC slots provided
CI friendly- RS232 Serial Control Port, Trigger In/Out
IR In with learning function

Alte informatii

Link producator: click aici

Continut pachet: vezi detalii ascunde detalii

Two detachable mains power cord
HTRM 2 remote control with 4 AA batteries
Mic Assembly with Ferrite Base
USB MIC Sound Adaptor
USB flash drive
Four pieces of magnetic feet
Cleaning cloth
Quick Setup Guide

Manual: descarca fisierul

Fisa de produs: descarca fisierul

Cauti un pachet PROMO personalizat?

Spune-ne de ce ai nevoie si revenim cu o oferta " de nerefuzat "

Specificatii tehnice Amplificator NAD M33

AMPLIFIER SECTION
Rated output power (ref. 20 Hz-20 kHz at rated THD, both channels driven):
>200 W into 8 ohms
>380 W into 4 ohms
Rated output power, Bridge mode (ref. 20 Hz – 20 kHz at rated THD): >700 W into 8 ohms
Input sensitivity: 865 mV (ref. 200W 8 ohms, Volume maximum)
THD (20 Hz – 20 kHz): <0.003 % (1W to 200 W, 8 ohms and 4 ohms)
Signal-to-Noise ratio:
>98 dB (A-weighted, ref. 1 W out in 8 ohms)
>120 dB (A-weighted, ref. 200 W out in 8 ohms)
Clipping power: >210 W (0.1 % THD 1 kHz 8 ohms)
IHF dynamic power:
8 ohms: 260 W
4 ohms: 520 W
Peak output current: ≥25 A (in 1 ohm, 1 ms)
Damping factor: >800 (ref. 8 ohms, 20 Hz to 6.5 kHz)
Frequency response:
±0.2 dB (20 Hz -20 kHz)
-3 dB at 60 kHz

PREAMPLIFIER SPECIFICATIONS
LINE IN
Input Impedance (r and c): 47kΩ/180pF
Input Sensitivity: 280mV (ref. 500mV out, Volume Maximum)
Maximum input level 20Hz-20Khz: 2 Vrms/8 Vrms (low sensitivity mode)
Tone Controls:
Treble: ±6 dB at 10kHz
Bass: ±6 dB at 100Hz
Max Output Signal: 4Vrms (ref. 0.1% THD)
PREOUT
Maximum output level: 3.9 Vrms (ref. 0.1% THD)
Signal-to-Noise ratio: >120 dB (A-weighted, ref. 2 V out)
Output impedance: 100 ohms
SUBOUT
Maximum output level: 1.1 Vrms (ref. 0.1 % THD 100Hz)
Signal-to-Noise ratio: >102 dB (20 Hz-20 kHz, ref. 1V out)
THD+N: <0.005 % (refer 1.1 V 20 Hz-200 Hz)
Output impedance: 680 ohms
PHONO
Input sensitivity:
MM: 1.2 mV
MC: 100 µV
Input impedance (R and C):
MM: 56 kohms/100 pF
MC: 100 ohms/280 pF
Signal to noise ratio (ref. 2 V Preout A-weighted):
MM: >92 dB
MC: >76 dB
THD+N (ref 2V Preout 1kHz):
MM: <0.003 %
MC: <0.02 %
RIAA response accuracy MM/MC: ±0.2 dB 20 Hz -20 kHz
HEADPHONES
Output Impedance: 2.2ohms
Output power: >100 mW/32 ohms

BluOS SECTION
AUDIO
Supported audio file format: MP3, AAC, WMA, OGG, WMA-L, ALAC, OPUS
Supported high- resolution audio file format: FLAC, MQA, WAV, AIFF
Sampling rate: up to 192 kHz
Bit depths: 16 – 24
CONNECTIVITY
Network connectivity:
Gigabit Ethernet RJ45
Wi-Fi 5
Supported network file share protocol: Server Message Block (SMB)
USB: 1 x Type-A port for connection to USB memory stick (FAT32 or NTFS formatted) and supported peripherals
Bluetooth quality: Support for aptX® HD
Bluetooth connectivity: Two-Way (Receive and Headphone modes)
USER INTERFACE
Supported operating system: Music playback from network shares on the following desktop operating systems: Microsoft Windows XP, 2000, Vista, 7, 8 to current Windows Operating Systems and macOS versions
Mobile Application: Free BluOS Controller App available for download from the respective App stores of Apple iOS devices (iPad, iPhone and iPod), Android devices, Kindle Fire and Windows or macOS desktops
Front panel: 7-inch full colour touch screen
Remote control: HTRM 2 remote control

POWER CONSUMPTION
Auto Standby ON: <0.5W
Idle Power: <40W

DIMENSIONS AND WEIGHT
Dimensions WxHxD: 435 x 133 x 396 mm (17 1/8 x 5 1/4 x 15 5/8 ”)
Net Weight: 9.7kg (21.4lb)
Shipping Weight: 18.4kg (40.6 lb)
Shipping Size (W x H x D): 569 x 258 x 519 mm (22 13/32 x 20 7/16 x 10 5/32 ”)

M33

In its simplest form, the M33 BluOS enabled DAC/amplifier is an ultra-high-performance streaming amplifier with superb audiophile sound.

The Bar has been Raised with the Masters M33 BluOS Streaming DAC Amplifier

Part of a growing ecosystem of compatible products, BluOS tightly integrates hardware and software for an exceptional user experience. The only true wireless High-Resolution multi-room system available today, BluOS supports the new standard for High Res streaming, Master Quality Authenticated (MQA). BluOS also supports over 20 free and paid subscription services as well as supporting locally stored music libraries. With BluOS, the M33 retains all the audiophile features and further adds a range of facilities that will expand its capabilities yet simplifies ease-of-use at the same time.

DIRAC Live Room Correction On Board

Experts agree that room acoustics are the weakest link in most sound systems with room reflections deteriorating tonal balance and dynamics. Dirac, one of the most highly regarded Room Correction systems available, not only adjusts for frequency response, but unlike other room correction systems, it also optimises the impulse response. By optimizing the speaker/room interface, music sounds more natural and lifelike.
