Display Features
Dimming Type: Local Dimming
Display Device: LCD
Panel Type -
Backlight Type: Mini LED
TRILUMINOS Display: XR Triluminos Pro
Colour Gamut (DCI-P3) -
Picture Processor: XR Processor
Operation Time: 18/7
Deep Black Non-Glare Coating -
Haze (%) -
Viewing Angle (Right/Left): 178(89/89) degree
Viewing Angle (Up/Down): 178(89/89) degree
Video Specification
Wide Mode: Full/Vertical Fit/Horizontal Fit/Original,Full/Vertical Fit/Horizontal Fit/Original
4:3 Default -
Video Processing -
Motion Enhancer: XR Motion Clarity, Auto mode
HDMI Signal: 4096x2160p(24,50,60Hz), 3840x2160p(24,25,30,50,60,100,120Hz)*1, 1080p(30,50,60,100,120Hz), 1080/24p, 1080i(50,60Hz), 720p(30,50,60Hz), 720/24p, 576p, 480p
Audio Specification
Speaker Position: Down Firing + Side Back
Audio Power Output: 10W + 10W + 10W + 10W
Professional Features
Pro Mode -
HDMI Auto Wake-Up -
HTML5 Platform -
Multicast/IPTV -
Operating System: Android 12
On-board Storage (GB): 32GB
Network Specification
Wi-Fi Direct -
Wi-Fi Certified: Yes
Wireless LAN: Integrated
Convenience Features
USB Playback Codecs: MPEG1:MPEG1/MPEG2PS:MPEG2/MPEG2TS(HDV,AVCHD):MPEG2, AVC/MP4(XAVC S):AVC, MPEG4, HEVC/AVI:Xvid,MotionJpeg/ASF(WMV):VC1/MOV:AVC, MPEG4, MotionJpeg/MKV:Xvid, AVC, MPEG4, VP8.HEVC/WEBM:VP8/3GPP:MPEG4, AVC/MP3/ASF(WMA)/LPCM/WAV/MP4AAC/FLAC/JPEG, WEBM:VP9/AC4/ogg/AAC/ARW(Screen nail only)
On Screen Clock: Yes
Sleep Timer: Yes
On/Off Timer: Yes
Chromecast Built-In: Yes
Apple AirPlay: Yes
Control Specifications
IP Control -
RS-232C Control -
HDMI-CEC: Yes

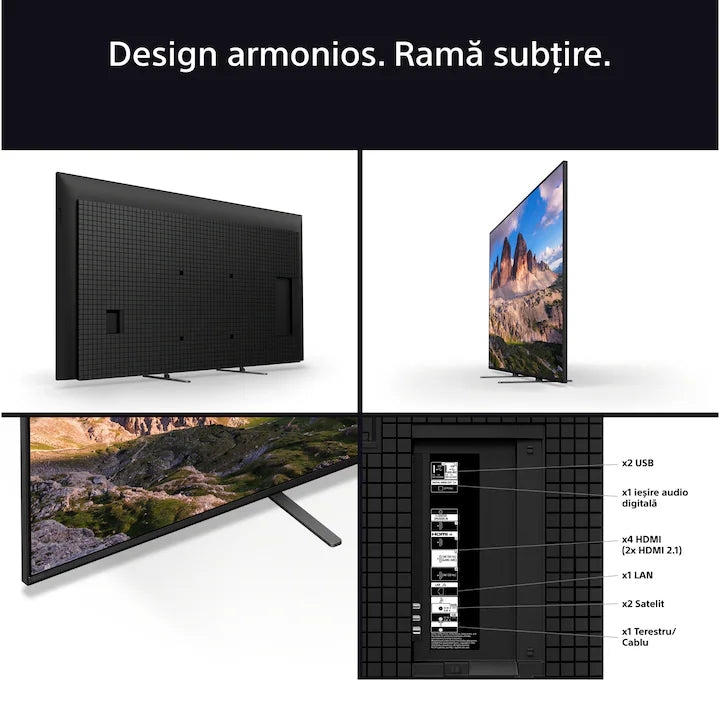

Inputs and Outputs
HDCP: HDCP2.3 (for HDMI1/2/3/4)
Composite Video Input (s) -
HDMI Inputs Total: 4 (4Side)
Analog Audio Input (s) (Total) -
Digital Audio Output (s): 1(Side)
USB Ports: 2 (Side)
Ethernet Inputs: 1 (Side)
Design Features
Frame Colour: Black
Stand Design: One slate
VESA® Hole Spacing Compatible: Yes
VESA® Hole Pitch (W x H): 60.0 x 40.0 cm

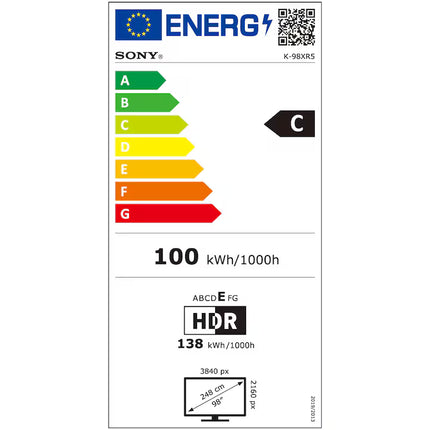

Environment Specifications
Screen Size for WEB (diagonal, cm, integer or 1st decimal): 248 cm
Rated Power Consumption: 621 W
Power Consumption (in Standby): 0.50 W
Dynamic Backlight Control: Yes
Power Saving Mode: Yes
Measurements
Dimension of TV without Stand (W x H x D): Approx. 219.9 x 125.5 x 8.5 cm
Dimension of TV with Stand (W x H x D): Approx. 219.9 x 132.5 x 48.8 cm
Dimension of Package Carton (W x H x D): Approx. 233.2 x 139.6 x 28.6 cm
Weight
Weight of TV without Stand: Approx. 69.0 kg
Weight of TV with Stand: Approx. 71.4 kg
Weight of Package Carton (Gross): Approx. 94 kg
