Direct inputs
HDMI eARC/CEC: stereo PCM up to 24/48 kHz
2 x optical digital inputs: up to 32/192 kHz
1 x coax digital input: up to 32/192 kHz
1 x stereo pair analogue or MM phono input, with ground lug
FM radio
DAB+ radio
1 x USB A input
File types supported: .aac, .aif, .aiff, .dsf, .dff, .m4a, .mp3/.mp4, .alac, .flac, .wav, .ape, .wma, .ogg
Resolution: PCM up to 768KHz 32bits, DSD up to DSD512
File system supported: FAT32, exFAT, NTFS
Drive capacity: up to 2TB with FAT32
Streaming
WLAN – WiFi6:
2.4G 802.11b, 802.11g, 802.11gn, 802.11ax
5G 802.11a, 802.11an, 802.11ac, 802.11ax
LAN – 10/100Mbps, with dual sockets: 1 x in; 1 x out
Prisma – UPnP/DLNA:
Radio: (MP3 default)
Qobuz: up to 24/192 kHz
TIDAL MAX: up to 24/192 kHz
NAS: PCM up to 768KHz 32bits; DSD up to DSD512
Bluetooth
Versions: 5.0, A2DP: 1.3, AVRCP: 1.6
Receiver codec support: SBC, AAC, AptX, AptX-HD
Transmitter, for headphone connection: SBC, AptX
AirPlay2
Qobuz Connect
Tidal Connect
Spotify Connect
Analogue outputs
3.5mm headphone: 32Ω at 30mW output
Subwoofer output: with bass management
Speaker Array
6 x 4-inch woofers
2 x 4-inch midrange drivers
2 x 0.75-inch waveguide tweeters
300W amplifier peak power
DSP
Position options: Free Standing, Near Wall, Corner
Auto Room EQ
11-band graphic equaliser
BACCH spatial audio
General
Interface

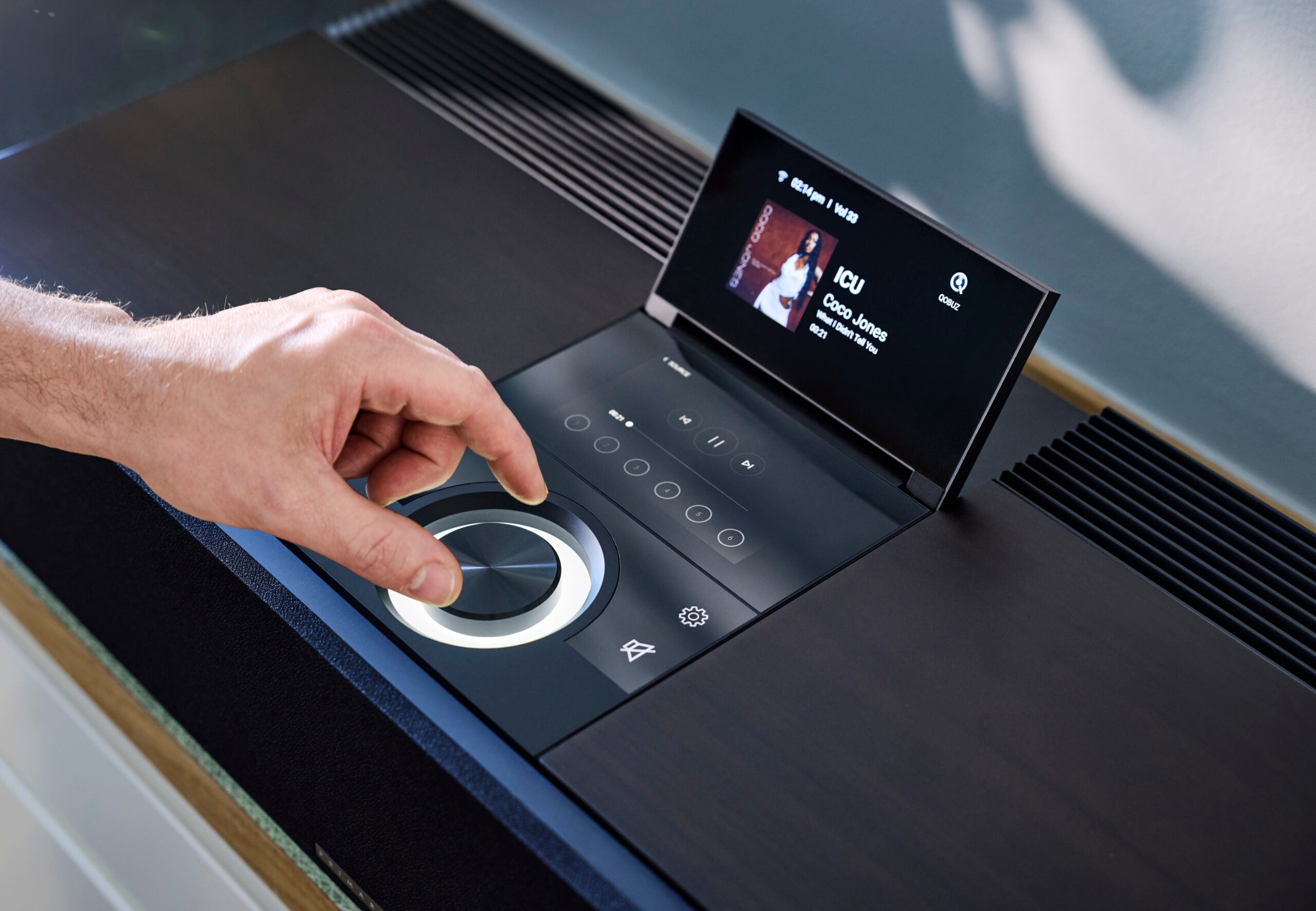

1 x fixed touch-screen display
1 x motorised display
Antenna
1 x FM/DAB+ antenna socket
Control
1 x Trigger out
1 x 3.5mm IR out
1 x 3.5mm service port
Power consumption
Multi-voltage support (100-120V, 220-240V):
Operating 18 W
Normal Standby 5W remote control or app power on
ECO Standby >0,5 W manual power on from unit
Continuous Power 300 W
Dimensions : 690 x 303 x 150mm (WxDxH) (230mm H with display fully raised)
Weight: 16kg
