Power
Number of Power Amps: 7
Power Output:
95 watts (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive)
125 watts (6 ohm, 1 kHz, 0.7% 2ch Drive)
150 watts (6 ohm, 1 kHz, 1% 1ch Drive)
185 watts (6 ohm, 1 kHz, 10% 1ch Drive)
Technical Information
Auto Speaker Setup by Microphone: Audyssey MultEQ XT
Front Display: 1-Line FLD
GUI Languages: 9
Setup Assistant: Yes
General
System Remote Control: RC-1253
Power Consumption in W: 500W
Standby Consumption in W: 0.1W
CEC Standby Consumption in W: 0.5W
Network Control On Consumption in W: Less than 2.0W

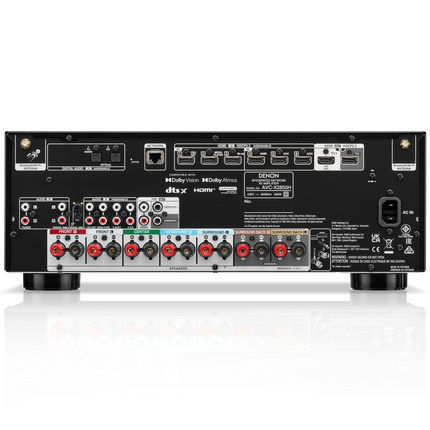

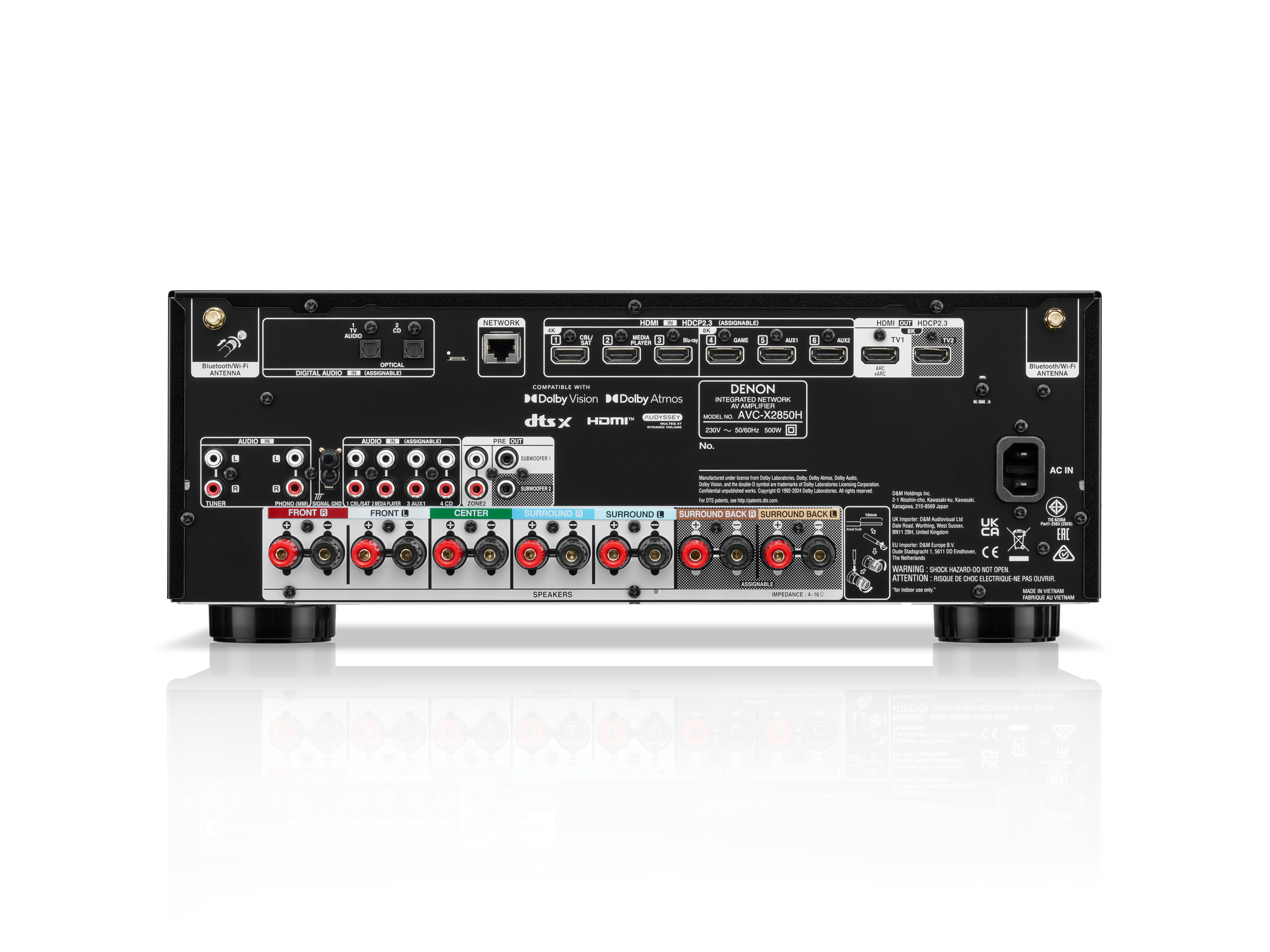

Inputs/Outputs
HDMI In/Out: 6 (3× 8K) / 2
Analogue In/Out: 5 / 0
Phono (MM) In: Yes
Digital In: Optical / Coaxial: 2 / 0
Multi-Room Out: Analogue/Digital: 1 / 0
Multichannel Pre-Out: Yes (2ch)
Subwoofer Out: 2
