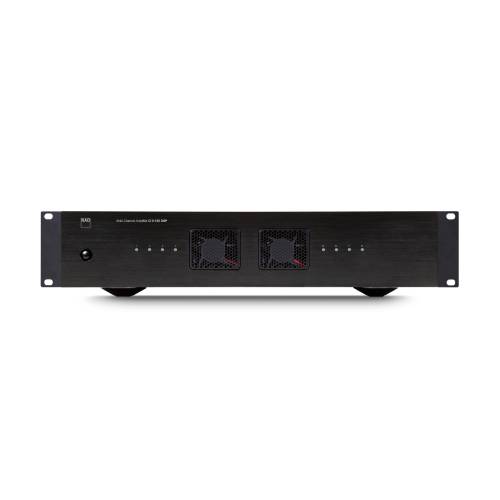

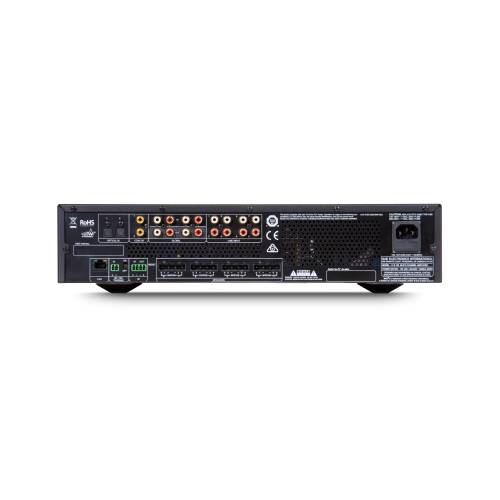

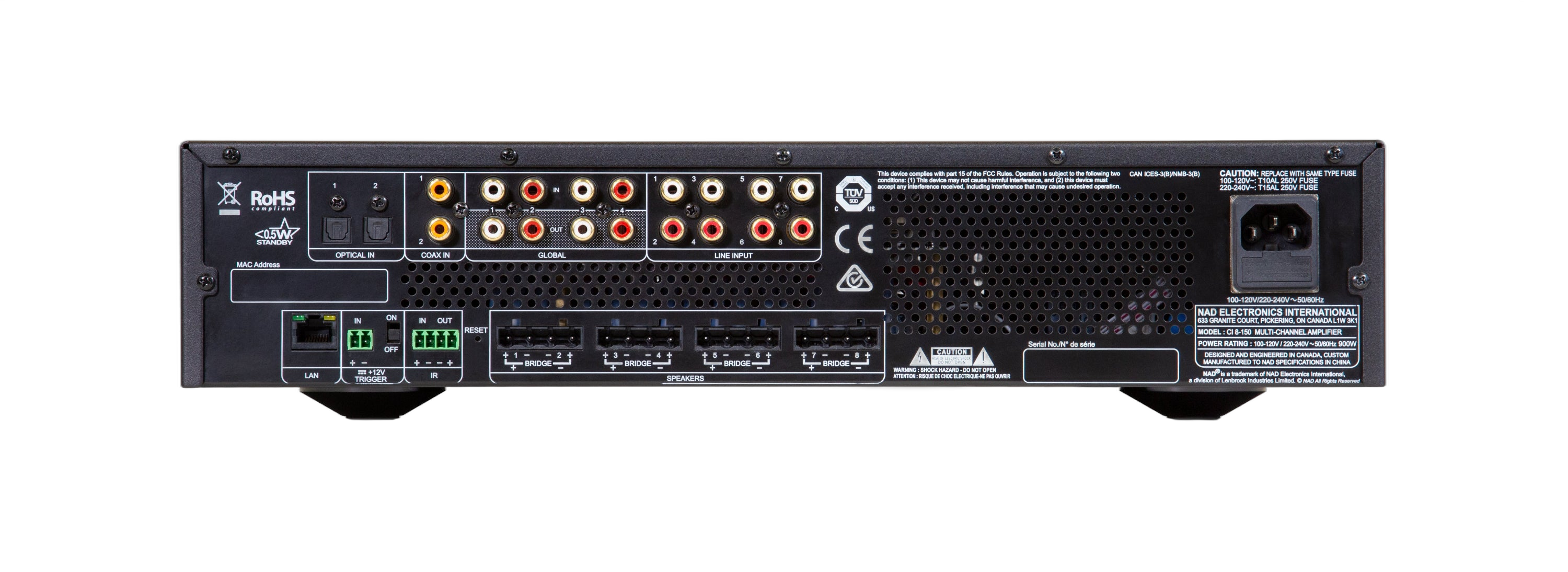

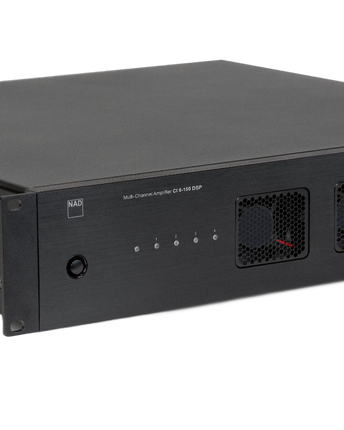

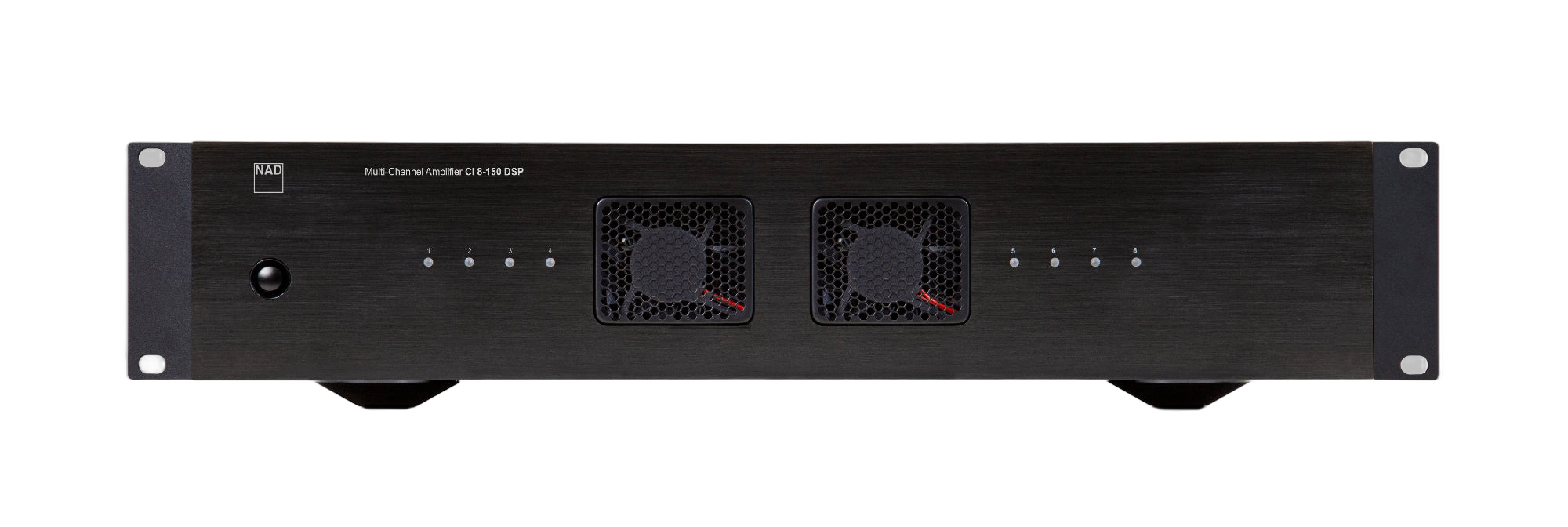

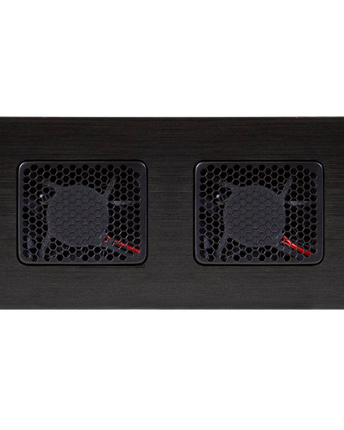

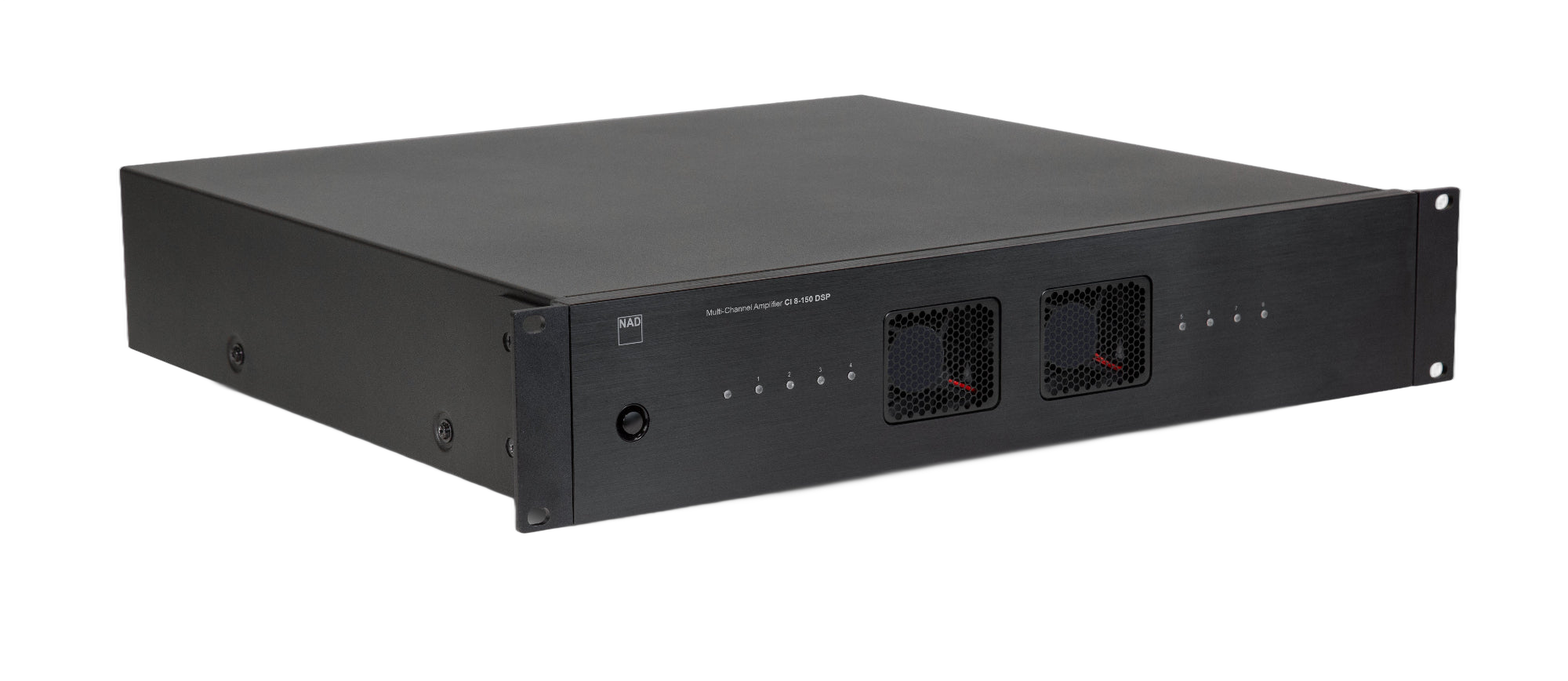

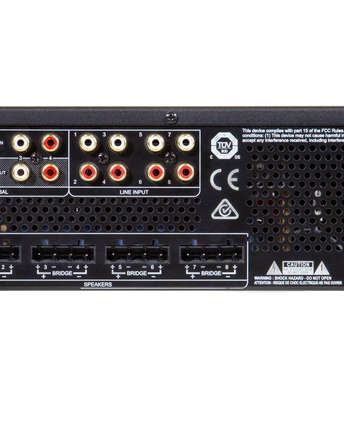

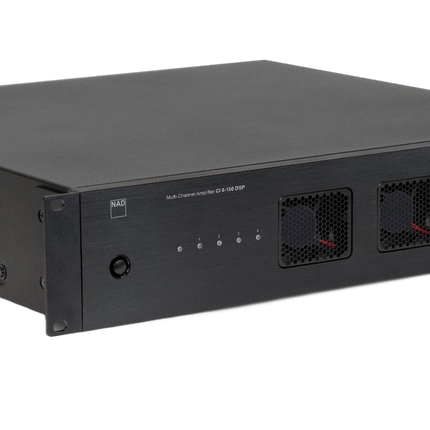

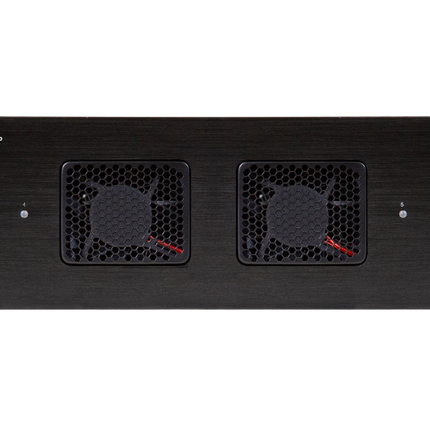

Amplificator de putere NAD CI 8-150 DSP multicanal

NAD
Share

Ridicare gratuita din showroom

Cod produs: CI-8-150-DSP

In stoc

18.899 lei / Bucata 22.999 lei

Expediere azi? Comanda in: Mar 25, 2025 16:00:00 +0200

30 de zile perioada de retur

Garantie 24 luni

Transport gratuit pentru comenzi peste 100 RON in Romania

Livrare prin curier sau ridicare din showroom Bucuresti

Pentru plata în rate alegeți NETOPIA ca procesator de plăți.

6 Rate

Card Avantaj

6 Rate

Alpha Bank

6 Rate

6 Rate

Banca Transilvania

6 Rate

Garanti Bank

12 Rate

Raiffeisen Bank (in showroom)

Descriere

8 Channels X 120 Watts @ 8 Ohms
Bridgeable to 4 Channels X 200 Watts @ 8 Ohms
Renowned NAD sonic signature
1U Rack Height- saves valuable rack space
Platform accessed through IP control
Custom web app manages DSP calibration, IP control and more
Effectively handles long cable runs and difficult speaker loads

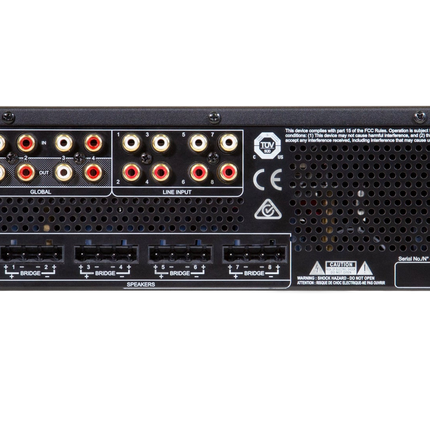

Dual global Inputs/Outputs
5W Standby Mode, 3W Network Standby
12V Trigger In; IR In/Out
Auto Sense Turn-on
Universal AC Power Supply

Alte informatii

Link producator: click aici

Continut pachet: vezi detalii ascunde detalii

Two detachable mains power cord
4 pieces of 4-position terminal block (for SPEAKERS)
1 piece of 4-position terminal block (for IR IN/OUT)
1 piece of 2-position terminal block (for +12V TRIGGER IN)
4 pieces of feet with mounting screws
Quick Setup Guid

Manual: descarca fisierul

Fisa de produs: descarca fisierul

Cauti un pachet PROMO personalizat?

Spune-ne de ce ai nevoie si revenim cu o oferta " de nerefuzat "

Specificatii tehnice Amplificator de putere NAD CI 8-150 DSP multicanal

GENERAL
Continuous output power into 8 ohms:
150 W (ref. 20 Hz-20 kHz at rated THD – all channels driven)
180 W (ref. 20 Hz-20 kHz at rated THD – two channels driven)
Continuous output power into 4 ohms:
180 W (ref. 20 Hz-20 kHz at rated THD – all channels driven)
300W (ref. 20 Hz-20 kHz at rated THD – two channels driven)
Continuous output power into 8 ohms at Bridged mode:
280 W (ref. 20 Hz-20 kHz 0.02% THD – all channels driven)
500 W (ref. 20 Hz-20 kHz 0.02% THD – two channels driven)
THD (20 Hz – 20 kHz): 0.02% (1 W to 120 W, 8 ohms and 4 ohms)
Signal-to-Noise Ratio: 90 dB (A-weighted, 500 mV input, ref. 1 W out in 8 ohms)
Clipping power (All channels driven):
160W(1kHz8ohms 0.1%THD)
200W(1kHz4ohms 0.1%THD)
Clipping power into 8 ohms at Bridged mode:
300 W (1 kHz 0.1 % THD – all channels driven)
550 W (1 kHz 0.1 % THD – two channels driven)
IHF Dynamic Power (all channels driven) – 8 Ohms: 180W
IHF Dynamic Power (all channels driven) – 4 Ohms: 280W
IHF Dynamic Power (two channels driven) – 8 Ohms: 200W
IHF Dynamic Power (two channels driven) – 4 Ohms: 360W
IHF Dynamic Power (Bridged mode, All channels driven) – 8 Ohms: 520W
IHF Dynamic Power (Bridged mode, All channels driven) – 4 Ohms: 670W
IHF Dynamic Power (Bridged mode, Two channels driven) – 8 Ohms: 600W
IHF Dynamic Power (Bridged mode, Two channels driven) – 4 Ohms: 800W
Peak output current: 26A(1ohm,1ms)
Damping Factor: 150 (ref. 8 ohms, 20 Hz to 6.5 kHz)
Frequency Response: ±0.5dB(20Hz-20kHz)
Channel Seperation:
75 dB (1 kHz)
65 dB (10 kHz)
Maximum undistorted input level: 3300 mV
Input sensitivity (for 150 W in 8 ohms, maximum volume): 1450 mV
Analog Input audio sense threshold (one channel with signal): 3 ± 0.5 mVrms (ref. 100 Hz – 10 kHz)
Trigger IN level: 3-30Vdc
Standby power: 0.5 W
DIMENSION AND WEIGHT
Gross dimensions (W x H x D): 483 x 90 x 435 mm (19 1/16 x 3 9/16 x 17 3/16 inches)
Shipping Weight: 17.6 kg (38.8 lbs)

CI 8-120 DSP
Multi-Channel Amplifier

Smart CI Solution

Our eight-channel powerhouse promises NAD’s legendary performance with reliability and stability with lots of installer-friendly features. The NAD CI 8-120 is an advanced amplifier targeted squarely at high performance distributed audio systems. Delivering a conservative 8 x 120 watts per channel @ 8 ohm, it is also bridgeable to 4 x 200 watts per channel @ 8 ohm. IHF Dynamic Power in bridged mode is 4 x 350 watts per channel @ 4 ohm. To put it simply, the CI 8-120 will drive most anything you need in your multi-room audio system.

Audiophile Performance

The hybrid digital amplifier platform delivers stable and efficient power with high current capability, all in a slim 1U rack space. To make this level of performance possible, the CI 8-120 DSP uses a customized version of the proven Hypex UcD output stage. This allows for massive power with extremely low distortion and noise in the audible range. Every detail of this design has been carefully executed to wring out every last drop of performance. Designed to deal with the demands of the CI world, it was made to handle long cable runs and difficult speaker loads.
