Display System
Display Device: SXRD 0.61" x3
Panel Resolution: 3,840 x 2,160
Light Output / Contrast
Light Output: 2.200 lm
Dynamic Contrast: ∞: 1
Light Source
Light Source: Laser diode
Projection Lens
Type: Manual
Zoom Ratio: Approx. x1.6
Lens Shift: Vertical +/- 71 %, Horizontal +/- 25 %
Throw Ratio: 1.38-2.21
Picture Processor
Picture Processor: XR Processor for projector
Contrast:
XR Dynamic Tone Mapping
XR Deep Black
Color: XR Triluminos Pro
Clarity: XR Clear Image
Motion: Motionflow
Accepted Digital Signals
Accepted Digital Signals: 720x576/50p, 720x480/60p, 1280x720/50p, 1280x720/60p, 1920x1080/50i, 1920x1080/60i, 1920x1080/24p, 1920x1080/48p, 1920x1080/50p, 1920x1080/60p, 1920x1080/100p, 1920x1080/120p, 3840x2160/24p, 3840x2160/25p, 3840x2160/30p, 3840x2160/48p, 3840x2160/50p, 3840x2160/60p, 3840x2160/100p, 3840x2160/120p, 4096x2160/24p, 4096x2160/25p, 4096x2160/30p, 4096x2160/48p, 4096x2160/50p, 4096x2160/60p, 4096x2160/100p, 4096x2160/120p
Accepted HDR Format: HDR10/HLG
Input Lag
Input lag (4K 120P / 4K 60P/ 2K 120P): 12ms / 21 ms / 12 ms

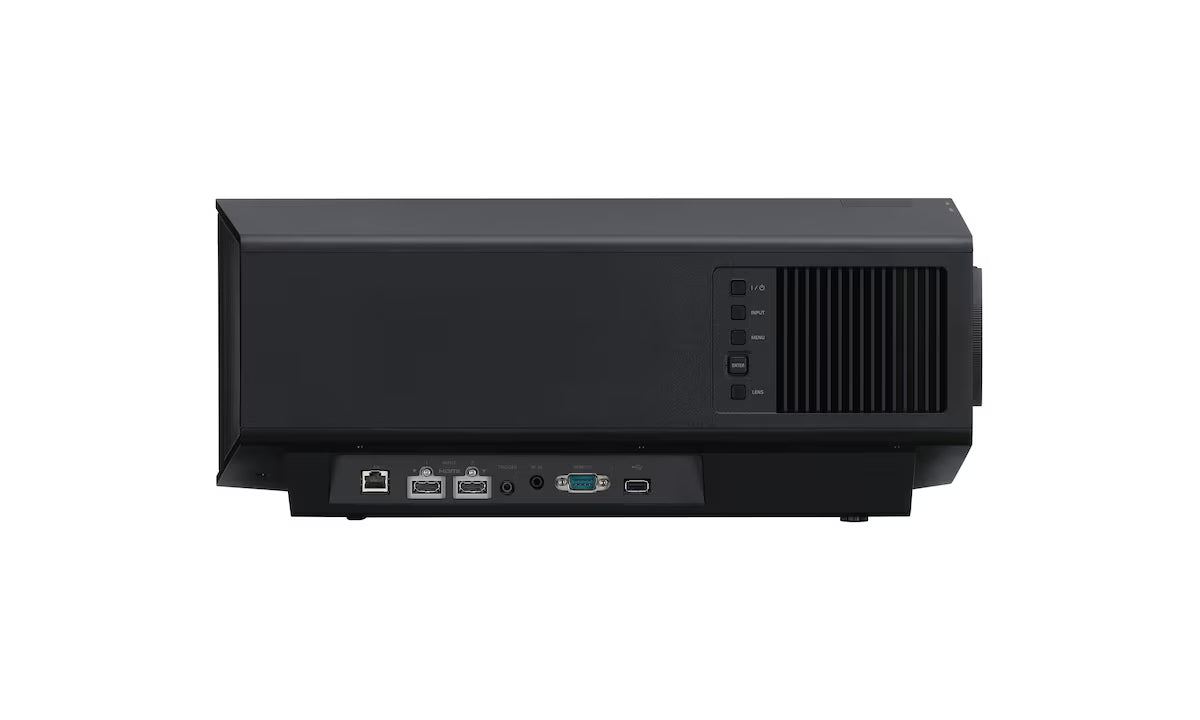

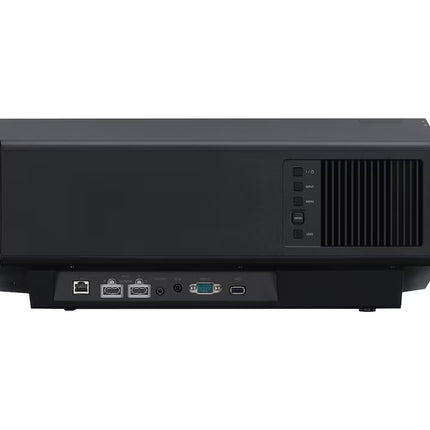

Inputs / Outputs
HDMI: 2 (HDCP2.3)
Features specified in HDMI2.1: 4K120/ALLM
REMOTE: 1 (RS-232C, D-Sub 9-pin (Male))
IR IN: 1 (Mini jack)
TRIGGER: 1 (Mini jack, DC 12 V, Max. 100 mA)
LAN: 1 (RJ45, 10BASE-T/100BASE-TX)
USB: 1 (Type A, DC 5 V, Max. 500 mA) for Update
Other Functions
Gamma Correction: Yes (HDR/SDR)
Color Correction: Yes
Digital Keystone Correction: Yes
3D: No
Anamorphic Compatibility: Yes
OSD Languages: 18-languages (English, Dutch, French, Italian, German, Spanish, Portuguese, Turkish, Russian, Swedish, Norwegian, Japanese, Simplified Chinese, Traditional Chinese, Korean, Thai, Arabic, Polish)
Power Requirements: AC 100 V to 240 V, 50/60 Hz
Power Consumption: 295W
Standby: 0.3 W (when “Remote Start” is set to “Off”)
Networked Standby:
0.5 W (LAN) (when “Remote Start” is set to “On”)
When a LAN terminal is not connected, it becomes a low power consumption mode (0.4 W)
Standby Mode / Networked Standby Mode Activated: After about 10 Minutes
Ventilation (In / Ex): Front/Back
Acoustic Noise: 24 dB *2
Dimensions (W x H x D):
Width: 460 mm, 18 1/8"
Height: 200mm, 7 7/8"
Depth: 472 mm, 18 19/32"
Mass: Approx. 13kg / 28lb
Temperature / Humidity
Operating Temperature / Operating Humidity: 5℃ to 35℃ (41°F to 95°F)/20% to 80% (no condensation)
Storage Temperature / Storage Humidity: -10℃ to +60℃ (14°F to 140°F)/20% to 80% (no condensation)
