Device
D-ILA Technology: Yes
Chip Type: 3rd Generation 0.69-inch 4K D-ILA device
Native Resolution: 4096 x 2160
Number Of Chips: 3
8K/e-shiftX: Yes
Display Resolution: 8192 x 4320
Light Source
Laser: Yes
Type: BLU-Escent Laser Diode
Life Time (Standard Mode): 20000 hours
Brightness: 2700 lm
Dynamic Contrast: ∞ : 1
Native Contrast: 100000 : 1
Dynamic Light Power control: Yes
Modes: Mode 1 (gentle), Mode 2 (strong), Off
Manual Aperture: Yes
Range: -15 (stops down) to 0 (opens up)
DCI-P3 Color Gamut: Yes
100% REC 709: Yes
Color Bit Depth: 12 bit
ISFccc Certification: Yes
HDR
HDR10: Yes
HDR10+: Yes
Frame Adapt HDR: Yes
Theater Optimizer: Yes
HLG: Yes
Auto Tone Mapping: Yes
Mastering Info Display: Yes
Info data: MaxCLL and MaxFALL mastering data
HDR Picture Modes: BT.709 / BT.2020 / DCI / HDR
Deep Black Tone Control: Yes
Lens
Zoom: 2 x
Throw Ratio: 1.43-2.92:1
Diameter: 65 mm
Material: All-glass
Build: 17-element, 15-group in full aluminium lens barrel.
Lens Shift : Yes
Range Horizontal: ± 34 %
Range Vertical: ± 80 %
Motorized Zoom: Yes
Motorized Shift: Yes
Motorized Focus: Yes
Projection Display size (diagonal): 60 - 200 inch
Memory Function: Yes
Number of user presets: 10
Lens Cover: Yes
HDMI
HDMI: Yes
Number of Inputs: 2
Data Rate: 48 Gbps
HDCP Version: 2.3
8K60P signal input: Yes
4K120p signal input: Yes
4K60P signal input: Yes
Video Signal range: 480p, 576p, 720p 60/50, 1080i 60/ 50, 1080p 120/ 100/ 60/ 50/ 30/ 25/ 24, 3840 x 2160p 120/ 100/ 60/ 50/ 30/ 25/ 24, 4096 x 2160p 120/ 100/ 60/ 50/ 30/ 25/ 24, 7680 x 4320p 60/ 50/ 30/25 /24
PC Signal range: VGA / SVGA / XGA / WXGA / WXGA+ / SXGA / WSXGA+ / UXGA / WUXGA / WQHD (60) / WQHD (120)
Input Level Adjustment: Auto / Standard (16-235) / Enhanced (0-255) / Super White (16-255)
Color Space Range: Auto/ YCbCr444 / YCbCr422 / RGB
EDID Modes: A and B (older hardware may need to use B settings)

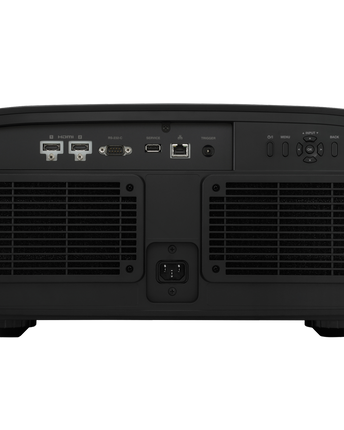

Connections
Trigger out: Yes
Connector: Mini-Jack (3,5mm)
Power: DC 12V / 100mA
3D Synchro: Yes
Connector: Mini DIN 3-pin
LAN: Yes
Connector: RJ45
RS-232: Yes
Connector: D-sub 9-pin
Service: Yes
Connector: USB (Type A) for firmware update or backup
3D
3D Capability: Yes
3D Versions: Frame Packing, Side-by-Side, Top & Bottom
Frame Packing Resolutions: 720p 60/50, 1080p 24
Side-by-Side Resolutions: 720p 60/50, 1080p 60/50/24, 1080i 60/50
Top & Bottom Resolution: 720p 60/50, 1080p/24
3D Emitter (Optional): Yes, PK-EM2
3D Glasses (Optional): Yes, PK-AG3
Picture Settings
Picture Modes: Natural, Cinema, Film, Vivid, HDR10+, Frame Adapt HDR, HDR10, HLG, Pan_PQ, 6 User modes
Color Temperatures: Xenon 1, Xenon 2, 5500K, 6500K, 7500K, 9300K, High Bright, HDR10+, HDR10, HLG, Custom 1, Custom 2
Gamma Processing Depth: 12 bit
Gamma Adjust: HDR (Auto), HDR(PQ), HDR(HLG), 2.2, 2.4, 2.6, Cinema 1, Cinema 2, Film 1, Film 2, Pana_PQ, 3 Custom modes
Color Management: 6-Axis adjustable CMS
MPC: Yes
Filmmaker Mode: Yes
Low Latency Mode: Yes
Clear Motion Drive: Yes
Motion Enhance: Yes
Auto Calibration: Yes
Optional Probe needed: Yes
Installation Mode: Yes
Number of modes: 8
Included settings: Lens Control, Pixel Adjustment, Mask, Anamorphic on or off, Screen Adjust, Installation Style, Keystone, and Aspect
Anamorphic Modes: 4 Modes (A, B, C, D)
Control4 SDDP: Yes
Power & Environment
Power Requirement: AC100-240V, 50/60Hz
Projector in Use: 440W
Standby: Eco Mode 0.20W
Network Standby: 1.21W (LAN), 0.94W (RS-232C), 1.22W (LAN + RS232C)
Switchover time: Approx. 15 min. (To standby or networked standby; default)
Fan Noise: 24 dB
Eco Mode: Yes
Standby Timer: Yes
Operating Temperature: 5°C to 35°C
Operating Humidity: 20% to 80%
Installation Angle: Horizontal +/- 5 degree / Vertical +/- 10 degree
Installation Height: Below 2,000 m
Dimensions & Weight
Product Dimensions (WxHxD): 500 x 234 x 505 (mm)
Product Weight: 23.1 Kg
Package Dimensions (WxHxD): 640 x 415 x 665 (mm)
Package Weight: 28.5 Kg
