TV System
TV System (Analog): B/G,D/K
Tuner Channel Coverage (Analog): 45.25MHz-863.25MHz (Depend on country selection)
TV System (Digital Terrestrial): DVB-T / T2
Tuner Channel Coverage (Digital Terrestrial): VHF / UHF (Depend on country selection)
TV System (Digital Cable): DVB-C
Tuner Channel Coverage (Digital Cable): VHF / UHF / cable (Depend on country selection)
TV System (Digital Sat): DVB-S / S2
Tuner Channel Coverage (Digital Sat): Intermediate Frequency 950-2150MHz
Number of Tuners (Terrestrial/Cable): 2 (Digital) / 1 (Analog)
Number of Tuners (Sat): 2
Color System: PAL/SECAM
CI+: Yes
Color Space: sRGB / BT709, BT2020, AdobeRGB, DCI
Operating System: Android 12
On-board Storage (GB): 32GB

Display Features
Display type: OLED

Display Specs
Screen Size (inch, measured diagonally): 77" (76.7")
Screen Size for WEB(diagonal, cm, integer or 1st decimal): 195 cm
Display resolution (H x V, pixels): 3840 x 2160
Viewing Angle (Right / Left): 178 (89 / 89) degree
Viewing Angle (Up/Down): 178 (89 / 89) degree
Display Resolution: QFHD
Aspect Ratio: 16:9

Video Features
Peak Luminance: XR Contrast Booster 15
TRILUMINOS: XR Triluminos Pro
Features for PlayStation®5 Auto HDR Tone Mapping: Yes
Features for PlayStation®5 Auto Genre Picture Mode: Yes
XR Clear Image: Yes
Picture modes: Vivid, Standard, Cinema, Professional, Calm, Photo, IMAX Enhanced, Dolby Vision (Vivid / Bright / Dark / Game), FPS game, RTS game
Auto Wide: Yes
Wide Mode:
Full / Vertical Fit / Horizontal Fit / Original,
Full / Vertical Fit / Horizontal Fit / Original
Motion enhancer: XR Motion Clarity, Auto mode
Blinking Type: Frame Blinking
24p True Cinema: Yes
Live Colour™ Technology: Yes
CineMotion / Film Mode / Cinema Drive: Yes
4K Processor: XR Processor
HDR (High Dynamic Range) compatibility: Yes (HDR10,HLG,Dolby Vision)
Panel Refresh Rate (Native Hertz): 120Hz
Dynamic Contrast Enhancer: Yes

Audio Specs
Channel: 2.1 ch
Audio Power Output: 13W + 13W + 10W + 10W + 10W *1
Speaker Position: Front + Side
Bass / Treble / Balance: Balance
Speaker Type: Acoustic Surface Audio+
Speaker Configuration: Actuator x 2, Tweeter x 2, Subwoofer x 1
Digital audio out (Optical) format: Two channel linear PCM: 48kHz 16bits, Dolby Audio, DTS

Audio Features
Acoustic Center Sync: Yes (S-CENTER SPEAKER IN)
Ready for 360 Spatial Sound Personalizer: Yes (via Bluetooth)
Simultaneous Sound Output with TV Speaker: Bluetooth A2DP Device
Vertical Surround Engine: Vertical Surround Engine
Acoustic Auto Calibration: Room & User Position Compensation
Speaker Type-2: Sound Positioning Tweeter
Clear Phase: Yes
S-Master: S-Master Digital Amplifier
Auto Surround: Yes
DTS audio format support: DTS Digital Surround, DTS Express, DTS-HD Master Audio, DTS-HD High Resolution Audio, DTS:X
Simulated surround sound: S-Force Front Surround
Dolby audio format support: Dolby Audio, Dolby Atmos
Voice Zoom: Voice Zoom 3 (Also available with compatible Sony Soundbar)
HDMI Audio Return Channel(ARC): Yes (eARC / ARC)
Advanced Auto Volume: Yes
Auto Mute (on no signal): Yes
HDMI input Audio format: 7.1 channel linear PCM: 32 / 44.1 / 48 / 88.2 / 96 / 176.4 / 192kHz 16 / 20 / 24bits, Dolby Audio, Dolby Atmos, DTS, DTS Express, DTS-HD Master Audio, DTS-HD High Resolution Audio, DTS:X
ARC output format: Two channel linear PCM: 48kHz 16bits, Dolby Audio, Dolby Atmos, DTS

Network Features
Control Menu: Yes
ECO Dashboard: Yes
Apple AirPlay: Yes
Apple HomeKit: Yes
Home Network Feature: Home Network Client, Home Network Renderer
Wi-Fi Certified: Yes
Wi-Fi Standard: a / b / g / n / ac / ax
Wi-Fi Frequency: 2.4GHz / 5GHz / 6GHz (Depend on country)
Internet Browser: Yes
Codec for Home Network: MPEG1:MPEG1 / MPEG2PS:MPEG2 / MPEG2TS (HDV,AVCHD): MPEG2,AVC / MP4 (XAVC S): AVC,MPEG4,HEVC / AVI:Xvid,MotionJpeg / ASF (WMV): VC1 / MOV:AVC,MPEG4,MotionJpeg / MKV:Xvid,AVC,MPEG4,VP8.HEVC / WEBM:VP8 / 3GPP:MPEG4,AVC / MP3 / ASF (WMA) / LPCM / WAV / MP4AAC / FLAC / JPEG,WEBM: VP9 / AC4 / ogg / AAC / ARW (Screen nail only)
Wireless LAN: Integrated

Convenience Features
Optimization of HDMI input: Prioritize HDMI content type information
Source-Based Tone Mapping(SBTM): Yes (for HDMI3 / 4)
UVC / UAC support: Yes
Variable Refresh Rate (VRR): Yes (for HDMI3 / 4)
Auto Low Latency Mode (ALLM): Yes (for HDMI1 / 2 / 3 / 4)
Features specified in HDMI2.1: 4K120 / eARC / VRR / ALLM / SBTM (Source-Based Tone Mapping)
Built-in Mic switch: Yes (Center)
X-Protection PRO: Y (with Lightning, Surge, Humidity Protection)
Electronic Program Guide (EPG): Yes
USB HDD Recording: Yes (1Rec) (Except Italy)
USB playback codecs: MPEG1:MPEG1 / MPEG2PS:MPEG2 / MPEG2TS (HDV,AVCHD): MPEG2,AVC / MP4 (XAVC S): AVC,MPEG4,HEVC / AVI:Xvid,MotionJpeg / ASF (WMV):VC1 / MOV:AVC,MPEG4,MotionJpeg / MKV:Xvid,AVC,MPEG4,VP8.HEVC / WEBM:VP8 / 3GPP:MPEG4,AVC / MP3 / ASF (WMA) / LPCM / WAV / MP4AAC / FLAC,JPEG / HEIF / WEBM:VP9 / AC4 / ogg / AAC / ARW (Screen nail only)
Built-in Mic: Yes
Text Input Language: ARA / BUL / CAT / HRV / CES / DAN / DUT / ENG / EST / FIN / FRA / GER / GRK / HEB / IND / ITA / JPN / NOR / FAS / POL / POR / RON / RUS / SLK / SLV / SPA
Chromecast built-in: Yes
Application Store: Yes (Google Play Store)
BRAVIA Sync (including HDMI-CEC): Yes
i-Manual: Yes
Parental Control: Yes
Channel Block (with password): Digital
On Screen Clock: Yes
Sleep Timer: Yes
On/Off Timer: Yes
USB drive format support: Yes (Supported File System: FAT16 / FAT32 / exFAT / NTFS)
Display Language: AFR, AMH, ARA, ASM, AZE, BEL, BUL, BEN, BOS, CAT, CZE, DAN, DEU, GRE, ENG, SPA, EST, BAQ, PER, FIN, FRA, GLG, GUJ, HIN, HRV, HUN, IND, ISL, ITA, HEB, JPN, KAZ, KAN, KOR, KIR, LAO, LIT, LAV, MAC, MAL, MON, MAR, MAY, BUR, NOB, NEP, NLD, ORI, PAN, POL, POR, RUM, RUS, SOL, SLV, ALB, SRP, SWE, SWA, TAM, TEL, THA, TGL, TUR, UKR, URD, UZB, VIE, zh_CN, zh_HK, zh_TW, ZUL

Sensing Features
Sensor: Light

Energy Saving & Efficiency
SORPLAS: Yes
EEA SDR RANK: E
On mode power 1000h SDR(New lot5): 107 kWh / 1000h
Mercury content(mg): 0.0
Lead Content: Yes
Power Saving Mode / Back Light Off Mode: Yes

General Features
Smart TV: Google TV
SONY PICTURES CORE Calibrated mode: Yes
Prime Video Calibrated mode: Yes *2
Auto Calibration with CalMAN: Yes
Netflix Calibrated mode: Yes (Adaptive Calibrated Mode)
IMAX Certified Model: Yes
SONY PICTURES CORE: 10 credits / 24 months

Accessibility Features
Color Inversion: Yes
Screen Reader: Yes
Audio Description: Yes
Closed Captions (Digital): Subtitle
Text Magnification: Yes
Accessibility Shortcut: Yes
Voice Search: Yes
Menu timeout settings: Yes
Power-on Volume settings: Yes
TalkBack: Yes
Switch Access: Yes

Broadcast Features
Teletext: Yes
Teletext number of pages: 1000 pages

Design Features
Stand Position: 4way position (Outside / Inside / Outside for Soundbar / Inside for Soundbar)
Stand Color: Dark silver
Bezel Design: Seamless Edge
Cable Management: Yes
Frame color: Dark Silver / Vibration finish
Stand Design: Underlay stand

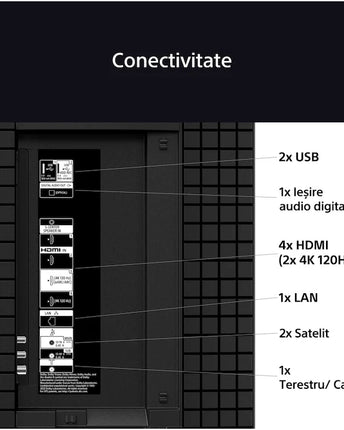

Inputs and Outputs
HDMI Signal: 4096x2160p (24,50,60Hz), 3840x2160p (24,25,30,50,60,100,120Hz) *3, 1080p (24,30,50,60,100,120Hz), 1080i (50,60Hz), 720p (24,30,50,60Hz), 576p, 480p
HDCP: HDCP2.3 (for HDMI1 / 2 / 3 / 4)
Bluetooth profile support: Version 5.3, HID / HOGP / SPP / A2DP / AVRCP
4K 60P High-Quality formats:
HDMI IN1, IN2 ports for 4K (up to 18Gbps) signal,
HDMI IN3, IN4 port for 4K (up to 48Gbps) signal
AC Power Input: Pigtail (REAR)
RF (Terrestrial/Cable) Connection Input(s): 1 (Side)
IF (Satellite) Input(s): 2 (Side)
HDMI inputs total: 4 (4Side)
Digital Audio Output(s): 1 (Side)
USB ports: 2 (Side)
Ethernet inputs: 1 (Side)
PCMCIA Slot(s): 1 (Top)
HDMI PC Input Format: 640x480 (31.5kHz,60Hz), 800x600 (37.9kHz,60Hz), 1024x768 (48.4kHz,60Hz), 1280x1024 (64.0kHz,60Hz), 1152x864 (67.5kHz,75Hz), 1600x900 (55.9kHz,60Hz), 1680x1050 (65.3kHz,60Hz), 1920x1080 (67.5kHz,60Hz)

Power
Power consumption (Networked Standby Mode): 2.00W (Wi-Fi) / 2.00W (LAN) / 0.50W (CEC)
Power Requirements (voltage): 220 V - 240 V AC
Power Requirements (frequency): 50 Hz
Rated Power Consumption: 619 W
Power Consumption (Standby Mode): 0.50 W

Regulation and Standard Compliance
VESA® Hole Spacing Compatible: Yes
VESA® Hole Pitch (W x H): 30.0 x 30.0 cm

Measurements (Approx.)
TV with Stand (Inside for Soundbar) (W x H x D): Approx. 171.3 x 106.6 x 40.5 cm
Dimension of TV without Stand (W x H x D): Approx. 171.3 x 98.4 x 3.8 cm
TV with Stand (Standard position) (W x H x D): Approx. 171.3 x 101.2 x 40.5 cm
TV with Stand (Narrow position) (W x H x D): Approx. 171.3 x 101.2 x 40.5 cm
TV with Stand (Soundbar position) (W x H x D): Approx. 171.3 x 106.6 x 40.5 cm
Dimension of Package Carton (W x H x D): Approx. 191.2 x 111.5 x 19.1 cm
Stand width (Standard position): Approx. 125.8 cm
Stand width (Narrow position): Approx. 59.6 cm
Stand width (Soundbar position): Approx. 125.8 cm
AC Cable Length: 3500 mm

Weights (Approx.)
Stand Width (Inside for Soundbar): Approx. 59.6 cm
TV with Stand (Inside for Soundbar): Approx. 34 kg
Weight of TV without Stand: Approx. 32.3 kg
TV with Stand (Standard position): Approx. 34 kg
TV with Stand (Narrow position): Approx. 34 kg
TV with Stand (Soundbar position): Approx. 34 kg
Weight of Package Carton(Gross): Approx. 44 kg
