Driver
12″ forward firing
Amplifier Class AB 8
50 watts dynamic
350 watts RMS power
Frequency Response: Overall
15 – 250 Hz
Frequency Response: (± 3 dB)
26 – 140 Hz
Low Pass Crossover
50 Hz to 180 Hz (12 dB/Octave)
Phase
0 to 180 degrees
Cabinet Design
MDF Closed Box with 52mm / 2” front Baffle
Magnet Structure
Dual ferrite magnet motor

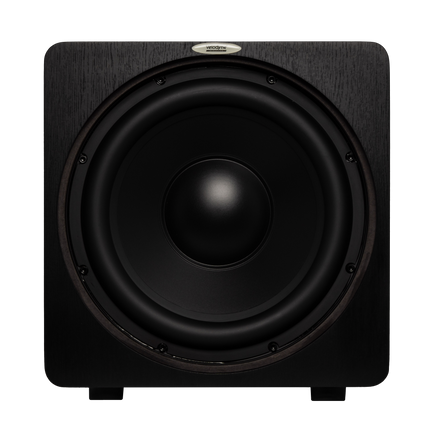

Woofer
12” high excursion double vented basket driver with PP inforced Membrane
Voice Coil
Four Layer 2,5″ / 65mm Voicecoil

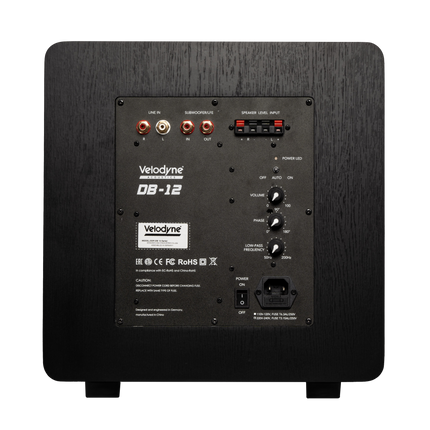

Input
Gold Plated Line in Stereo RCA, LFE in, Nickel Plated Highlevel
Output
Gold plated LFE /RCA
Power Selector
Off / Auto / On
Finishes
Black
Dimensions (W/H/D) (includes feet and connectors)
35 x 37 x 38,8 cm
Weight (approx)
13 kg
Shipping Weight (approx)
14,8 kg
