Experience the incredible sound of our iconic Dual Reference Series Subwoofer — this single subwoofer can power your sound system with even, precisely tuned, crystal-clear bass. Our state-of-the-art technology delivers a clean, balanced low-frequency experience, with two powerful bass drivers with excellent linearity, producing tight and accurate bass, with minimal distortion. Perfectly tuned for the most demanding movies or music.
Caracteristici principale

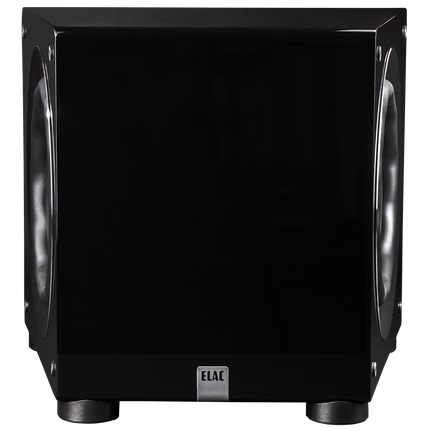

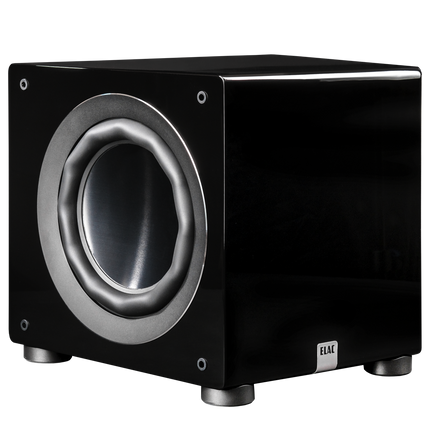

- dual 12" side-firing, high-excursion aluminum sandwich woofers
- HEX (High Excursion) surround geometry for accurate, low-distortion bass, even at high volumes
- large 2-1/2" voice coils
- high-efficiency built-in BASH® amplifier
- 1,200 watts RMS (2,400 watts peak)
- controlled by dual 28-bit DSPs with 147 MHz master clock for high accuracy and minimum latency
- 1-7/16"-thick MDF cabinet with damping and internal bracing
- sealed (acoustic suspension) design
- gloss black finish
- includes floor spikes for use on carpeted floors
- LFE/stereo RCA line-level input
- stereo balanced XLR line-level inputs
- stereo binding post speaker-level inputs
- Ethernet port for third-party home automation controllers
- USB-A port for firmware updates
- compatible with optional ELAC AirX2 wireless transmitter, not included
- frequency response: 17-150 Hz
- maximum acoustic output: 118dB
Greutate produs
Dimensiuni produs
Alte specificații
Raspuns in frecventa: 17-150 Hz
Ieșire acustică maximă: 118 dB
Garanție (luni)
ELAC Dual Reference Series Subwoofers: Total Performance Begins With Design
Technical Specifications
Speaker Type: Sealed
Woofer: 12” HEX Surround x2
Frequency Response:
17Hz—150Hz (Anechoic)
14Hz—150Hz (In-Room)
Maximum Output Level, SPL dB/1m anechoic: 118 dB
Low Pass Crossover: 40Hz to 150Hz
Amplifier Power: 1200/2400 Watts
App Controlled (BLE): iOS and Android
Amplifier Topology: BASH
Standby Power Consumption: < 2.0 Watts

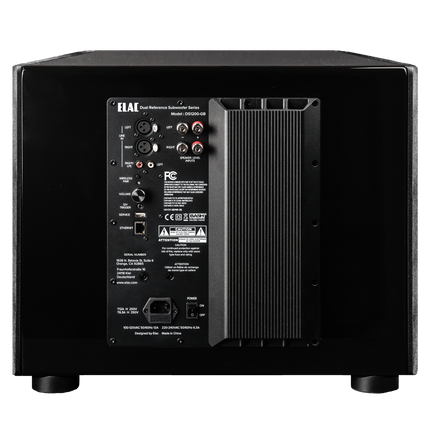

Inputs
RCA Line Level
Balanced XLR
Speaker Level
12 Volt Input: 12 Volt Trigger
Data Connection: USB (Firmware Update)
Ethernet: Third-Party Control
Cabinet Finish: Gloss Black
Included Accessories:
Grille
AC Power Cord
Spikes
Dimensions (H x W x D): 421mm x 482mm x 416 mm
Net Weight: 37.9 kg
