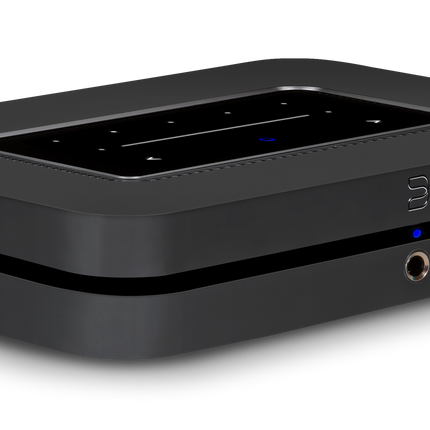

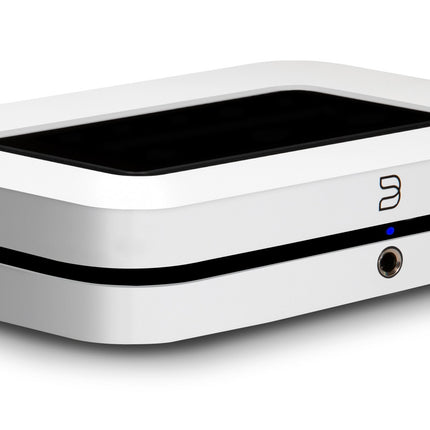

Streamer Bluesound NODE NEW 2024

AUDIO
Supported Audio File Formats: MP3, AAC, WMA, WMA-L, OGG, ALAC, OPUS
Supported High-Quality Audio File Formats: FLAC, MQA, WAV, AIFF, MPEG-4 SLS
DSD Support: DSD256, available via future BluOS update
Supported Multi-Channel Audio Formats: Dolby Digital®
Native Sampling Rates: up to 192 kHz
Bit Depth: 16-24
Audio Controls & EQ: BluOS Controller App
DAC: ESS ES9039Q2M
Signal-to-Noise Ratio: -118 dB
Distortion: THD+N, 0.0007%
Headphone Continuous Output Power (THD<0.1%): 160mW, 16Ω / 230mW, 32Ω / 53mW, 250Ω / 22mW, 600Ω
SOFTWARE & INTEGRATIONS
Operating System: BluOS
App Controller Operating System: iOS, Android, Windows, macOS
Processor: ARM® Cortex™ -A53, Quad-Core, 1.8GHz per core
Supported Network File Sharing: Server Message Block (SMB) up to 200,000 files
Album Art Supported: JPG, PNG
Music Services & Internet Radio: 23+
3rd-Party Integrations: AirPlay 2, Spotify Connect, Tidal Connect, Roon Ready, Dirac Live Ready
Control System Integrations: Crestron, Control4, RTI, ELAN, URC, Lutron
Voice Control Integrations: Amazon Alexa Skills

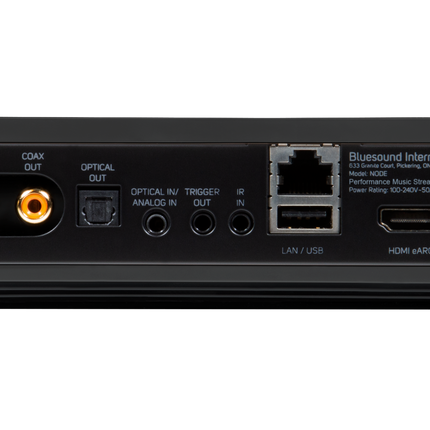

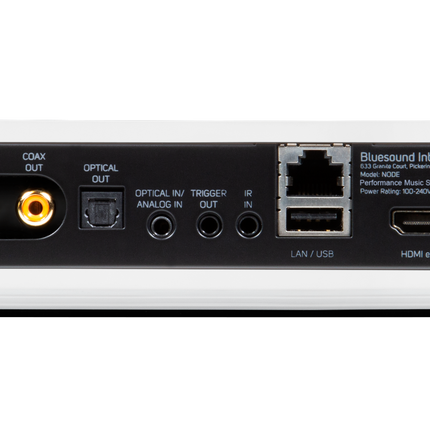

CONNECTIONS
Power Supply: Universal bi-pin AC cord input (100-240AC)
Ethernet/LAN: Ethernet RJ45, Gigabit 1000 Mbps
Wi-Fi Built In: Wi-Fi 5 (802.11ac), dual-band
Bluetooth Quality: Bluetooth 5.2 aptX Adaptive
Bluetooth Connectivity: Two-Way (transmit & receive)
IR Optical Built In: IR Sensor Built In - front panel with IR Remote Learning
Optical/Analog Input: Combo - Mini TOSLINK/Stereo 3.5mm
IR Input: 3.5mm Jack
HDMI Input: HDMI eARC
USB IN: Type A (Fat32 Formatted) - External Storage only; Local Server Mode
Audio Output: Analog RCA Stereo with Fixed option; USB Audio 2.0 (Type A)
Coaxial Output: RCA
Optical Output: TOSLINK digital optical
Trigger Out: 12 Volt
Headphone Output: 6.3mm Stereo; Bluetooth
Subwoofer Output: RCA x 1; Wireless to PULSE SUB+

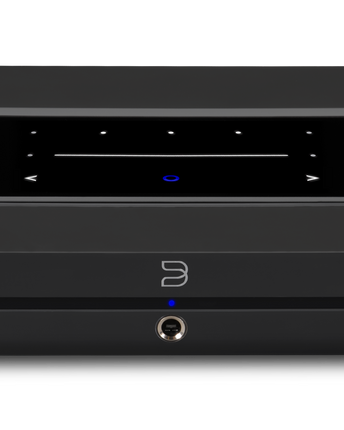

USER INTERFACE & CONTROL
Status Indicator: LED x2
Play/Pause Button: Touch LED
Volume Control Buttons: Touch Slider LED
Preset Buttons: Touch LED x 5
Proximity Sensor: Yes
GENERAL
Product Dimensions: 220 x 46 x 146 mm (W x H x D); 8.7 x 1.8 x 5.7 in (W x H x D)
Product Weight: 1.09kg/2.4lbs
Finish: Black or White: Matte Satin Paint
Storage Environment: -10°C to 50°C, 20% to 80% relative humidity
Operating Environment: 0°C to 40°C
Version: N132
