General
Operating System: BluOS
Supported Controller Operating System: iOS, Android, Windows Vista, 7, 8, 10, macOS 10.10-10.15, 11
Supported Audio File Formats: MP3, AAC, WMA, WMA-L, OGG, ALAC, OPUS
Supported Hi-Res Audio File Formats: FLAC, MQA, WAV, AIFF, MPEG-4 SLS
Supported Mult-Channel Audio Formats: Dolby Atmos; Dolby Digital
Supported Network File Sharing: Server Messsage Block (SMB)
Native Sampling Rates: up to 192 kHz
Bit Depths: 16-24
Music Service Integrations: 23+
3rd-Party Integrations:
AirPlay 2
Apple Wireless Accessory Configuration (WAC)
Control System Integrations: Crestron, Control 4, RTI, ELAN, URC, Push, Lutron, iPort
Voice Control Integrations: Amazon Alexa Skills
Features

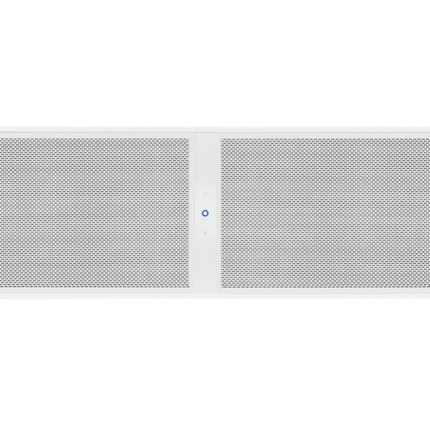

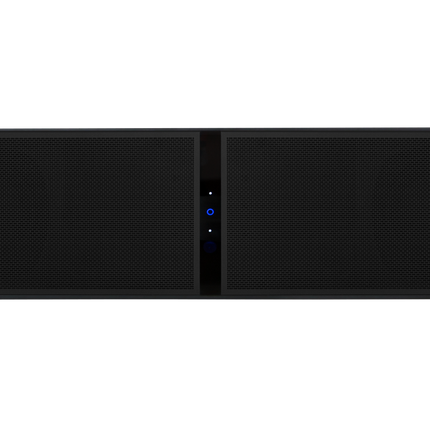

Status Indicator: Front Panel LED
Play/Pause Button: Touch LED
Volume Control Buttons: Touch LED
Previous/Next Track Buttons: In-App
Preset Buttons: In-App
Audio Controls & EQ: In-App
Processor: ARM® Cortex™ -A53, Quad-Core, 1.8GHz per core
Distortion: THD+N, 0.030%
Amplification: Digital
Power Output: 120W total system power
Speakers: 1" (25mm) Tweeter x 2; 2" (50mm) Mid-Range x 2;
4" (102mm) Woofer x 2; 4" (102mm) Passive Radiator x 2
Frequency Response: +/- 1dB 70Hz - 20kHz; 3dB down at 55Hz; 3dB down at 25Hz

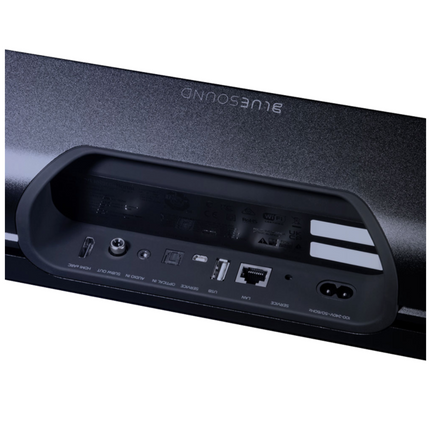

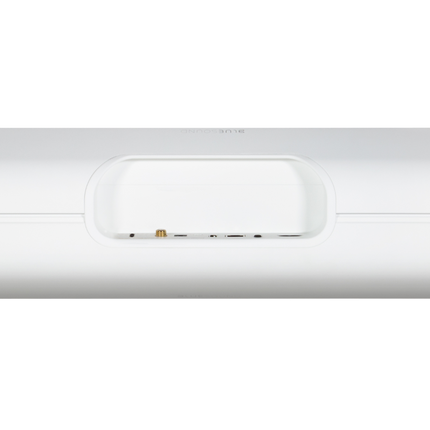

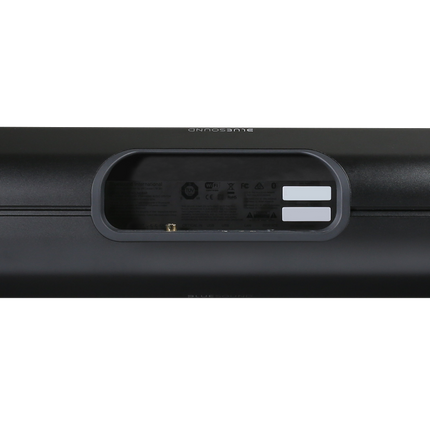

Connections
Power: Universal bi-pin AC cord input (100-240AC)
Ethernet/LAN: Ethernet RJ45, GigE 1000 Mbps
Wi-Fi Built In: 2x Wi-Fi 5 (802.11ac), dual-band
Bluetooth Quality: Bluetooth 5.0 aptX HD
Bluetooth Connectivity: Two-Way (transmit & receive)
IR Optical Built In: IR Sensor Built In - front panel with IR Remote Learning
Optical/Analog Input: TOSLINK; 3.5mm Analog Line In
HDMI Input: HDMI eARC
USB IN: Type A (Fat32 Formatted)
USB: Type B (mini) for product servicing
Headphone Output: Bluetooth
Subwoofer Output: 1x RCA Analog; 1x Wireless via Secondary Wi-Fi module
Product Dimensions (not including wall bracket or kickstands): 1073 x 141 x 70mm (W x H x D); 42.25 x 5.5 x 2.75 in (W x H x D)
Weight: 6.8kg/15lb
