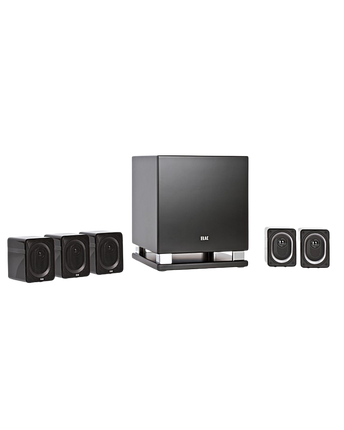

Based on the successful BS 302, the Cinema 30 Set offers a full complement of loudspeakers, but with dimensions that make it hard to believe its true capabilities. The high-gloss paintwork also makes them an elegant addition to any interior. Supported by the powerful SUB 2030, this surround-sound system creates a huge soundstage where even the finest details of movies and music are revealed and the lowest frequencies are felt as well as heard.
Caracteristici principale
- Based on the successful BS 302, the Cinema 30 Set offers a full complement of loudspeakers, but with dimensions that make it hard to believe its true capabilities.
- The high-gloss paintwork also makes them an elegant addition to any interior.
- Supported by the powerful SUB 2030, this surround-sound system creates a huge soundstage where even the finest details of movies and music are revealed and the lowest frequencies are felt as well as heard.
Link producător:
Alte specificații
Specificatii SUB2030:
Tip: subwoofer alimentat, cutie inchisa
Woofer: 1 x 250 mm
Raspuns in frecventa: 20 Hz - 180 Hz
Frecventa crossover: 44 Hz - 160 Hz, reglabila
Tip amplificator: BASH
Puterea maxima a amplificatorului: 350 W
Consum de energie de asteptare: 1 W
Intrari: 2 x linie-canal (RCA)
Sensibilitate la intrare: 2 x 70 mV (RCA)
Impedanta de intrare: 10 kOhm (RCA)
Accesorii incluse: cablu de alimentare CA
Specificatii boxa BS302:
Tip: 2 cai, high-pass integrat
Woofer: 1 x 78 x 108 mm AS oval cone.
Tweeter: 1 x 20 mm cloth dome
Raspuns in frecventa: 80 Hz - 35000 Hz
Frecventa crossover: 80 Hz / 2390 Hz
Sensibilitate: 86 dB la 2.83 v/1m
Puterea recomandată a amplificatorului: 20 wpc -120 wpc
Putere nominala / de varf: 60/75 wpc
Impedanta nominala: 4 Ohm; minim 3.5 Ohm @ 1200 Hz
Ecran magnetic: Da
The Cinema 30
Technical Specifications

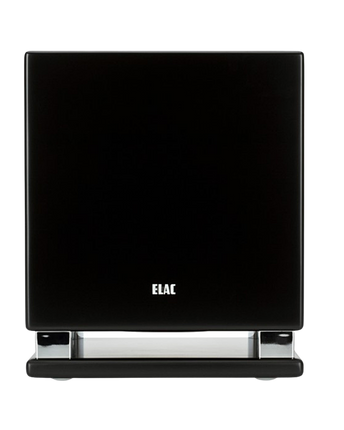

SUB2030 Specifications:
Speaker Type: Powered subwoofer, closed box
Woofer: 1 x 250 mm cone
Frequency Response: 20 to 180 Hz
Crossover Frequency: 44 – 160 Hz, selectable
Amplifier Type: BASH-Tracking
Maximum amplifier power: 350 Watts Max
Standby power consumption: 1 Watt
Maximum power consumption: 480 Watts (full load)

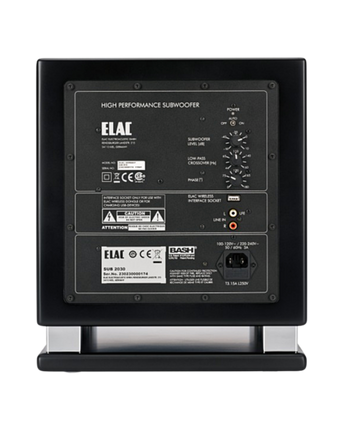

Inputs: 2x line-channel (RCA)
Input sensitivity: 2 x 70 mV (RCA)
Input Impedance: 10 kΩ (RCA)
Cabinet finish: Matte black or white
Accessories included: AC Power Cable
Dimensions (WxHxD): 11.8in / 300mm, 14.0in / 356mm, 12.4in / 315mm
Weight: 30.1 lb / 14.0 kg

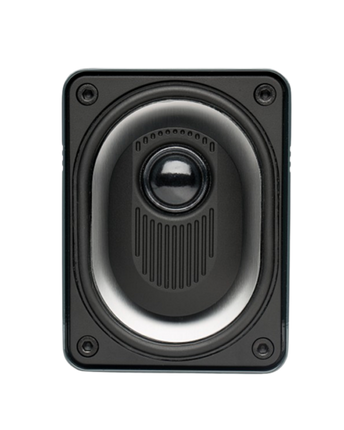

BS302:
Speaker Type: 2-way, closed box, high-pass integrated/li>
Tweeter: 1 x 20 mm cloth dome
Woofer: 1 x 78 x 108 mm AS oval cone
Crossover Frequency: 80/2,390 Hzz
Frequency Response: 80 to 35,000 Hz
Sensitivity: 86 dB at 2.83 v/1m
Recommended amplifier power: 20 to 120 wpc
Nominal/peak power handling: 60 / 75 wpc
Nominal impedance: 4 Ω; minimum 3.5 Ω @ 1,200 Hz

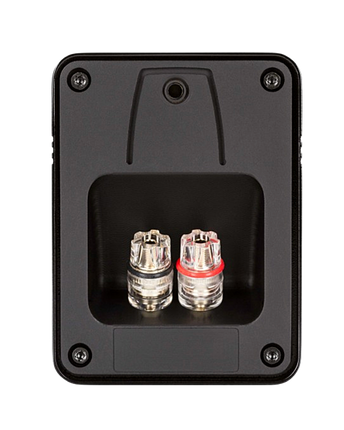

Binding posts: 5-way metal
Magnetic shielding: Yes
Cabinet finish: High gloss black, gray or white
Accessories included: Metal grille
Dimensions (WxHxD): 3.6 in / 91mm, 4.8 in / 121mm, 4.4 in / 111 mm
Net weight (each): 2.9lb / 1.3kg
