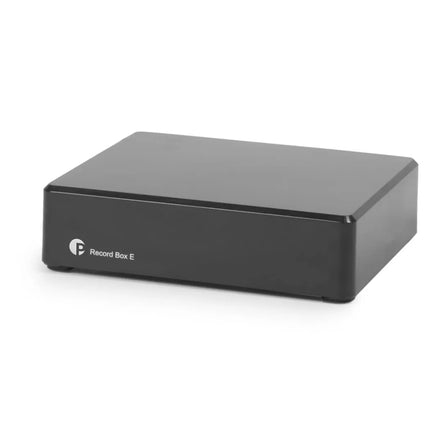

Preamplificator cu convertor A/D - Record Box E Phono Black

Pro-JectVariantă: Black Cod: 9120050435117
Preț de listă 545 lei 499 lei
Transport gratuit
30 de zile retur "no comment"
Garantie 24 luni
3 RATE Alpha Bank
3 RATE Banca Transilvania
3 RATE Card Avantaj
3 RATE Garanti Bank

Caracteristici principale

  • Preamplificator de doza cu convertor A/D integratintare phono MM / MC ( RCA stereo )
  • iesire digitala mini USB
  • iesire analogica de linie ( RCA stereo )intrarea PHONO => gain 40 dB MM / 60 dB MC, curba egalizare RIAA
Specificații tehnice

Greutate produs

250 g

Dimensiuni produs

120 mm x 32 mm x 100 mm

Alte specificații

Impendanta la intrare: 100 Ohmi (MC) / 47 kOhmi (MM)

Gain (MM/MC): 40 dB / 60 dB

THD (MM/MC): <0,01% / <0,05%

Curba RIAA: 20 Hz - 20 kHz / max. 0,5 dB

Converor A/D: Burr Brown PCM2904 Delta Sigma 16 bit

Garanție (luni)


Phono preamplifier with A/D converter and USB output

Record Box E: Pure vinyl listening pleasure plus recording functionality!

Record Box E is an high-quality phono preamplifier, that offers the possibility to convert your valuable vinyls into computer music data. Record Box E accepts both MM & MC cartridges and gives audiophile music experience at an entry level price. The integrated A/D converter operates with Windows and MAC operating systems and connects via USB to your computer. Therefore your valuable vinyl collection can be digitised, especially for use in portable music players. Advanced circuitry and SMD construction keep noise and distortion at a surprisingly low level. A built-in internal shielding and an outboard DC power supply leave no risk for external interference. Because of its small casing, Record Box E can be placed near the turntable. Input and output sockets are gold-plated for preservation of quality. Record Box E can be connected easily to a line-input (AUX etc) of your amplifier.

Technical Specifications

Input capacitance/input impedance:
MC: 100ohms/120pF (low output MC)
MM: 47kohms/120pF (MM or high output MC)

Gain, MM / MC: 40dB / 60dB

Output voltage typically: 300mV/1kHz at 3mV/1kHz (MM) or 0,3mV/1kHz (MC)

Max. output: 9,5V (1kHz)

Noise floor MM / MC: 94dB (A weighted) / 75dB (A weighted)

THD MM / MC: <0,01% / <0,05%

RIAA-equalisation curve accuracy: 20Hz - 20kHz / max. 0,5dB

A/D converter: Burr Brown PCM2904 16-Bit Delta Sigma

Sampling rates: 32, 44,1 and 48kHz

USB output: 5 pin mini b connector

USB signal: digital serial data protocol USB 1.1

Operating systems: Windows XP®, Windows Vista®, Windows 7®, Windows 8®, Mac OS

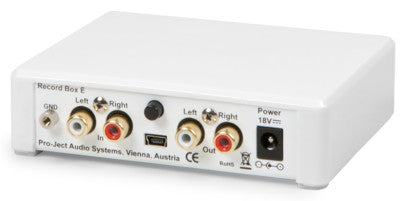

Input / Line output: 1 pair RCA/Cinch sockets each

Outboard power supply: 18V/500mA DC universal

Power consumption: 100mA DC

Dimensions W x H x D (D with sockets): 120 x 32 x 100 (115) mm

Weight: 250g without power supply
