PRODUCT HIGHLIGHTS
• 250 W/Ch THX® Certified Select RZ Series Dynamic Audio Amplification
• Wide 5 Hz–100 kHz frequency response
• HDMI® inputs 1–3, Main Out, and Sub/Zone 2 Out(Sub Mode output) support 8K/60p (4:2:0/10-bit), 8K/30p (4:4:4/10-bit), 4K/120p (4:4:4/10-bit) video passthrough
• HDMI terminals*1 support HDR10+, Dolby Vision™, and BT.2020 color; VRR (Variable Refresh Rate), ALLM (Auto Low Latency Mode), and QFT (Quick Frame Transport)
passthrough; eARC (Main Out), and HDCP 2.3
• SMART AV Receiver™ Works with Sonos*2, Chromecast built-in™, AirPlay 2, DTS Play-Fi®, Spotify®, Amazon Music HD*3, Pandora®, TIDAL, Deezer, TuneIn*4
• Dolby Atmos® and DTS:X® playback (5.2.4-ch)
• 11.2-ch processing and pre-outs for 7.2.4 layouts
• Dolby Atmos Height Virtualizer
• IMAX® Enhanced certified signature sound by DTS:X
• Supports Dirac Live® Room Correction
• AccuReflex™ phase-matching solution for Dolby Atmos enabled speakers
• HDMI Main Out with eARC (enhanced Audio Return Channel)
• HDMI Sub/Zone 2 Out*5 connects a second display or projector
• Refined HDMI grounds, isolated SoC board, reinforced power lines
• Quad-core SoC supports 802.11ac (2x2 MIMO) Wi-Fi®*6
• Dedicated DACs for switching Zone 2 outputs (dedicated), Zone 3 outputs (shared), Zone 2/Zone B and Zone 3 pre-/line-outs
• Stereo Assign Mode supports Height-channel playback
• DSP-based Vocal Enhancer improves vocal/dialog audibility
• OSD function shows A/V input/output signal data, playback settings, and network info
• Volume memory presets for A/V inputs via front panel
AMPLIFIER FEATURES
• 250 W/Ch (6 ohms, 1 kHz, 10% THD, 1-ch driven), 120 W/Ch (8 ohms, 20 Hz–20 kHz, 0.08% THD, 2-ch driven, FTC)
• Certified for IMAX Enhanced and THX Certified Select
• Exclusive Dynamic Audio Amplification (DAA) RZ Series build
• Wide 5 Hz–100 kHz frequency response
• Custom High-Current Low-Noise Power Transformer
• Custom 15,000 μF high-current smoothing capacitors
• Refined chassis, HDMI board, DAC, digital/analog inputs, power-amp grounds, and power lines
• Isolated network module reduces high-frequency interference on audio circuitry
• Original 2-stage non-phase-shift amplifier circuitry with discrete output stage
• Anti-resonant extruded aluminum heat-sink
• High current capability drives 4-ohm loads through 9 channels
• High-quality DAC supports 192 kHz/24-bit multichannel D/A conversion
• VLSC™ (Vector Linear Shaping Circuitry) noise filtering (Front L/R)
• PLL (Phase Locked Loop) anti-jitter technology for SPDIF audio
• Independent tone controls (bass/treble) for all channels (excluding Zone 3)
VIDEO & AUDIO SUPPORT
• HDMI*1 supports 8K/60p (4:4:4/12-bit*7, 4:2:2/12-bit*7, 4:2:0/10-bit*8), 8K/30p (4:4:4/12-bit*7, 4:4:4/10-bit*8, 4:2:2/12-bit*8, 4:2:0/12-bit), 4K/120p (4:4:4/12-bit*7, 4:4:4/10-bit*8, 4:2:2/12-bit*8, 4:2:0/12-bit) video passthrough, VRR, ALLM, QFT, DSC (Display Stream Compression), QMS (Quick Media Switching), eARC (Main Out), HDR10+, Dolby Vision, HDR10, HLG, BT.2020, DeepColor™, x.v.Color™, LipSync, and HDCP 2.3
• Dolby Atmos, DTS:X, Dolby® TrueHD, and DTS-HD Master Audio® decoding
• Dolby Atmos Height Virtualizer 3D audio processing
• Dolby Surround® and DTS® Neural:X 3D upmixing technology
• IMAX Mode for IMAX Enhanced content
• THX® listening modes for movies, music, and games
• Theater-Dimensional virtual surround-sound function
• Sound optimization for games (Rock, Sports, Action, and RPG)
• Hi-Res Audio playback via network (DSD256/DSD128/DSD64 [PCM conversion], FLAC, WAV [RIFF], AIFF, and ALAC to 192 kHz/24-bit*9)
• Pure Audio Mode and Direct Mode for source-authentic sound quality
NETWORK FEATURES
• SMART AV Receiver multi-room platform with integrated streaming services, voice assistant support, and remote app control*10
• Works with Sonos certified for the Sonos Home Sound System, control with Sonos app*10
• Works with Alexa supporting multi-room music*11
• Works with Hey Google*12 and Chromecast built-in
• Supports Apple AirPlay 2 enabling Siri voice control
• DTS Play-Fi multi-room audio via Onkyo Music Control App*10
• 1.8 GHz quad-core SoC supports 802.11ac (2x2 MIMO) Wi-Fi
• Roon Tested for the Roon Core

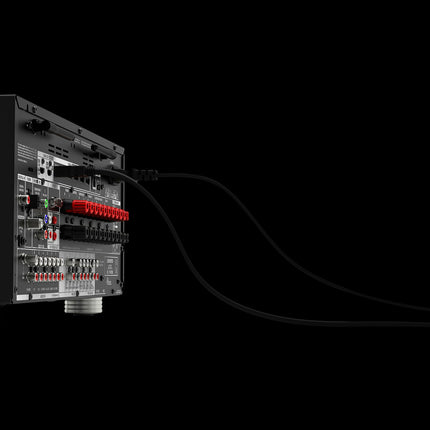

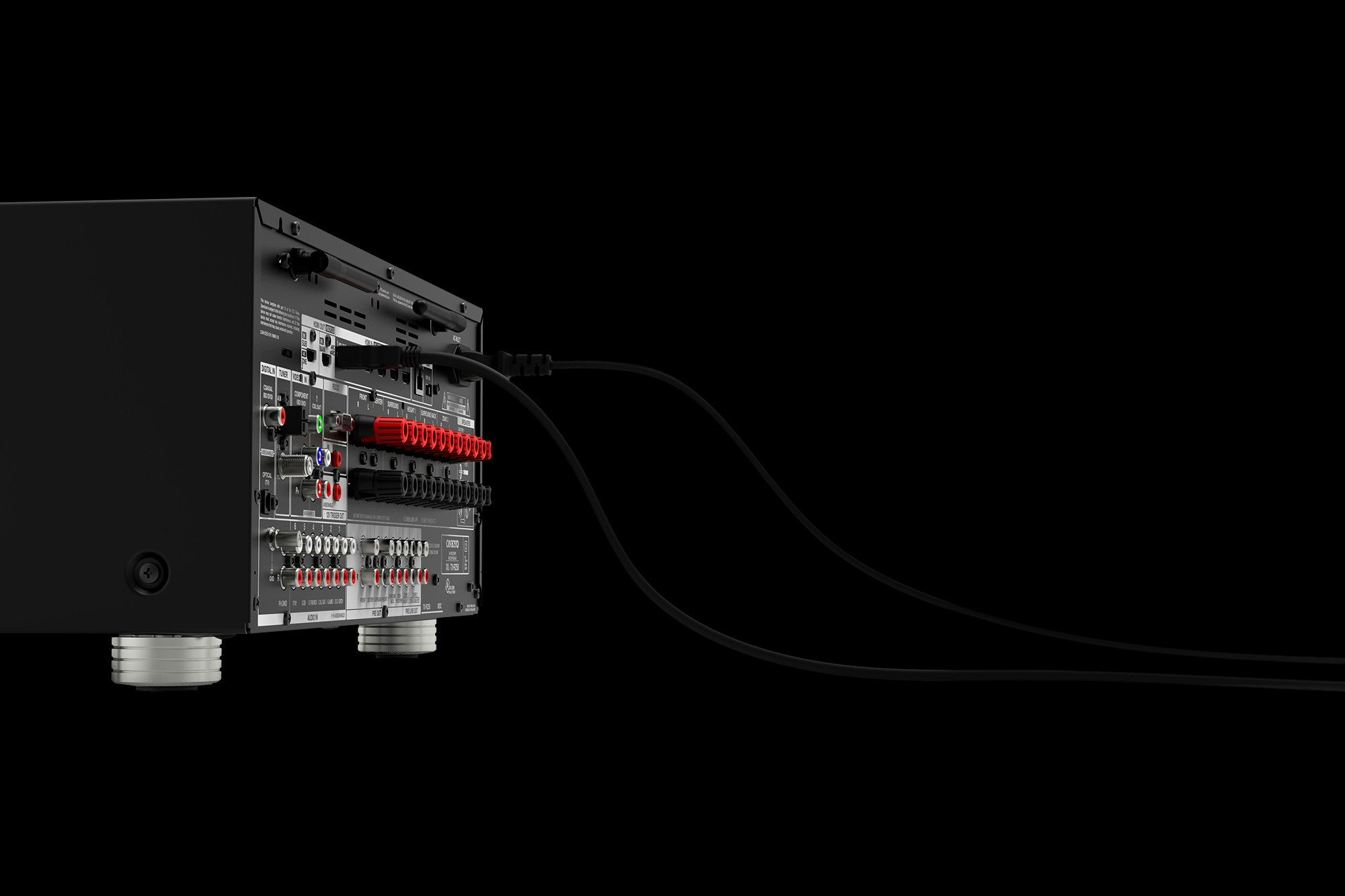

CONNECTION FEATURES
• 7 HDMI inputs (1 front), 2 outputs (Main [eARC], Sub/Zone 2)
• 1 component video input (assignable)
• 2 composite video inputs (assignable)
• 2 digital audio inputs (1 coaxial, 1 optical, assignable)
• 6 analog RCA audio inputs (assignable)
• 1 phono input with built-in low-noise MM equalizer for turntable
• 1/8˝ (3.5 mm) setup mic input for AccuEQ/Dirac Live (front)
• 1/4˝ (6.35 mm) headphone jack (front)
• 11.2-ch pre-outs (analog RCA, variable)
• Zone 2/Zone B and Zone 3 analog RCA pre/line-level outputs*13
• 11 banana-plug-ready screw-type speaker posts (including exclusive Zone 2 outputs)
• 10BASE-T/100BASE-TX Ethernet terminal for network and IP control
• USB input (5 V/1 A) for audio playback (rear)
• RS-232 serial port for remote control
• IR (infrared) input for remote-control extenders
• 12 V trigger output (Main, assignable, 100 mA)
• AC inlet for detachable IEC power cord
ADVANCED FEATURES
• Dirac Live improves staging, localization, clarity, and bass
• Bluetooth® wireless technology can receive audio sent from mobiles and PC, transmit audio to wireless headphones (RX mode: SBC/AAC, TX mode: SBC/Qualcomm® aptX™/aptX HD)
• Advanced Music Optimizer improves compressed audio playback quality
• Vocal Enhancer boosts vocal/dialog audibility via remote control or front-panel keys
• Front-to-Surround/Height speaker switching in Stereo Assign Mode for background listening
• Overlaid OSD function displays A/V input signal data, output data/settings, and network information
• My Input Volume one-touch volume memory preset assignment to individual A/V inputs
• Transmit HQ audio from compatible TVs to the A/V receiver via eARC (HDMI Main Out)

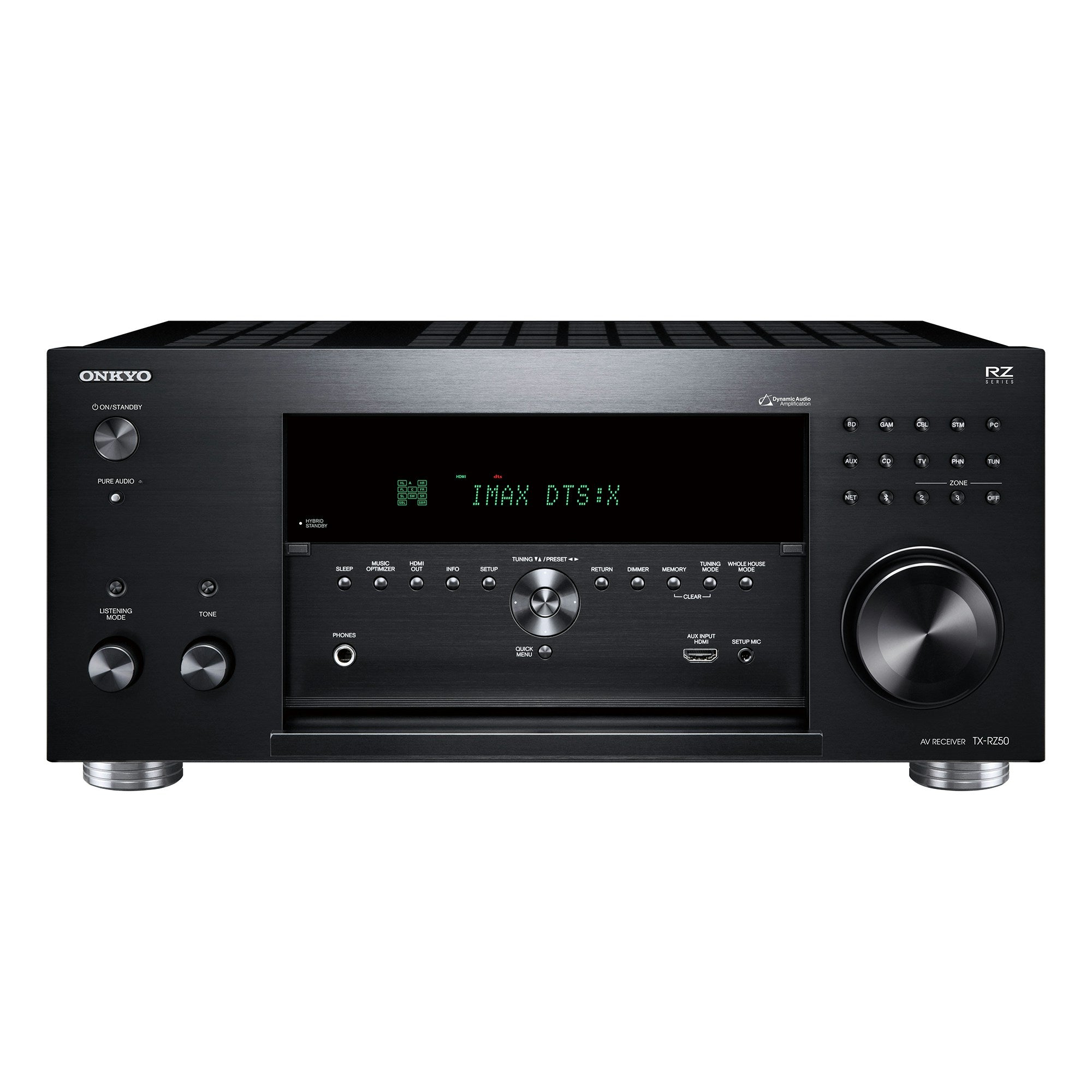

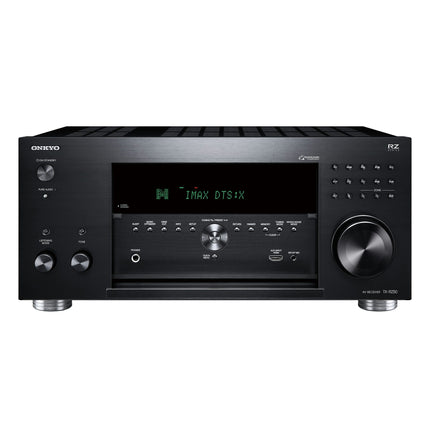

• Aluminum front panel, concealment flap door, and volume control
• Connect Zone 2 speakers and 7.2.2/5.2.4-ch speaker system using dedicated Zone 2 outputs (Zone 2 + 7.2/5.2.2-ch switching)
• Play three audio sources via dedicated DACs and MAIN, Zone 2, and Zone 3 speaker outputs*14
• Share MAIN audio or a second source (including HDMI/SPDIF*15) to a hi-fi via Zone 2 pre-/line-out
• Share any MAIN audio source to a wireless headphone dock via Zone B line-out*16
• 4K to 8K, 1080p to 8K/4K video upscaling via HDMI
• GUI with overlaid OSD via HDMI
• IP control and AVR setup via web browser
• Crossover adjustment for each channel (40/50/60/70/80/90/100/120/150/180/200 Hz)
• A/V Sync Control (up to 500 ms in 5 ms steps at 48 kHz*17)
• Efficient standby modes including HDMI Passthrough Mode
• Optional rack-mounting kit (IRK-180-4C)
• FM/AM tuners with 40-station random preset memory
• 3-Mode display dimmer (Normal/Dim/Dimmer)
*1 Features defined in HDMI 2.1 specification, HDR10+, and passthrough capabilities described are supported on HDMI inputs 1–6, Main Out, and Sub/Zone 2 Out in Sub Mode output. *2 Requires a Sonos Connect or Port (sold separately). Connection of 1–3 Sonos devices is supported with volume control enabled via the Sonos app for compatible iPhone, iPad, and Android™ devices. *3 Amazon Music HD is supported via DTS PlayFi. *4 Service availability varies with region and subscriptions may be required. *5 HDMI Zone 2 Mode output supports signals via HDMI inputs 1–3. *6 Some countries or regions have regulations that affect wireless signal strength and use of Wi-Fi channels. *7 DSC signals only. *8 DSC signals only when input via HDMI inputs 4–6. *9 Supported sampling rates may vary depending on network environment. DSD is converted to PCM upon playback. ALAC is supported to a maximum 96 kHz. *10 Available free for compatible iPhone and iPad at the App Store. Available free for compatible Android devices at the Google Play Store. *11 Voice control requires an Amazon Alexa enabled device. Alexa multi-room music may require a firmware update. *12 Voice control requires a Google Assistant enabled device. *13 Zone B is line-level output only. *14
HDMI/SPDIF/NET supported in Zone 2. Analog/NET supported in Zone 3. When set to Zone 2, HDMI audio is available on inputs 1–3. SPDIF and HDMI support PCM signals only. Simultaneous playback of multiple audio sources is enabled. *15 HDMI audio is available on inputs 1–3. SPDIF and HDMI support PCM signals only. Simultaneous playback of multiple audio sources is enabled. *16 When set to Zone B mode, playback of encoded and PCM audio via any input is enabled in MAIN and Zone B. *17 Max. 400 ms (5 ms steps) at 96 kHz, and max. 200 ms (5 ms steps) at 192 kHz.
SPECIFICATIONS
Amplifier Section
Power output (All channels)
250 W/Ch (6 ohms, 1 kHz, 10% THD, 1 channel driven)
120 W/Ch (8 ohms, 20 Hz–20 kHz, 0.08% THD, 2 channels driven, FTC)
Dynamic power
250 W (3 ohms, Front)
220 W (4 ohms, Front)
130 W (8 ohms, Front)
THD+N (Total Harmonic Distortion + Noise)
- 0.08% (20 Hz–20 kHz, half power)
Input sensitivity and impedance
200 mV rms/47 k-ohms (Line)
3.5 mV rms/47 k-ohms (Phono MM)
Rated RCA output level and impedance
1 V rms/470 ohms (Subwoofer pre-out)
200 mV rms/470 ohms (Zone 2/Zone B line-out)
Frequency response
5 Hz–100 kHz/+1 dB
-3 dB (Direct Mode)
Tone control
- ±10 dB, 20 Hz (Bass)
- ±10 dB, 20 kHz (Treble)
Signal-to-noise ratio
106 dB (Line, IHF-A)
80 dB (Phono, IHF-A)
Speaker impedance
- 4–16 ohms
Tuner Section
Tuning frequency range
FM 87.5 MHz–107.9 MHz
AM 530 kHz–1,710 kHz
FM/AM preset memory: 40 stations
Video Section
Input sensitivity/output level and impedance
Video
1.0 Vp–p/75 ohms (Component Y)
0.7 Vp–p/75 ohms (Component Pb/Pr)
1.0 Vp–p/75 ohms (Composite)
General
Power supply: AC 120 V~, 60 Hz
Power consumption: 850 W
Power consumption (standby): 0.1 W
Dimensions (W x H x D): 435 x 201.5 x 398 mm
Weight: 14.0 kg
Carton
Dimensions: (W x H x D): 570 x 335 x 490 mm
Weight: 17 kg
In the box
- Power cord
- Indoor FM antenna
- AM loop antenna
- Speaker setup microphone
- Quick Start Guide
- Remote controller
- AAA (R03) batteries x 2
