PRODUCT HIGHLIGHTS
• 210 W/Ch THX® Certified Select DAA system
• 5.2.2-ch Dolby Atmos® and DTS:X® playback
• SMART AV Receiver™ Works with Sonos*1, Chromecast built-in™, AirPlay 2, and DTS Play-Fi®; includes Spotify®, Amazon Music HD*2, Pandora®, TIDAL, Deezer and TuneIn streaming services*3
• Works with Hey Google or Alexa*4
• Stream over 5 GHz/2.4 GHz dual-band Wi-Fi® supporting the 802.11ac standard*5
• HDMI® inputs 1-3 and Main/Sub outpus support 8K/60p(4:2:0/10-bit), 8K/30p(4:4:4/10-bit), 4K/120p(4:4:4/10-bit) video pass through
• HDMI terminals*6 support HDR10+, Dolby Vision and BT.2020 color; VRR (Variable Refresh Rate), ALLM (Auto Low Latency Mode), and QFT (Quick Frame Transport) passthrough; eARC (Main Out), and HDCP 2.3
• HDMI Sub/Zone 2 Out for media transmission to a projector, gaming monitor, or TV
• Send or receive audio via Bluetooth® wireless technology (RX mode: SBC/AAC, TX mode: SBC/Qualcomm® aptX™/ aptX HD)
• Refined chassis, HDMI board, DAC, Digital/Analog inputs, power-amp grounds and power lines
• Dedicated Zone 2 speaker posts for powered D/A audio distribution (including HDMI/SPDIF/NET*7) to passive speakers
• Zone 2/Zone B line-out (analog RCA) with Zone 2 DAC supports independent or synced D/A playback (including HDMI/SPDIF/NET*6) on compatible audio systems
• AccuEQ with AccuReflex™ and subwoofer EQ
AMPLIFIER FEATURES
• 210 W/Ch (6 ohms, 1 kHz, 10% THD, 1 channel driven), 100 W/Ch (8 ohms, 20 Hz–20 kHz, 0.08% THD, 2 channels driven, FTC)
• THX Certified Select
• Onkyo Dynamic Audio Amplification (DAA)
• Discrete 2-stage non-phase-shift amplifier circuitry
• Custom High-Current Low-Noise Power Transformer
• Large custom-made audio-grade power capacitors
• Strengthened power supply line supports high-current dynamics
• Refined chassis, HDMI board, DAC, Digital/Analog inputs, power-amp grounds and power lines
• Isolated network module reduces high-frequency signal interference on audio circuitry
• High current capability drives 4-ohm loads through 7 channels
• Precision 192 kHz/24-bit D/A conversion for Hi-Res Audio
• VLSC™ (Vector Linear Shaping Circuitry) filtering (Front L/R)
• PLL (Phase Locked Loop) anti-jitter technology for SPDIF audio
• Tone controls (bass/treble) for front L/R channels
VIDEO & AUDIO SUPPORT
• Supports features defined in HDMI 2.1*7 specification including 8K/60p(4:4:4/12-bit*8, 4:2:2/12-bit*8, 4:2:0/10-bit), 8K/30p(4:4:4/12-bit*8, 4:4:4/10-bit, 4:2:2/12-bit), 4K/120p(4:4:4/12-bit*8, 4:4:4/10-bit, 4:2:2/12-bit) video passthrough, VRR, ALLM, QFT (Quick Frame Transport), DSC (Display Stream Compression), QMS (Quick Media Switching) and eARC (Main Out); supports HDR10+, Dolby Vision™, HDR10, and HLG, and BT.2020 color; DeepColor™, x.v.Color™, LipSync, and HDCP 2.3
• Dolby Atmos, DTS:X, Dolby® TrueHD, and DTS-HD Master Audio® decoding
• Dolby Atmos Height Virtualizer and DTS Virtual:X 3D processing
• Dolby Surround® and DTS® Neural:X 3D upmixing technologies
• Hi-Res Audio playback via network and USB including DSD256, DSD128, DSD64 (DSDIFF/DSF) and 192 kHz/24-bit FLAC, ALAC, WAV (RIFF), and AIFF*9
• SACD (Super Audio CD) playback via HDMI (2.8 MHz 2-ch/multichannel)
• THX® listening modes for movies, music, and games
• Theater-Dimensional virtual surround-sound function
• Sound optimization for games (Rock, Sports, Action, and RPG)
• Direct Mode and Pure Audio Mode
NETWORK FEATURES
SMART AV Receiver multi-room platform with integrated streaming services, voice assistant support, and control via remote apps
• Fast quad-core SoC supports 802.11ac (2x2 MIMO) Wi-Fi
• Works with Sonos for the Sonos Home Sound System with Sonos app*10
• Works with Alexa supporting multi-room music*11
• Works with Hey Google and Chromecast built-in
• Supports Apple AirPlay 2 enabling Siri voice control
• DTS Play-Fi multi-room audio via Onkyo Music Control App*10
• Control and manage multiroom playback with Onkyo Controller app*10
• Roon Tested certification for the Roon Core
• IP Control for setup via PC and integration into a home automation system
CONNECTION FEATURES
• 6 HDMI inputs and 2 outputs (Main Out [eARC], Sub/Zone 2 Out)
• 2 digital audio inputs (optical and coaxial, assignable)
• 4 analog RCA audio inputs (assignable)
• 1 phono input with built-in MM phono equalizer
• 1/8˝ (3.5 mm) mic input for AccuEQ setup
• 1/4˝ (6.35 mm) headphone jack
• 2 subwoofer pre-outs
• Zone 2/Zone B analog RCA line-level out
• 9 banana-plug-ready speaker posts (including dedicated Zone 2 posts)
• 10BASE-T/100BASE-TX Ethernet terminal for network connection
• USB inputs (front:DC 5 V/500 mA, rear:DC 5 V/1 A) for audio playback
ADVANCED FEATURES
• AccuEQ Room Acoustic Calibration with AccuReflex and subwoofer EQ
• Bluetooth wireless technology supports audio reception from mobile devices and PC, audio transmission to supported headphones (RX mode: SBC/AAC, TX mode: SBC/aptX/aptX HD)
• Advanced Music Optimizer™ improves compressed audio playback quality
• Wake on Play standby for Bluetooth and Network with auto input-switching
• Vocal Enhancer boosts vocals/dialog audibility via remote control or front panel keys
• FM/AM tuner with 40 random station memory presets
• Zone 2 DAC for independent D/A audio distribution (HDMI/SPDIF/NET)
• 7.2-ch/5.2.2-ch speaker layout connection with 5.2-ch + Zone 2 switching
• Zone 2 line-out*12 connects compatible components for independent or synced D/A playback (including HDMI/SPDIF/NET*6)
• Zone B line-out*12 connects compatible wireless headphone docks for synced playback with MAIN Zone*6
• Switch from Front L/R speakers to Height/Surround/Surround Back speakers using Stereo Assign Mode*13 for BGM listening
• My Input Volume one-touch startup volume assignment to individual inputs
• High-definition GUI with overlaid OSD over HDMI
• 4K to 8K, 1080p to 8K/4K video upscaling via HDMI
• OSD function shows source data and playback settings
• Crossover adjustment for each channel (40/50/60/70/80/90/100/120/150/180/200 Hz)
• A/V Sync Control (up to 500 ms in 5 ms steps at 48 kHz*14)
• Various standby modes and HDMI pass-through
• 3-Mode display dimmer (Normal/Dim/Dimmer)
*1 Requires a Sonos Connect or Port (sold separately). Connection of 1–2 Sonos devices is supported with volume control enabled via the Sonos app for iOS and Android™ devices. *2 Amazon Music HD is supported via DTS Play-Fi. *3 Streaming service availability may vary by region. An account and subscription may be required for some streaming services. *4 Voice control requires an Alexa built-in or Google Assistantenabled device, such as a smart speaker or smartphone. Interoperability with streaming services depends on the respective technology and the country or region. *5 Some countries or regions have regulations that affect wireless signal-strength and use of WiFi channels. *6 Features defined in HDMI 2.1 specification, HDR10+, and passthrough capabilities described are supported on HDMI inputs 1–3, Main Out, and Sub/Zone 2 Out in Sub Mode output. *7 When set to Zone 2 mode, HDMI audio is available on inputs 1–3; SPDIF and HDMI support 2-ch PCM signals only; and simultaneous playback of multiple audio sources is enabled. When set to Zone B mode, encoded and PCM audio playback for all inputs is enabled in MAIN and Zone B. *8 DSC (Display Stream Compression) signals only. *9 Supported sampling-rates may vary depending on network environment. DSD is converted to PCM upon playback. ALAC is supported to a
maximum 96 kHz. *10 Available free for iPhone and iPad at the App Store. Available free for Android devices on Google Play. Please check device and OS requirements before installation. *11 Multi-room music may require a firmware update. *12 Zone 2 line-out and Zone B line-out are exclusive modes shared on the same analog RCA output. *13 Speaker-switching capabilities depend on the speaker layout. *14 Max. 400 ms (5 ms steps) at 96 kHz, and max. 200 ms (5 ms steps) at 192 kHz.
SPECIFICATIONS
Amplifier Section
Power output (All channels)
210 W/Ch (6 ohms, 1 kHz, 10% THD, 1-ch driven)
100 W/Ch (8 ohms, 20 Hz–20 kHz, 0.08% THD, 2-ch driven, FTC)
Dynamic power 240 W (3 ohms, Front)
210 W (4 ohms, Front)
120 W (8 ohms, Front)
THD+N (Total Harmonic Distortion + Noise)
0.08% (20 Hz–20 kHz, half power)
Input sensitivity and impedance
200 mV rms/47 k-ohms (Line)
3.5 mV rms/47 k-ohms (Phono MM)
Rated RCA output level and impedance
1 V rms/470 ohms (Subwoofer pre-out)
200 mV rms/2.2 k-ohms (Zone 2/Zone B line-out)
Frequency response 10 Hz–100 kHz/+1 dB,
-3 dB (Direct/Pure Audio)
Tone control
±10 dB, 20 Hz (Bass)
±10 dB, 20 kHz (Treble)
Signal-to-noise ratio 106 dB (Line, IHF-A)
80 dB (Phono, IHF-A)
Speaker impedance: 4–16 ohms
Tuner Section
Tuning frequency range
FM 87.5 MHz–107.9 MHz
AM 530 kHz–1,710 kHz
FM/AM preset memory 40 stations
General
Power supply AC 120 V~, 60 Hz
Power consumption (operating): 635 W
Power consumption (idle) 65 W
Power consumption (standby): 0.1 W
Dimensions (W x H x D): 435 x 173.5 x 379.5 mm
Weight: 9.8 kg
Carton
Dimensions: (W x H x D): 534 x 265 x 468 mm
Weight: 12.5 kg
In the box
- Indoor FM antenna (Europe)
- AM loop antenna
- Speaker setup microphone
- Quick Start Guide

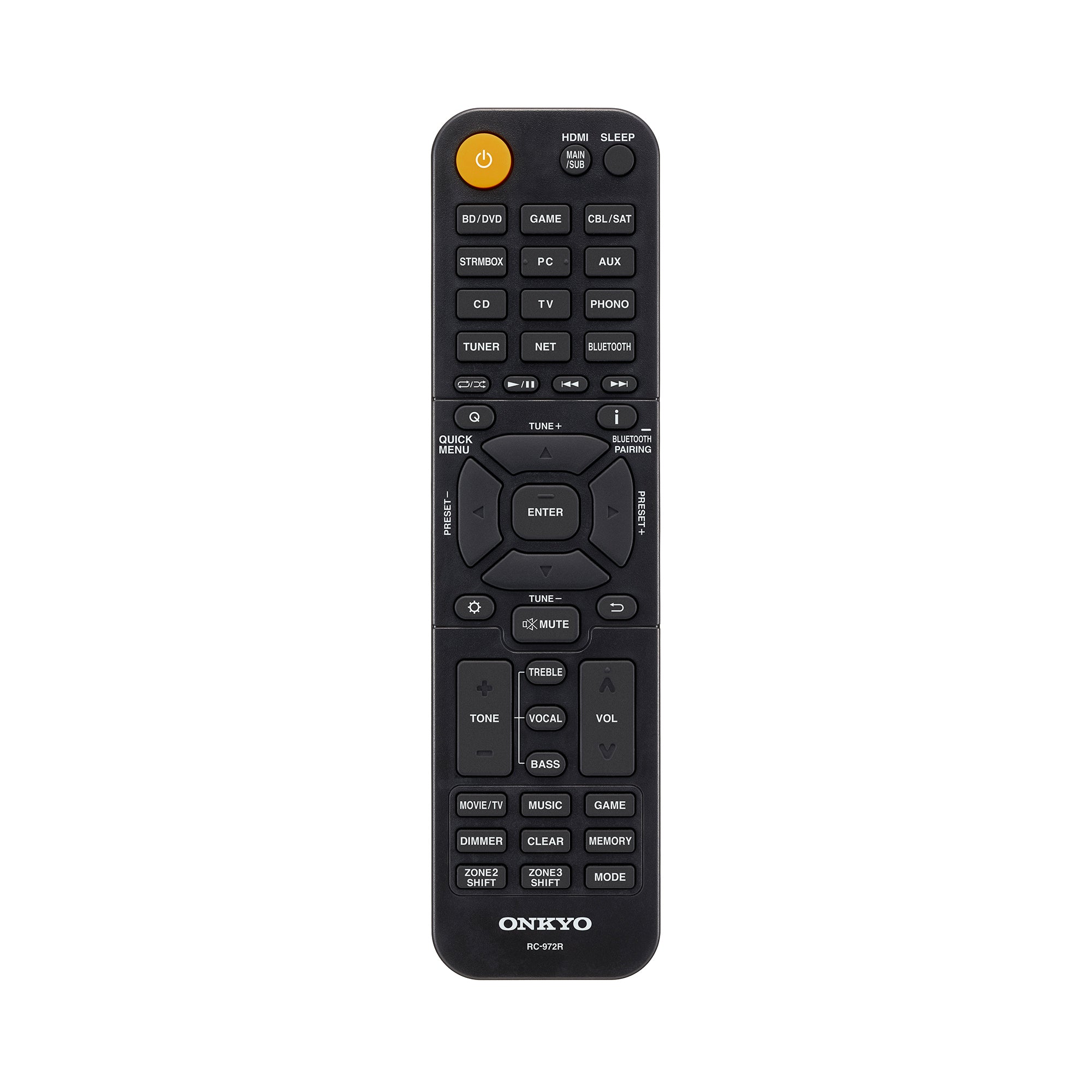

- Remote controller
- AAA (R03) batteries x 2
