Preamplificator Phono Pro-Ject Phono Box DS3 B

Pro-Ject
Share

Ridicare gratuita din showroom

Varianta selectata: Silver

Cod produs: 9120097829375

Cel mai mic pret din ultimele 30 de zile: 2.499 lei

Intreaba cand revine

2.199 lei / Bucata 2.995 lei

Expediere azi? Comanda in: Nov 23, 2024 16:00:00 +0200

30 de zile perioada de retur

Garantie 24 luni

Transport gratuit pentru comenzi peste 100 RON in Romania

Livrare prin curier sau ridicare din showroom Bucuresti

Pentru plata în rate alegeți NETOPIA ca procesator de plăți.

6 Rate

Card Avantaj

6 Rate

Alpha Bank

6 Rate

6 Rate

Banca Transilvania

6 Rate

Garanti Bank

12 Rate

Raiffeisen Bank (in showroom)

Coduri produs: 9120097829375 9120097829351

Descriere

Preamplificator phono
Constructie balansata
MM / MC
Gain intre 40 si 65 dB
Intrare - RCA + XLR + miniXLR
Iesire - RCA + XLR

Alte informatii

Link producator: click aici

Manual: descarca fisierul

Fisa de produs: descarca fisierul

Cauti un pachet PROMO personalizat?

Spune-ne de ce ai nevoie si revenim cu o oferta " de nerefuzat "

Phono Box DS3 B

True Balanced, Dual Mono & Fully Discrete Audiophile Phono Stage

A New Level of Balance

THE NEW PHONO BOX DS3 B

At Pro-Ject, balanced connections were exclusive to our RS range of products until now. The Phono Box DS3 B model offers some of the high-end features of the Phono Box RS2 at an affordable price and trusted Pro-Ject quality. One of those is our new True Balanced Connection.

High-End Features and Limitless Loading Options

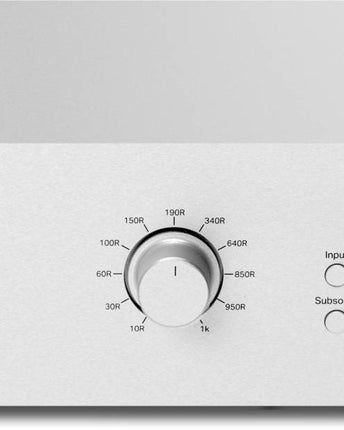

The Phono Box DS3 B employs a steel chassis enveloped by aluminium panels. This construction offers very high rigidity and isolation against interferences, which is essential for the new technology inside. Magnetic wooden side panels are available separately as add-ons. You can connect up to two turntables simultaneously – all parameters for each input get stored in the memory. Perfectly match the Phono Box DS3 B to a wide variety of cartridges. Load impedance can be set continuously via a potentiometer, a system invented by Pro-Ject Audio Systems, to adjust the impedance during playback and assess the impact of different loading options in real-time. No other manufacturer implements this feature as elegantly!

Balanced By Nature

Cartridges are balanced signal transducers by nature! Due to the internal wiring of MM cartridges, you'll need a MC cartridge to access the entirety of that balanced signal. Together with our new True Balanced Connection cables you'll be able to access high-end features that were previously only available on the most expensive phono stages. And the best: any Pro-Ject turntable with RCA, miniXLR or 5P output can do it!

A TECHNICAL DEEP DIVE

The Phono Box DS3 B incorporates a true, fully balanced gain stage design. Whether you're using a single-ended RCA or balanced connection, both times the fully symmetrical gain stage can optimize the signal-to-noise ratios, feeding the fully passive and discrete RIAA equalization stage with the cleanest signal to work its magic on. Entirely split passive equalization allows for better impedance matching and lower deviation from the ideal RIAA curve. The Phono Box DS3 B uses fully discrete audio circuitry. A discrete circuit is composed of disparate, individual electronic components, also called discrete components. Years of experience have proven that even the best Op-Amps do not come close to the neutral, natural, dynamic, and vivid presentations of discrete circuit.

TRUE BALANCED CONNECTION

The symmetrical design is the fundamental standout feature! Connect your turntable via the 5-pin mini XLR cable or standard XLR cables and enjoy the benefits of our new True Balanced Connection. A truly balanced gain stage can extract the final musical information, effectively filtering out any noise from interferences stemming from our noisy, modern homes (household appliances, wifi & Bluetooth, power cables, audio amplifiers).

High-End Features

Limitless Loading

Steel & aluminium casework. Entirely discrete audio circuitry. Fully symmetrical gain stage. Split passive RIAA EQ. Dual mono. Balanced in & outputs. Stepless impedance matching.

True Balanced

Unleash the full power

Phono Box DS3 B is ready for our new True Balanced Connection. Single-ended RCA connections, quite literally, only use half of your cartridge's output. With one of our new True Balanced phono cables and an MC cartridge you'll hear details and dynamics, previously exclusive to only the most expensive phono stages.

Handmade in EU

Since 1991

Made in Europe by technicians, engineers and designers with decades of experience. Expert craftsmanship. Sustainable products with a long lifetime. Audiophile audio performance.

Technical Specifications

Input impedance: Stepless 10 – 1000 ohms or fix 47kOhms

Input capacitance: 50, 150, 300, 400pF

Gain (+ 6dB using XLR Out): 40, 45, 50, 55, 60, 65 dB

SNR MM (40dB): 104dBV, 111dBV - ‚A‘ weighted

SNR MC (60dB): 85dBV, 91dBV - ‚A‘ weighted

THD at 1 kHz: <0,001% MM, < 0,004% MC

THD (20Hz-20kHz): <0,005% MM, < 0,01% MC

RIAA-equalization accuracy: < 0,25dB / 20Hz - 20kHz

Subsonic filter: at 20Hz with 18dB/octave

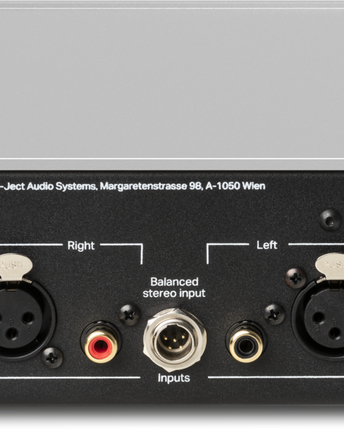

Input: 1x 5-pin mini XLR / 1x pair XLR / 1x pair RCA phono

Line-level output: 1x pair RCA, 1x pair XLR

Wiring XLR sockets: 1 ground, 2 “hot” and 3 “cold”

Trigger In/Out: 12V on/off detector

Outboard power supply: 18V/500mA DC

Power consumption: 18V/max.290mA DC, <0.5 W standby

Dimensions: 206 x 72 x 194 (205 with sockets) mm

Weight: 1480g without power supply
