LINE IN, SINGLE-ENDED /ANALOG AUDIO OUTPUT
THD (20Hz – 20kHz): <0.001% at 2V out
Signal-to-Noise Ratio: >105dB (IHF; A-weighted, ref. 500mV out, unity gain)
Channel separation:
>116dB (1 kHz)
>106 dB (10 kHz))
Input Impedance (R and C): 56 kohms + 100 pF
Maximum input signal:
>5.6Vrms (ref. 0.1% THD)
>8 Vrms (Analog Bypass)
Output impedance: Source Impedance + 22 Ohm
Input sensitivity: 185mV (ref. 500mV out, Volume maximum)
Frequency response:
±0.2dB (20Hz – 20kHz)
±0.2dB (Analog Bypass, 20Hz – 20kHz)
Maximum voltage output:
-IHF load >5V (ref. 0.1% THD)
>10 V (Analog Bypass, ref. 0.1% THD)
BALANCED IN, BALANCED /ANALOG AUDIO OUTPUT
THD (20Hz – 20kHz): <0.001% at 2V out
Signal-to-Noise Ratio: >105dB (200 Ohm source; A-weighted, ref. 500mV out)
Channel Seperation:
>116dB (1 kHz)
>106 dB (10 kHz)
Input impedance(R and C): 56 kOhms + 100 pF
Maximum input signal:
>5.6 Vrms (ref. 1% THD)
>8 Vrms (Analog Bypass, ref. 1% THD)
Output impedance Source Impedance: + 22 Ohms
Input sensitivity: 90mV (ref. 500 mV out, Volume maximum)
Frequency response:
±0.2 dB (20 Hz – 20 kHz)
±0.2 dB (Analog Bypass, 20 Hz – 80 kHz)
Maximum voltage output (IHF load):
>10 V (ref. 0.1 % THD)
>20 V (Analog Bypass, ref. 0.1 % THD)
DIGITAL SOURCE IN, SINGLE-ENDED /ANALOG AUDIO OUTPUT
THD (20Hz – 20kHz): <0.0005% at 2V out
Signal-to-Noise Ratio: >108 dB (IHF; A-weighted, ref. 500 mV out, unity gain)
Channel separation:
>126dB at (1kHz)
>115dB (10 kHz)
Input sensitivity: -20.25 dBFS (ref. 500 mV out (-6 dBV), max Volume
Frequency response: ±0.2 dB (20 Hz – 20 kHz)
Maximum voltage output: -IHF load >5 V (ref. 0.1 % THD)
DIGITAL SOURCE IN, BALANCED /ANALOG AUDIO OUTPUT
THD (20 Hz – 20 kHz): <0.0005% at 2V out
Signal-to-Noise Ratio: >108 dB (IHF; A-weighted, ref. 500 mV out, unity gain)
Channel Separation:
>126 dB (1 kHz)
>115 dB (10 kHz)
Input sensitivity: -26.25 dBFS (ref. 500 mV out(-6 dBV), max Volume
Frequency response: ±0.2 dB (20 Hz – 20 kHz)
Maximum voltage output (IHF load): >10 V (ref. 0.1 % THD)
LINE IN, SINGLE-ENDED/SUBWOOFER OUTPUT/2SUBWOOFERS
THD (20 Hz – 20 kHz): <0.005% at 2V out
Signal-to-Noise Ratio: >84 dB (IHF; A-weighted, ref. 500 mV out, unity gain)
Output impedance: 480 Ohms
Maximum voltage output: -IHF load >5 V (ref. 0.1% THD
BALANCED IN, BALANCED /SUBWOOFER OUTPUT/2SUBWOOFERS
THD (20 Hz – 20 kHz): <0.005% at 2V out
Signal-to-Noise Ratio: >80B (IHF; A-weighted, ref. 500 mV out, unity gain)
Output impedance: 480 Ohms
Maximum voltage output: -IHF load >10 V (ref. 0.1 % THD)
PHONO INPUT, SINGLE-ENDED /ANALOG AUDIO OUTPUT (Analog bypass)
THD (20 Hz – 20 kHz):
MM: <0.008% (ref. 2 V out)
MC: <0.02% (ref. 2 V out)
Signal-to-Noise Ratio:
MM: >82dB (A-weighted, ref. 500 mV out)
MC: >75dB (A-weighted, ref. 500 mV out)
Input Impedance (R and C):
MM: 56 kohms + 100 pF
MC: 100 ohms + 280 pF
Input sensitivity:
MM: 1.7 mV (ref. 500 mV out, Volume maximum)
MC: 123 μV (ref. 500 mV out, Volume maximum)
Frequency response: ±0.2 dB (20 Hz – 20 kHz)
Maximum input signal at 1kHz:
MM: >80 mVrms
MC: >7 mVrms (ref. 0.1 % THD)
LINE INPUT, HEADPHONE OUT(Analog Bypass)
THD (20 Hz – 20 kHz): <0.002% (ref. 1V out)
Signal-to-Noise Ratio: >98 dB (32 ohms loads; A-WTD, ref. 0.5V out, unity gain)
Frequency response: ±0.3 dB (20 Hz – 20 kHz)
Channel separation: >62 dB at 1kHz
Output impedance Source: Z + 4.7ohms
Maximum input signal at 1kHz: MM: >80 mVrms
Power consumption:
at Auto Standby ON and Network Standby OFF 0.5 W
at Auto Standby ON and Network Standby ON 2.0 W
OFF mode (Power switched OFF) 0.1 W
BluOS
AUDIO
Supported audio file formats: MP3, AAC, WMA, WMA-L, OGG, ALAC, OPUS
Supported high- res audio file formats: FLAC, MQA, WAV, AIFF, MPEG-4 SLS
Sampling rate: up to 192 kHz
Bit depths: 16 – 24
CONNECTION
Ethernet/LAN:
Ethernet RJ45, Gigabit 1000 Mbps
Wi-Fi Built In:Wi-Fi 5 (802.11ac), dual-band
Bluetooth Quality: Bluetooth 5.0 aptX HD
USB: Type A
USER INTERFACE
Supported operating system: Music playback from network shares on the following desktop operating systems: Microsoft Windows XP, 2000, Vista, 7, 8 to current Windows Operating Systems and macOS versions
Supported Hi-Res Audio File Formats: Free BluOS Controller App available for download from the respective App stores of Apple iOS devices (iPad, iPhone and iPod), Android devices, Kindle Fire and Windows or macOS desktops

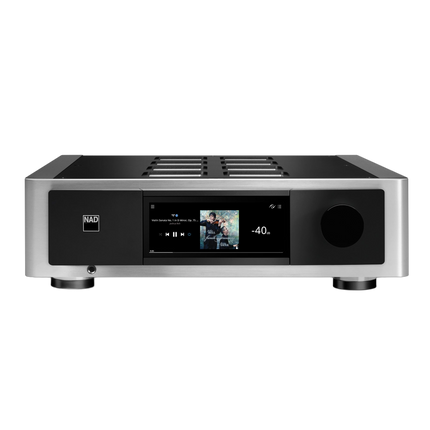

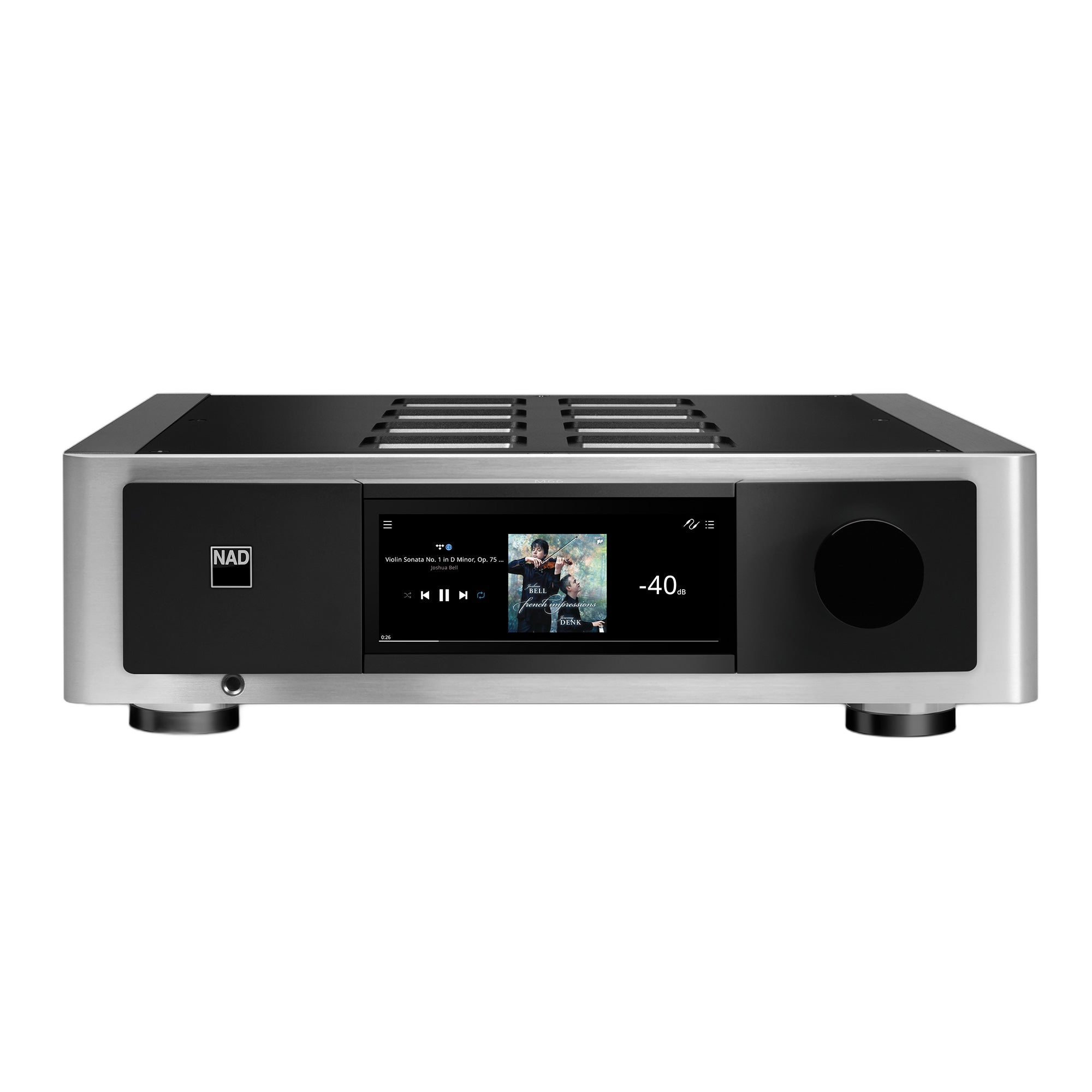

Front panel: 7-inch full colour touch screen
Remote control: SRM1 remote control
Streaming cloud services: Tidal, Qobuz, Deezer, Spotify, Amazon Music HD, SiriusXM, LiveOne, HighResAudio, JUKE, Napster, Pandora, Presto Music.
Free internet radio: TuneIn Radio, iHeartRadio, Calm Radio, Radio Paradise
GENERAL SPECIFICATIONS
Supports bit rate/sample rate: up to 24 bit/192 kHz
Frequency band: 2.402G- 2.480G
Maximum transmit power (dBm): 7 dBm ± 2 dBm
DIMENSIONS AND WEIGHT
Dimensions (W x H x D): 435 x 133 x 387 mm (17 1/8 x 5 1/4 x 15 15/64 ”)
Net Weight: 7.6kg (16.7lbs)
Shipping Weight: 16.25 kg (35.8 lbs)
Shipping Size (W x H x D): 569 x 258 x 519 mm (22 13/32 x 20 7/16 x 10 5/32’)
