Multichannel Surround
DTS HD Master / DTS:X / DTS:X Pro: Yes / Yes / Yes
DTS Neo:X / DTS Neural:X: No / Yes (15ch)
DTS Virtual:X: Yes
IMAX Enhanced: Yes
Dolby TrueHD / Dolby Atmos / Dolby Atmos Height Virtualization / Dolby Atmos Music: Yes / Yes / Yes / Yes
Dolby ProLogic Ilz / Dolby Surround: No / Yes
Auro 3D: Yes
360 Reality Audio / MPEG H: Yes / Yes
Multichannel Stereo: Yes
Max Number of Processing (Preamp) Channels: 15.4
Sound Enhancements
Copper Plated Chassis: Yes
Power Transformer: Toroidal / EI: Yes / No
Current Feedback Topology: Yes
Hyper Dynamic Amplifier Modules (HDAM): Yes
Pure Direct: Yes
Gold plated RCA terminals: Yes
Clock Jitter Reducer: Yes
Audyssey: MultEQ XT32
Audyssey Dynamic EQ / Dynamic Volume: Yes / Yes
Audyssey LFC: Yes
Dirac Live upgradability: Yes
Compressed Audio Enhancer: MDAX2: Yes
Network
HEOS Multi-room and Streaming: Yes
Bluetooth Re-transmit for Bluetooth headphones: Yes
Alexa / Google Voice Assistant / Apple HomePod: Yes / Yes / Yes
Network Audio Sharing: Yes
Lossy formats: MP3 / WMA / AAC: Yes / Yes / Yes
Lossless formats: FLAC / ALAC / WAV: Yes / Yes / Yes
Lossless formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24: Yes / Yes / Yes
DSD Audio Streaming: Yes (2.8/5.6MHz)
FLAC HD 192/24: Yes
WAV 192/24: Yes
ALAC 192/24: Yes
Gapless Playback: Yes (FLAC, WAV ,ALAC ,DSD)
AirPlay Audio Streaming: Yes (AirPlay2)
Internet radio: Yes (TuneIn)
Spotify*: Yes (connect)
Pandora: No
SiriusXM: Yes
Other Streaming Services *:
Amazon Music HD/
Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / Soundcloud / Mood Mix
Roon Tested: Yes
Compatible with Remote APP for Smart Phones: Marantz AVR Remote
Compatible with Remote APP for Tablets: Android / iOS / Amazon Kindle
Ethernet Ports: Yes
Wi-Fi: Yes
Bluetooth: Yes
HDMI
HDMI Inputs: Back / Front: 7 / No
HDCP2.3 support: Yes
HDMI Outputs: Main / Zone: 2 / 1
HDMI to HDMI Scaling: 1080P/4K to 8K
GUI Overlay on HDMI: Yes
HDMI 2.1: 8K/60Hz AB / 4K/120Hz AB: Yes / Yes
8K/60Hz AB / 4K/120Hz AB Pass-through In/Out: 7 / 2 (up to 40Gbps)
HDMI 2.0: 3D / 4K / CEC / ARC: Yes / Yes / Yes / Yes
Enhanced ARC: Yes
HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR: Yes / Yes / Yes / Yes / Yes
ALLM (Auto Low Latency Mode) Pass-through for gaming: Yes
Variable Refresh Rate / Quick Frame Transport: Yes / Yes
3D Signal Pass-Through: Yes
8K signal pass-through / scaling / GUI overlay: Yes / Yes / Yes
4K Signal Pass-Through / Scaling / GUI Overlay: Yes / Yes / Yes
HDMI pass-though in standby mode: Yes
Picture Adjust / Noise Reduction: No / No
CEC: Yes
DSD Audio Capability: Yes
Audio Return Channel: Yes
Auto LipSync: Yes
Multi-Room CI
HEOS Multi-Room Integrated: Yes
HEOS Link Compatibility: IR/ IP: Yes / Yes
Multi-Room Zones: 3
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog: Yes (2ch) / Yes (2ch) / Yes / Yes
Zone Audio Output: Speaker / Preout: No / Yes
Zone HDMI Output from HDMI Source: Yes
IP Control / RS232 Control / Web Control / App Control: Yes / Yes / Yes / Yes
IR Flasher In: Yes
Marantz Remote Bus: Yes
DC Trigger Output: 2
HDMI Diagnostics: Yes
Others
Auto Speaker Setup by Microphone:
Audyssey MultEQ XT32
Dirac Live (upgrade)
Front Display: 2 line FLD + port hole OLED
Graphic User Interface - GUI: Modern HD GUI
GUI Languages: 3
Setup Assistent: Yes
Smart Select: Yes
Firmware Update by Network / USB: Yes / Yes
Variable Cross Over: Yes
Optimized Bass Redirection: Yes
Bass Sync: Yes
Auto Power off: Yes
Sleep Timer: Yes

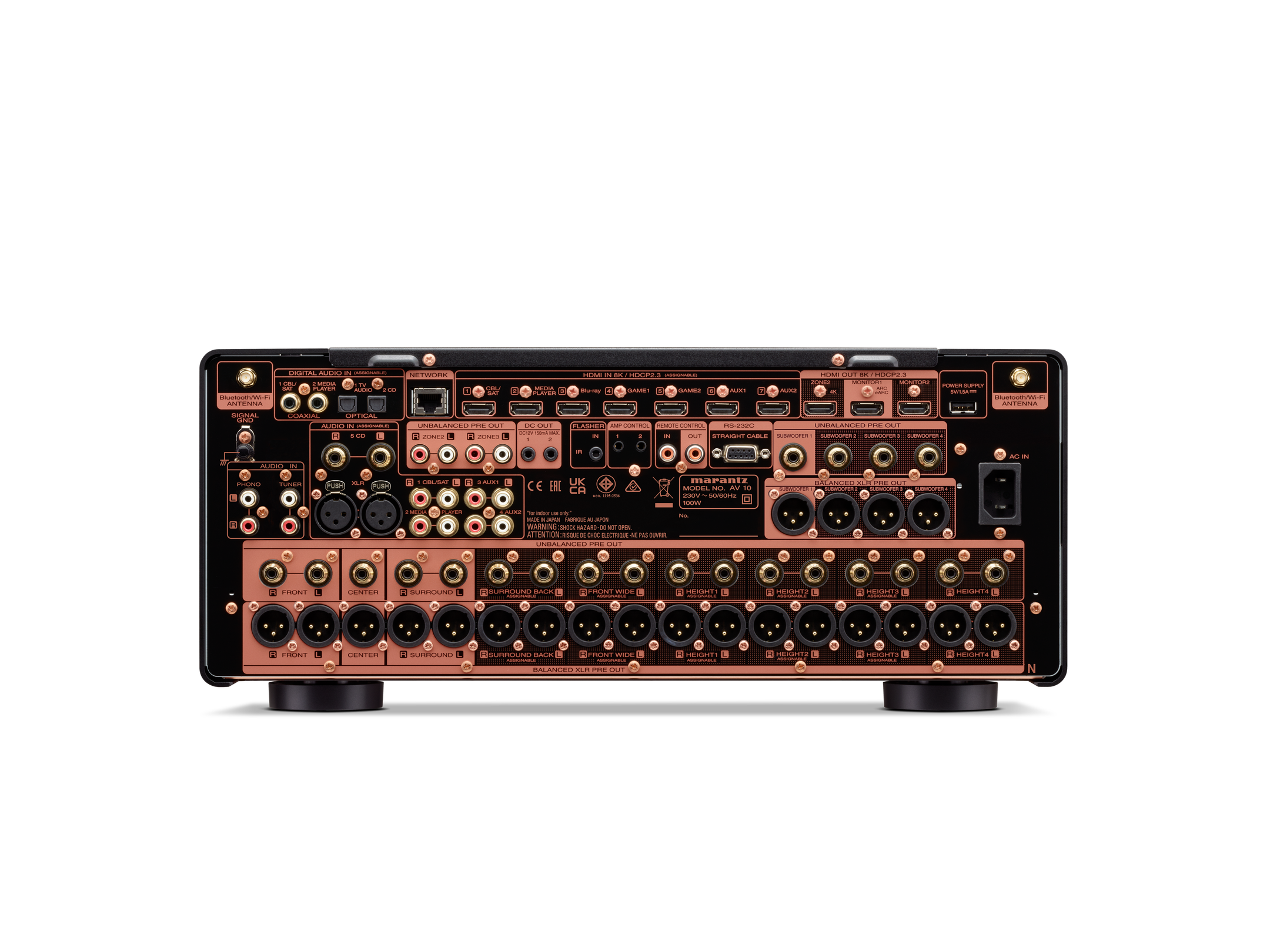

Inputs Outputs
Composite In / Out: No / No
Component In / Out: No / No
HDMI In / Out: 7 / 3
Multi-Room Video Out: Video / HDMI: No / Yes
Analogue In / Out: 5 (1x XLR) / No
Phono (MM) In: Yes
Digital In: Optical / Coaxial: 2 / 2
Multi-Room Out: analog / digital: 2 / No
Multichannel Pre Out: Yes (17.4 RCA & 17.4 XLR)
Subwoofer Out: 4 (independent)
Speaker A / B: assignable pre out
Bi-amp drive: assignable pre out
Multi-Room Speaker Terminal: pre out
Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB: No / No / No / No / Yes
USB Audio / Made for iPod / Made for iPhone: Yes / No / No
AM/FM Tuner: Yes
General
Metal Front Panel: Yes
System Remote Control: RC047SR
Pre-Programmed / Learnable / LCD Display: Yes / Yes / Yes
Power Consumption in W: 100
Standby Consumption in W: 0.2
CEC Standby Consumption in W: 0.5
Network Standby Consumption in W: Less than 2.0
Maximum Dimensions:
Antenna:Horizontal:(W x D x H) in mm: 442 x 503 x 189
Antenna:Vertical :(W x D x H) in mm: 442x 503 x 252
W/o Antenna:(W x D x H) in mm: 442 x 480 x 189
Weight in lbs.: 37.0 / 16.80 kg
