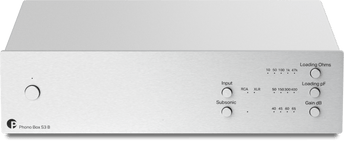

Preamplificator Phono Pro-Ject Phono Box S3 B

Pro-Ject
Share

Varianta selectata: Silver

Cod produs: 9120097829269

Cel mai mic pret din ultimele 30 de zile: 1.499 lei

In stoc

1.399 lei / Bucata 1.995 lei

Expediere azi? Comanda in: Nov 23, 2024 16:00:00 +0200

30 de zile perioada de retur

Garantie 24 luni

Transport gratuit pentru comenzi peste 100 RON in Romania

Livrare prin curier sau ridicare din showroom Bucuresti

Pentru plata în rate alegeți NETOPIA ca procesator de plăți.

6 Rate

Card Avantaj

6 Rate

Alpha Bank

6 Rate

6 Rate

Banca Transilvania

6 Rate

Garanti Bank

12 Rate

Raiffeisen Bank (in showroom)

Coduri produs: 9120097829269 9120097829283

Descriere

Preamplificator phono
Constructie balansata
MM / MC
Gain intre 40 si 65 dB
Intrare - RCA + miniXLR
Iesire - RCA + XLR

Alte informatii

Link producator: click aici

Manual: descarca fisierul

Fisa de produs: descarca fisierul

Cauti un pachet PROMO personalizat?

Spune-ne de ce ai nevoie si revenim cu o oferta " de nerefuzat "

Phono Box S3 B

Entry-Level True Balanced Phono Stage

A New Access to High-End Features

THE NEW PHONO BOX S3 B

The Phono Box S3 B is an entry-level phono preamplifier that offers a fully balanced design in a neat, small package. We’ve packed this tiny chassis to the brim with high-end features. One of those is our new True Balanced Connection. At Pro-Ject, balanced connections were exclusive to our RS range of products until now. The Phono Box S3 B brings those features to an incredible new entry level.

True High-End For the New Entry-Level

Our Phono Box S3 B comes in complete new casework. The bigger size enabled us to bring a completely new feature set that was never seen before in this price range. The new steel & aluminium case also offers very high rigidity and isolation against outside interferences, which is essential for the new technology inside. Connect up to two turntables simultaneously – all parameters for each input get stored in the memory. You can perfectly match the Phono Box S3 B to a wide variety of cartridges. Use the gain setting to accurately match the output to other sources like CD players or streaming devices. Ultra-low values like 50 pF or 10 ohms allow you to account for all situations.

Balanced By Nature

Cartridges are balanced signal transducers by nature! Due to the internal wiring of MM cartridges, you'll need to upgrade your turntable with an MC cartridge to access the entirety of that balanced signal. Together with our new True Balanced Connection cables you'll be able to access high-end features that were previously only available on the most expensive of phono stages. And the best of all: any Pro-Ject turntable with RCA, miniXLR or 5P outputs can do it!

FULLY DISCRETE AND SYMMETRICAL GAIN STAGE

The new Phono Box S3 B gain stage uses a fully discrete layout. A discrete circuit is composed of disparate electronic components, and individual devices. The amplifier section is built of single parts and doesn‘t use any integrated circuits! That makes for an extended and more costly design process but results in the best sound quality. The fully symmetrical gain stage can optimize the signal-to-noise ratios, feeding the semi-passive, RIAA equalisation stage with a clean signal to work on.

TRUE BALANCED CONNECTION

The symmetrical design is the fundamental standout feature! Connect your turntable via the 5-pin mini XLR cable and enjoy the benefits of a balanced signal path. A truly balanced gain stage can extract the final musical information, effectively filtering out any noise from interferences stemming from our noisy, modern homes (household appliances, wifi & Bluetooth, power cables, audio amplifiers).

High-End Features

For the Entry-Level

Steel & aluminium casework. Fully discrete & symmetrical gain stage. Balanced in & outputs. Cartridge loading options on front panel.

True Balanced

Unleash the full power

Phono Box S3 B is ready for our new True Balanced Connection. Single-ended RCA connections, quite literally, only use half of your cartridge's output. With one of our new True Balanced phono cables and an MC cartridge you'll hear details and dynamics, previously exclusive to only the most expensive phono stages.

Handmade in EU

Since 1991

Made in Europe by technicians, engineers and designers with decades of experience. Expert craftsmanship. Sustainable products with a long lifetime. Audiophile audio performance.

Technical Specifications

Input impedance: 10, 50, 100, 1k, 47k ohms

Input capacitance: 50, 150, 300, 400 pF

Gain (+ 6dB using XLR Out): 40, 45, 60, 65 dB

SNR MM (40dB): 103dBV, 110dBV - ‚A‘ weighted

SNR MC (60dB): 85dBV, 90dBV - ‚A‘ weighted

THD at 1 kHz: <0,001% MM, < 0,005% MC

THD (20Hz-20kHz): <0,008% MM, < 0,01% MC

RIAA-equalization curve accuracy: <0,3dB / 20Hz - 20kHz

Subsonic filter: at 20Hz with 18dB/octave

Input: 1x 5-pin mini XLR / 1x pair RCA phono sockets

Line-level output: 1x pair RCA, 1x pair XLR

Power supply DC: 18V/500mA

Power consumption: 18V/170mA DC, <0.5 W in standby

Dimensions: 206 x 55 x 153 (164 with sockets) mm

Weight: 930g without power supply
