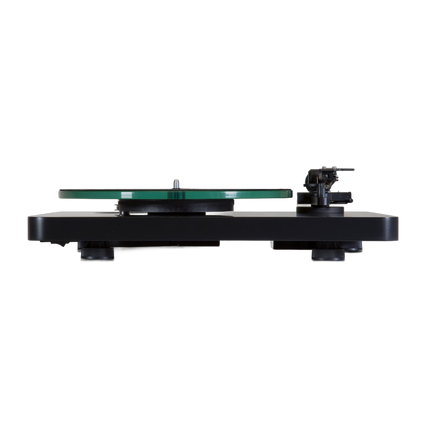

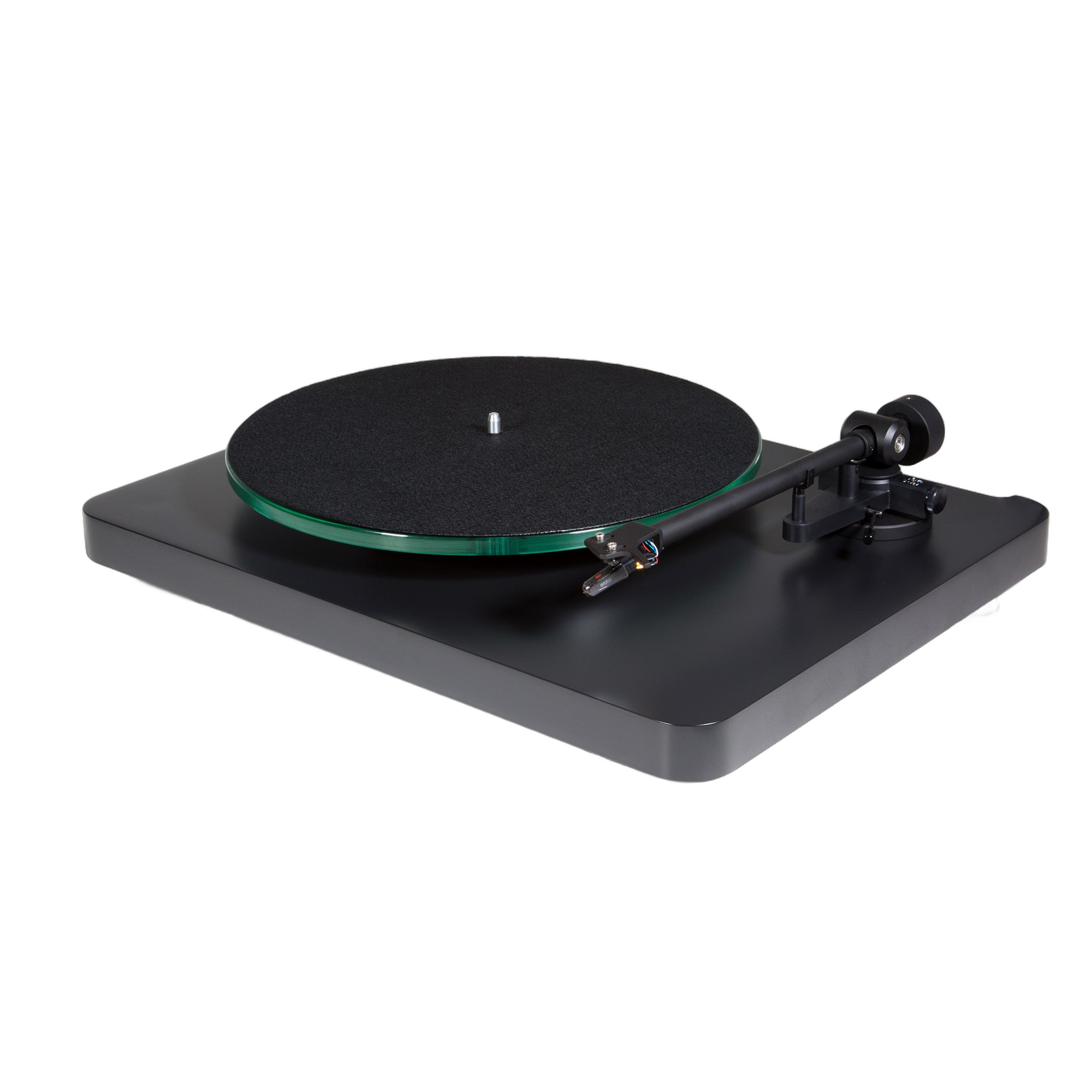

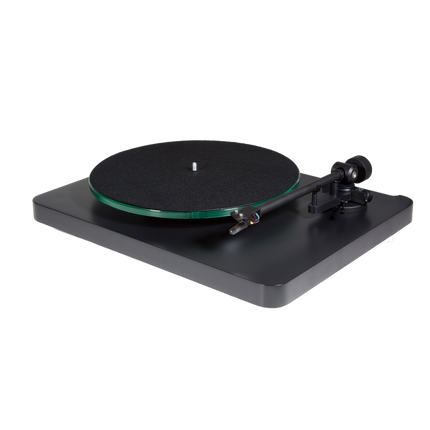

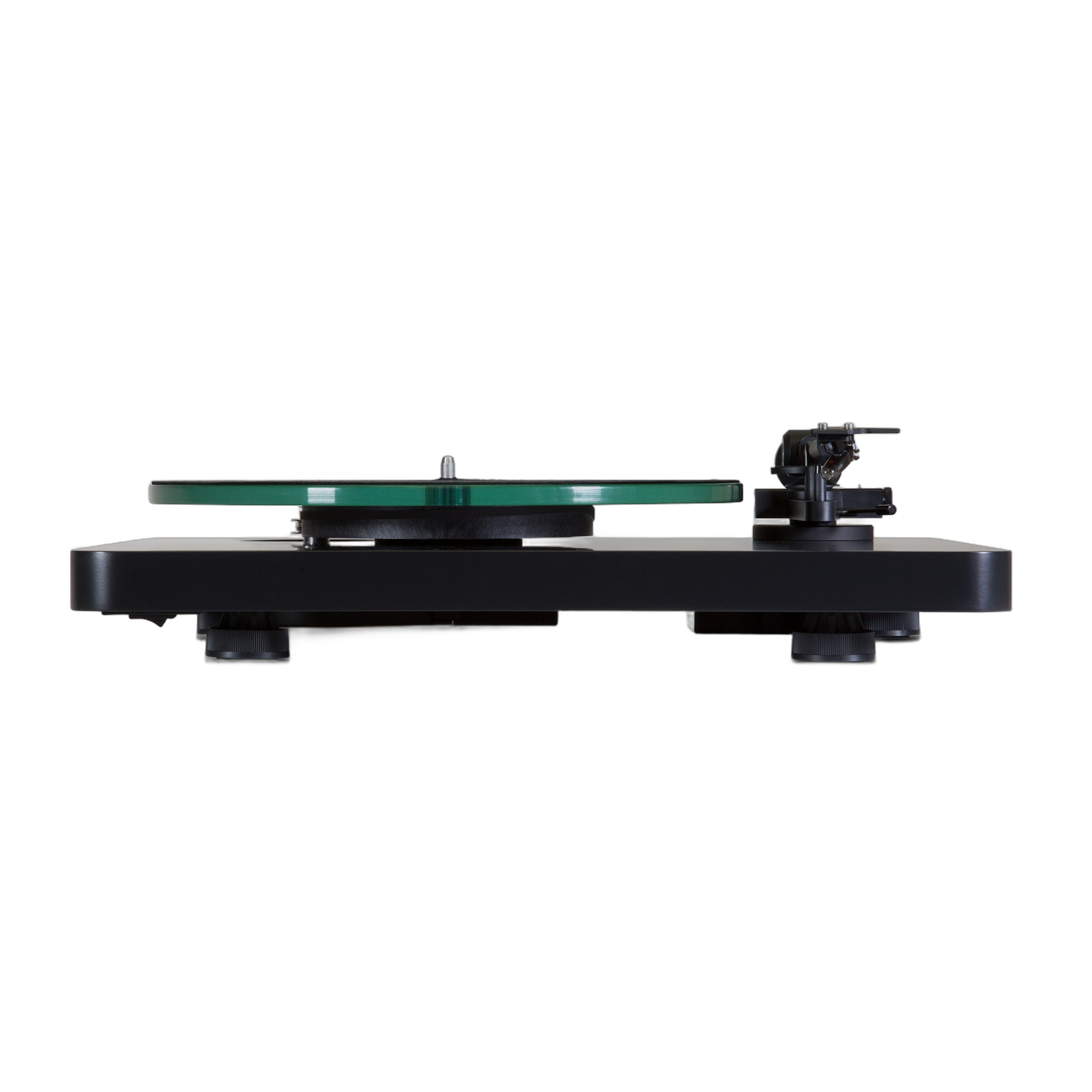

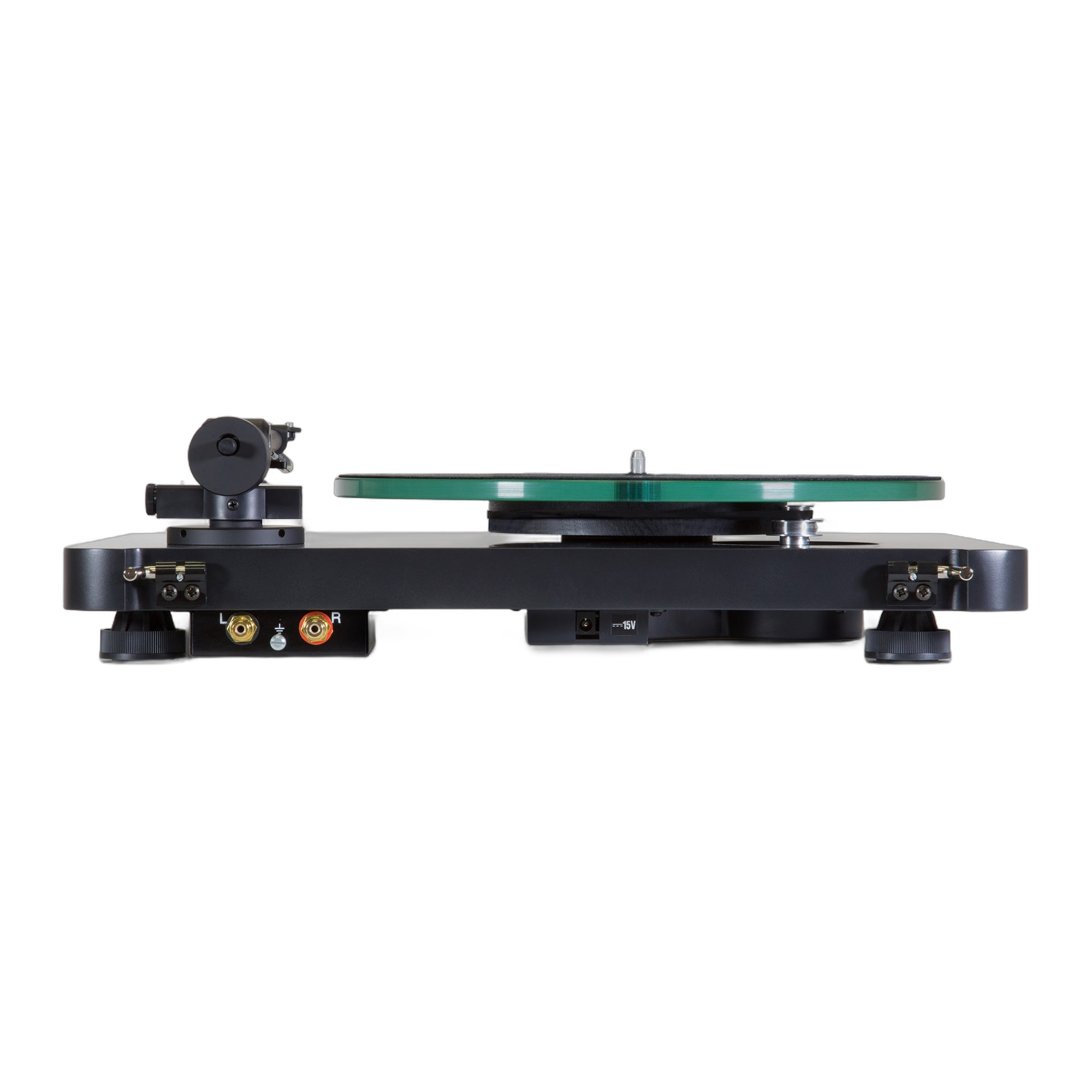

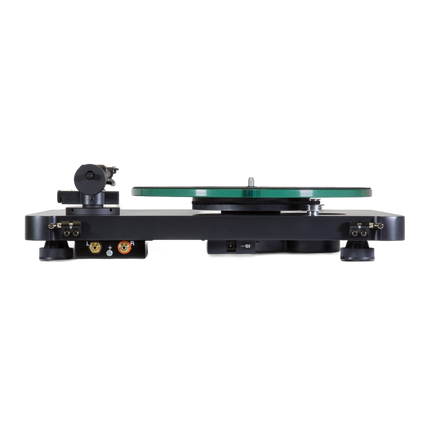

Pick-up NAD C 558

NAD
Share

Ridicare gratuita din showroom

Varianta selectata: Black

Cod produs: ref.37119

In stoc

1.999 lei / Bucata 2.745 lei

Expediere azi? Comanda in: Sep 12, 2025 16:00:00 +0300

30 de zile perioada de retur

Garantie 24 luni

Transport gratuit pentru comenzi peste 100 RON in Romania

Livrare prin curier sau ridicare din showroom Bucuresti

Pentru plata în rate alegeți NETOPIA ca procesator de plăți.

6 Rate

Card Avantaj

6 Rate

Alpha Bank

6 Rate

Banca Transilvania

6 Rate

Garanti Bank

12 Rate

Raiffeisen Bank (in showroom)

Descriere

Belt Driven Turntable 33/45
Ortofon OM10 Cartridge Preinsatalled
9” Tonearm with Fixed Head Shell
10mm Glass Plater with Felt Pad
Precision AC Motor
Isolated AC Power Supply with Universal Voltage
Vertical Tracking Angle and Azimuth Adjustment
Rigid MDF Plinth with Rubber Isolation Feet
Low Resonance Dustcover
Detachable High Quality RCA Cable with separate Ground
Speed change by belt position

Alte informatii

Link producator: click aici

Continut pachet: vezi detalii ascunde detalii

Switch mode power supply (SMPS) with interchangeable plugs
Counterweight
Audio cable connector (RCA-to-RCA lead)
Single adaptor (for single LP’s)
Allen keys 1,5mm and 2mm for possible setting of the tonearm
Stylus pressure gauge
Plastic tool for tonearm bearings
Paper cartridge alignment tool with two null points
Black felt mat for the platter
White cotton gloves

Manual: descarca fisierul

Fisa de produs: descarca fisierul

Cauti un pachet PROMO personalizat?

Spune-ne de ce ai nevoie si revenim cu o oferta " de nerefuzat "

Specificatii tehnice Pick-up NAD C 558

General Specifications
Nominal speed: 33/45 rpm, manual speed change
Speed variance: 33rpm: ± < 0.50%, 45rpm: ± < 0.45%
Wow and flutter: 33rpm: ± < 0.15%, 45rpm: ± < 0.15%
Downforce range: 0 – 30 mN, 0 – 3.0 grams

Tonearm
Operation: Manual
Length: 230 mm
Overhang: 18 mm
Effective tonearm mass: 9.5 g
Cable capacitance: 150-400pF

Cartridge
Frequency Range: 20-22.000Hz
Output Voltage: 4mV
Tracking Force Recommended: 15mN
Cartridge Weight: 5g
Stylus Type: 20μm/mN – elliptical

Physical Specs
Dimensions (W x H x D): 435 x 340 x 125mm; 17 1/8 x 13 3/8 x 4 59/64”
Net Weight: 5.5 kg (turntable) – 1.74 kg (platter)
Shipping Weight: 8kg

C 558 Turntable

Throughout our rich 45-year history, NAD Electronics has been offering high performance turntables at unbelievably stellar prices. A component that critical listeners can applaud for its musical quality, and one that almost anybody can afford, the NAD C 558 is a full-featured, belt-driven model targeted for record enthusiasts everywhere. Pre-fitted with an Ortofon OM10 phono cartridge, the C 558 features a belt drive for maximum noise isolation, as well as a precision AC motor with isolated AC power supply that has universal voltage. Complimented by a glass platter with felt pad, a MDF plinth, and a low resonance dust cover, the C 558 delivers an outstanding listening experience unlike any other.

Sophisticated Technology

When it comes to the C 558, we have chosen to use a sophisticated power supply that transforms the AC alternating voltage of your wall socket into a pure DC voltage. The DC voltage is then regenerated into a precise AC voltage that powers a precision clock motor to achieve nearly perfect speed consistency and smoothness. The motor itself is isolated from noise and voltage fluctuations that occur in the unfiltered AC mains that can cause instability in the motor. The motor uses a specially developed rubber belt that is flat ground for precision and drives a non-resonant sub platter that is also precisely machined for smooth rotation. This sits in a brass bearing with a hardened steel shaft. All of these parts are carefully developed to work together to provide a remarkably stable and precise rotation of the disc.

The C 558’s tonearm also offers a similar level of careful engineering and development. At 9” long it offers low tracking distortion while maintaining rigidity and low mass required to stabilize the cartridge. By allowing VTF and Azimuth adjustment we get precise tracking with low distortion and record wear.
The glass platter and massive plinth combine to extract all the energy from the disc while isolating unwanted external vibration. These details further ensure that your vinyl listening experience is truly transcendent.

Quality Parts and Materials

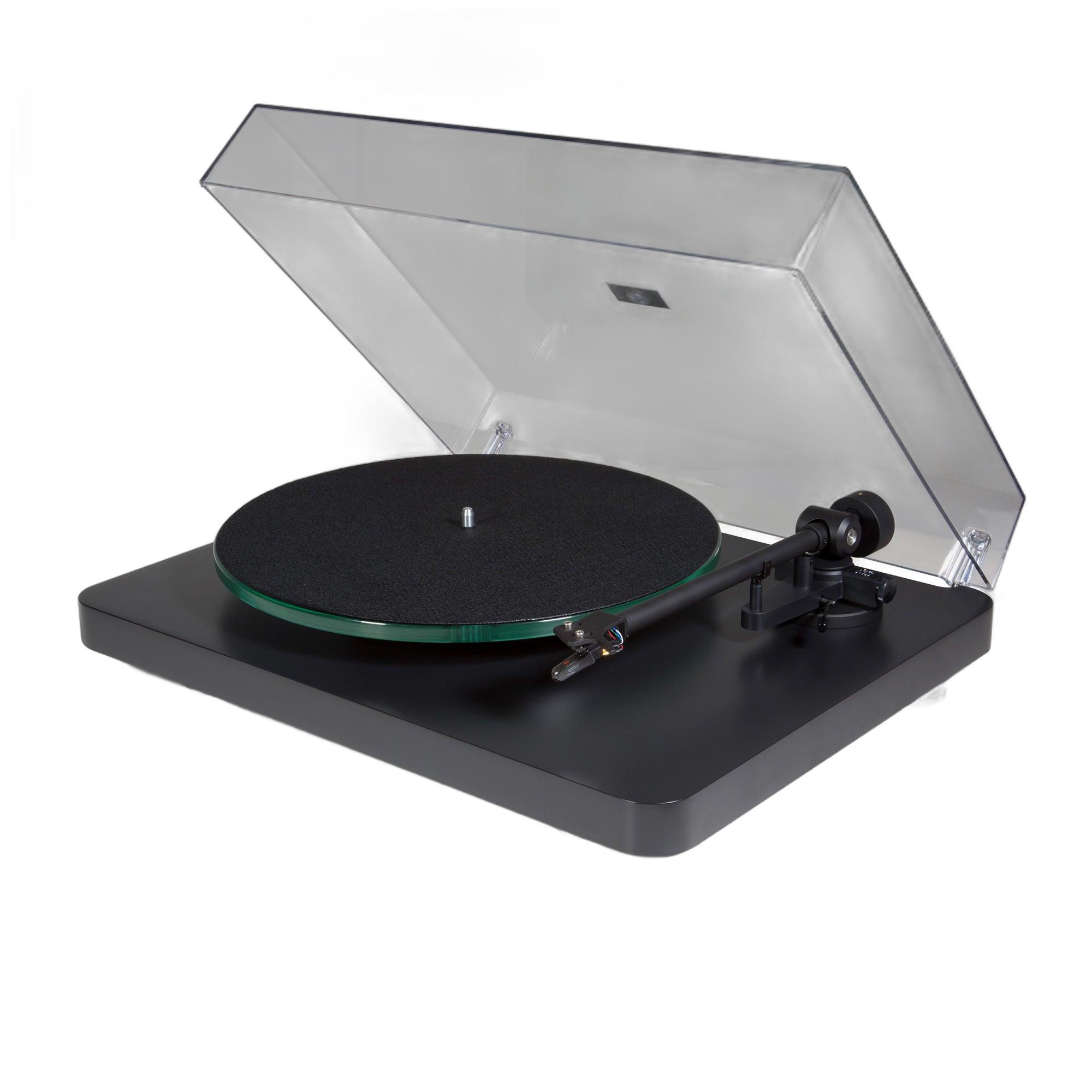

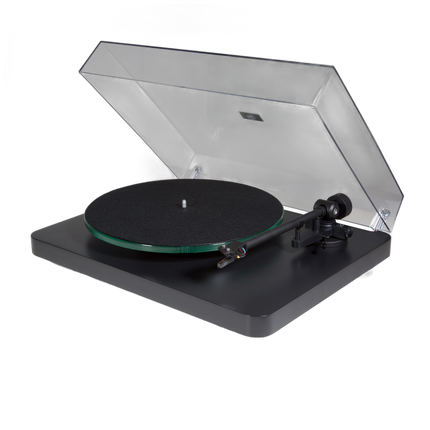

The plinth of the C 558 is solid MDF, as opposed to the particle board or plastic that is commonly found at this value, and is CNC machined for precision. The C 558’s dustcover, too, is heavier than most and made from a non-resonant Perspex with a counter-sprung hinge design that allows the cover to remain in almost any intermediate position from open to closed.

An Experience Like No Other

Listening to vinyl records is an immersive experience. You become as involved in the process as you do in the listening. To a much greater degree than with digital sources, vinyl playback requires solid mechanical accuracy to extract the music from the medium. A properly played record is a fantastic and rewarding experience, and the NAD C 558 has everything you need to get maximum enjoyment with minimal fuss and expense.
