Pickup ELAC Miracord 60 Black HG

În stoc
ElacVariantă: Black HG Cod: 53418
4.949 lei
Transport gratuit
30 de zile retur "no comment"
Garantie 36 luni
3 RATE Alpha Bank
3 RATE BRD
3 RATE Banca Transilvania
3 RATE Card Avantaj
3 RATE Garanti Bank
Bundle image

Cauti un pachet PROMO personalizat?

Spune-ne de ce ai nevoie si revenim noi cu o oferta "de nerefuzat", :)!

Descriere

Caracteristici principale

  • Drive System: Belt Drive
  • Motor: DC Motor

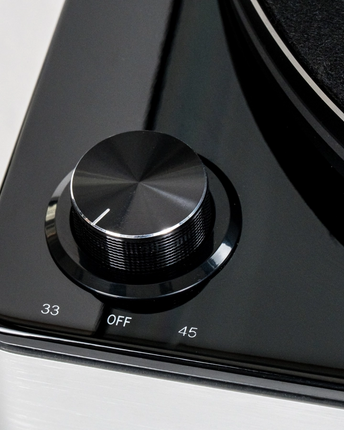

  • Selectable Speeds: 33-1/3 and 45 RPM
  • Connector: RCA pin jack
  • Voltage: 100 to 240 V AC / 50 to 60 Hz
  • Power Consumption: 1.5 W (less than 0.5 W at standby)
Specificații tehnice

Link producător:

Greutate produs

5.5 kg

Dimensiuni produs

139.7 x 407.67 x 360.68 mm (W x H x D)

Alte specificații

Secțiunea turnantă:

Sistem de antrenare: transmisie cu curea

Motor: Motor DC

Viteze selectabile: 33-1/3 și 45 RPM

Servo motor: rotație viteză și sistem servo

Variația vitezei de rotație: +/- 1%

Wow și Flutter: 0,1%

Raport semnal-zgomot: -67 dB sau mai mare (ponderat A) -60 dB sau mai mare (neponderat)

Plato: aluminiu turnat sub presiune

Diametrul platoului: 0 in / 300 mm



Secțiunea brațului de ton:

Tip: Tub din aluminiu, echilibrat static

Lungimea efectivă a brațului: 8in / 223,6 mm

Interval de presiune a stiloului: 0 până la 4 g

Gama de greutate a cartușului: 3,5 până la 6 g

Masa efectivă a brațului: 27,4 g

Consolă: 18,6 mm

Unghi de compensare: 25 de grade

Ajustare antipatinaj: acceptat

Rulment principal: oțel inoxidabil



Sectiunea cartus:

Tip: Magnet mobil Audio-Technica AT91

Construcție stilou: diamant lipit

Montare: jumătate de inch

Răspuns în frecvență: 20 Hz până la 20 kHz

Separarea canalelor: >18 dB

Balans canal: 2,5 dB

Urmărire verticală: Unghi de 20 de grade

Presiune stylus: 2,0 g +/-0,5 g

Greutate cartus: 5,0 g +/-0,5 g

Presiune stylus: 2,0 g +/-0,5 g

Greutate capac: 11 g (inclusiv șuruburi, piulițe și fire)



Amplificator Phono Egalizator:

Tip: Magnet mobil (MM)

Ieșire fono: 2,5 mV (1 kHz, 3,54 cm/sec)

Ieșire de linie: 140 mV (-17 dBV)

Fono/Linie: comutabil

Impedanta de sarcina suportata: 47 kΩ



General:

Conector: mufă cu pin RCA, inclusiv accesorii pentru cablu RCA

Tensiune: 100 până la 240 V AC / 50 până la 60 Hz

Consum de energie: 1,5 W (mai puțin de 0,5 W în standby)

Garanție (luni)

36

Caracteristici speciale pick-up-uri

  • Preamplificator Phono inclus

Smooth vinyl precision. | ELAC Miracord 50 Turntable – MRC-501

ELAC’s Miracord 50 Turntable is designed to deliver exceptional vinyl transcription, inspired by the iconic Miracord name from the Golden Age of Stereo, when turntables reigned supreme. The Miracord 50 is carefully engineered with a belt-drive motor and die-cast aluminum platter. A precision static balanced, straight-tube tonearm with removable headshell features a factory-mounted MM phono cartridge. Designed with convenience in mind, the Miracord 50 is equipped with a built-in defeatable phono preamplifier, allowing you to add this turntable to virtually any music system.

Anti-resonant chassis

Superior isolation is achieved with a chassis designed to minimize the sonic effects of vibration and feedback.

Built-in phono equalizer amplifier

Unlike most turntables, the Miracord 50 comes complete with a built-in phono preamp for correct RIAA equalization. Just plug it in and enjoy rich LP sound!

Precision tonearm and cartridge

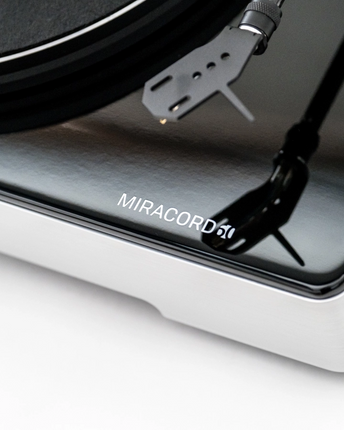

The tonearm is a static-balance, straight- tube design with precision bearings, built-in anti-skate adjust- ment and removable bayonet-style headshell.

Technical Specifications

Turntable Section:

Drive System: Belt Drive

Motor: DC Motor

Selectable Speeds: 33-1/3 and 45 RPM

Motor Servo: Speed Rotation and Servo System

Rotation Speed Variation: +/- 1%

Wow and Flutter: 0.1%

Signal-To-Noise Ratio: -67 dB or higher (A-weighted) -60dB or higher (unweighted)

Platter: Aluminum die-cast

Platter Diameter: 0 in / 300 mm



Tonearm Section:

Type: Aluminum tube, static-balanced

Effective Arm Length: 8in / 223.6 mm

Stylus Pressure Range: 0 to 4 g

Cartridge Weight Range: 3.5 to 6g

Effective Arm Mass: 27.4 g

Overhang: 18.6 mm

Offset Angle: 25 degrees

Anti-Skating: Adjustment Supported

Main Bearing: Stainless steel



Cartridge Section:

Type: Audio-Technica AT91 moving magnet

Stylus Construction: Bonded diamond

Mount: Half-inch

Frequency Response: 20 Hz to 20 kHz

Channel Separation: >18 dB

Channel Balance: 2.5 dB

Vertical Tracking: Angle 20 degrees

Stylus Pressure: 2.0 g +/-0.5 g

Cartridge Weight: 5.0 g +/-0.5 g

Stylus Pressure: 2.0 g +/-0.5 g

Headshell Weight: 0 g (including screws, nuts and wires)



Phono Equalizer Amplifier:

Type: Moving magnet (MM)

Phono Output: 2.5 mV (1 kHz, 3.54 cm/sec)

Line Output: 140 mV (-17 dBV)

Phono/Line: Switchable

Supported Load Impedance: 47 kΩ



General:

Connector: RCA pin jack including RCA cable accessories

Voltage: 100 to 240 V AC / 50 to 60 Hz

Power Consumption: 1.5 W (less than 0.5 W at standby)

Dimensions (WXHXD): 5.5 x 16.05 x 14.20

Weight: 12.10 lb
