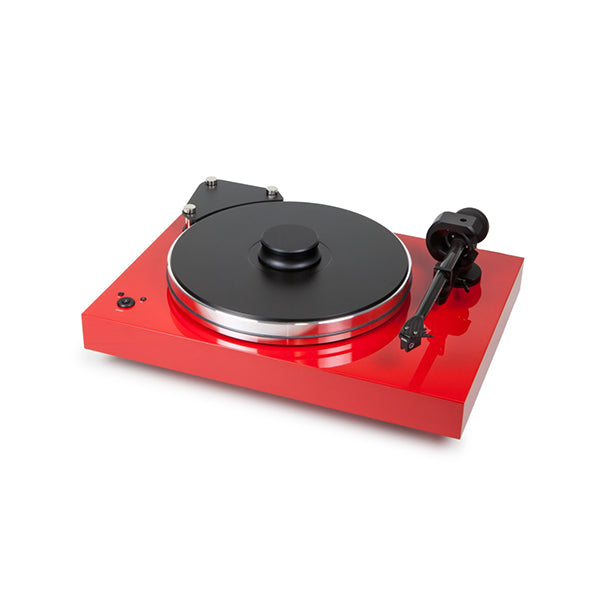

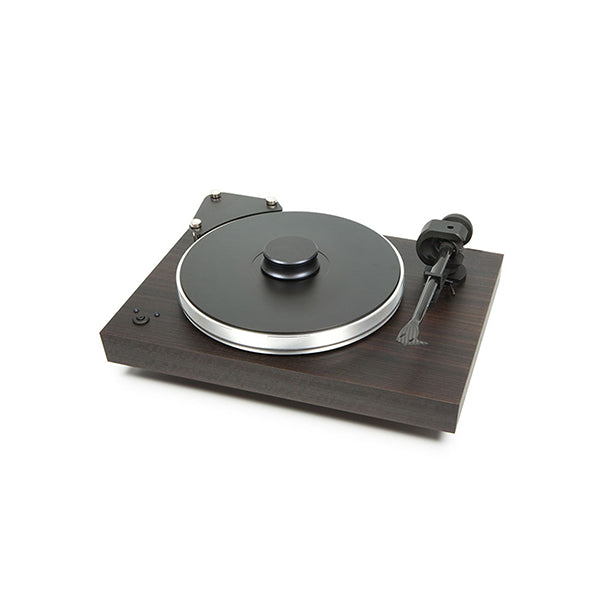

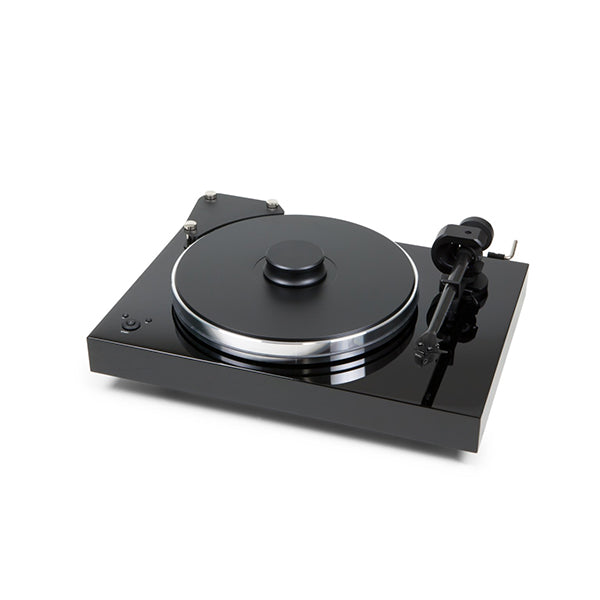

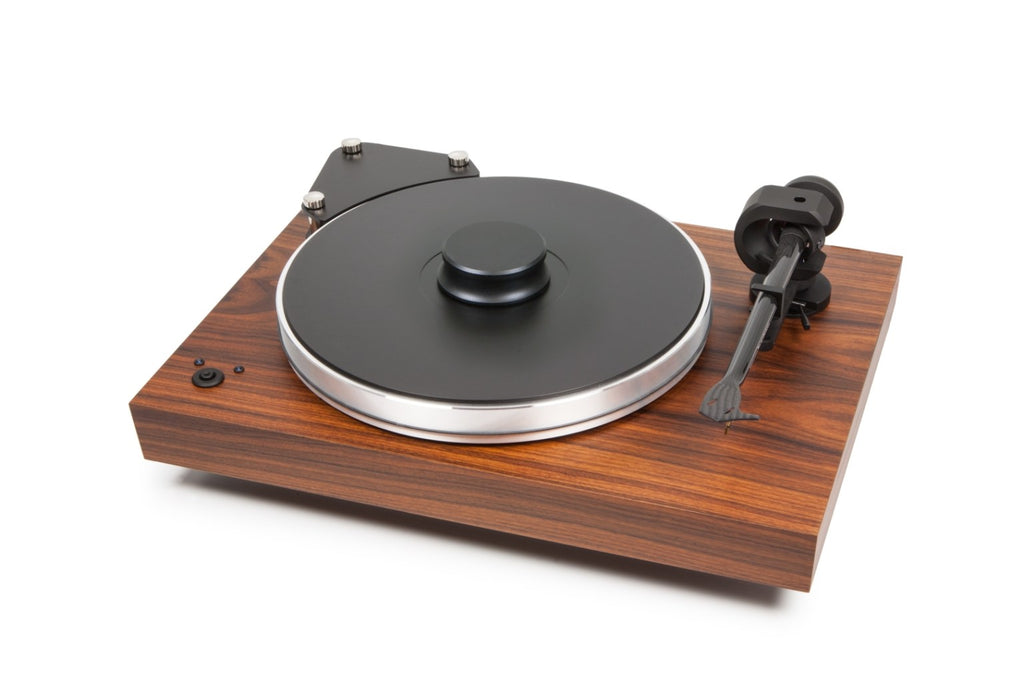

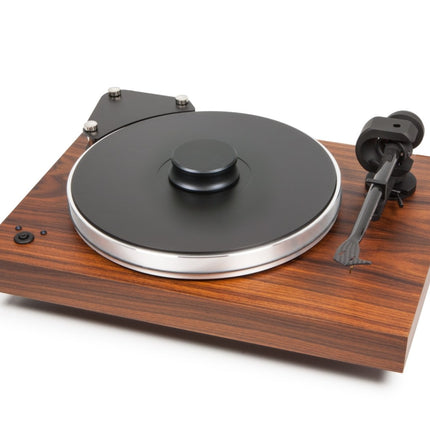

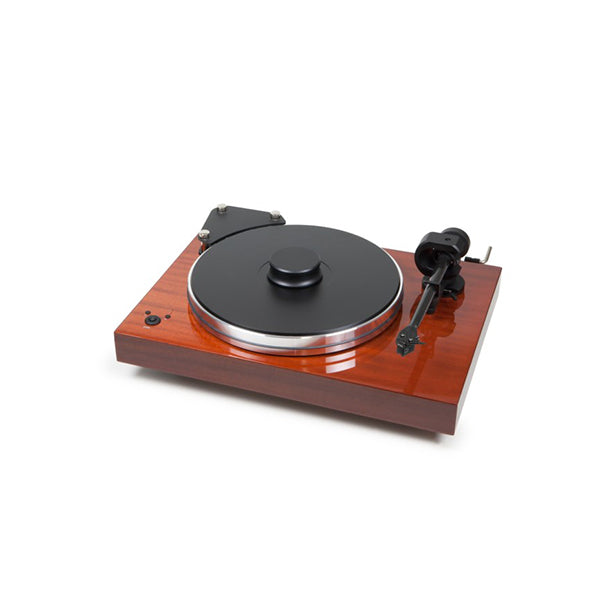

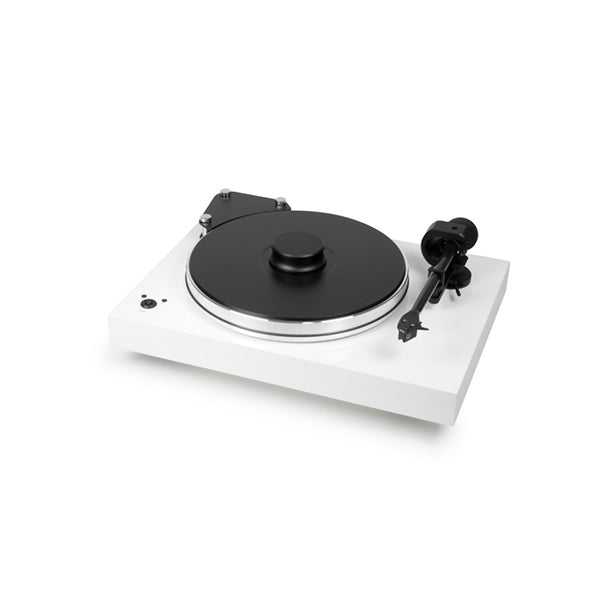

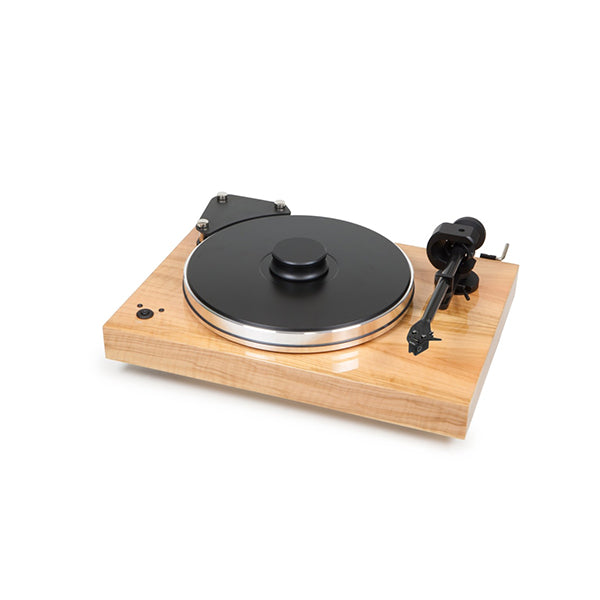

Xtension 9 Evolution incorporates all our turntable design experience from more than 20 years in a slim-line size to fit standard audio racks. Xtension 9 chassis is made from MDF filled with metal granulate, that gives high mass and is non-resonant. Magnetic feet, which decouple the main plinth from its base, are combined with a weighty 16 kg total turntable mass. With these two magnets located in the feet, the turntable is practically floating. The result is a unique combination of ‘mass loaded’ and ‘floating turntable’ design principles. Instead of pure metal for the main platter, we’ve found a perfect alloy which we damped on with thermo plastic elastomers (TPE). Additionally we’ve placed recycled Vinyl records on top (which act as a perfect mat) and bake this ‘sandwich’ before precision balancing it. The final product subsequently benefits from a wonderfully resonance-free, heavy platter, that runs ultra-silently on an inverted ceramic ball bearing with magnetic suspension.
Caracteristici principale
- Heavy 16 kg belt drive turntable
- Mass loaded magnetic floating subchassis
- Precision balanced sandwich-platter
- Inverted ceramic ball bearing with magnetic support
- Heavy weight record puck included MDF chassis filled with metal granulate with low levels of resonance and high mass
- Electronic speed control 33/45 rpm
- Tonearm 9cc Evolution made from carbon fibre
- Inverted tonearm bearings (ABEC 7 quality)
- Dust cover included
Link producător:
Greutate produs
Dimensiuni produs
Garanție (luni)
Caracteristici speciale pick-up-uri
- Brat de carbon
Viteze de rotatie
33.45 RPM (electronic speed change)
Tip angrenaj
Brat pick-up
Bratul 9cc Evolution este conic, realizat din fibra de carbon si are lungimea de 9"
Bratul este ajustabil pentru VTA.
Platan
Rulmentul central al platanului este inversat, cu bila ceramica montata in capatul axului din inox.
Platanul masiv are o constructie tip sandwich, amortizat cu elastomeri.

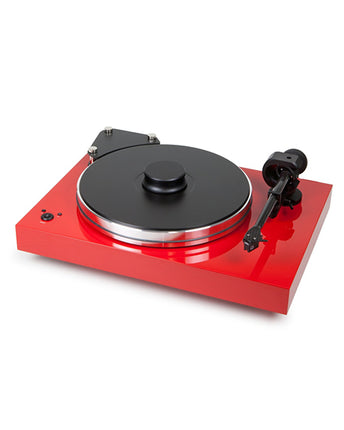

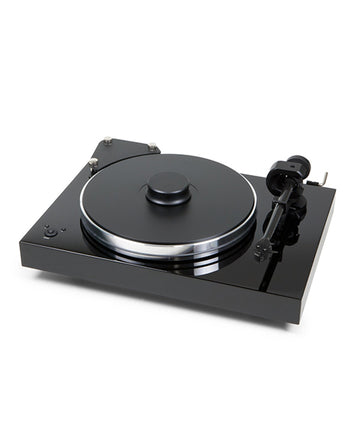

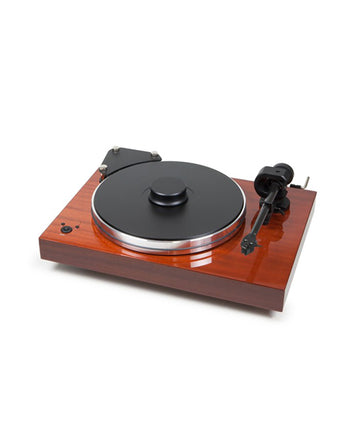

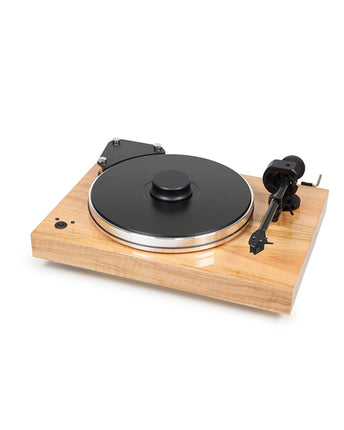

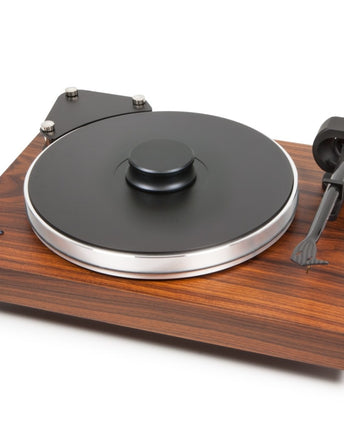

Xtension 9 Evolution
High-end turntable with 9" evo tonearm
Superlative vinyl performance from a compact luxurious turntable/arm configuration!
Electronic speed change
TPE damped heavy weight platter
Magnetic supported and damped feet
Technical Specifications
Speed: 33 / 45 rpm (electronic speed change)
Acrylic dust cover: yes
Pro-Ject phono cable included: Connect it E,1.23m
Aluminium feet: Magnetic supported & TPE damped
Turntable main bearing damping: heavy weight metal block
Max. speed variance: ±0,09%
Max. wow and flutter: ±0,1%
Rumble: 73dB
Platter weight/diameter: 5,4 kg/300mm
Platter puck weight: 800gr
Effective arm length / overhang: 230mm / 18mm
Effective tonearm mass: 8,5g
Tracking force range: 0-25mN
Cartridge weight range from: 4 - 14g
External power supply: 220-240V/50Hz / 15V/1600mA DC
Power consumption: 4W (max.) / < 1 watt standby
Dimensions: WxHxD 465 x 185 x 350 mm lid closed
Weight: 16kg
