Already, the critically acclaimed 6perspeX has proved the fantastic result of using magnets to isolate the subchassis. So consequently, for the Xtension this technology has been re-developed to utilise new magnetic feet, which almost completely decouple the main plinth. With these two magnets located in the feet, the turntable is practically floating. Combine this with the weighty 25 kg total mass of the turntable, and the listener benefits from minimal base resonance. This is a unique combination of ‘mass loaded’ and ‘floating turntable’ design principals.In keeping with these principles, the platter is metal due to its high mass. The old standard adoption of pure metal has been abandoned because of its highly-resonant tendencies. Instead, we’ve found a perfect alloy which we dampened on the inner side with Sorbothane®. Taking this base, we’ve glued recycled Vinyl records to the top (which act as a perfect mat) and bake this ‘sandwich’ before precision balancing it.
Caracteristici principale
- Super-heavy 30 kg mass load magnetic floating belt drive design
- Sorbothane® damped ultra precise balanced Sandwich platter out of special alloy combined with Vinyl
- Brass record puck Ultra low noise motor highest selection
- Magnet supported, inverted main bearing Type Block 1 with ceramic thrust-pad
- Integrated Speed Box SE for super silent motordrive and electronically switchable speed
- Metal-granulate filled plinth for universal damping
- Mass loaded interchangeable armboard
- Height adjustable magnet supported feets for perfect isolation
- Gold-plated RCA phono sockets
Link producător:
Greutate produs
Dimensiuni produs
Garanție (luni)
Caracteristici speciale pick-up-uri
- Brat de carbon
Viteze de rotatie
33, 45(electronic speed change), 78 (manual speed change)
Tip angrenaj
Brat pick-up
Bratul 12cc Evolution este conic, realizat din fibra de carbon si are lungimea de 12".
Bratul este ajustabil pentru VTA.
Platan
Rulmentul central al platanului este inversat, cu bila ceramica montata in capatul axului din inox.
Platanul masiv ( 5.7 kg ) are o constructie tip sandwich, aluminiu amortizat cu Sorbothan.

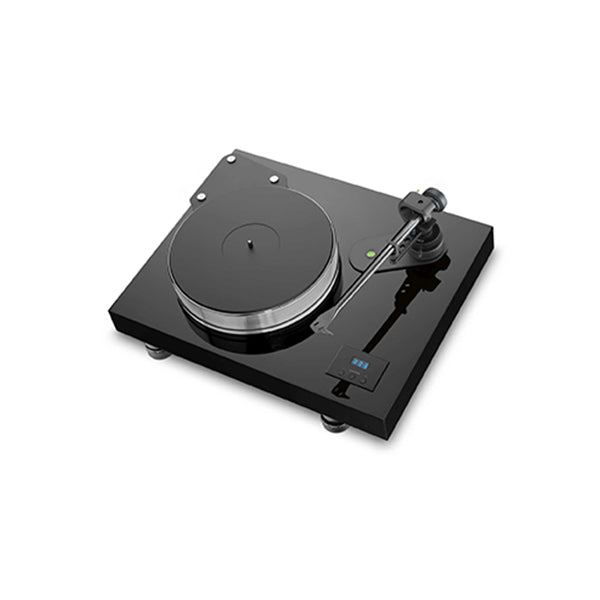

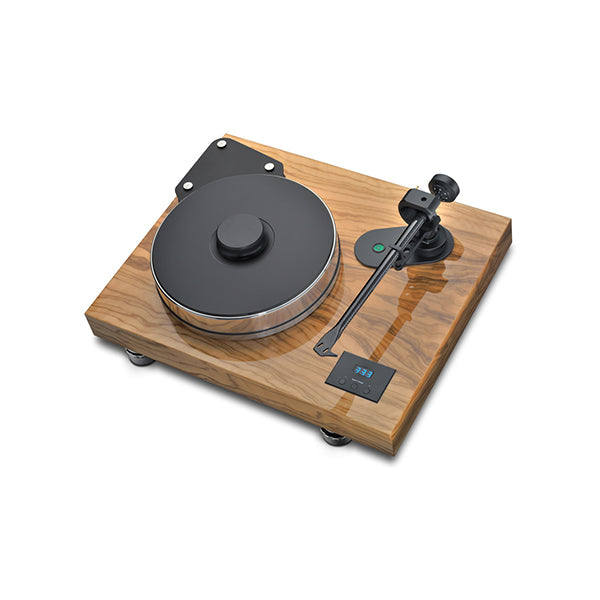

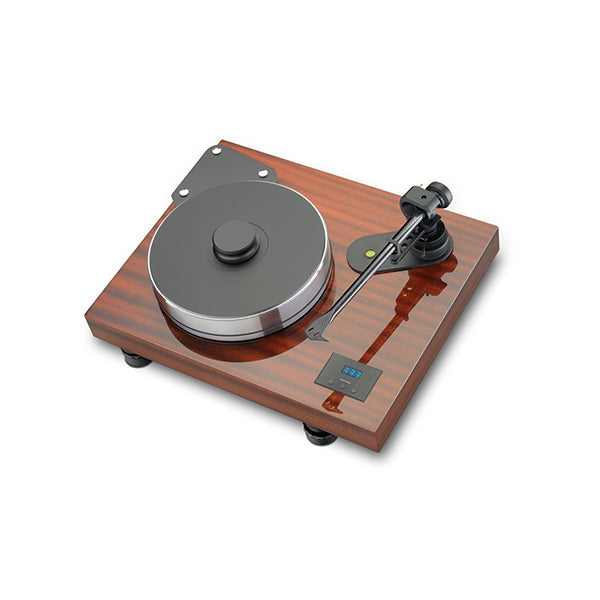

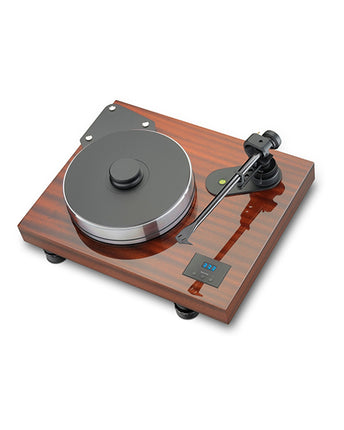

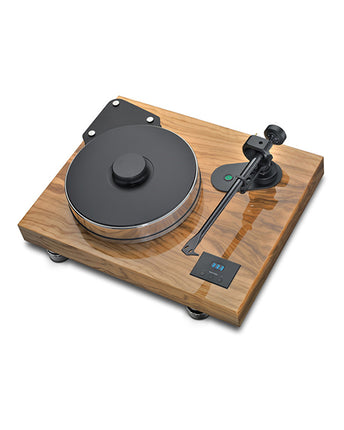

Xtension 12 Evolution
Manual turntable with built in Pro-Ject Speed Box SE
The high-end classic!
Technical Specifications
Speed: 33, 45(electronic speed change), 78 (manual speed change)
Principle: Belt drive
Platter: 300 mm aluminium (10kg heavy, TPE damped)
Main bearing: Inverted stainless steel with ceramic thrust-pad with antimagnetic support
Wow & flutter: ± 0.01% (max)
Speed variance: ± 0.09% (max)
Signal to Noise: 73 dB
Tracking force range: 10 - 35 mN
Effective tonearm length: 304.8 mm
Effective tonearm mass: 10.5 g
Overhang: 13.2 mm
Included accessory: Power supply, dust cover
Power consumption: 2 Watts max
Dimensions: 480 x 235 x 400 mm (WxHxD)
Weight: 30 kg net
