The RPM 9 Carbon uses a new extra heavy chassis which features a special CNC machined MDF plate that incorporates hard resin coated steel pellets to form an extra heavy precise sandwich construction. A special complex heat treatment and a carbon surface coating ensures superior low resonance levels. The mass-loaded chassis is effectively decoupled from its surface using magnetic feet. With two magnets located in the feet, the turntable is practically floating. The studs in the feet are only used for keeping them centered. Combined with a new special polished aluminium platter with internal TPE damping and a vinyl layer on top, the inverted ceramic main bearing delivers an absolute stable turntable speed with extra low rumble. The extra heavy outboard motor unit is equipped with a precise motor control and features a built-in switch between 33 & 45 rpm. Last but not least the non-compromise 9“ Evo tonearm with conical carbon-fibre armtube and inverted bearing design ensures perfect tracking, even with demanding cartridges.
Caracteristici principale
- Pick-up audiofil High-End
- Echipat cu bratul de 9" din carbon 9cc Evolution
- Platanul este construit din aluminiu
- Motorul este mutat complet inafara sasiului si are integrate butoanele pentru schimbarea turatiei
- Echipat cu doza Ortofon Quintet Bronze
Link producător:
Greutate produs
Dimensiuni produs
Alte specificații
Acest model este echipat cu doza Ortofon Quintet Bronze ( Moving-Coil )
Doza are un ac masiv cu geometrie Fine Line
Curentul de iesire este de 0.3 mV
Doza cantareste 9 grame
Se recomanda o forta de apasare de 2.1 - 2.5 grame
Se recomanda setarea unei impedante mai mari de 20 ohm
Garanție (luni)
Caracteristici speciale pick-up-uri
- Brat de carbon
Viteze de rotatie
33, 45 (electronic speed change)
Motor si mecanica fina
Motorul este mutat complet inafara sasiului si are integrate butoanele pentru schimbarea turatiei
Tip angrenaj
Brat pick-up
Bratul 9cc Evolution este conic, realizat din fibra de carbon si are lungimea de 9"
Bratul este ajustabil pentru VTA.
Platan
Platanul care cantareste 7.2 kg este construit din aluminiu cu insertii din elastomer care reduc rezonantele
Rulmentul central al platanului este inversat si realizat din ceramica

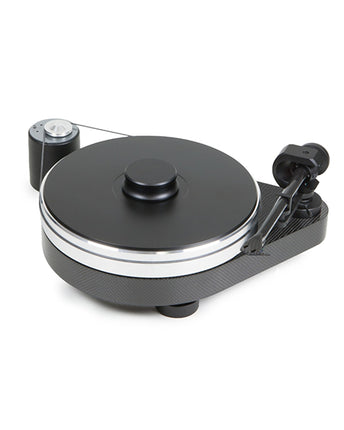

RPM 9 Carbon
High-end turntable with 9“ Evo tonearm
Technical Specifications
Speed: 33, 45 (electronic speed change)
Drive principle: belt drive
Platter: 7,2kg aluminium (300mm diameter)
Mains bearing: inverted stainless steel with ceramic ball/plate
Wow & flutter: +/-0,06%
Speed drift: +/-0,1%
Signal to noise: 73dB
Tonearm: 9” Carbon
Effective arm length: 230 mm
Effective arm mass: 8,0 g
Overhang: 18mm
Tracking force: 10 - 35mN
Supplied counterweights: 5 - 7,5gr / 7 - 10gr / 9 - 11gr / 10 - 14gr
External power supply: 15 volts DC / 800mA
Power connection: 110/120 or 230/240 Volt - 50 or 60 Hz
Power consumption: 13 watt max / < 0,3 watt standby
Dimensions: 440 x 170 x 325mm (WxHxD)
Weight: 16,5 kg
