The RPM 10 Carbon uses a new extra heavy chassis which features a special CNC machined MDF plate that incorporates hard resin coated steel pellets to form an extra heavy precise sandwich construction. A special complex heat treatment and a carbon surface coating ensures superior low resonance levels. The mass-loaded chassis is effectively decoupled from its surface via the included Ground it Carbon and its magnetic feet. With two magnets located in the feet, the turntable is practically floating. The studs in the feet are only used for keeping them centered. Due to this unique feature the turntable is perfectly decoupled from the surface it is placed on. Combined with a new special polished aluminium platter with internal TPE damping and a vinyl layer on top, the inverted ceramic main bearing delivers an absolute stable turntable speed with extra low rumble
Caracteristici principale
- Pickup audiofil High-End
- Belt drive
- Operare manuala
- Motor AC
- Pre-amplificare
- 2 viteze
Link producător:
Greutate produs
Dimensiuni produs
Alte specificații
Acest model este echipat cu doza Ortofon Cadenza Red ( Moving-Coil )
Doza are un ac masiv cu geometrie Fine Line
Garanție (luni)
Caracteristici speciale pick-up-uri
- Preamplificator Phono inclus
- Brat de carbon
- Motor complet separat de sasiu
Viteze de rotatie
33, 45 rpm
Motor si mecanica fina
Motorul este mutat complet inafara sasiului pentru a evita orice interactiune si are integrate butoanele pentru schimbarea turatiei
Tip angrenaj
Brat pick-up
Bratul 10cc Evolution este conic, realizat din fibra de carbon si are lungimea de 10"
Bratul este ajustabil pentru VTA
Detalii sunet
Signal to noise: 73dB
Platan
Platanul care cantareste 7.2 kg este construit din aluminiu cu insertii din elastomer care reduc rezonantele
Rulmentul central al platanului este inversat si realizat din ceramica
Smart tips
Se recomanda o forta de apasare de 2.2 - 2.7 grame
Se recomanda setarea unei impedante intre 50-500 ohm

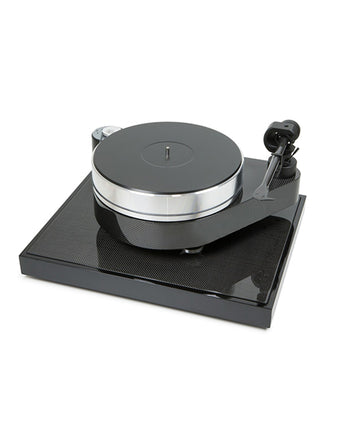

RPM 10 Carbon
High-end turntable with 10“ Evo tonearm
Clever design with true high-end sound quality
Technical Specifications
Speed: 33, 45 (electronic speed change)
Drive principle: belt drive
Platter: 10,4kg aluminium (300mm diameter)
Mains bearing: inverted stainless steel with ceramic ball/plate
Wow & flutter: 33: +/- 0,11% 45: +/- 0,10%
Speed drift: 33: +/- 0,01% 45: +/- 0,01%
Signal to noise: 73dB
Tonearm: 10” Carbon EVO
Effective arm length: 254 mm
Effective arm mass: 8,5 g
Overhang: 16mm
Tracking force: 10 - 35mN
Supplied counterweights: 5 - 7,5gr / 7 - 10gr / 9 - 11gr / 10 - 14gr
External power supply: 15 volts DC / 1,6A
Power connection: 110/120 or 230/240 Volt - 50 or 60 Hz
Power consumption: 15 watts max / < 0,3 watts standby
Dimensions: 480 x 210 x 330mm (WxHxD)
Weight: 22,0 kg net
Weight base: 14,5 kg net
