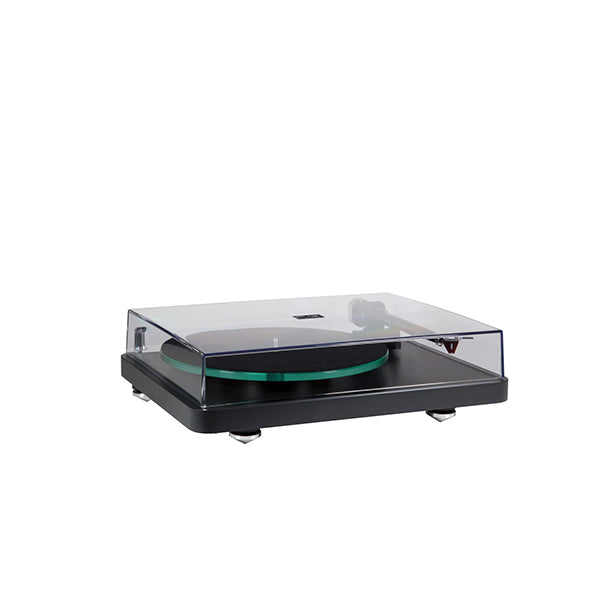

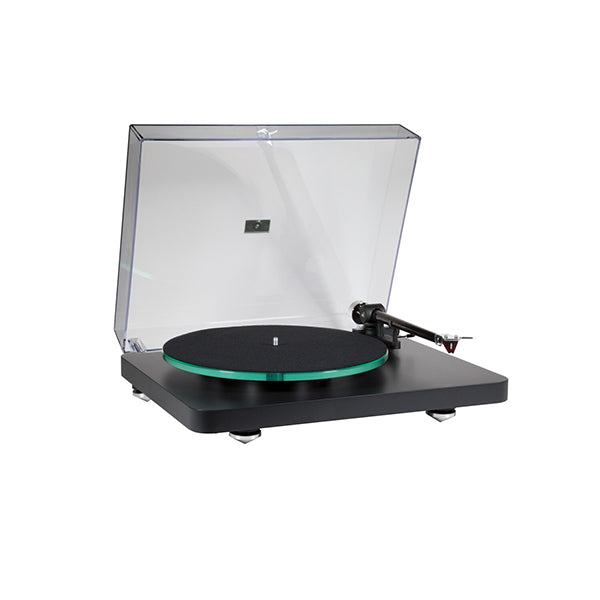

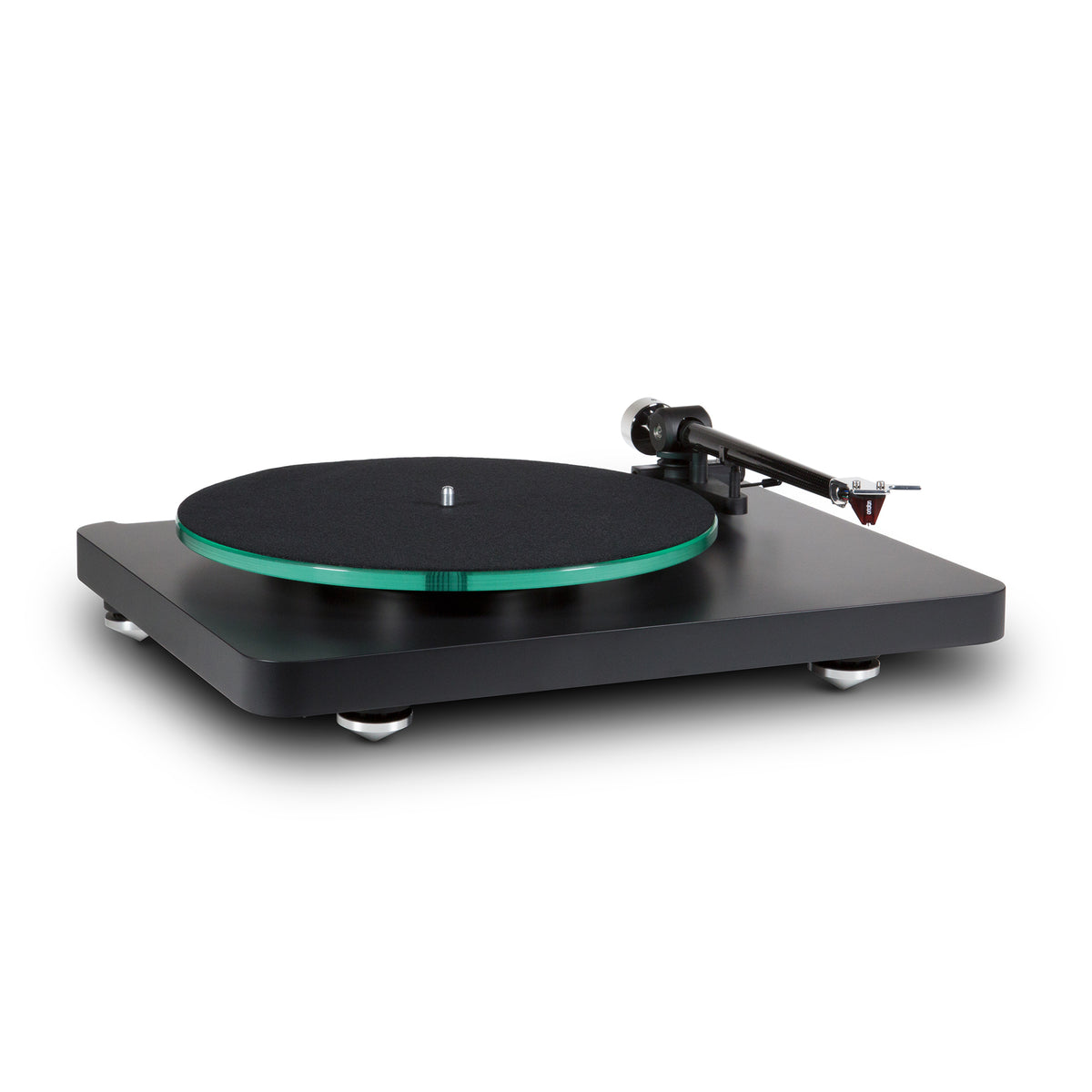

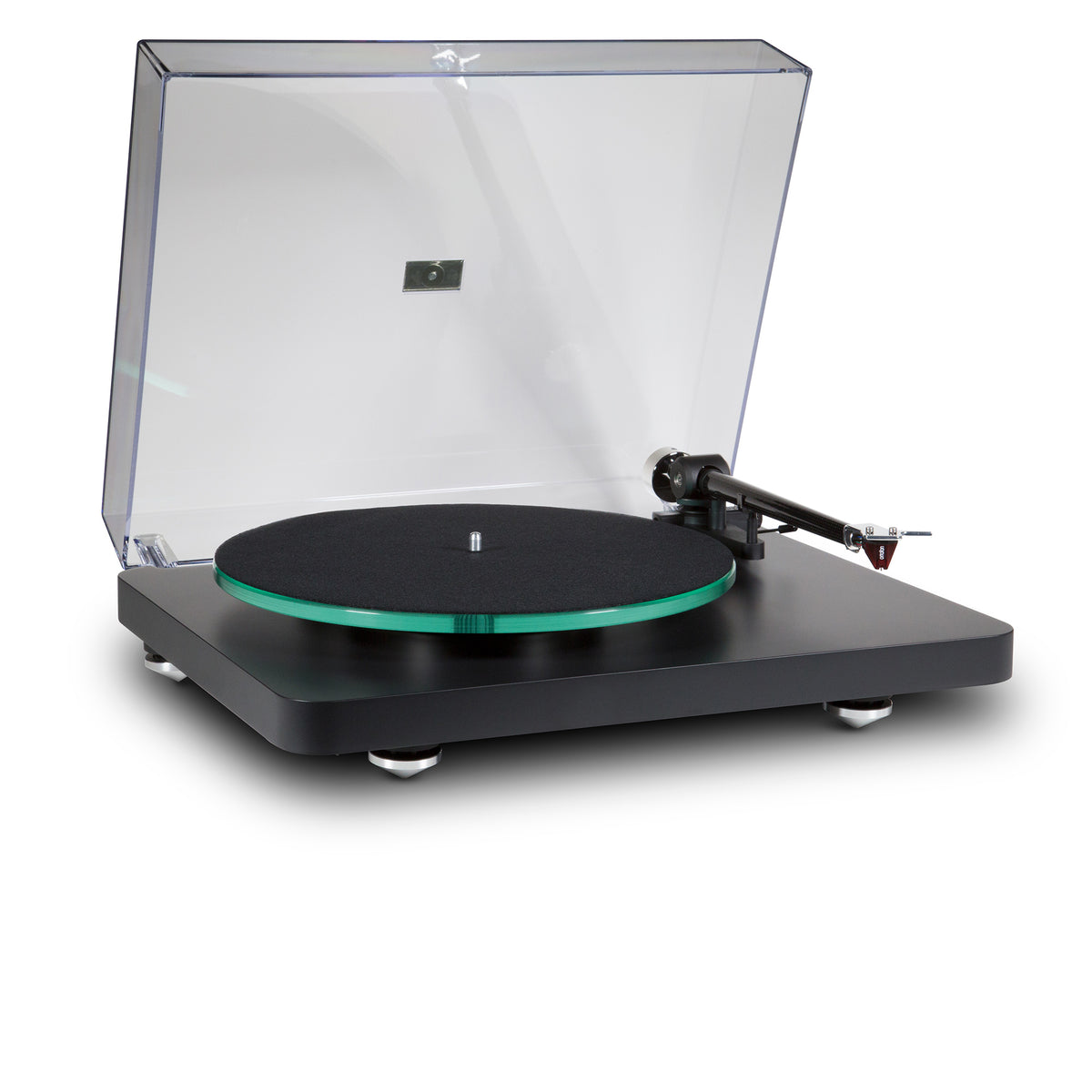

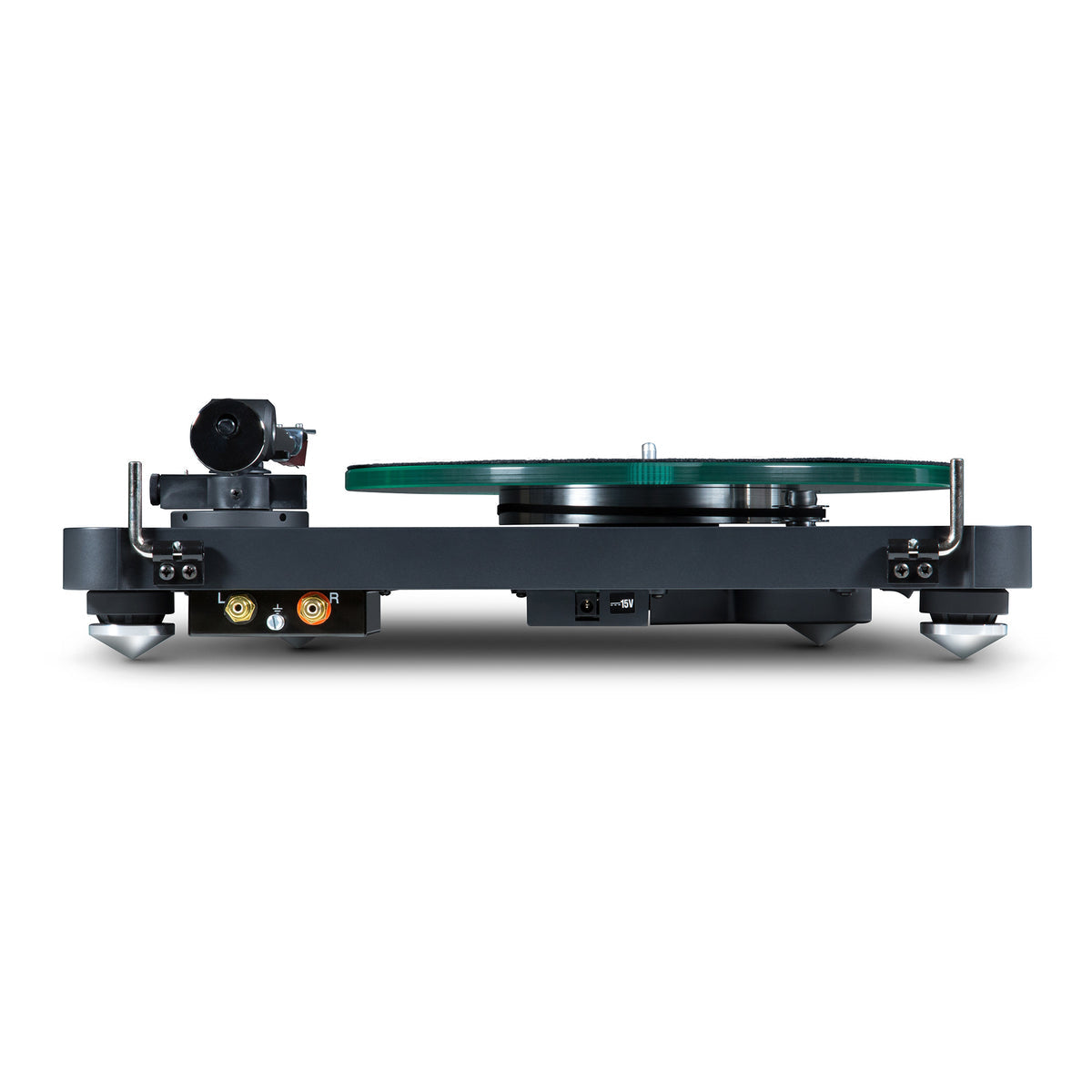

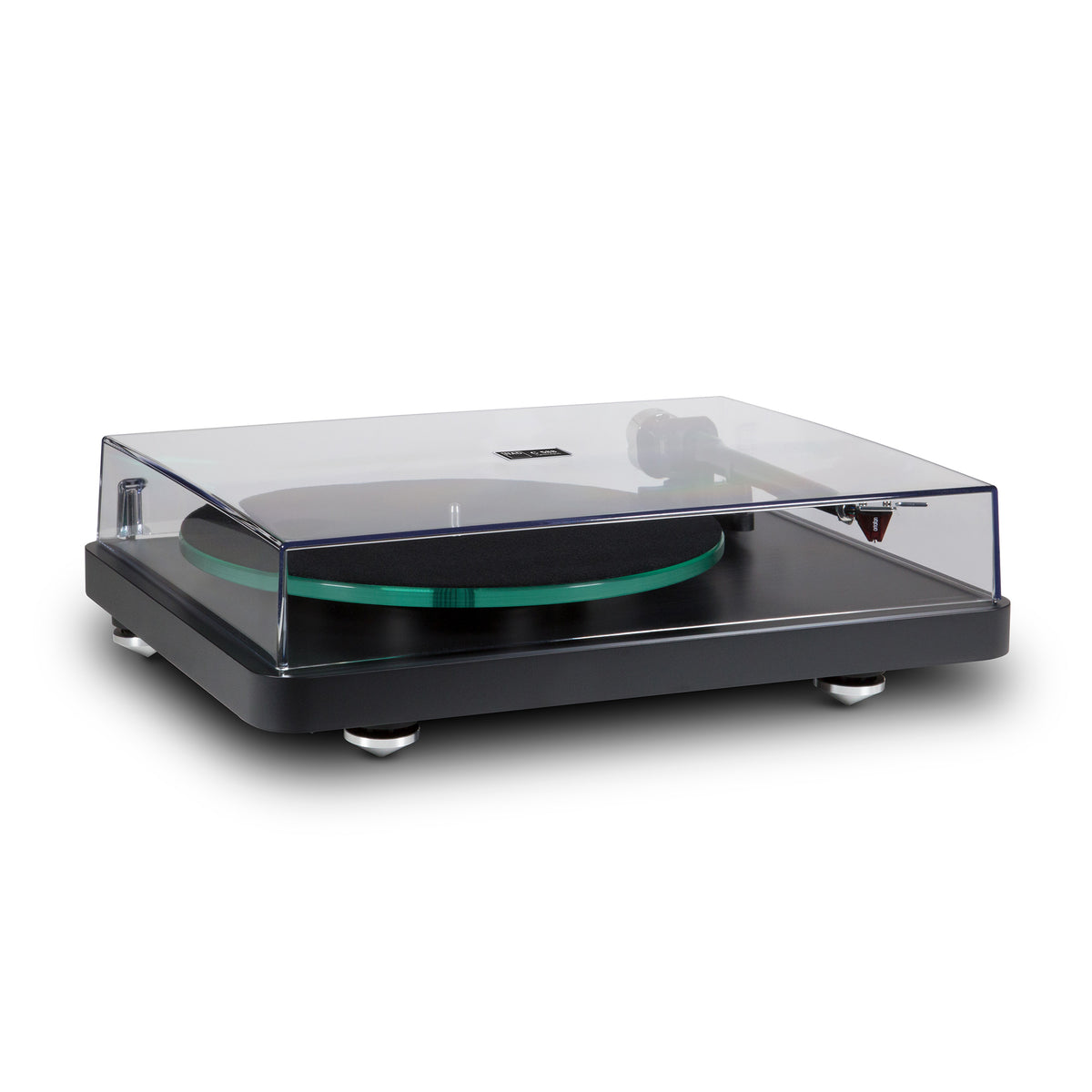

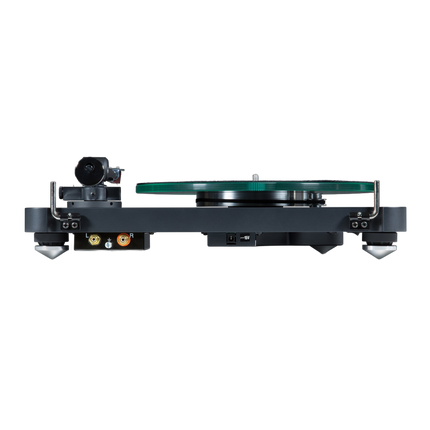

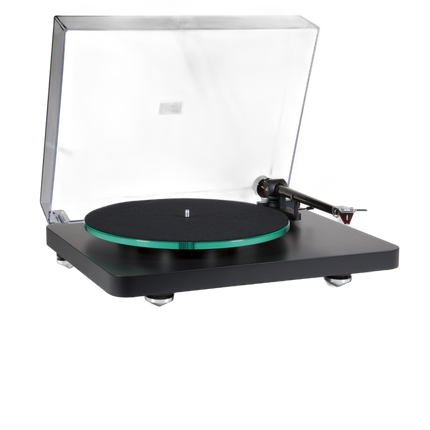

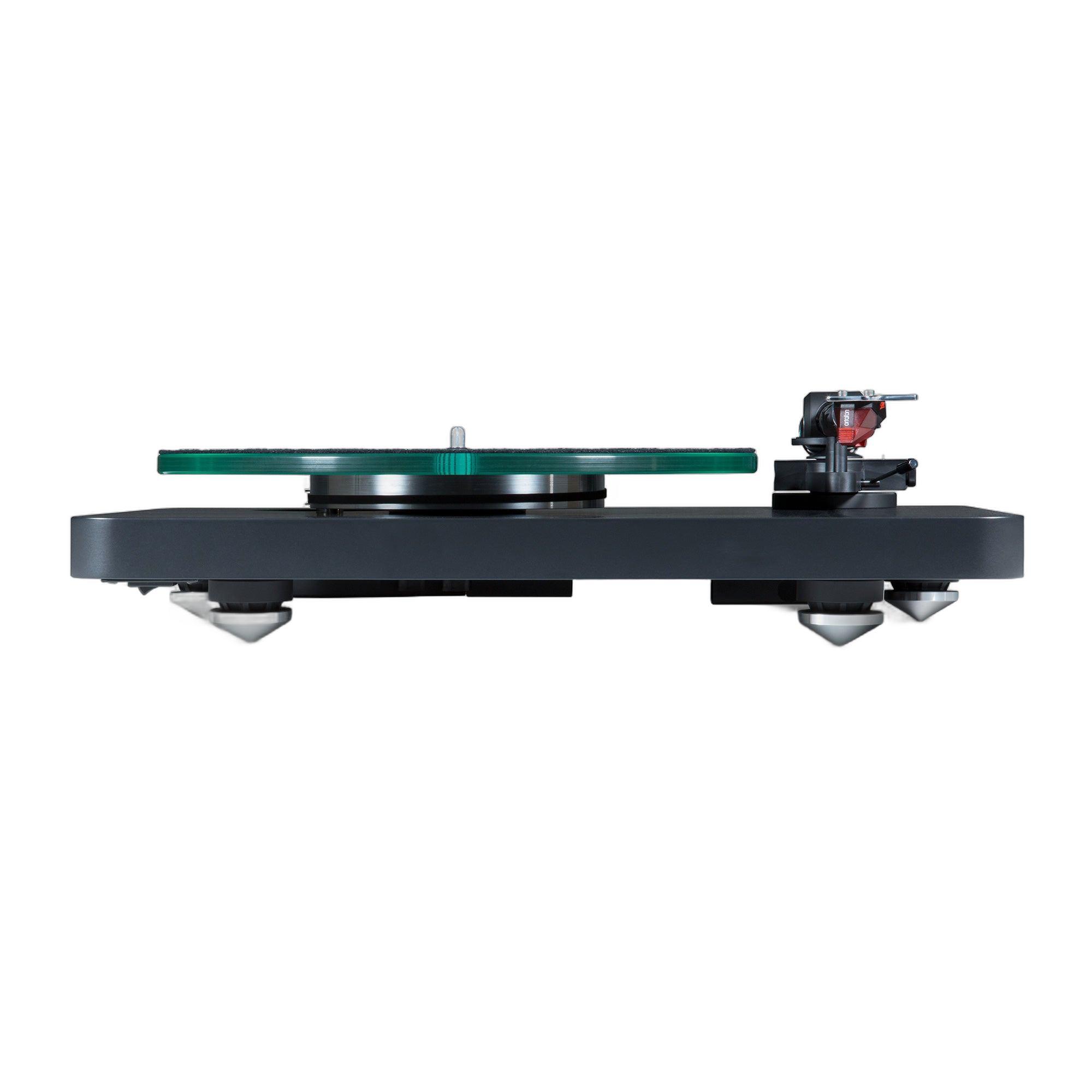

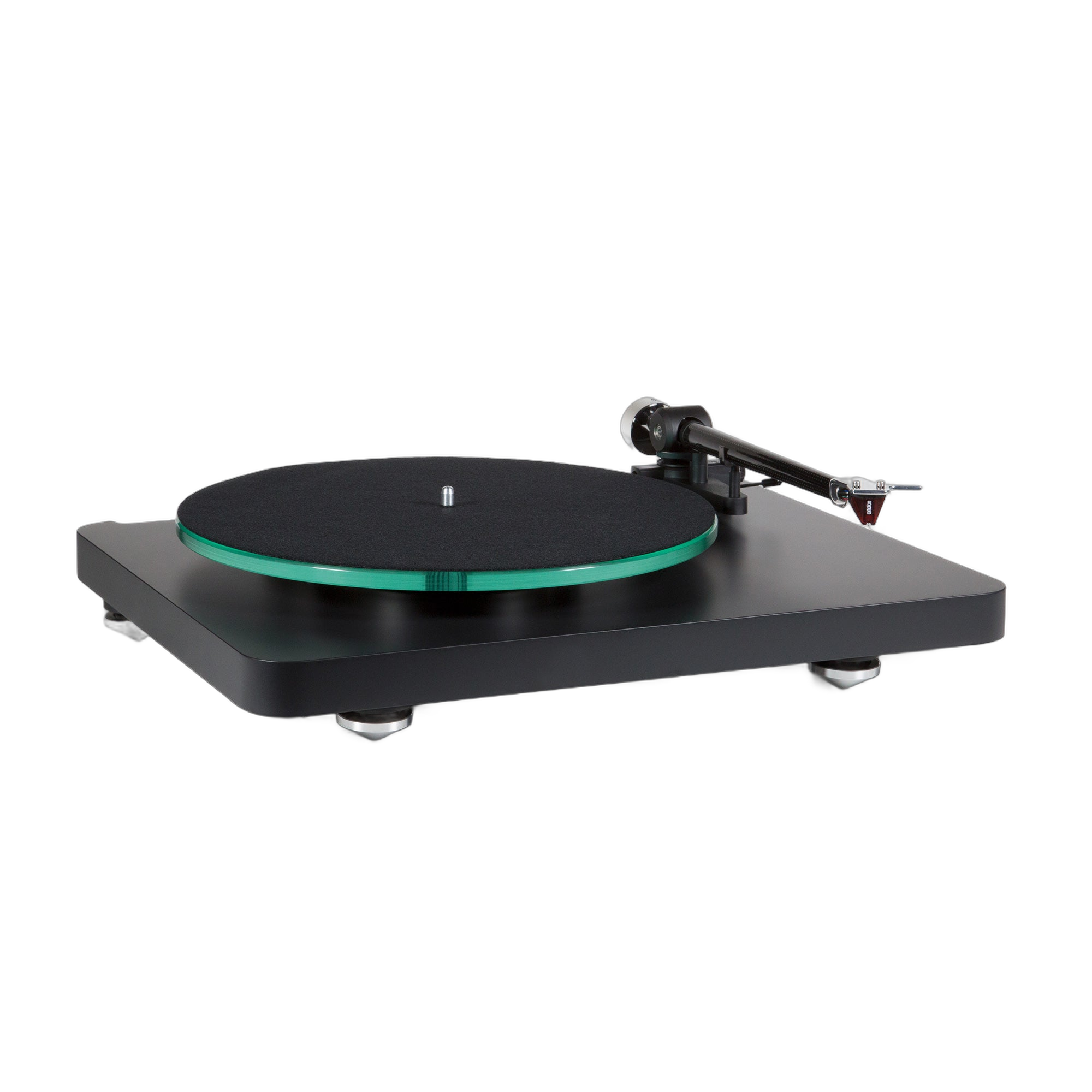

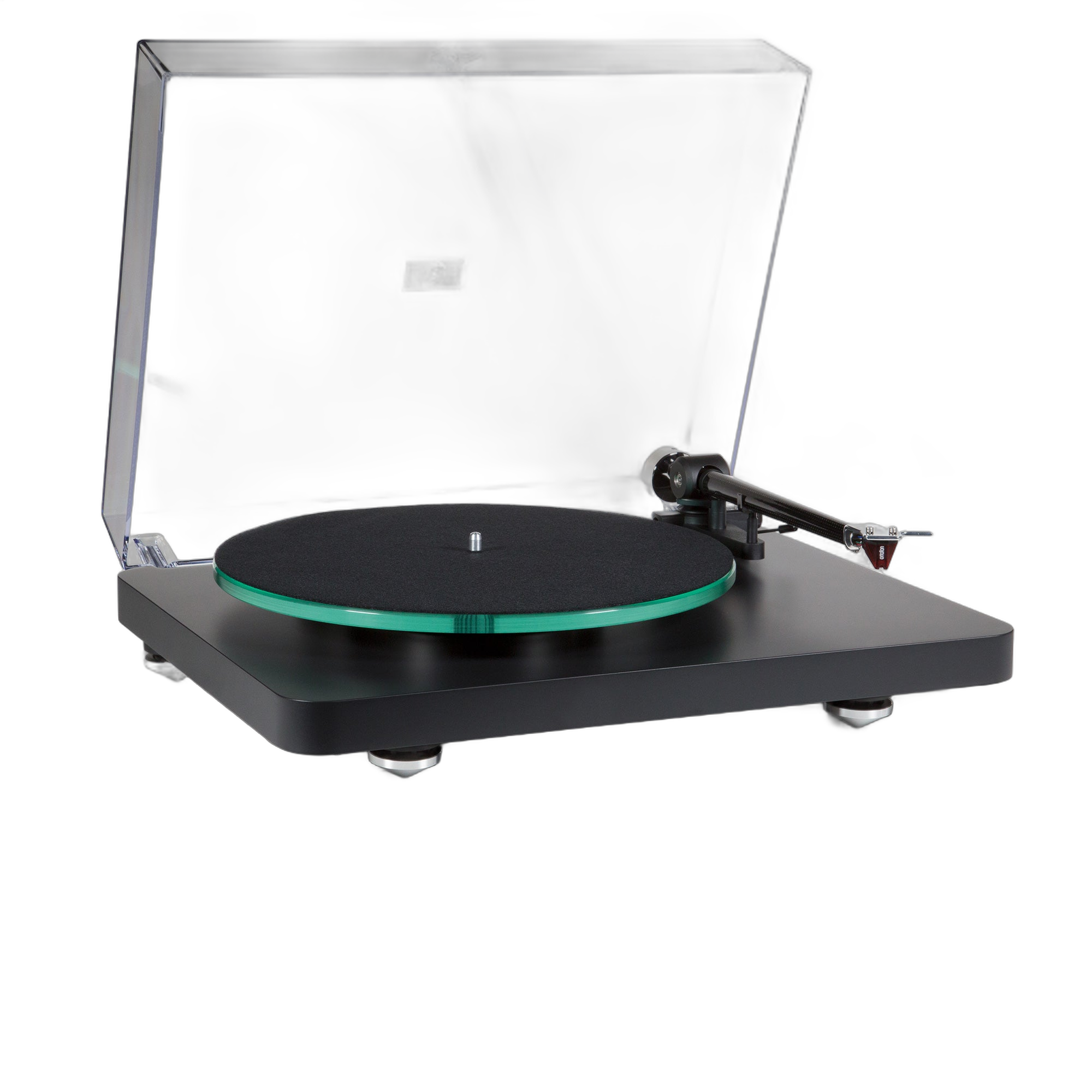

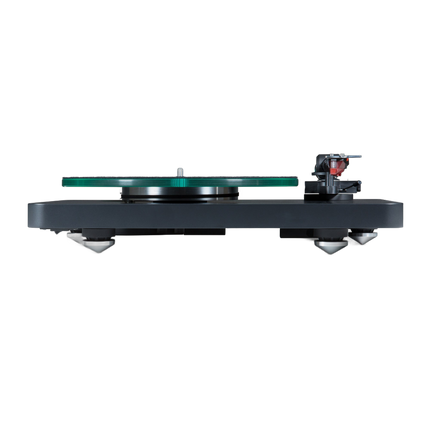

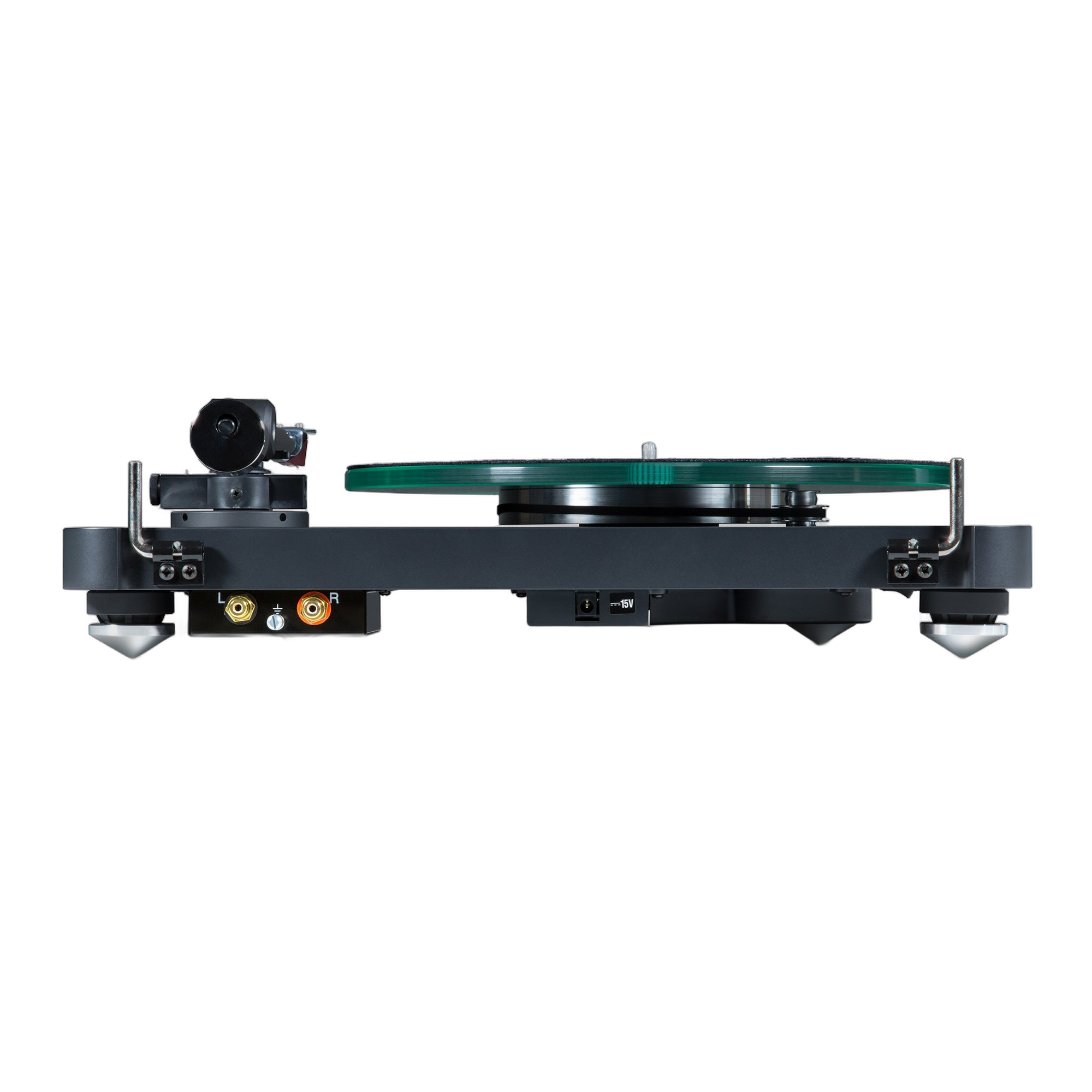

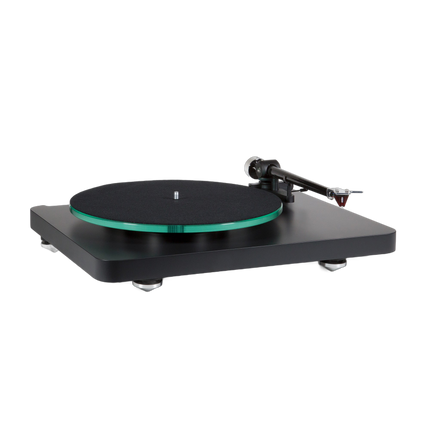

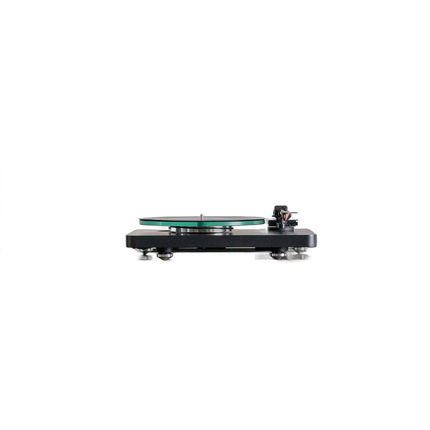

Pick-up NAD C 588 Negru

Stoc epuizat
NADVariantă: Negru Cod: ref.41680
Transport gratuit
30 de zile retur "no comment"
Garantie 24 luni
Descriere

Caracteristici principale

  • Manual
  • Viteza: 33/45 RPM
  • Auto-stop
  • Platan de sticla
  • Bratul din carbon are o lungime de 9"
  • Doza MMC (Moving Magnetic Cartridge)
Specificații tehnice

Greutate produs

5.5 kg

Dimensiuni produs

(W x H X D) (435 x 340 x 125mm)

Garanție (luni)

24

Caracteristici speciale pick-up-uri

  • Brat de carbon

Viteze de rotatie

33/45 RPM

Motor si mecanica fina

Motorul in sine este izolat de fluctuatiile de zgomot si de tensiune care apar in reteaua de alimentare nefiltrata, poate provoca instabilitate.

Tip angrenaj

Belt drive manual (pe curea)

Brat pick-up

Bratul din carbon are o lungime de 9"

Platan

Platanul de sticla si plinta masiva se combina pentru a extrage toata energia de pe vinil in timp ce izoleaza vibratiile externe nedorite.

ELECTRONIC SPEED CONTROL


Having exact pitch (speed) is important, but human hearing is much more sensitive to momentary changes in speed which we express with the terms Wow and Flutter. As its name sounds, Wow is a slow cyclical speed variation. The most severe example is the sound of a severely warped record, where the stylus travels faster on the rising side of the warp and slower on the descending side, causing abrupt changes in musical pitch. Flutter is what we call very fast and small variations that are usually generated by the motor. The C 588 addresses both of these problems with proven and effective solutions.

TONEARM AND CARTRIDGE


The C 588 features a custom designed carbon fiber tonearm shaft with a fixed metal head shell and features a decoupled counterweight and magnetic anti-skate compensation. An Ortofon 2M Red cartridge is factory installed and offers superb tracking and a delicately nuanced full range sound. The C 588 uses a longer than usual 9” tonearm to optimize overhang and reduce the tracking angle error. To perfectly align the stylus we include adjustments for azimuth and vertical tracking angle, and include a gauge to calibrate the alignment, a rarity at this price point.

CLOSING THE TRIANGLE

To fully realize the micro-dynamics of music requires a very tight mechanical coupling of the platter and the tonearm. This forms a triangle, as vibrations can travel from record being played, to the platter, through the shaft and bearing to the base (plinth), up the arm mount through the arm pivot and down the arm to the cartridge and stylus. There are many separate parts in this path and some of them are required move relative to one another through mechanical bearing interfaces. If there is any play in these mechanical interfaces musical energy will be lost. This why NAD has paid strict attention to precision machining, assembly, and testing that is so important in a turntable.

RESONANCE CONTROL AND ISOLATION

Reducing all spurious vibrations to a minimum is critical to getting the best result when playing vinyl. Since these vibrations can come from various sources, both internal and external, the materials and dimensions must all be carefully calculated reduce and balance all the resonances to prevent a buildup of energy at particular frequencies. To isolate external vibrations from the loudspeakers or footfalls bouncing the floor, we use a massive MDF base with specially tuned vibration damping feet, along with a thick non-resonant dust cover. The choice of glass platter, felt pad, MDF base, and carbon fiber tonearm, were carefully considered to work together to limit and reduce spurious vibration.
