Pick-up ELAC Miracord 50, phono pre-amp, belt drive, cartridge included

Elac
Share

Ridicare gratuita din showroom

Varianta selectata: Black

Cod produs: 53412

Intreaba cand revine

1.849 lei / Bucata 2.499 lei

30 de zile perioada de retur

Garantie 36 luni

Transport gratuit pentru comenzi peste 100 RON in Romania

Livrare prin curier sau ridicare din showroom Bucuresti

Pentru plata în rate alegeți NETOPIA ca procesator de plăți.

6 Rate

Card Avantaj

6 Rate

Alpha Bank

6 Rate

6 Rate

Banca Transilvania

6 Rate

Garanti Bank

12 Rate

Raiffeisen Bank (in showroom)

Descriere

Pickup manual, angrenat pe curea
Phono Pre-Amp inclus
Doza inclusa Audio-Technica AT91 moving magnet
Viteza: 33 1/3 si 45 RPM
Platan din aluminiu - 300mm
Brat din aluminiu, 8inch / 22.4cm
Stylus Pressure Range: 0 to 4 g
Cartridge Weight Range: 3.5 to 6g
Ajustare anti-skating
Switch PHONO / LINE

Alte informatii

Link producator: click aici

Manual: descarca fisierul

Fisa de produs: descarca fisierul

Cauti un pachet PROMO personalizat?

Spune-ne de ce ai nevoie si revenim cu o oferta " de nerefuzat "

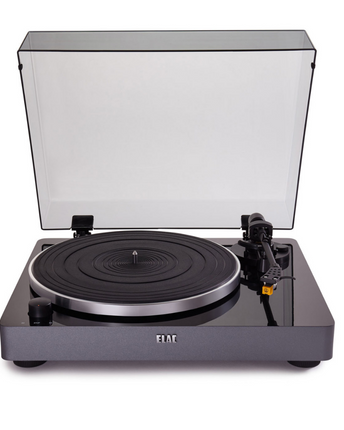

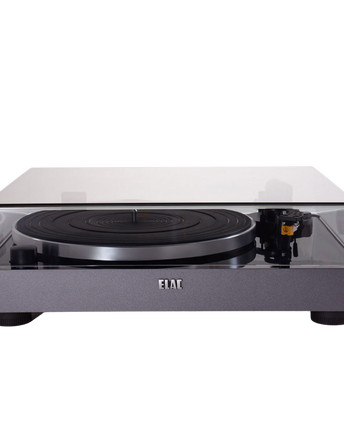

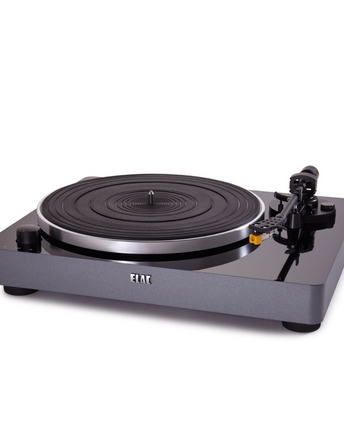

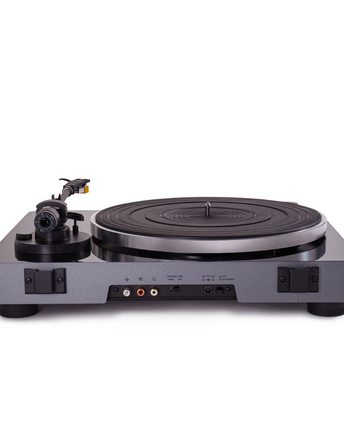

Smooth vinyl precision. | ELAC Miracord 50 Turntable – MRC-501

ELAC’s Miracord 50 Turntable is designed to deliver exceptional vinyl transcription, inspired by the iconic Miracord name from the Golden Age of Stereo, when turntables reigned supreme. The Miracord 50 is carefully engineered with a belt-drive motor and die-cast aluminum platter. A precision static balanced, straight-tube tonearm with removable headshell features a factory-mounted MM phono cartridge. Designed with convenience in mind, the Miracord 50 is equipped with a built-in defeatable phono preamplifier, allowing you to add this turntable to virtually any music system.

Anti-resonant chassis

Superior isolation is achieved with a chassis designed to minimize the sonic effects of vibration and feedback.

Built-in phono equalizer amplifier

Unlike most turntables, the Miracord 50 comes complete with a built-in phono preamp for correct RIAA equalization. Just plug it in and enjoy rich LP sound!

Precision tonearm and cartridge

The tonearm is a static-balance, straight- tube design with precision bearings, built-in anti-skate adjust- ment and removable bayonet-style headshell.

Technical Specifications

Turntable Section:

Drive System: Belt Drive

Motor: DC Motor

Selectable Speeds: 33-1/3 and 45 RPM

Motor Servo: Speed Rotation and Servo System

Rotation Speed Variation: +/- 1%

Wow and Flutter: 0.1%

Signal-To-Noise Ratio: -67 dB or higher (A-weighted) -60dB or higher (unweighted)

Platter: Aluminum die-cast

Platter Diameter: 0 in / 300 mm

Tonearm Section:

Type: Aluminum tube, static-balanced

Effective Arm Length: 8in / 223.6 mm

Stylus Pressure Range: 0 to 4 g

Cartridge Weight Range: 3.5 to 6g

Effective Arm Mass: 27.4 g

Overhang: 18.6 mm

Offset Angle: 25 degrees

Anti-Skating: Adjustment Supported

Main Bearing: Stainless steel

Cartridge Section:

Type: Audio-Technica AT91 moving magnet

Stylus Construction: Bonded diamond

Mount: Half-inch

Frequency Response: 20 Hz to 20 kHz

Channel Separation: >18 dB

Channel Balance: 2.5 dB

Vertical Tracking: Angle 20 degrees

Stylus Pressure: 2.0 g +/-0.5 g

Cartridge Weight: 5.0 g +/-0.5 g

Stylus Pressure: 2.0 g +/-0.5 g

Headshell Weight: 0 g (including screws, nuts and wires)

Phono Equalizer Amplifier:

Type: Moving magnet (MM)

Phono Output: 2.5 mV (1 kHz, 3.54 cm/sec)

Line Output: 140 mV (-17 dBV)

Phono/Line: Switchable

Supported Load Impedance: 47 kΩ

General:

Connector: RCA pin jack including RCA cable accessories

Voltage: 100 to 240 V AC / 50 to 60 Hz

Power Consumption: 1.5 W (less than 0.5 W at standby)

Dimensions (WXHXD): 5.5 x 16.05 x 14.20

Weight: 12.10 lb
