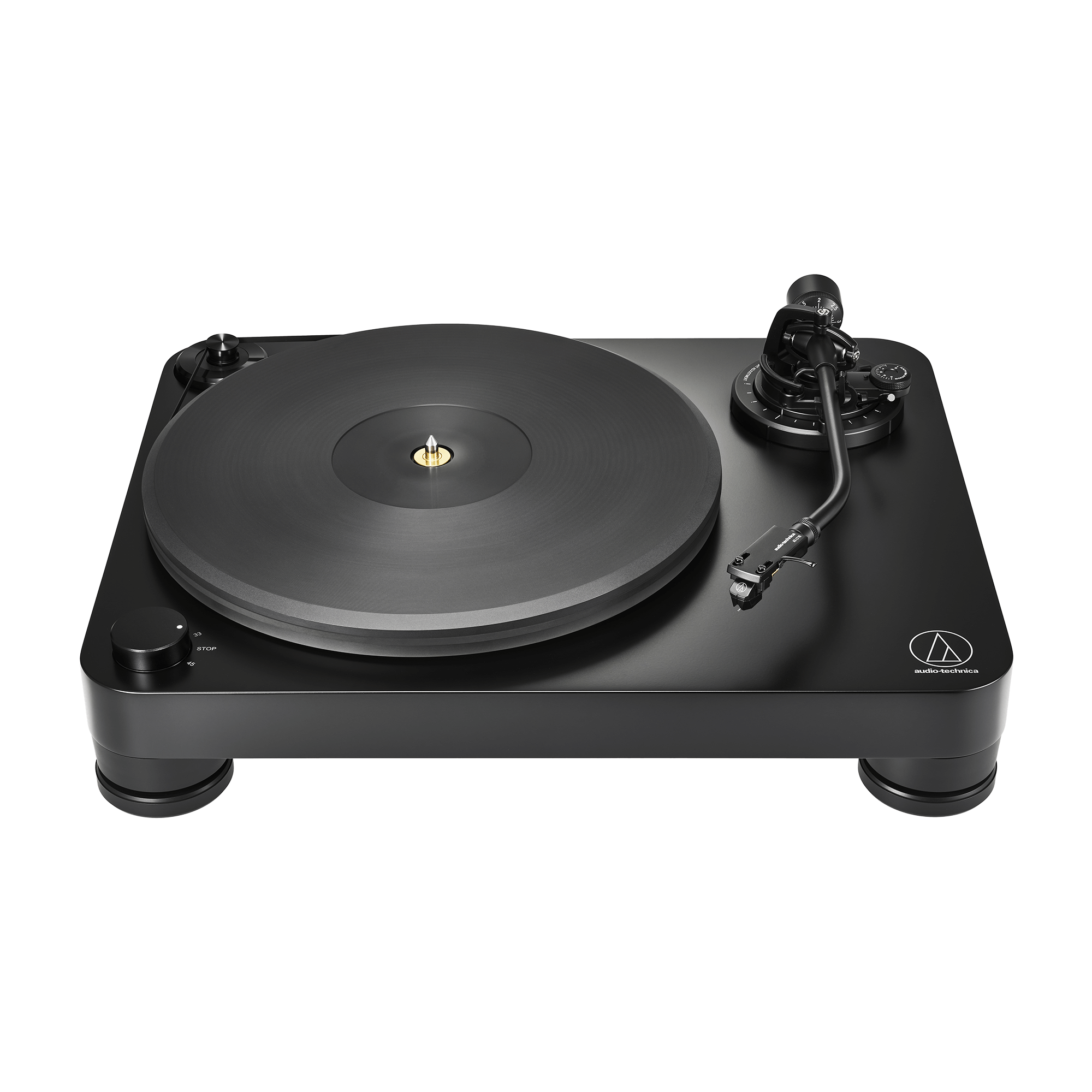

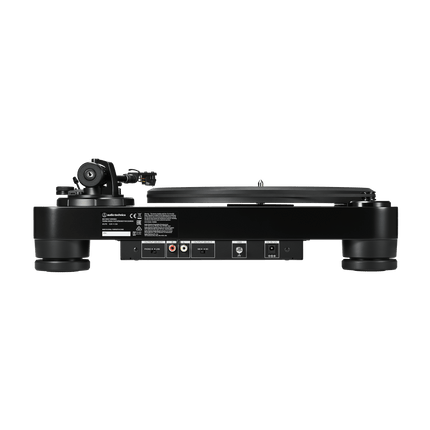

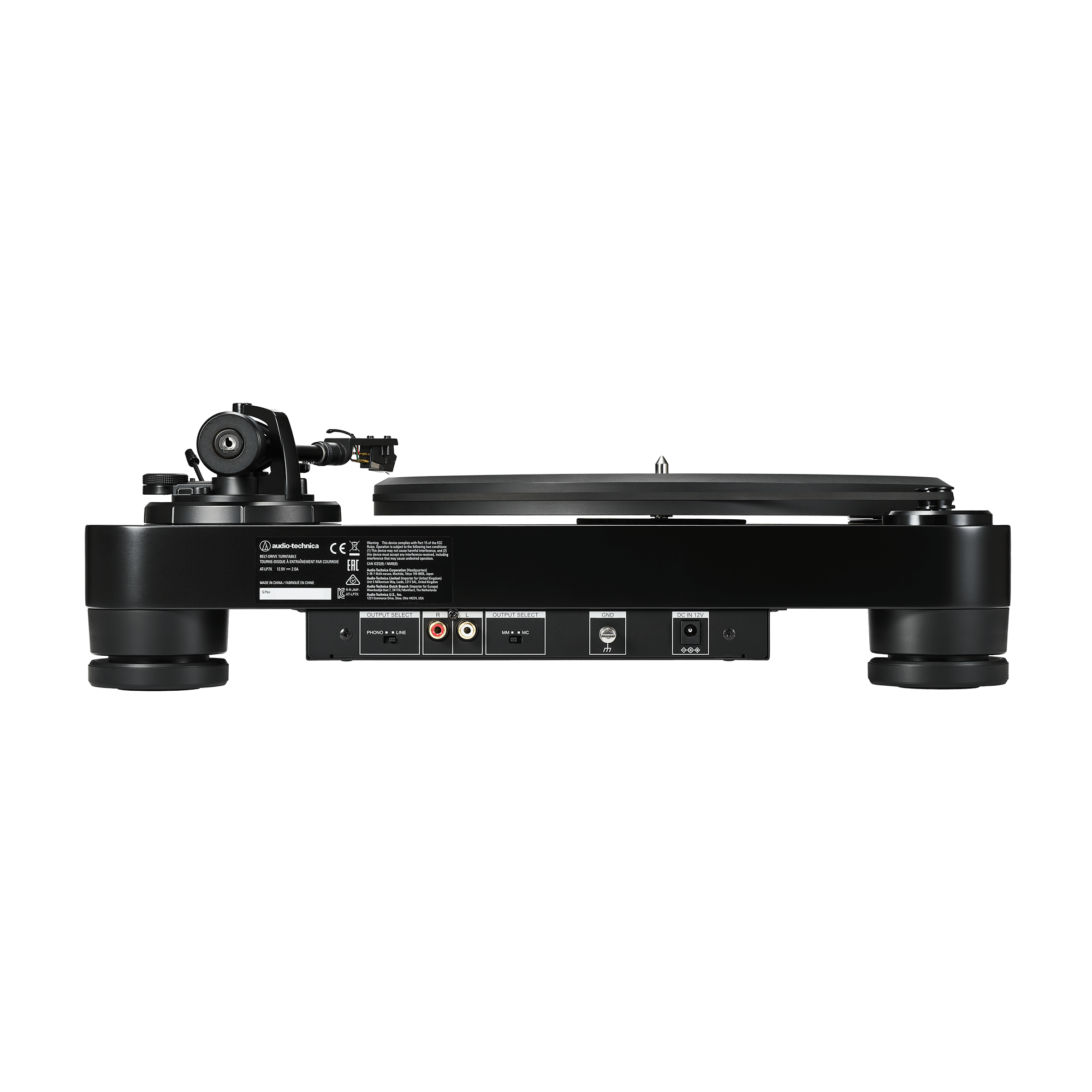

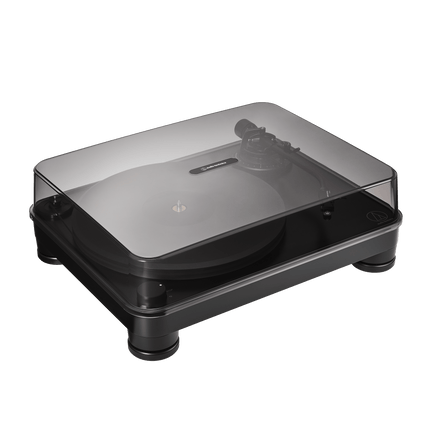

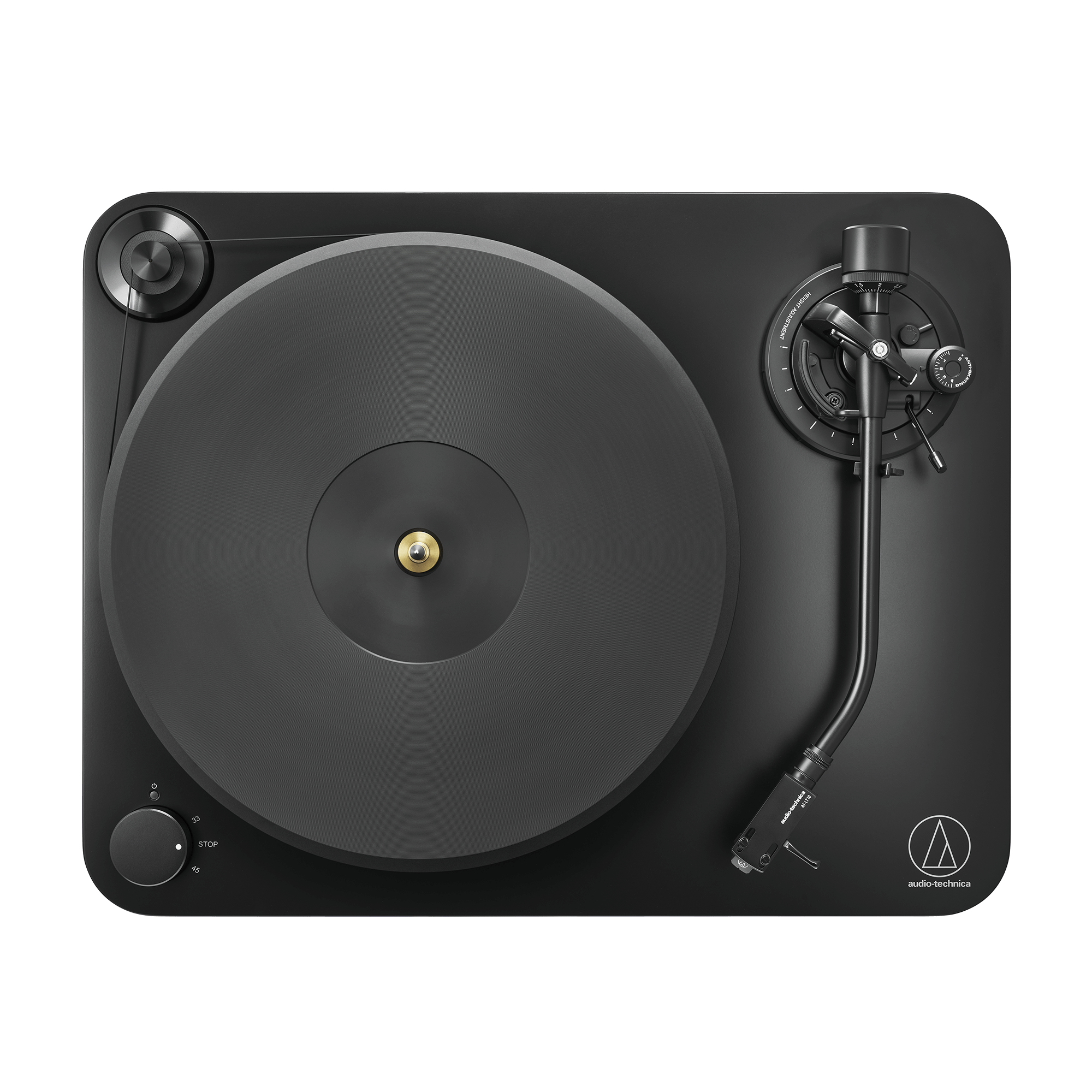

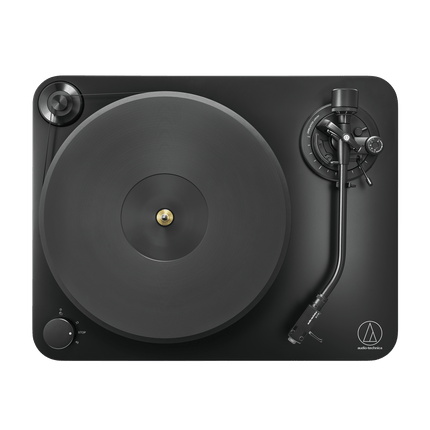

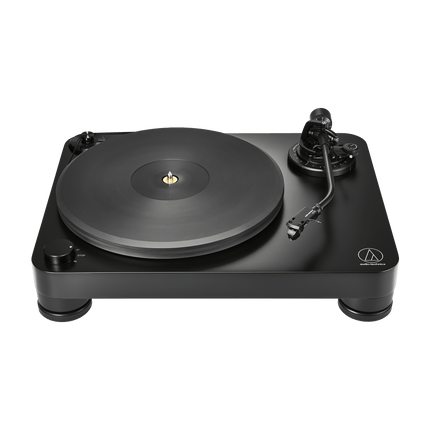

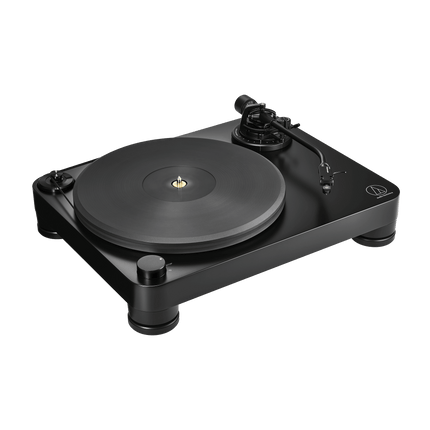

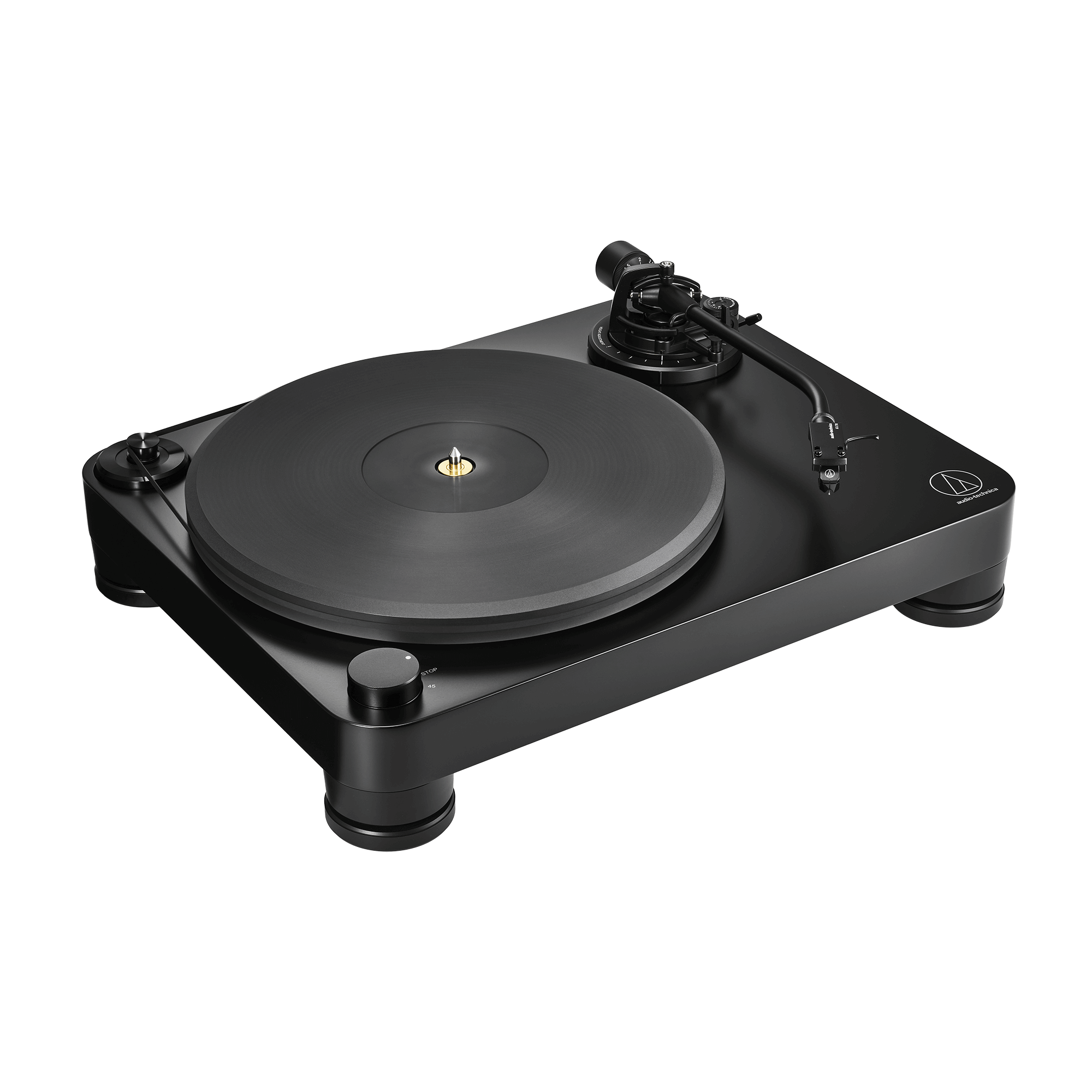

Pick-up Audio-Technica AT-LP7X

Turntable
Motor: DC servo motor
Drive Method: Belt drive
Speeds: 33-1/3 RPM, 45 RPM
Turntable Platter: 20 mm (0.79") thick acrylic platter
Wow and Flutter: < 0.1% (WTD) at 3 kHz (JIS)
Signal-to-Noise Ratio: > 60 dB
Output Level PHONO: 4.0 mV nominal at 1 kHz, 5cm/sec
LINE: 252 mV nominal at 1 kHz, 5cm/sec
Phono Pre-Amp Gain:
MM: 36 dB nominal, RIAA equalised
MC: 56 dB nominal, RIAA equalised
Power Consumption: 5.5 W
Dimensions: 450 mm (18”) × 352 mm (14”) × 157 mm (6.2”) (W×D×H)
Weight: Approx. 7.6 kg (17 lbs)
Operating Temperature: 5°C to 35°C (41°F to 95°F)

Tonearm
Type: Static balanced J-shaped tonearm
Effective Length: 247 mm (9.7”)
Overhang: 15 mm (0.59”)
Maximum Tracking Error Angle: < 2.0°
Tracking force adjustment range: 0.0 - 4.0 g
Applicable Cartridge Weight:
14.0 to 19.5 g (without subcounterweight)
17.5 to 23.5 g (with subcounterweight (light))
22.0 to 28.5 g (with subcounterweight (heavy)*)
*The subcounterweight (heavy) is sold separately.

Cartridge
Model: AT-VM95E BK
Type VM
Recommended Load Impedance: 47,000 ohms
Output Voltage: 4.0 mV (1 kHz, 5 cm/sec)
Stylus Shape: 0.3 × 0.7 mil bonded elliptical stylus
Cantilever: Aluminium pipe
Tracking Force: 1.8 to 2.2 g (standard 2.0 g)
Weight: 6.1 g (0.22 oz)

AC Adapter
Rated Input Voltage: 100 to 240 V AC
Rated input current: 0.6 A max.
Rated frequency: 50 Hz / 60 Hz
Rated output voltage: 12 V DC
Rated Secondary Current: 0.5 A
Cable length: Approx. 1.3 m (4.3’)

Headshell
Model: AT-LT10
Weight:
Approx. 10.7 g (0.38 oz) (including lead wires)
Approx. 10.0 g (0.35 oz) (excluding lead wires)
