Preamplificator cu convertor A/D - Optical Box E Phono Black

Pro-JectVariantă: Black Cod: 9120071657673
Variante:
885 lei
Transport gratuit
30 de zile retur "no comment"
Garantie 24 luni
3 RATE Alpha Bank
3 RATE BRD
3 RATE Banca Transilvania
3 RATE Card Avantaj
3 RATE Garanti Bank
Descriere

Caracteristici principale

  • Especially for use with devices with no analogue input such as home cinema receivers, soundbars etc
  • Analogue RCA and digital optic output work simultaneously
  • Works as input extender (2>1) or output splitter (1>2)
  • 2 Inputs: 1 Phono and 1 Line In
  • Suitable for MM cartridges
  • Precise RIAA equalisation
  • Low noise circuitry
  • Internal metal shielding
  • Gold-plated RCA inputs
  • Outboard power supply included
Specificații tehnice

Greutate produs

250 g

Dimensiuni produs

120 mm x 32 mm x 100 mm

Alte specificații

Impendanta la intrare: 47 kOhmi (MM)

Gain: 43 dB

THD: <0,04%

Corectie RIAA: 20 Hz - 20 kHz / 0,5 dB

Conexiuni intrare: 1 x RCA (phono), 1 x jack 3,5 mm (linie)

Conexiuni iesire: 1 x optic toslink, 1 x jack 3,5 mm (linie)

Garanție (luni)

24

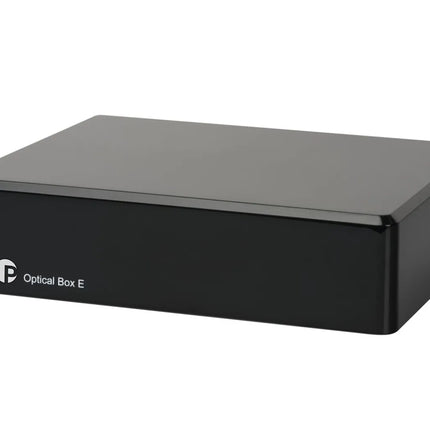

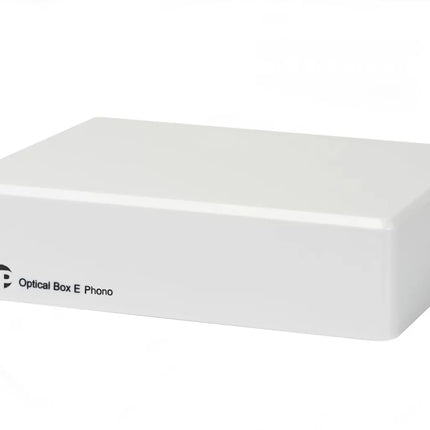

Optical Box E Phono

Multi-purpose phono preamplifier with A/D conversion and 2 output options: Line level and digital optic!

Anyone who wants to use the record player together with devices with digital inputs only, such as home cinema receivers, sound-bars or all-in-one systems will love this little box. The Optical Box E Phono takes many needs into account and offers a digital-optical signal output plus a standard analogue output that will work simultaneously. Therefore it can be used as the perfect signal splitter 1>2 to play the same signal on 2 systems at the same time. Another very useful purpose of Optical Box E Phono is that it can act as an input expander, for a system with shortage in inputs. Last but not least Optical Box E Phono is able to digitize not only phono sources, but also line signals from tape decks, tuners etc. To ensure that the incoming signal is maintained as unadultera-ted as possible, the A/D conversion in highest precision with 24bit / 96kHz resolution.

Of course it can also be used as an ordinary MM phono preamp with line output (3.5mm jack) that integrates in any HiFi system. The internal part of the housing is lined with metal, thereby eliminating RF interference and vibrations, so that an undisturbed listening experience is guaranteed. The Optical Box E Phono is the perfect partner for all modern Audiophiles who want to use their analogue signal sources with digital or analogue playback devices!

Technical Specifications

Phono input impedance: 47kohms

Phono capacitance: 100pF

Gain phono: 34 dB

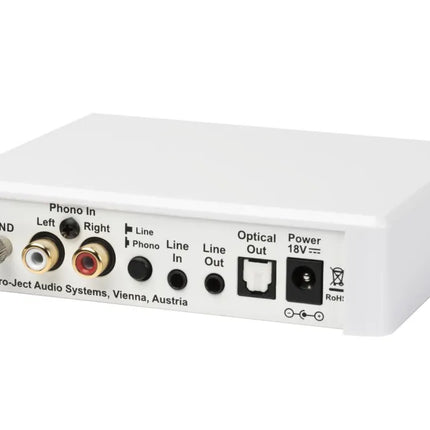

Inputs: 1 Phono (RCA), 1 Line In (3.5mm)

Outputs: 1 Line Out (3.5mm), 1 Toslink

Noise floor: 74dbA (A-weighted)

THD: < 0,04%

RIAA equalisation curve accuracy: within 0,5dB/20Hz - 20kHz

Power supply: 18V/500mA DC; 220 - 240V, 50Hz

Power consumption: 200 mA DC, < 1 watt standby

Dimensions W x H x D: 120 x 32 x 100mm

Weight: 250g without power supply
