AUDIO
Supported Audio File Formats: MP3, AAC, WMA, WMA-L, OGG, OPUS
Supported High-Quality Audio File Formats: FLAC, MQA, ALAC, WAV, AIFF, MPEG-4 SLS
Supported Multi-Channel Audio Formats: Dolby Digital® Downmixing to stereo PCM
Native Sampling Rates: up to 192 KHz
Bit Depth: 16-24
Audio Controls & EQ: BluOS Control App
Signal-to-Noise Ratio-102dBA
Distortion: THD+N, 0.005%
Amplification: DirectDigital™
Rated Power Output: Dynamic Power Management – 120W x 2 or 60W x 4 (8 Ohms)
IHF Dynamic Power: 300W (4ohm)/200w (8ohm)
SOFTWARE & INTEGRATIONS
Operating System: BluOS
App Controller Operating System: iOS, Android, Windows, macOS
Processor: ARM® Cortex™ -A53, Quad-Core, 1.8GHz per core
Supported Network File Sharing: Server Message Block (SMB) up to 200,000 files
Album Art Supported: JPG, PNG
Music Services & Internet Radio: 23+
3rd-Party Integrations: AirPlay 2, Spotify Connect, Tidal Connect
Room Correction Software: Dirac Live Ready (In 2.1 configuration only, calibration mic not included)
Control System Integrations: Creston, Control4, RTI, Nice, URC, Lutron, Gira, Rako, Rithum, Free@Home, Josh.AI
Voice Control Integrations: Amazon Alexa Skills

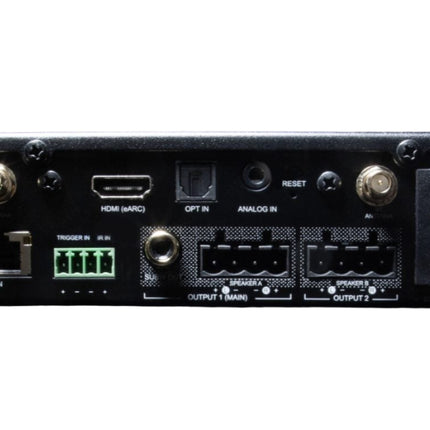

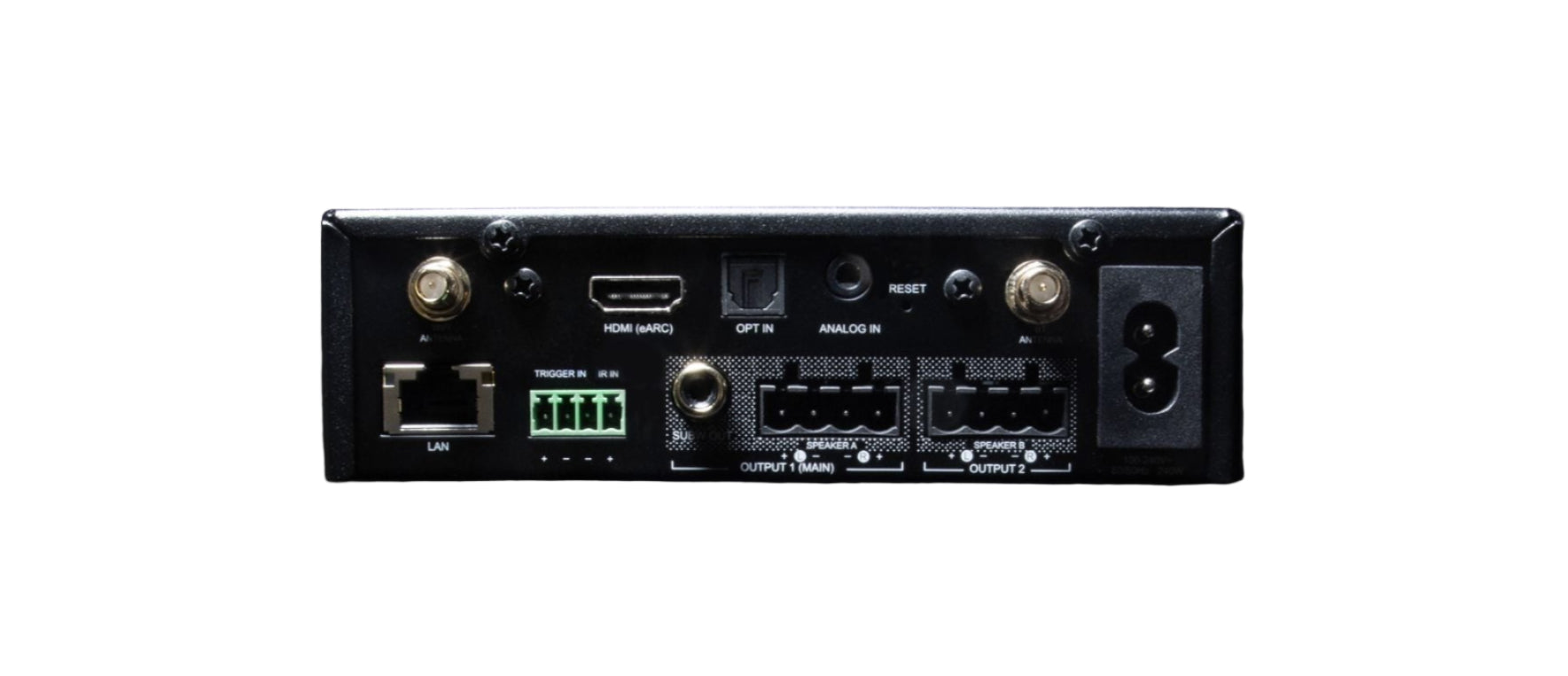

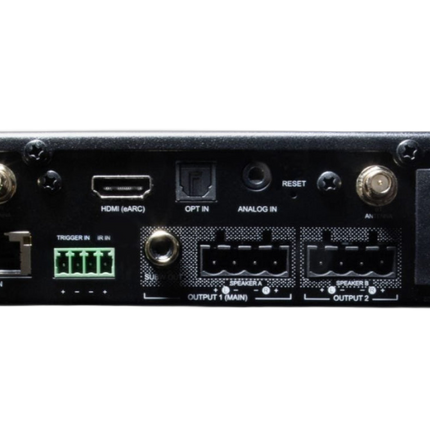

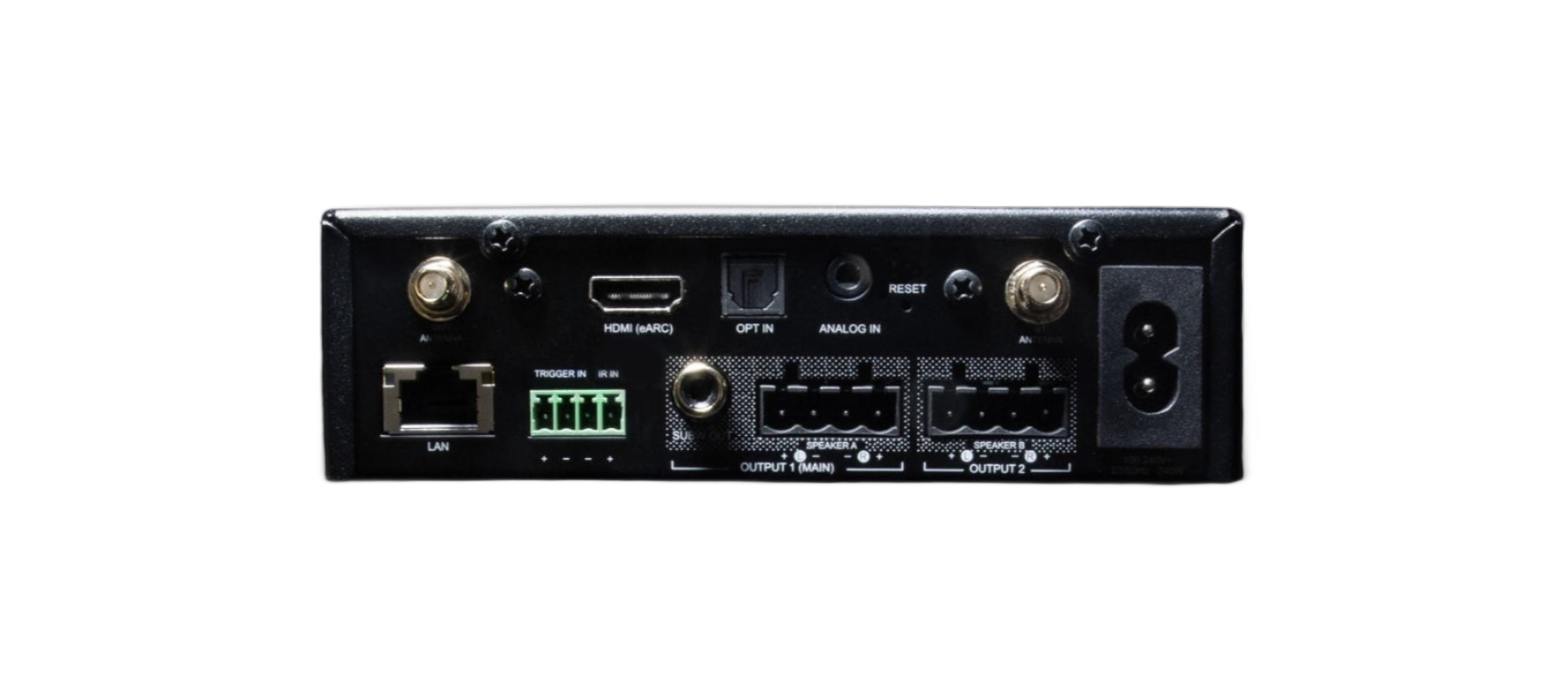

CONNECTIONS
Power Supply: Universal 2-pin AC cord input (100-240AC)
Ethernet/LAN: Ethernet RJ45, Gigabit 1000Mbps
Wi-Fi: Built In WiFi 5 (802.11ac), dual-band
Bluetooth Quality: Bluetooth 5.2 aptX HD
Bluetooth Connectivity: Two-Way
IR Optical Built In: No
IR Input: 2-pin PHX connector (IR extender kit required)
Optical/Analog Input: Toslink Optical, 3.5mm Analog
HDMI Input: HDMI eARC
USB In:
Type A (Fat32, NTFS Formatted) – External Storage Only
Local Server Mode
Dual Speaker Outputs: Yes
Main Zone/Sub Zone Capability: Yes (independent volume control over Speaker Output 2 when activated)
Subwoofer Output: RCA x 1; Wireless to PULSE SUB+ (Linked to Output1/Main Zone only)
Speaker Terminals: 2x 4-PIN Snap On PHX 5.08mm Connector, supports up to 12AWG
Headphone Output: None
12v Trigger Input: x1 Programmable Trigger Input
12v Trigger Output: None

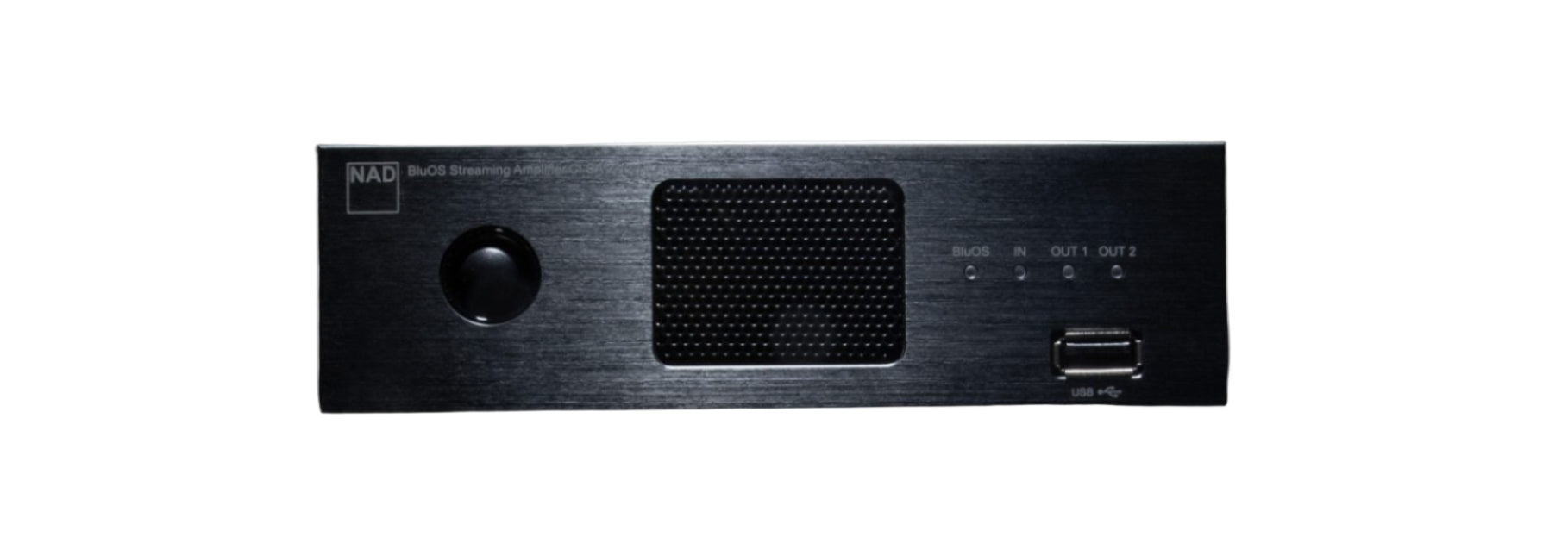

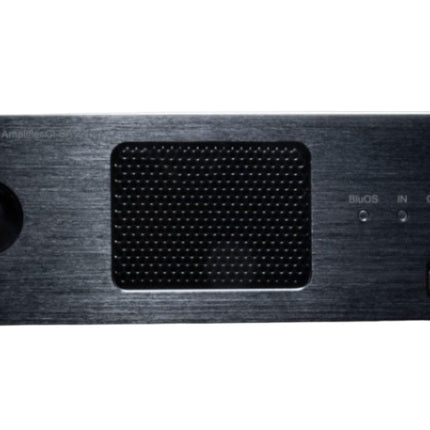

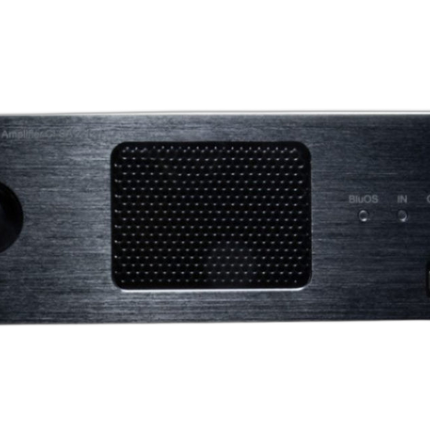

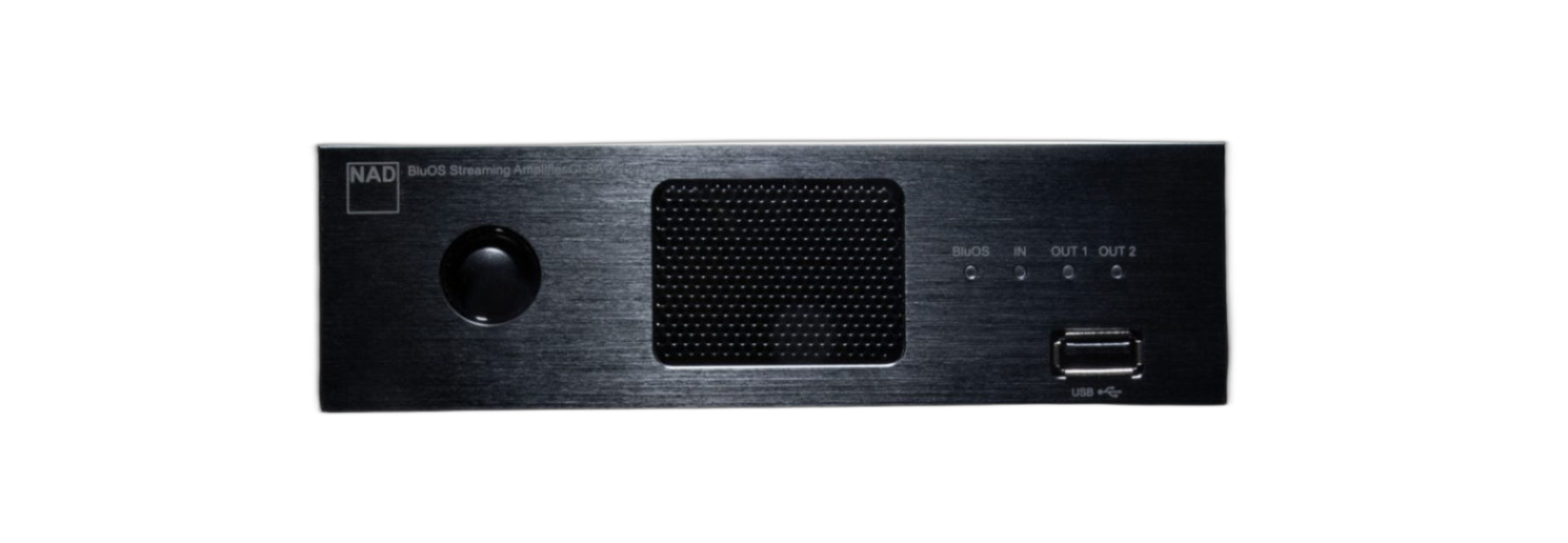

USER INTERFACE & CONTROL
Status Indicator: BluOS Status LED
Source Status Indicator: x2, BluOS/Connected Input Live
Output Status Indicator: x2, Output pair 1, Output Pair 2
GENERAL
Max Power Consumption: 240w
Storage Environment: -10°C to 50°C, 20% to 80% relative humidity
Operating Environment: 0°C to 40°C
