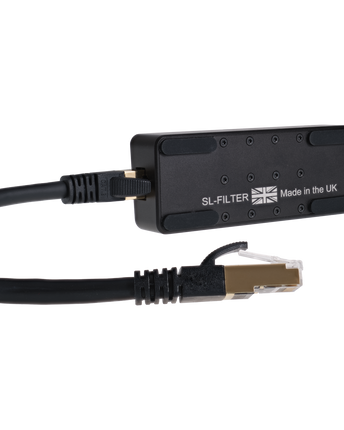

The SmoothLAN is the result of a careful and deliberate design process, with each decision contributing to its overall performance.
Precision machined aluminium case features fully shielded pockets which serve as barriers, isolating the electronic components from each other and external disturbances.
EMI absorbing materials embedded inside the pockets further neutralize noise reflections from the components.
Perfectly sealed enclosure using 20 screws to ensure there are no gaps between the shielded pockets that could compromise performance by amplifying specific frequency ranges.
Discrete components enable high-speed traces (the signal paths on the circuit board) with incorporates ground planes/shields between them. optimizing signal paths for superior performance.
Optimized Grounding to minimize crosstalk. Each circuit on the PCB is surrounded by copper grounded to the case. This creates an effective shield against interference and ensures return currents do not interfere with neighbouring circuits.
Galvanically Isolated to ensure the breaking of ground loops by preventing unwanted current from flowing between two units sharing a ground conductor.
