AUDIO & OPERATING SYSTEM
Operating System: BluOS
BluOS Controller Operating System: iOS, Android, Windows, MacOS
*Control System Integrations: Control4, Crestron, URC, RTI, ELAN, Lutron
Simutaneous Audio Streams: 2 per HUB
1 x analog audio input, 1 x digital audio input
Maximum Number Units: 4x HUB on single network (8 simultaneous streams)
Native Sampling Rates: up to 192 kHz
Bit Depth: 16-24
Signal-to-Noise Ratio: >100 dB (Line input)
>80 dB (Phono MM input)
Distortion: <0.03% 20-20 kHz -1dBFS output
Frequency Response 20-20 kHz +/-0.3dB; 50 kHz -3dB
*via software update

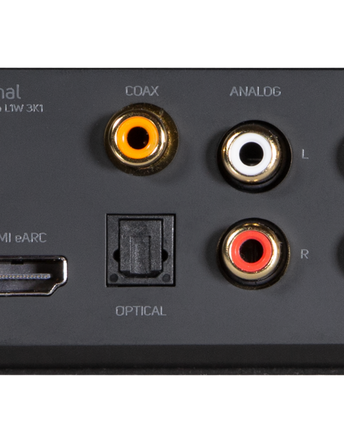

CONNECTIONS
Power Supply: Universal USB-C Power adapter
(Input:100-240V AC/0.3A Output:5V/2A)
Ethernet/LAN: Ethernet RJ45, GigE 1000 Mbps
Wi-Fi Built In: Wi-Fi 5 (802.11ac), 2.4/5GHz
Analog Line Input: 1 x Stereo RCA
Phono Input: 1 x Stereo RCA (Moving Magnet)
Optical Input: 1 x TOSLINK digital optical
Coaxial Input: 1 x RCA (75 ohms)
HDMI Input: HDMI eARC with CEC
USB Input: Type A (for BluOS firmware upgrade only)
Audio Output: Network
FEATURES
Processor: ARM® Cortex™ -A53, Quad-Core, 1.8GHz per core
Status Indicator: Front Panel LED
Function Button: Front Panel Function Button
Power Consumption: 0.5W Network Standby
GENERAL
Product Dimensions: 143 x 153 x 45mm (W x D x H); 5.6 x 6 x 1.8 in (W x D x H)
Weight: 0.63kg / 1.39 lbs
Finish: Black; Matte Satin Paint
Version: CB130
