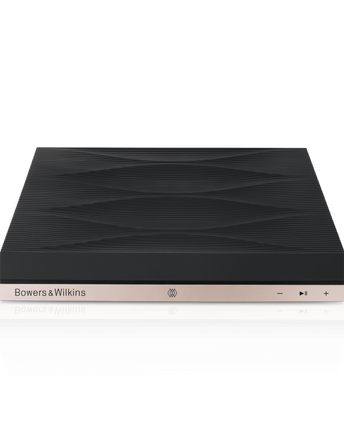

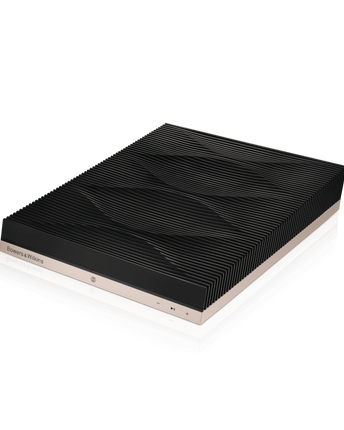

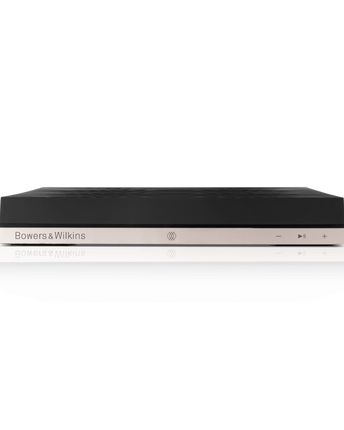

Model: Formation Audio

Description: Wireless Audio Hub

Technical features:
Apple® AirPlay 2® technology
Spotify® Connect
Roon Ready
Bluetooth In
High performance analogue-to-digital converter (ADC)
High performance digital-to-analogue converter (DAC)

Input voltage: 100V – 240V – 50/60Hz

Power consumption: Below 6.8 Watts (Sleep)*

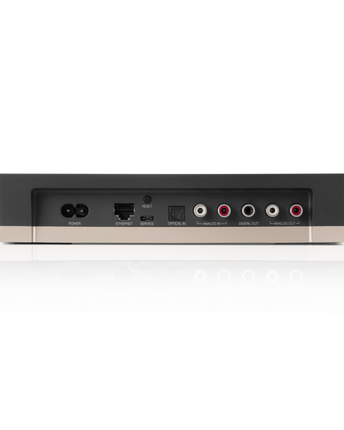

Connections:
Digital audio in (Toslink)
Analogue audio in (2 x RCA)
Digital audio out (1 x RCA)
Analogue audio out (2 x RCA)
Network (RJ45 Ethernet or WiFi)
USB – service only

Bluetooth: Bluetooth® v4.1, Class 2
aptX HD
AAC
SBC

Dimensions:
Height: 44mm (1.7 in)
Width: 215mm (8.5 in)
Depth: 263mm (10.4 in)
Weight: 1.0kg (2.2 lb)

AirPlay 2 compatibility: iPhone, iPad, and iPod touch with iOS 11.4 or later, Apple
TV 4K or Apple TV (4th Generation) with tv OS 11.4 or later,
Mac or PC with iTunes 12.8 or later.

*Formation products create a mesh network. Each product
in this network dynamically chooses the optimal path to
route audio-data between products, in order to ensure a
robust streaming experience. We have therefore certified
Formation products for High Network Availability (HiNA)
and conform to the appropriate power requirements set
out in the ERP directive.
