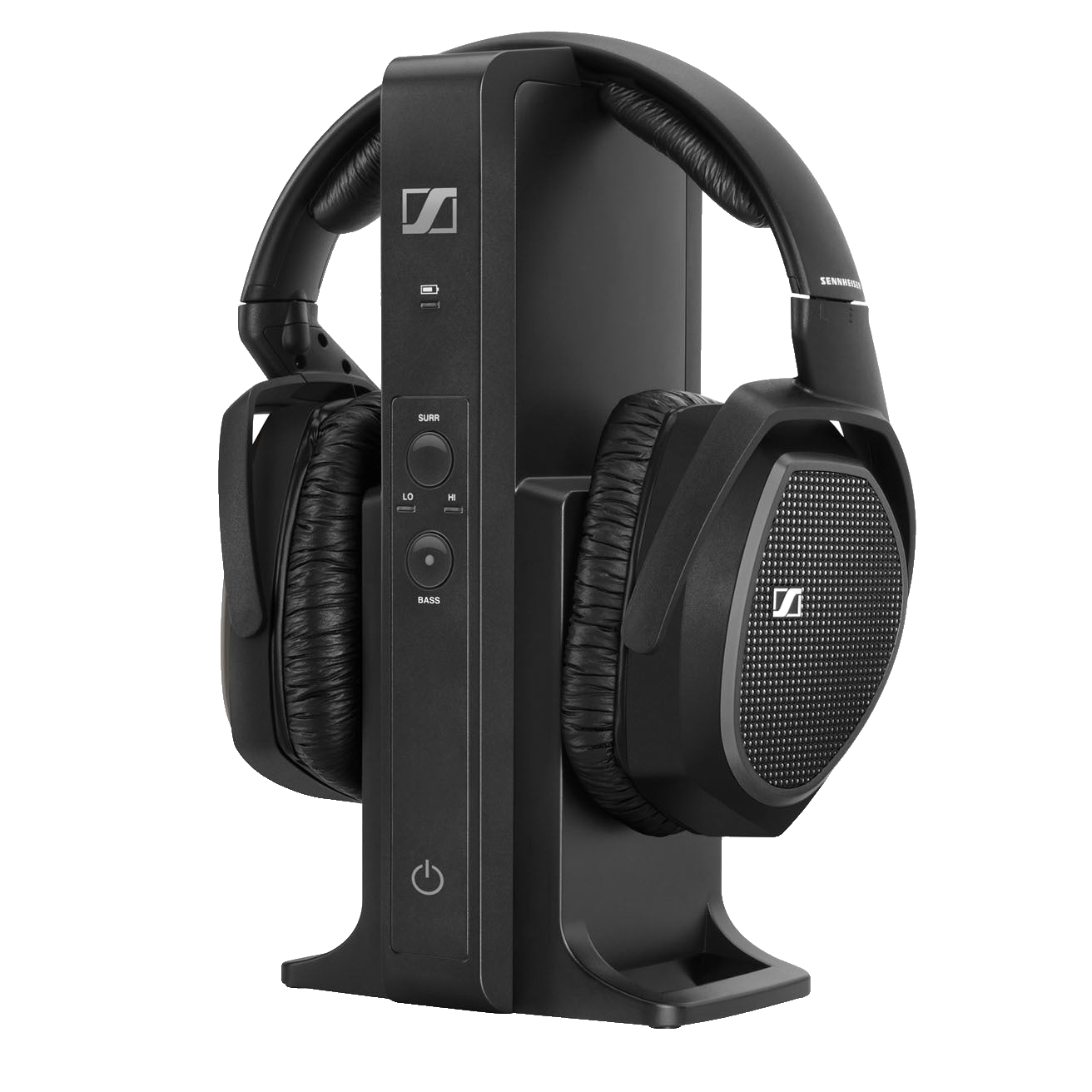

- Casti on ear, wireless, pentru TV
- Conexiune cablu optic sau cablu audio Jack 3.5mm
- Pot fi conectate pana la 2 casti la acelasi transmitator
- Raza de actiune de pana la 100m
- Autonomie baterie 18 ore
Ce primești în pachet?
- Căști HDR 175
- Transmițător TR 175
- Cablu optic
- Cablu audio
- Alimentare cu 4 adaptoare (UE, Marea Britanie, SUA și AU)
- 2 baterii reîncărcabile AAA NiMH
- Ghid rapid
Sunet și detalii tehnice
Article number (SKU): 508676
Wearing style: On-ear
Connectivity: Optical, Analog: 3.5 mm stereo jack socket
Operating time: 18 hrs
Carrier frequency: 2.4 – 2.48 GHz
Transducer principle: Dynamic, Closed
Frequency response: 17 Hz - 22,000 Hz
Sound pressure level (SPL): 114 dB (1kHz, 100 dB)
Total harmonic distortion (THD): < 0.5 % at 1 kHz, 100 dB SPL
Charging time: 8:30 hrs
Power supply / Battery type: 2 AAA size lowself-discharge NiMh rechargeable batteries, 1.2V, 820 mAh
Dimensions: 127 x 234 x 100 mm
Maximum number of connected receivers: 2
RS 175 transmitter compatibility: HDR 165, HDR 175 and HDR 185 headphones
How do I best connect the transmitter to my audio device?
You can connect the transmitter to your audio device using either a digital (optical) or an analog connection. We recommend using the digital connection. The connections for audio devices are usually labeled "AUDIO OUT" or "DIGITAL OUT". The required audio cables are supplied with the RS 175.
How can I connect the transmitter to my AV receiver?
If your AV receiver has an optical digital audio output ("OPTICAL OUT"), then use that to connect the transmitter to the AV receiver. If your AV receiver has no digital audio output, connect the transmitter via an analog audio output ("AUDIO OUT").
I have several wireless devices at home (e.g. WiFi router, cordless telephone); will they interfere with my wireless headphone system?
The headphone system uses automatic frequency management to ensure the best possible radio transmission for the RS 175 and optimum co-existence with other wireless devices within its vicinity.
Can I use several wireless headphone systems in close proximity?
Yes, you can use several wireless headphone systems in parallel (minimum distance between two systems: 0.5 m). What matters is that the headphones/receiver and the transmitter are paired with each other and connected.
Can I use other Sennheiser wireless headphones together with the RS 175 headphone system?
You can use the HDR 165, HDR 175 and HDR 185 headphones with an RS 175 transmitter. Other Sennheiser wireless headphones (e.g. RS 11x series, RS 12x series, RS 160, RS 170, RS 180, RS 220) are not compatible with the RS 175 and cannot be used.
Which rechargeable batteries can be used to operate the headphones?
The RS 175 headphone system is supplied complete with high-quality low self-discharge rechargeable batteries (AAA size, 1.2 V, 820 mAh). You can also use non-rechargeable AAA batteries. Note that if you are using non-rechargeable batteries, you must not place the headphones on the charging contacts of the transmitter’s headphone holder.
Why does the first charging cycle of the rechargeable batteries take longer?
The first charging cycle takes longer (up to 16 hours) because it is used to determine the maximum capacity of the rechargeable batteries. The intelligent battery charging technology charges the rechargeable batteries both effectively and gently. After initial charging, a complete charging cycle takes up to 8.5 hours. During charging, the Charge status LED on the transmitter lights up red. When the rechargeable batteries are fully charged, the Charge status LED lights up green.
Which input formats are supported by the digital optical audio input?
The wireless headphone system supports “PCM” or “stereo” audio signals. Surround sound formats are not supported. If an audio device/TV is connected to the digital optical input of the transmitter, set the audio format of the connected device to “PCM” or “stereo” by using the sound menu of the device.
Why are my TV’s internal loudspeakers muted when I connect the wireless headphone system using the analog cable?
This should only be the case if the RS 175 transmitter is connected to the (analog) headphone socket of your TV. Some TV models mute the internal loudspeakers as soon as a headphone jack is inserted. Check the menu of your TV to see if and how the internal loudspeakers can be unmuted. Alternatively, you can connect the transmitter using the audio connection "AUDIO OUT" or "DIGITAL OUT" (if available).
Can I use several headphones/receivers with one RS 175 transmitter?
You can use up to two HDR 165, HDR 175 or HDR 185 headphones with one transmitter. This allows, for example, you and your partner to listen at different volume levels. Individual headphones/receivers are available separately from your Sennheiser partner. When simultaneously using different types of headphones (e.g. an HDR 165 and an HDR 175), bear in mind that they will differ in both sound characteristics and operation.
Why is there reverb/echo when using the headphones with my TV?
When using the headphones with your TV and the TV sound is also reproduced through the TV’s internal loudspeakers, this can cause reverb/echo issues. To eliminate the reverb/echo effect, reduce the volume on your TV or check the audio output settings of your TV to see if you can reduce the "latency" or "delay" setting (recommended setting: "0" or "low").
What can I do if the volume is very low?
This should only be the case if the RS 175 transmitter is connected to the (analog) headphone socket of your TV/audio device. In this case, make sure that the volume of your TV/audio device or the volume of the headphone socket on your TV/audio device is adjusted to at least a medium level.
Are there special instructions for battery maintenance?
No, the transmitter’s intelligent battery charging technology ensures that the rechargeable batteries are always charged to their optimum capacity and the battery life span is maximized. When not using the wireless headphone system for extended periods of time (several months), it is recommended that you remove the rechargeable batteries and store them in a dry place at room temperature.
What does the green flashing of the transmitter’s charge status LED mean?
The flashing Charge status LED on the transmitter indicates the approximate operating time of the headphones:
What can I do if my wireless headphone system does not work properly?
Read the chapter "If a problem occurs ..." in the instruction manual, as it contains solutions to the most common issues and problems.
Which spare parts are available for my wireless headphone system?
Information on accessories and spare parts can be found on the product page in the section “Accessories”.
