Caracteristici principale
- Boxe perete/tavan
- Difuzoare: 1 x tweeter 2.5 cm, 1 x mid-woofer 11.5 cm
- Raspuns in frecventa: 38Hz-34kHz (+/-6dB)
- Sensibilitate (2,83V/1 m): 87dB ( 2.83V @ 1 m )
- Putere recomandata: 10 - 100 W
- Impedanta nominala: 8 Ohm
- Frecventa crossover: 1.7kHz
Link producător:
Greutate produs
Dimensiuni produs
Garanție (luni)
In-ceiling speakers

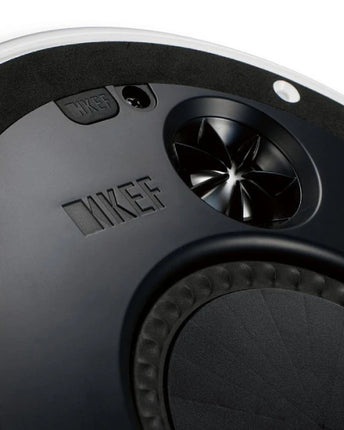

Features KEF’s patented Uni-Q driver array

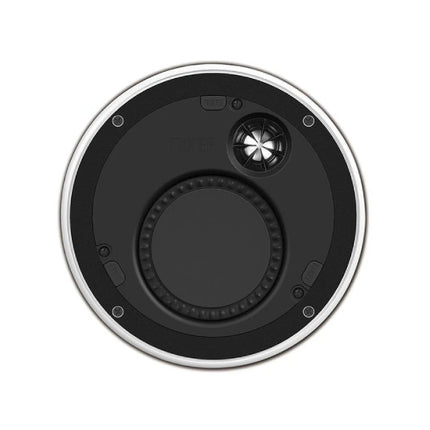

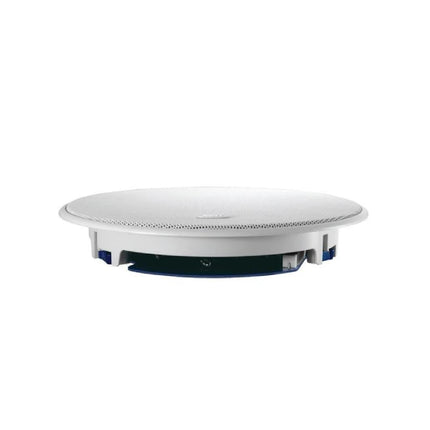

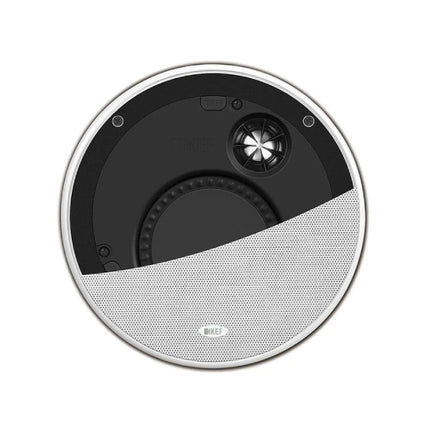

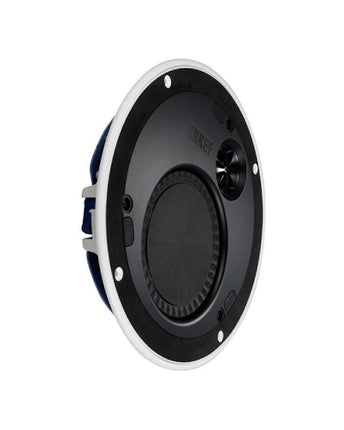

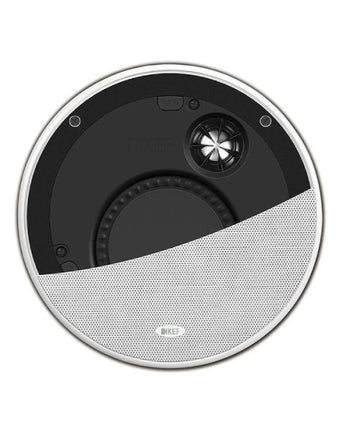

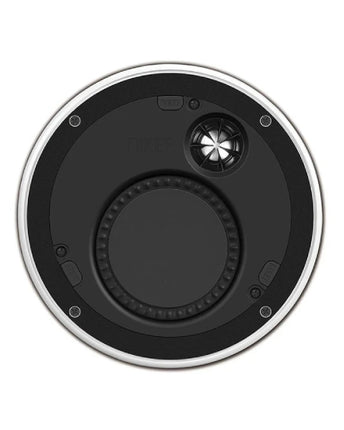

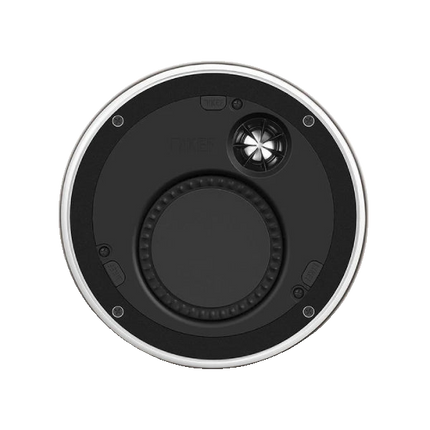

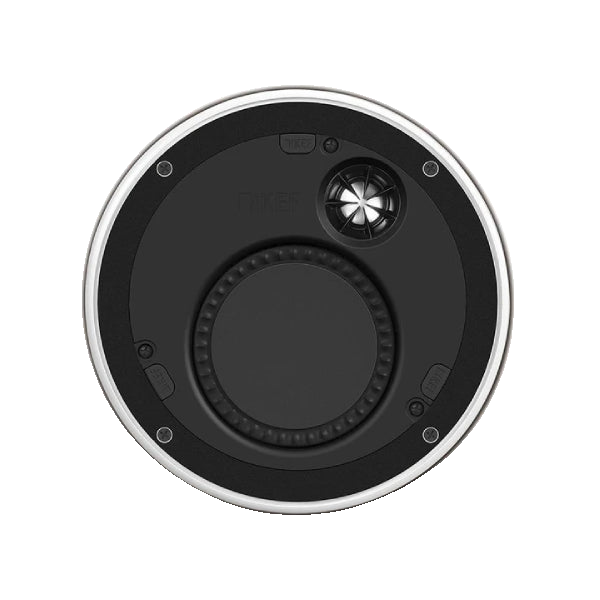

Ci160TR
Boasting the latest incarnation of our formidable 4.5in. mid/bass T Series driver and powerful 1in. tweeter, the ultra-slim new T Series Ci speakers open up new possibilities for enjoying KEF’s uncompromised sound quality where space above the ceiling is at a premium. Requiring less than 36mm of mounting depth, the Ci160TR fits snugly in very narrow ceiling spaces and is therefore specified for demanding applications such as today’s luxury high-rise apartments or your music system.
Technical Specifications
Nominal impedance: 8Ω
Sensitivity (2.83V/1m): 87dB
Frequency response (±6dB) open-backed: 110Hz - 24kHz
Nominal coverage: 160°
Max SPL: 101dB
Crossover frequency: 1.7kHz
Drive units:
LF 115mm (4.5in.) dual layer
MF -
HF 25mm (1in.)
Recommended amplifer power: 10-100W
Recommended high-pass flter: 70Hz
Product external dimensions: Diameter Ø 234.6mm (9.24in.); Depth 40mm (1.57in.)
Cut-out dimensions: Diameter Ø 196mm (7.71in.)
Mounting depth from surface: <36mm (1.42in.)
Net Weight: 1kg (2.2lbs)
