Boxe de podea DALI OPTICON 6 MK2

DALI Opticon 1 MK2

• Frequency Range: 62 - 25,000 Hz
• Sensitivity: 85 dB
• Nominal Impedance: 4 ohm
• Maximum SPL: 105 dB
• Recommended Amplifier Power: 25-100 Watt
• Crossover Frequency: 3,000 Hz
• Crossover Principle: 2-way
• High Frequency Driver: 1 x 29 mm soft dome
• Low Frequency Driver: 1 x 4¾”
• Enclosure Type: Bass reflex
• Bass Reflex Tuning Frequency: 60 Hz
• Connection Input(s): Single
• Recommended Placement: Stand/Shelf/Wall
• Recommended Distance from Rear Wall: 2 - 80 cm (1 - 32 inches)
• Dimensions (H x W x D): 261 x 152 x 231 mm (10.28 x 6.0 x 9.1 inches)
• Weight: 4.6 kg / 10.1 lb
• Included Accessories: Rubber feet, manual

DALI Opticon 2 MK2

• Frequency Range: 59 - 25,000 Hz
• Sensitivity: 86.5 dB
• Nominal Impedance: 4 ohm
• Maximum SPL: 107 dB
• Recommended Amplifier Power: 30-150 Watt
• Crossover Frequency: 2,000 Hz
• Crossover Principle: 2-way
• High Frequency Driver: 1 x 29 mm soft dome
• Low Frequency Driver: 1 x 6½”
• Enclosure Type: Bass reflex
• Bass Reflex Tuning Frequency: 46 Hz
• Connection Input(s): Single
• Recommended Placement: Stand/Shelf
• Recommended Distance from Rear Wall: 10 - 80 cm (4 - 32 inches)
• Dimensions (H x W x D): 351 x 195 x 297 mm (13.8 x 7.7 x 11.7 inches)
• Weight: 7.7 kg / 16.9 lb
• Included Accessories: Rubber feet, manual

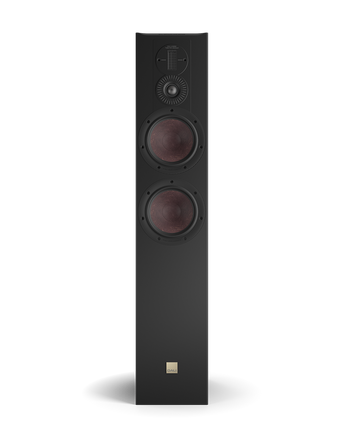

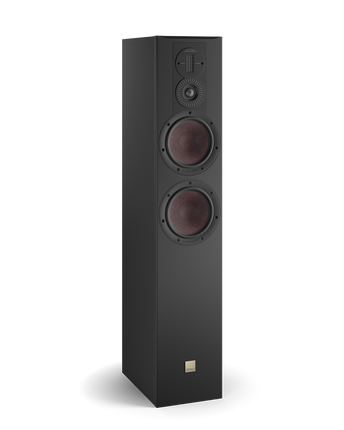

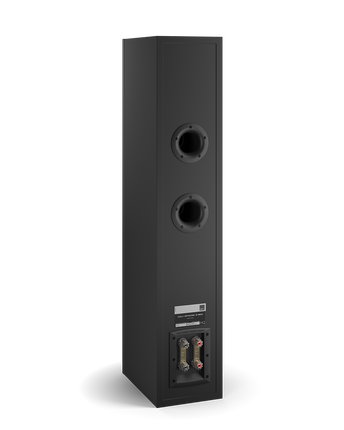

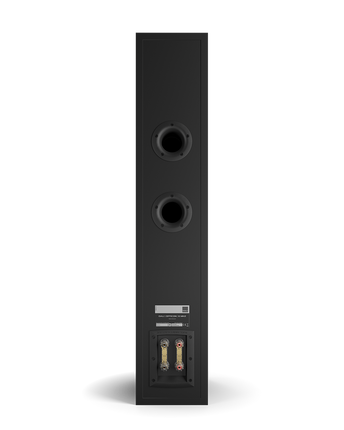

DALI Opticon 6 MK2

• Frequency Range: 49 - 30,000 Hz
• Sensitivity: 88 dB
• Nominal Impedance: 4 ohm
• Maximum SPL: 110 dB
• Recommended Amplifier Power: 25-200 Watt
• Crossover Frequency: 800 / 2,200 / 14,000 Hz
• Crossover Principle: 2½+½-way
• High Frequency Driver: 1 x 29 mm soft dome, 1 x 17 x 45 mm ribbon
• Low Frequency Driver: 2 x 6½”
• Enclosure Type: Bass reflex
• Bass Reflex Tuning Frequency: 43.5 Hz
• Connection Input(s): Bi-wire / Bi-amp
• Recommended Placement: Floor
• Recommended Distance from Rear Wall: 20 - 100 cm (8 - 39 inches)
• Dimensions (H x W x D): 1001 x 195 x 330 mm (39.4 x 7.7 x 13.0 inches)
• Weight: 13.3 kg / 42.5 lb
• Included Accessories: Spike set, rubber feet, manual

DALI Opticon 8 MK2

• Frequency Range: 38 - 30,000 Hz
• Sensitivity: 88.5 dB
• Nominal Impedance: 4 ohm
• Maximum SPL: 112 dB
• Recommended Amplifier Power: 40 - 300 Watt
• Crossover Frequency: 380 / 2,200 / 14,000 Hz
• Crossover Principle: 3+½-way
• High Frequency Driver: 1 x 29 mm soft dome, 1 x 17 x 45 mm ribbon
• Low Frequency Driver: 2 x 8”, 1 x 6½”
• Enclosure Type: Bass reflex (mid-range closed box)
• Bass Reflex Tuning Frequency: 29.5 Hz
• Connection Input(s): Bi-wire / Bi-amp
• Recommended Placement: Floor
• Recommended Distance from Rear Wall: 30 - 150 cm (12 - 59 inches)
• Dimensions (H x W x D): 1141 x 241 x 450 mm (44.9 x 9.5 x 18.1 inches)
• Weight: 34.0 kg / 74.9 lb
• Included Accessories: Spike set, rubber feet, manual

DALI Opticon LCR MK2

• Frequency Range: 70 - 30,000 Hz
• Sensitivity: 89 dB
• Nominal Impedance: 4 ohm
• Maximum SPL: 109 dB
• Recommended Amplifier Power: 30-150 Watt
• Crossover Frequency: 2,800 / 14,000 Hz
• Crossover Principle: 2+½-way
• High Frequency Driver: 1 x 29 mm soft dome, 1 x 17 x 45 mm ribbon
• Low Frequency Driver: 1 x 6½”
• Enclosure Type: Bass reflex
• Bass Reflex Tuning Frequency: 45 Hz
• Connection Input(s): Single
• Recommended Placement: On-wall/Shelf
• Recommended Distance from Rear Wall: 0 - 10 cm (0 - 4 inches)
• Dimensions (H x W x D): 482 x 285 x 128 mm (19 x 11.2 x 5 inches)
• Weight: 8.0 kg / 17.6 lb
• Included Accessories: Rubber feet, manual

DALI Opticon VOKAL MK2

• Frequency Range: 47 - 30,000 Hz
• Sensitivity: 88 dB
• Nominal Impedance: 4 ohm
• Maximum SPL: 109 dB
• Recommended Amplifier Power: 30-150 Watt
• Crossover Frequency: 2,400 / 14,000 Hz
• Crossover Principle: 2+½-way
• High Frequency Driver: 1 x 29 mm soft dome, 1 x 17 x 45 mm ribbon
• Low Frequency Driver: 1 x 6½”
• Enclosure Type: Bass reflex
• Bass Reflex Tuning Frequency: 44 Hz
• Connection Input(s): Single
• Recommended Placement: Shelf
• Recommended Distance from Rear Wall: 0 - 30 cm (0 - 12 inches)
• Dimensions (H x W x D): 201 x 435 x 312 mm (7.9 x 17.1 x 12.3 inches)
• Weight: 9.2 kg / 20.2 lb
• Included Accessories: Rubber feet, manual
