ELAC’s new Navis Series answers every minimalist audiophile’s dream of a no-compromise powered speaker driven by best-inclass amplifiers that are truly deserving of the name “high end.” While most powered speakers rely on Class D digital designs, ELAC engineers build in 300 watts of pure analog amplification— for maximum power and exceptional sound. Add the Discovery Connect wireless transmitter to your system, and Navis becomes a wireless speaker that lets you enjoy streaming content without a cable in sight.
Caracteristici principale
- powered floor-standing speaker
- three 5-1/4" aluminum woofers
- 4" aluminum midrange driver with concentrically mounted
- 1" soft-dome tweeter
- 300 total watts of amplification per speaker
- 160 watts total bass amplification (BASH amplifier)
- 100 watts to midrange driver (BASH amplifier)
- 40 watts to tweeter (pure Class AB amplifier)
- bass-reflex cabinet design with rear-firing ports
- frequency response: 43-28,000 Hz
- add ELAC Discovery Connect to wirelessly stream Spotify® Connect, Bluetooth®, Apple® AirPlay and Roon
- three EQ switches for adjusting low-frequency, mid -frequency and high-frequency response on the back of each speaker
- switchable high-pass filter: flat, 60 Hz, or 80 Hz
- Inputs:
- one unbalanced RCA input
- one balanced XLR input
- switch for selecting RCA, XLR, or wireless input
- selectable high/low input gain
Link producător:
Greutate produs
Dimensiuni produs
Alte specificații
Tip incinta: 3 cai, bass reflex
Tweeter concentric: 1 x 1 inch Soft Dome
Midrange: 1 x 4 inch aluminiu
Woofer: 3 x 5-1/4 inch aluminiu
Frecventa crossover: 260 Hz / 2200 Hz
Raspuns in frecventa: 43 Hz - 28 kHz
Putere totala amplificator: 300 W
Amplificator bass: 160 W, Bash
Amplificator Midrange: 100 W, Bash
Amplificator Tweeter: 40 W, clasa AB
Intrări: RCA / XLR / AirX² Wireless
Finisaje incinta: Black High Gloss / White High Gloss
Garanție (luni)

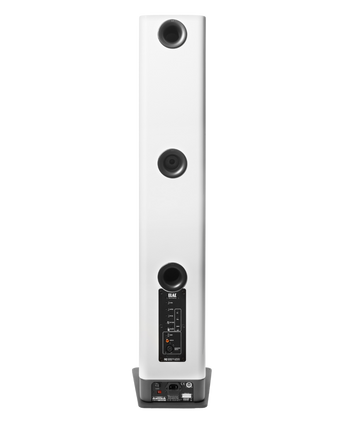

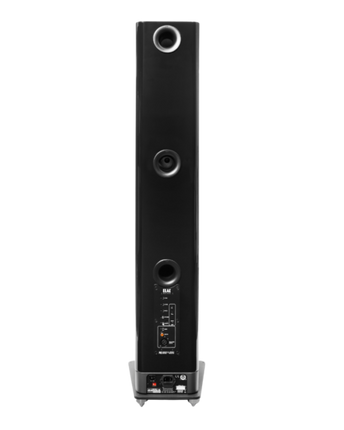

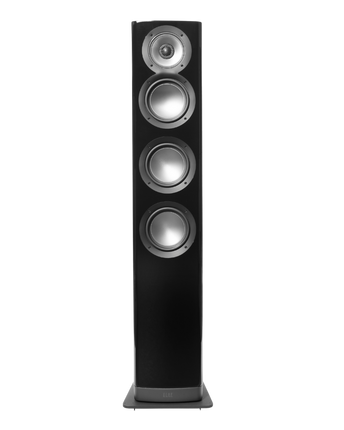

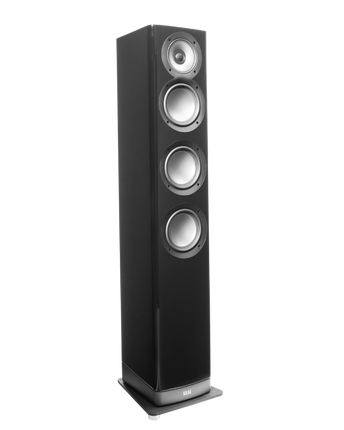

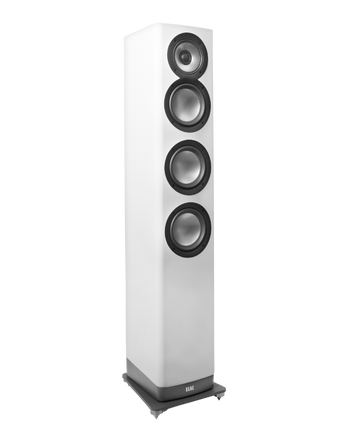

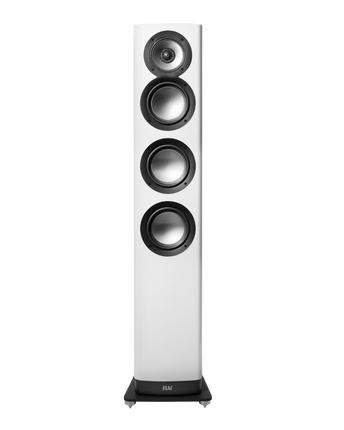

Sublime sound served up with serious power. | ELAC Navis ARF51 Powered Floorstanding Speaker
Powerful Trifecta
Inside each Navis Bookshelf Loudspeaker is a Tri-Amp Pure Analog Amplifier, employing three separate amps for each transducer: a 160-watt BASH AB amplifier for the woofer, a 100-watt BASH AB amplifier for the midrange, and a 40-watt Class AB amplifier for the tweeter. A total amplifier power of 300 watts ensures that each transducer is optimally—and amply—powered, eliminating clipping and crossover distortion, and driving each transducer with authority. Specs like a 110 dBA signal-to-noise ratio and 100 uV noise floor could only come from such audiophile-quality amps!
All New Custom Designed Midrange/Tweeter
One reason the Navis sounds so natural is because of its in-house developed transducer, a 4-inch aluminum midrange driver with a concentrically mounted 1-inch soft-dome tweeter.
Combined, this signature configuration lets Navis set the
performance standard for its class.
Flexible Connections
Local inputs include balanced XLR, RCA and Wireless, when used with ELAC’s Discovery Connect wireless transmitter to stream Discovery, Spotify Connect, Bluetooth, AirPlay and Roon. Just switch Wireless “Off” for a no-compromise analog input and output.
Technical Specifications
Speaker type: 3-Way Powered
Tweeter: 1″ Soft Dome Concentrically Mounted
Midrange: 4″ Aluminum
Woofer: 3 x 5-1/4″ Aluminum
Frequency Response: 43Hz – 28kHz
Crossover Frequency: 2.2kHz / 260Hz
Total Amplifier Power: 300 Watts Total
Bass Amplifier: 160 Watt Bash Amplifier
Midrange Amplifier: 100 Watt Bash Amplifier
Tweeter Amplifier: 40 Watt Class AB Amplifier
Inputs: RCA / XLR / AirX² Wireless
Cabinet finishes: Gloss Black, Gloss White
Height: 40.35″
Width: 7.44″
Depth: 9.45″
Net weight (each): 46.3lbs
