Finally, a no-compromise solution for a total surround-sound system when space is at a premium and performance is top of mind. The compact proportions of the Debut OW4.2 make installation on side or rear walls a breeze. Bring huge dimensionality to your system with a speaker that makes itself heard but barely seen.
Caracteristici principale
- slim design for use as wall-mounted side or rear surround speakers
- 1" silk dome tweeter with wide-dispersion waveguide for smooth, accurate highs and extended high-frequency response
- 4" aramid-fiber woofer with oversized magnet for punchy midrange
- frequency response: 70-35,000 Hz
- sensitivity: 87 dB
- impedance: 6 ohms
- recommended amplifier power: up to 80 watts
- bass reflex cabinet with bottom-firing port
- custom multi-element crossover with high-grade components to ensure smooth transition between drivers

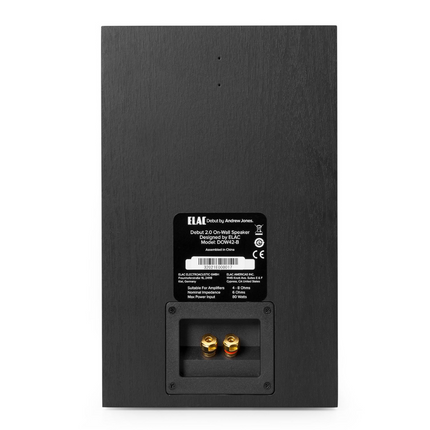

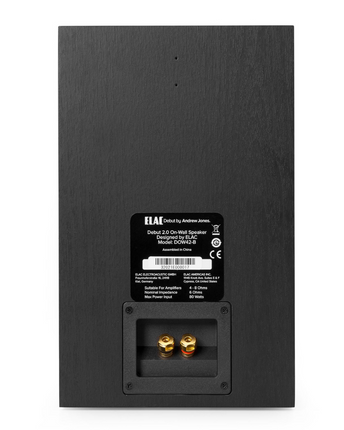

- 5-way binding post speaker terminals
- thick MDF cabinet walls with black ash vinyl finish
Link producător:
Greutate produs
Dimensiuni produs
Alte specificații
Tip incinta: 2 cai, bass reflex
Raspuns in frecventa: 70 Hz – 35000 Hz
Impedanta nominala: 6 Ohm
Sensibilitate: 87 db @2.83v/1m
Frecventa crossover: 2500 Hz
Putere maxima de intrare: 80 W
Tweeter: 1″ cloth dome
Woofer: 4″ fibra aramidica
Material incinta: MDF clasificat CARB2
Finisaj incinta: Black Ash Vinyl
Port: Dublu evazat
Stalpi obligatorii: 5-cai, metal
Garanție (luni)

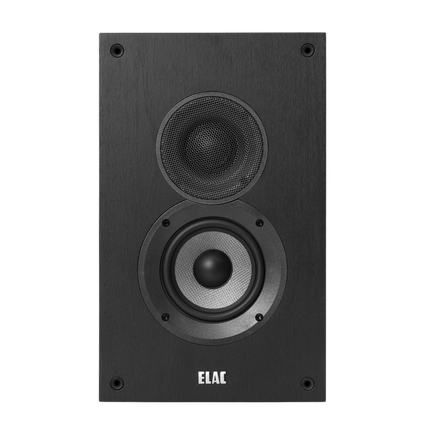

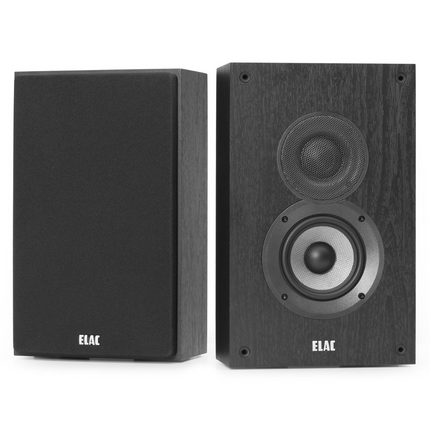

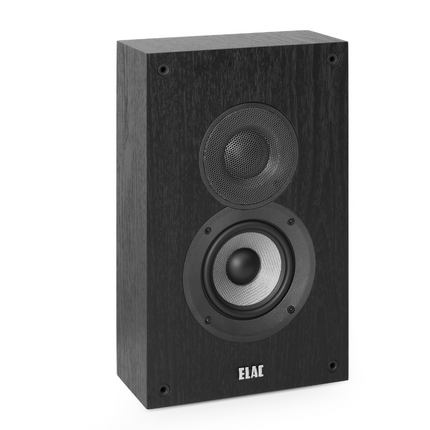

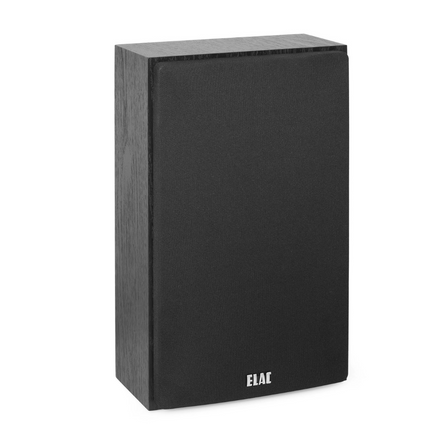

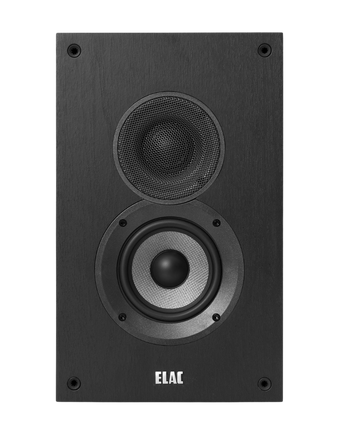

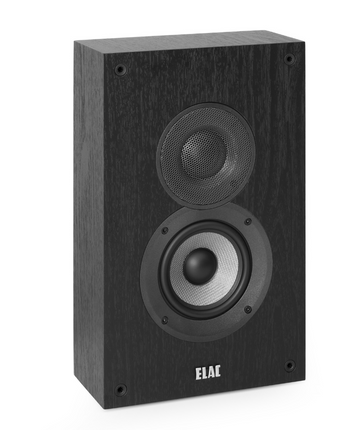

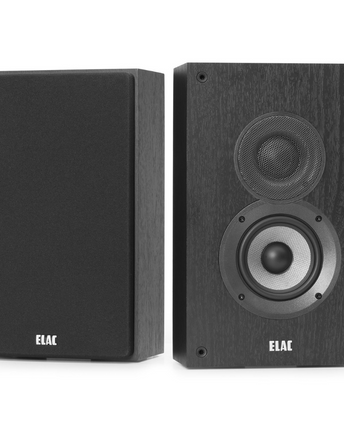

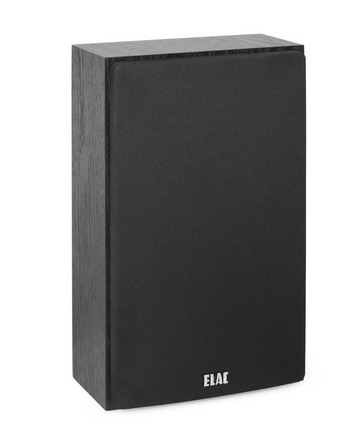

ELAC Debut 2.0 OW4.2 On-Wall Speakers DOW42
New Tweeter with Wide-Dispersion Waveguide
A NEW soft-dome tweeter features a wide-roll surround and takes response up to 35,000 Hz for even more lifelike high frequencies. The waveguide improves directivity control and eliminates the diffraction modes inherent in traditional box enclosures.
New Woven Aramid-Fiber Woofer
The REVISED shape of the aramid cone offers even greater stiffness and damping, far superior to polypropylene or paper. The added strength allows more flexibility in design to achieve a smoother, extended low-frequency response.
New Cabinets with Easier Placement
THICK MDF cabinets with a luxurious black ash vinyl finish are larger, and internally braced for greater stiffness and strength, greatly reducing cabinet vibrations which cause unwanted coloration. On the Bookshelf and Center Channel, moving the bass port to the front of the cabinet means placement against walls or in bookshelves won’t compromise performance.
Optimized Center Speakers
Recognizing that in a multi-channel system the majority of sound comes through the center speaker, we have optimized sensitivity and impedance to minimize the power requirement from the AV receiver, maximizing dynamic impact from lower cost receivers.
Technical Specifications
Enclosure Type: 2 – Way Bass Reflex
Frequency Response: 70Hz – 35000Hz
Nominal Impedance: 6 Ohms
Sensitivity: 87db @2.83v/1m
Crossover Frequency: 2500Hz
Max Power Input: 80 Watts
Tweeter: 1″ Cloth Dome
Woofer: 4″ Aramid Fiber
Cabinet: CARB2 Rated MDF
Cabinet Finish: Black Ash Vinyl
Port: Dual Flared
Binding Posts: 5 – Way Metal
Dimensions (WxHxD): 7.87″ x 12.76″ x 3.94″
