Caracteristici principale
- Boxa de centru, design pe 2 cai, bas-reflex
- Difuzoare: 1x ø25mm tweeter - titanium; 2x ø130mm difuzor mid-bass continuum
- Raspuns in frecventa: 72Hz - 28kHz ±3dB
- Sensibilitate: 87dB
- Impedanta nominala: 8Ω (minimum 4.3Ω)
- Amplificare recomandata: 30W - 120W în 8Ω
Link producător:
Garanție (luni)

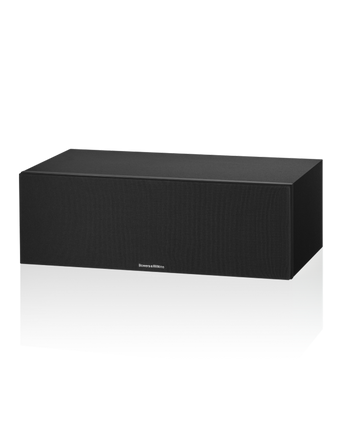

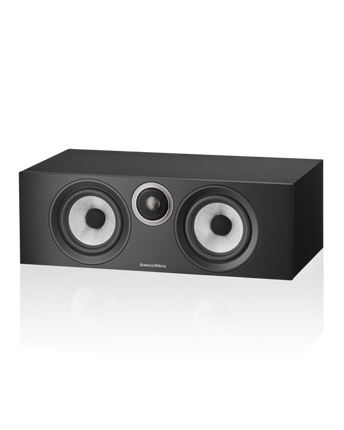

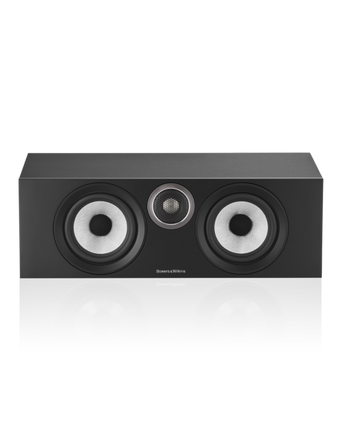

HTM6 S3
Center channel speaker
Celebrate clarity
Truly amazing sound
Layered, beautiful details
Precision and transparency

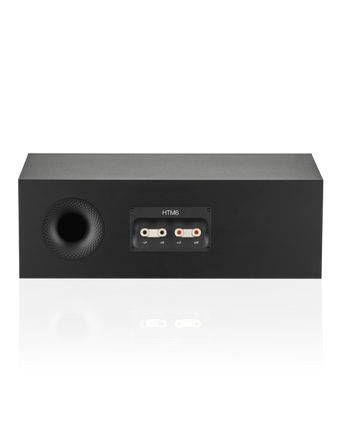

Upgraded speaker terminals
Technical Specifications
Technical features:
Decoupled Double Dome Titanium tweeter
Continuum™ cone bass / midrange
Flowport™
Description: 2-way vented-box system
Drive units:
1x ø25mm (1 in) Titanium Dome high-frequency
2x ø130mm (5 in) Continuum cone bass / midrange
Frequency range: -6dB 42Hz - 33kHz
Frequency response (+/-3dB from reference axis): 72Hz - 28kHz ±3dB
Sensitivity (on axis at 2.83Vrms at 1m): 87dB
Harmonic distortion:
2nd and 3rd harmonics (90dB, 1m on axis)
<1% 100Hz - 22kHz
<0.5% 120Hz - 12kHz
Nominal impedance: 8Ω (minimum 4.3Ω)
Recommended amplifier power: 30W - 120W into 8Ω on unclipped programme
Max. recommended cable impedance: 0.1Ω
Dimensions:
Height: 160 mm (6.3 in) cabinet only
Width: 480 mm (18.9 in) cabinet only
Depth:255 mm (10 in) cabinet only; 283 mm (11.2 in) including grille and terminals
Net weight: 7.7kg (17.0lbs)
