Caracteristici principale
- Description: 2-way vented-box system
- Drive units:
- 1x ø25mm (1in) Diamond Dome high-frequency
- 1x ø165mm (6.5in) Continuum™ cone bass/midrange
- Frequency response: 42Hz to 28kHz ±3dB
- Sensitivity: 88dB spl (2.83Vrms, 1m)
- Recommended amplifier power: 50W - 120W into 8Ω on unclipped programme
Link producător:
Garanție (luni)

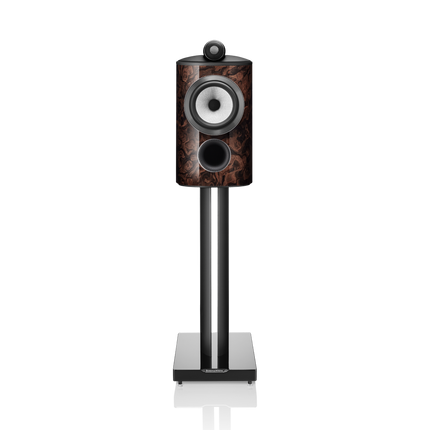

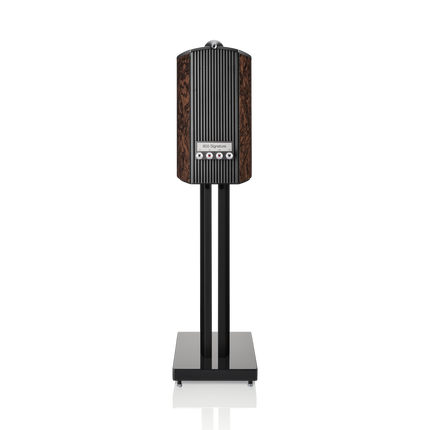

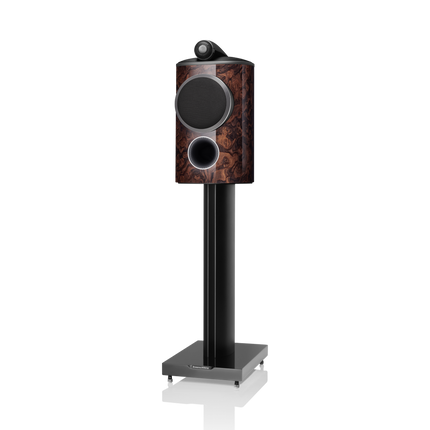

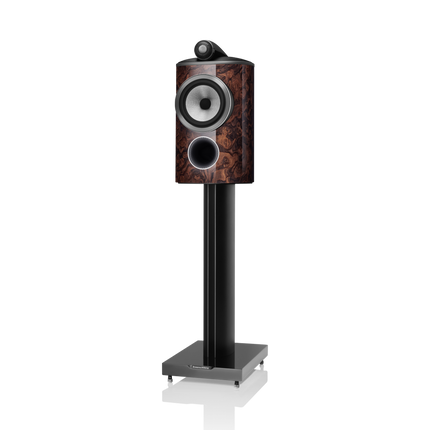

805 D4 Signature
Stand-mount speaker
Compact and powerful
Diamond Dome tweeter
All-new tweeter grille
Upgraded crossover
Continuum™ Cone
Technical Specifications
Technical features:
Diamond tweeter
Solid Body Tweeter-on-Top
Continuum™ cone bass/midrange
Matrix™
Anti-Resonance plug
Flowport™
Description: 2-way vented-box system
Drive units:
1x ø25mm (1in) Diamond Dome high-frequency
1x ø165mm (6.5in) Continuum™ cone bass/midrange
Frequency range: -6dB 34Hz to 35kHz
Harmonic distortion:
2nd and 3rd harmonics (90dB, 1m on axis)
<1 % 90Hz - 20kHz
<0.3% 120Hz - 20kHz
Nominal impedance: 8Ω (minimum 4.6Ω)
Recommended amplifier power: 50W - 120W into 8Ω on unclipped programme
Max recommended cable impedance: 0.1Ω
Frequency response: 42Hz to 28kHz ±3dB
Sensitivity: 88dB spl (2.83Vrms, 1m)
Dimensions:
Height: 440mm (17.3in)
Width: 240mm (9.4in)
Depth: 373mm (14.7in)
Net weight: 15.55kg (34.3 lb)
