Caracteristici principale
- Description: 3-way vented-box system
- Drive units:
- 1x ø25mm (1in) Diamond Dome high-frequency
- 1x ø150mm (6in) Continuum™ cone FST™ midrange
- 2x ø250mm (10in) Aerofoil™ Profile bass
- Frequency response: 15Hz - 28kHz ±3dB
- Sensitivity: 90dB spl (2.83Vrms, 1m)
- Recommended amplifier power: 50W - 1,000W into 8Ω on unclipped programme
Link producător:
Garanție (luni)

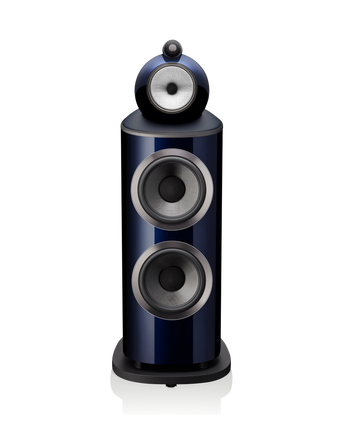

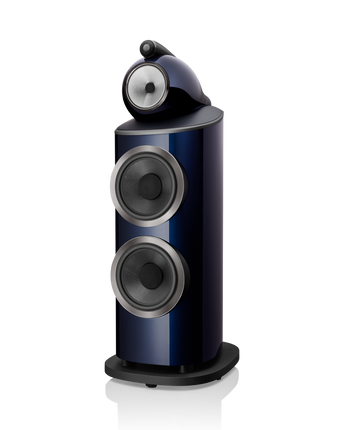

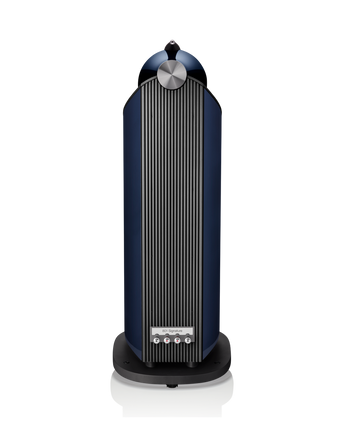

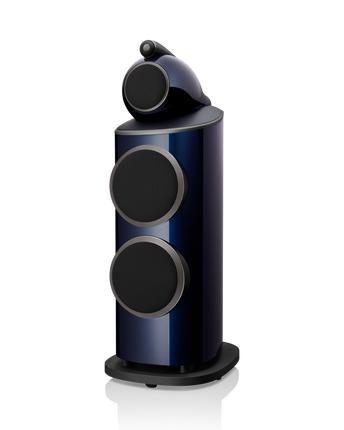

801 D4 Signature
Tower speaker
Optimized for perfection
Diamond Dome tweeter
Solid Body Tweeter
Upgraded crossover
Aluminum top-plate
Technical Specifications
Technical features:
Diamond tweeter
Solid Body Tweeter-on-Top
Continuum™ cone FST™ midrange
Anti-Resonance plug
Biomimetic Suspension
Turbine Head
Matrix™
Aerofoil™ Profile bass cones
Flowport™
Description: 3-way vented-box system
Drive units:
1x ø25mm (1in) Diamond Dome high-frequency
1x ø150mm (6in) Continuum™ cone FST™ midrange
2x ø250mm (10in) Aerofoil™ Profile bass
Frequency range: -6dB 13Hz - 35kHz
Frequency response (+/-3dB from reference axis): 15Hz - 28kHz ±3dB
Sensitivity (on axis at 2.83Vrms at 1m): 90dB
Harmonic distortion:
2nd and 3rd harmonics (90dB,1m on axis)
<1% 30Hz – 20kHz
<0.3% 100Hz – 20kHz
Nominal impedance: 8Ω (minimum 3.0Ω)
Recommended amplifier power: 50W - 1,000W into 8Ω on unclipped programme
Max. recommended cable impedance: 0.1Ω
Dimensions:
Height: 1221mm (48.1in)
Width: 451mm (17.8in)
Depth: 600mm (23.6in)
Net weight: 100.6kg (221.8lbs)
