Caracteristici principale
- Decoupled Carbon Dome tweeter
- Solid Body Tweeter-on-Top
- Continuum cone bass / midrange
- Flowport™
- Frequency response: 50Hz - 28kHz ±3dB
- Sensitivity: 88dB spl (2.83Vrms, 1m)
- Recommended amplifier power: 30W - 300W into 8Ω on unclipped programme

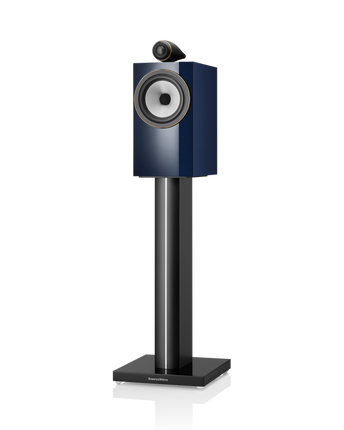

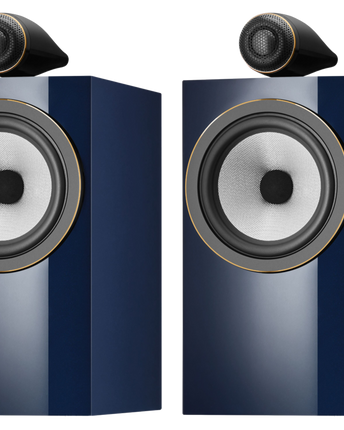

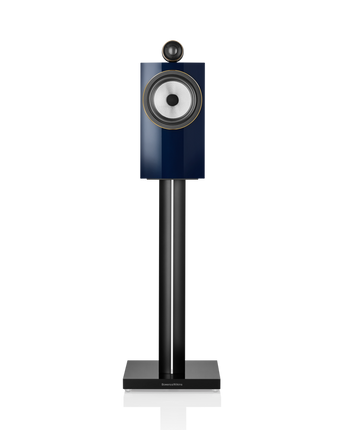

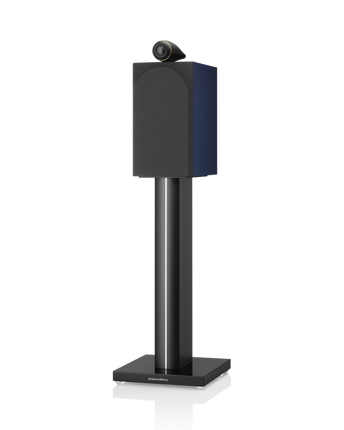

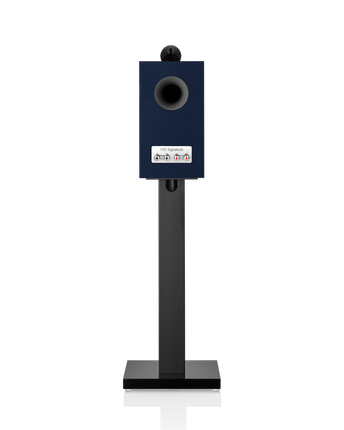

705 S3 Signature
Stand-mount speaker
Crafted. Honed. Perfected.
Technical Specifications
Drive units:
1x ø25mm (1in) Decoupled Carbon Dome high-frequency
1x ø165mm (6.5in) Continuum cone bass / midrange
Frequency range: -6dB 45Hz - 33kHz
Frequency response: 50Hz - 28kHz ±3dB
Harmonic distortion:
2nd and 3rd harmonics (90dB, 1m on axis)
<1% 100Hz - 22kHz
<0.5% 150Hz - 20kHz
Nominal impedance: 8Ω (minimum 3.7Ω)
Recommended amplifier power: 30W - 120W into 8Ω on unclipped programme
Sensitivity: 88dB spl (2.83Vrms, 1m)
Technical features:
Decoupled Carbon Dome tweeter
Solid Body Tweeter-on-Top
Continuum™ cone bass / midrange
Flowport™
Description: 2-way vented-box system
Max recommended cable impedance: 0.1Ω
Dimensions:
Height: 345mm cabinet only; 413mm including tweeter
Width: 192mm cabinet only
Depth: 297mm cabinet only; 337mm including grille and terminals
Net weight: 10.85kg
