The 702 S3 Signature takes our state-of-the-art flagship 700 Series floorstanding loudspeaker and evolves it to deliver unparalleled levels of performance.
Descriere
Caracteristici principale
- Decoupled Carbon Dome tweeter
- Solid Body Tweeter-on-Top
- Continuum "cone FST" midrange
- Decoupled midrange
- Aerofoil™ Profile bass cones
- Flowport™
- Frequency response: 46Hz - 28kHz ±3dB
- Sensitivity: 90dB spl (2.83Vrms, 1m)
- Recommended amplifier power: 30W - 300W into 8Ω on unclipped programme

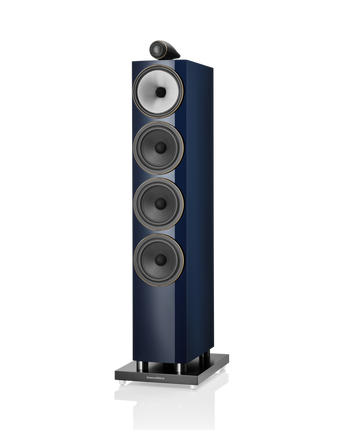

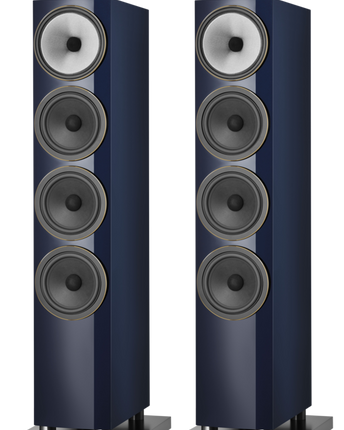

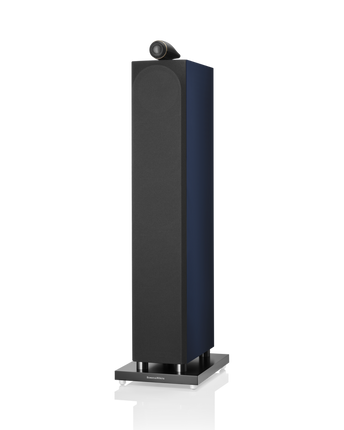

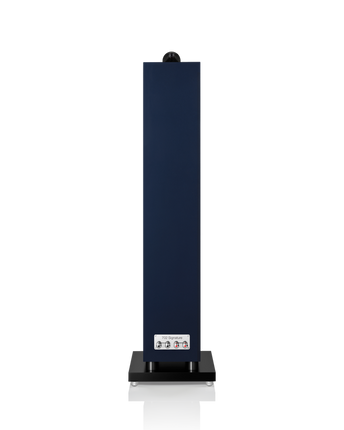

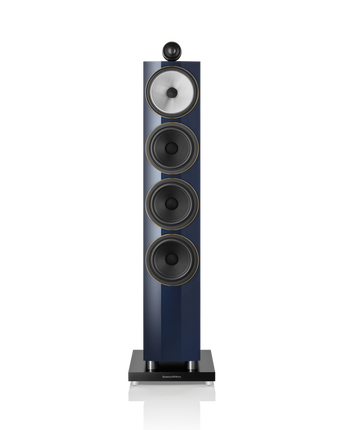

702 S3 Signature
Floorstanding speaker
Crafted. Honed. Perfected.
Technical Specifications
Drive units:
1x ø25mm (1 in) Decoupled Carbon Dome high-frequency
1x ø150mm (6 in) Continuum cone FST midrange
3x ø165mm (6.5 in) Aerofoil Profile bass
Frequency range: -6dB 28Hz - 33kHz
Frequency response: 46Hz - 28kHz ±3dB
Harmonic distortion:
2nd and 3rd harmonics (90dB, 1m on axis)
<1% 86Hz - 28kHz
<0.5% 110Hz - 20kHz
Nominal impedance: 8Ω (minimum 3.1Ω)
Recommended amplifier power: 30W - 300W into 8Ω on unclipped programme
Sensitivity: 90dB spl (2.83Vrms, 1m)
Technical features:
Decoupled Carbon Dome tweeter
Solid Body Tweeter-on-Top
Continuum™ cone FST™ midrange
Decoupled midrange
Aerofoil™ Profile bass cones
Flowport™
Description: 3-way vented-box system
Max recommended cable impedance: 0.1Ω
Dimensions:
Height: 1010mm cabinet only; 1138mm including tweeter and plinth
Width: 192mm cabinet only; 290mm including plinth
Depth: 354mm cabinet only; 391mm including grille and terminals; 410mm including plinth
Net weight: 39.5kg
