Caracteristici principale
- Boxa de raft, design pe 2 cai, bas-reflex
- Difuzoare: 1x ø25mm tweeter - titanium; 1x ø165mm difuzor mid-bass continuum
- Raspuns in frecventa: 52Hz - 28kHz ±3dB
- Sensibilitate: 88dB
- Impedanta nominala: 8Ω (minimum 3.7Ω)
- Amplificare recomandata: 30W - 120W în 8Ω
Link producător:
Garanție (luni)

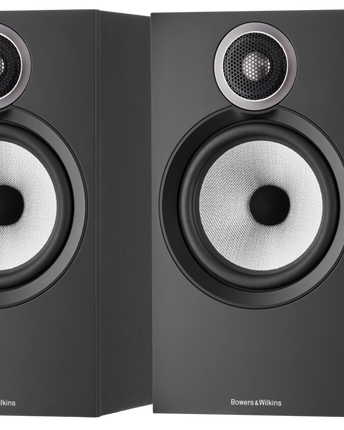

606 S3
An icon enhanced
Layered, beautiful details
Truly amazing sound
Precision and transparency
Upgraded speaker terminals
Technical Specifications
Technical features:
Decoupled Double Dome Titanium tweeter
Continuum™ cone bass / midrange
Flowport™
Description: 2-way vented-box system
Drive units:
1x ø25mm (1 in) Titanium Dome high-frequency
1x ø165mm (6.5 in) Continuum cone bass / midrange
Frequency range: -6dB 40Hz - 33kHz
Frequency response (+/-3dB from reference axis): 52Hz - 28kHz ±3dB
Sensitivity (on axis at 2.83Vrms at 1m): 88dB
Harmonic distortion 2nd and 3rd harmonics (90dB, 1m on axis):
<1% 100Hz - 22kHz
<0.5% 150Hz - 12kHz
Nominal impedance: 8Ω (minimum 3.7Ω)
Recommended amplifier power: 30W - 120W into 8Ω on unclipped programme
Max. recommended cable impedance: 0.1Ω
Dimensions:
Height: 344 mm (13.6 in) cabinet only
Width: 189 mm (7.4 in) cabinet only
Depth: 300 mm (11.8 in) cabinet only; 328 mm (12.9 in) including grille and terminals
Net weight: 7.05kg (15.5lbs)
