Specifications
Loudspeakers:
1x Tweeter aluminium dome (new-gen)
1x Medium aluminium dome (new-gen)
2x Woofers ABS dome (new-gen)
Processor: SoC NXP i.MX 8M Nano 4 x 1.5 GHz
Side Plating:
Body: ultra-mate painting - RAL 9016

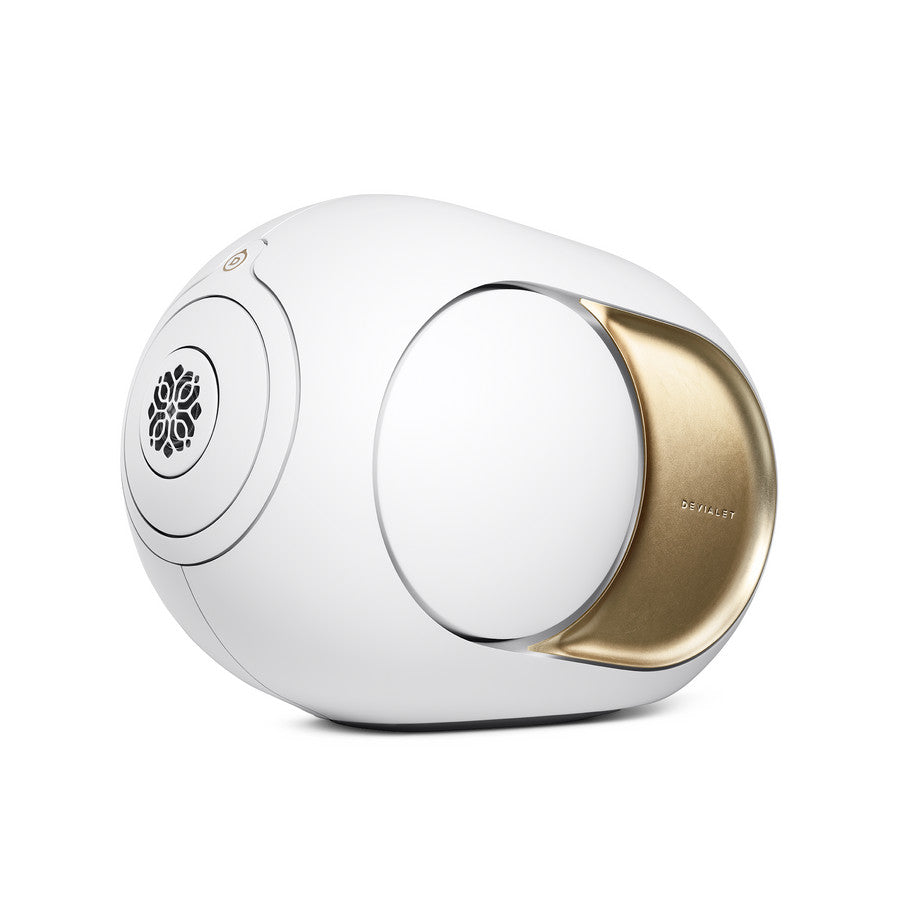

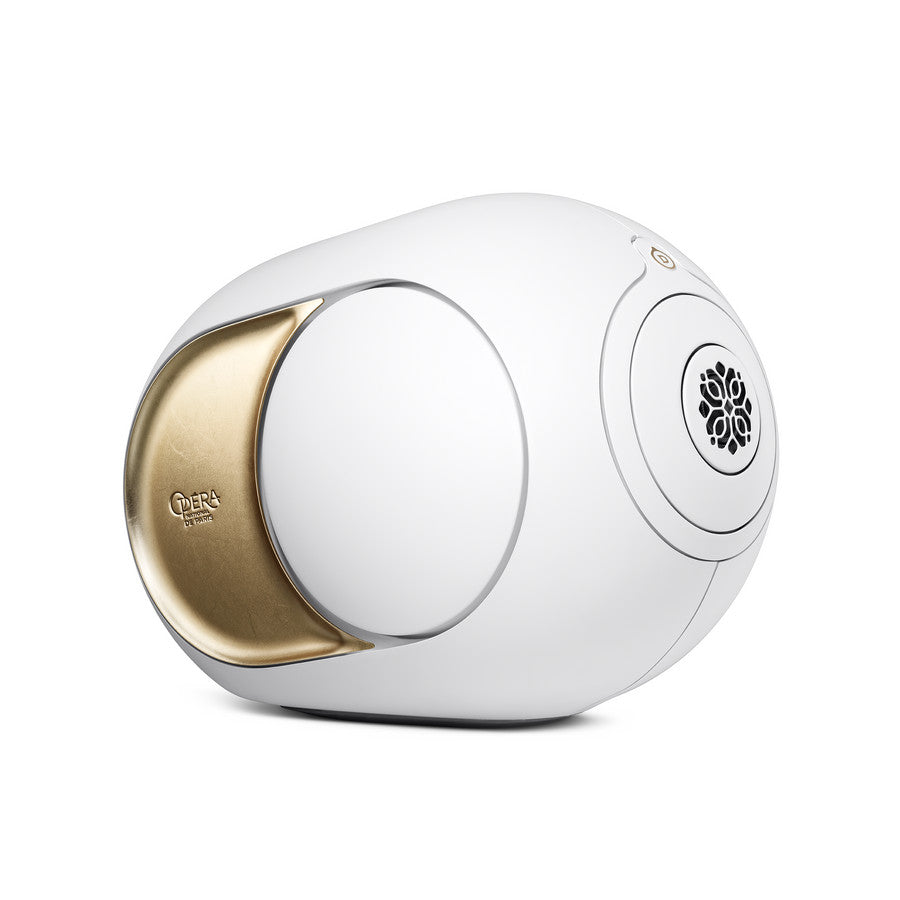

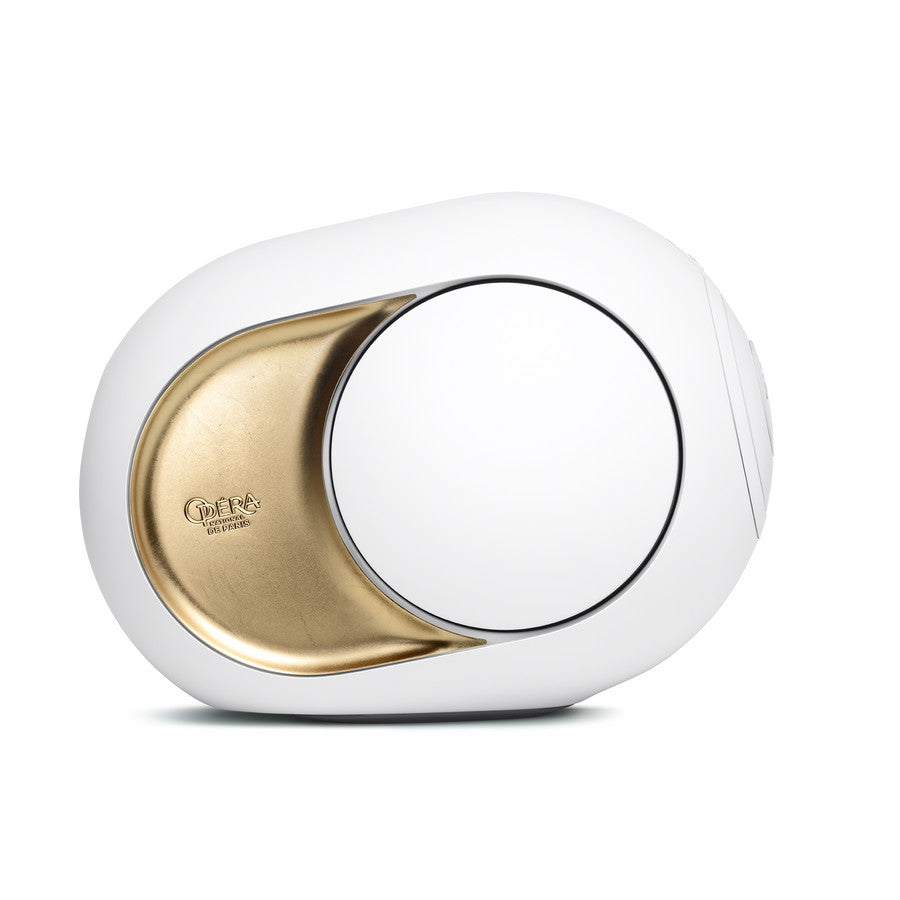

Side panels: Gold leaf gilding - Moon Gold - Ateliers Gohard
Power Supply: 100-240 V~50/60Hz
Exclusive technologies:
ADH® next-gen, SAM®, HBI®, AVL™, DAC Magic Wire®, Devialet ASIC, Devialet Operating System DOS 3
Dimensions & Weights
Dimension:
Speaker: Width: 246 mm / 9.7 in | Depth: 342 mm / 13.5 in | Height: 255 mm / 9.7 in
Packaging: Width: 287 mm / 11.3 in | Depth: 446 mm / 17.6 in | Height: 280 mm / 11.0 in
Weight:
Speaker 11.1 kg / 24.5 lbs
Packaging : 12.3 kg / 27.1 lbs
Performances
Maximum Sound Level: 108 dB SPL @ 1m
Total amplification power: 1100W
Frequency response (bandwidth): 14 Hz - 35 kHz (+/- 6 dB)
